Horses of Iron

[Lock]

Of course, we all know that the Act of Parliament was aimed at traction engines, steam rollers, and such like noisy but useful monstrosities, and not at the useful and natty tricycle or any other form of velocipede driven by electricity. The Court of Queen's Bench, however, in their wisdom have decided that tricycles driven by other than animal power do come within the meaning of the Act, and that any person using one except in compliance with the provisions thereof is liable to a penalty not exceeding <£10.

Still fighting this, 130 years later...

Lock

[Lock]

Have to chuckle at this "steampunk" zine, the "Electric Velocipede"... first issue here:
http://www.electricvelocipede.com/htm/issue_one.htm

... with a cover pic of Copeland and his STEAM machine:

[Lock]

Otago Witness, August 1900:


Charles " Mile-a-Minute " Murphy, has equipped his bicycle with a decided novelty. It consists of an electric storage battery, the switch being fastened to the steering head, and the wires covering the handle-bars and connecting with a storage battery at the rear of the saddle post. By grasping the wires Murphy claims a sufficient shock is given his arms to penetrate his whole body and give him a sense of renewed activity when needed in a spurt. If the idea should be generally adopted (remarks a contemporary) we should have to add a new set of " shocking " records to the books.

Somebuddy get this man a pack of LiPos!

LocK

[Lock]

Kinda chuckling at this design from 2008 by Israeli designer Amir Glinik (http://3d-files.co.il/Glinik_American_Bike_Virtual_Show.htm, seen here for example:
http://news.motorbiker.org/blogs.nsf/dx/if-ferrari-were-to-make-motorcycles-this-would-be-it.htm


...compared to the Majestic 500:


...from 1929


LoCk

[Lock]

http://www.wired.com/autopia/2009/06/help-me-honda/

After cannibalizing his girlfriend’s bike for parts, filleting the frame with a Sawzall and installing electric motors and batteries, Santa Cruz handyman Geoff Bjorgan successfully converted a 1986 Honda motorcycle into an electric, pedal-assist bike.

[thewmatusmoloki]

Cool headlight

[sk8norcal]

http://www.youtube.com/user/gurgaon22

[Lock]

Hehe... In the end of days, when economies have collapsed and we can't get our fancy chemical batteries for ebikes any more, that guy will still be motoring around...

Here is an interview reprinted in The Kansas City Journal February 22, 1897:

A NEW LIGHT 0N ELECTRICITY.

A chat with Professor Ayrton, F.R.S.
From Cassell's Saturday Journal.

Electricity is in the air, and half the world seems to be electrically mad. Since the debut of the motor car, almost every topic of conversation - North, South, East and West has had some reference to electricity. Prophets have arisen, and if they do not belie their name, we are going to have electricity in everything. Electric boots to propel our legs, electrical clothes
dusting machines, dummy servants run by electricity - these are a few of the devices which are promised us.

There is some danger, however, in our expecting too much from the mystic current, and when I wrote to Professor Ayrton, the celebrated scientific expert, requesting an interview with him, I had it in my mind to ask him for some definite information on the subject of the uses of
electricity. Professor Ayrton most kindly acceded to my suggestion, and with rare good nature permitted me to question him for a full hour.

"What electricity is going to do depends on a variety of circumstances," the professor replied, in answer to a question as to the future of electricity. "That it appeals more successfully to the public than it did some years ago admits of no doubt. But the progress of electricity has been retarded to an enormous extent by the vast sums which were wasted at the commencement of the enterprise. Many bogus companies with wholly impossible schemes,
with which it was never intended to do any real work, were foisted on ths public, who were robbed wholesale. Then the reaction followed; people regarded electricity with disfavor, and nothing was done for a time. However, the great thing is, we are going ahead at last."

"A lot of people are going about just now advising us to cook our meals by electricity. Do you advise us to respond to their honeyed pleadings, professor?"

"Electricity has no future for cooking, unless it be for very occasional purposes. There are, of course, all sorts of electric appliances for heating water, grilling chops, etc., but none of them is likely to come into general use under present conditions. Some time ago, I made various
experiments with the object of ascertaining the cost of heating water by electricity as compared with that of heating water by gas. Now, the cost of electrical energy, as everyone knows, is from sixpence to eightpence per board of trade unit, which is about the same as one horse-power exerted for eighty minutes. No company in London can legally charge more than eightpence per unit, and in many districts the maximum charge is made. Well, for the purposes of my experiments, I took the cost of the board of trade unit at the low figure of fourpence, and the price of gas at half a crown per thousand cubic feet, and I found that it costs twenty-five times as much to keep water boiling by electricity in an ordinary electrlc kettle as it does by gas - and this, it must be remembered, when fourpence only is charged per unit, a price which has hitherto been almost unheard of in London."

"Then it won't pay to use electricity for any domestic purpose save lighting?"

"Well, not at any rate for general cooking, for if you get the energy at fourpence per board of trade unit, it wouldn't pay you to run your kitchen fire electrically as a regular thing. There are, however, one or two cases where the convenience is so great that for intermittent warming it might be worth while to employ electricity. If a man did not care to have gas in his
room, for instance, he might use electricity for heating shaving water, or a lady might prefer an electric kettle on her tea table to one heated with a spirit lamp. Although the electricity would be more expensive than gas, the whole cost would be so small that few would probably mind paying it. But when you have continuous heating electricity under existing conditions, it is hopeless. "

"I have said." the professor continued, "that to run kitchen fires by electricity would be too expensive; but there is just one other exception which is worth mentioning. When you have a waterfall close at hand, your conditions are favorable to the use of electricity. In this contingency you are not called upon to burn coal. Imagine a hotel near a waterfall, the power of which is running to waste all day. In a case of this kind it might pay you to warm that house electrically. There is the power at hand - you get it free of cost. If you pay nothing for the power you need not mind how lavish you are. You may take it from me that there is no
chance at present of producing heat for domestic purposes economically by electricity."

"What, then, is electricity going to do for us in the near future?"

"What we shall get in the immediate future are underground electric railways. Quite a number of these have already been proposed, and we may look for their development at no great distant date. Electric traction is going to be the big thing. You will scarcely credit it, but there are only eleven electric lines in the United Kingdom at the present time. In the United States there are 10,000 miles of electric tram lines, and up till very recently there were more electric tramways in the city of Montreal than in all France and Germany. This is partly accounted for by the fact that people in our large towns will not stand the overhead trolley wires, and because other systems of laying down electric cables along the lines are so expensive. Now, however, a new system is coming into operation, and we may expect speedy developments."

I now turned the professor's attention to the subject of electric cabs, of which so much is expected.

"I don't think the electric cab has any future," he replied,"that is, unless we have some wholly new invention. No electric vehicle which does not get its power of propulsion from overhead wires or underground conductors can compete with steam or petroleum traction. If I wanted a motor car to-morrow I should buy a steam or petroleum one. I shouldn't dream of getting one whose power was drawn from accumulators."

"You can see my point for yourself. To develop a board of trade unit of energy in a motor car driven by means of accumulators would, after allowing for the wear and tear of the cells, etc., cost about a shilling. If the same work were done by means of coal it would cost something like a penny. You see, the cost of the renewal and repairing of the accumulators, which electric cabs must use to move their wheels, is the very serious obstacle."

"Now as to electric bicycles and tricycles, professor. Are they possible?"

"If you ask me if I can make one, I answer 'Yes.' But if you mean will I use one I say emphatically 'No.' In 1882 I constructed an electric tricycle and I used to run it in the streets near my office in the city during the evening when the traffic was small, and when the police were less imperative about its being preceded by a man carrying a red flag. That electric tricycle was sent over to Paris and it may still be in existence. But nothing will make electric bicycles and tricycles worth using - of course, in comparison with those driven by steam or petroleum. They haven't the chance."

"Before I go out into the gaslight myself, professor, will you tell me if we are soon going to see the end of gas?"

"I do not think it probable that we shall dispense with gas yet awhile. The incandescent burner is a very great rival of the electric light; but though it is not ousting electricity it has to be taken into serious consideration. It is rather curious to note that nothing has done the gas companies so much good as the electric light. About sixteen years ago, when people thought that the electric light was going to extinguish gas for all time, the shares of the gas companies went down to about half their value. To-day the companies are paying bigger dividends than ever. The reason of this is that the standard of illumination has been raised. Immediately people saw the electric light they, of course, wanted more illumination and used
more gas burners."


So three years before Daimler put his gas-powered wooden bike on the road, Professor Ayrton and John Perry were already riding around London on their electric trike cursing their batteries... and the speed limits



L0cK

[Lock]

http://www.electriconwheels.com/electric-car-timeline.htm

1888 Fred Kimball
Philip W. Pratt demonstrates the very first American electric tricycle.
Pratt’s e-trike was built for him by Fred M. Kimball of, naturally, the Fred M. Kimball Company. Pratt took the editor of Modern Light and Heat for a spin around Winthrop Square in Boston.
The vehicle’s 10 lead-acid cells pushed about 20 volts to a 0.5 horsepower DC motor. The whole setup weighed about 300 pounds.
The driver sat above the battery assemblage. Top speed: 8 miles an hour.

Fred Kimball_1888.jpg (25.76 KiB) Viewed 783 times

BTW, other accounts also credit "English inventor J.K. Harley" as equally responsible for Pratts etrike... `Case anybuddy's wondering William Sylvester Harley as in "Harley-Davidson" was born in 1880 but his father was also named William so no evidence of any relation to "J.K.Harley"

Another report here:
http://notorc.blogspot.com/2006/12/does-mourning-become-electric-1-rise-of.html

However, an electric vehicle was in operation in the East as early as 1888, the brainchild of an obscure yet prolific inventor, Philip W. Pratt. His patents included the rubber chair tip, the rubber crutch tip, rubber heel plugs, machines for making rubberized cloth, and several types of nonskid tires. Mr. Pratt may indeed deserve the title of "father of the American electric automobile." His invention might well have gone unnoticed but for the journalistic professionalism of the editor of a short-lived Boston magazine devoted to the wonders of electricity, Modern Light and Heat. Writing in the issue of August 2, 1888, the editor noted, "We received an invitation last Friday from a gentleman who is giving much attention to electric vehicles--Mr. P.W. Pratt of Boston--to take a ride on an electric tricycle that had just been completed for him by a well-know electrical manufacturing concern of this city."

Power was supplied by "six cells of the Electrical Accumulator Company's storage batteries, weighing all told, 90 pounds and a specially constructed tricycle motor connected to the driving apparatus by chain gearing." The date of this demonstration of Pratt's electric tricycle thus was July 27, 1888. Until an earlier claimant surfaces, that date and Mr. Pratt's name deserve to be added to the record books. Unfortunately, no additional information about this machine appeared in Modern Light and Heat. Nor have any images of this conveyance survived, other than a contemporary artist's sketch. The Pratt tricycle later was shown to the public in New York's Central Park and Atlantic City. Mr. Pratt was negotiating for the licensing of one of his patents when he died in Boston in 1915 at the age of 75. Found in his room at the Hoffman House with an illuminating gas jet half turned on, his death was ruled accidental.

Lock

[Lock]

...as reported in The Electrical Engineer, October 12, 1888:


[Lock]

THE FAURE BATTERY - STORED-UP ELECTRICITY.

The current number of Le Journal Universel d'Electricite contains, says Engineering, a very ably written article by M. Frank Geraldy upon the Faure secondary battery, to which we recently referred. From this article we find the space to make the following extracts: "The posters bearing the words "Power and Light" in enormous letters, are still visible on the walls; the noisy articles that have appeared in certain journals are not yet forgotten; however, the bills are beginning to disappear, the effect of the articles to decrease, excitement is on the wane, and the scientific press can at last be heard. It has, indeed, been difficult to discuss this matter sooner, for it was essentially necessary to have data and information as exact as possible, and these have not been obtained without trouble."

The author then refers briefly to the secondary battery of M. Reynier, and proceeds to describe the Plante battery, which he states to be almost identical with that of M. Faure, M. Plante having, except in one point, long ago anticipated what M. Faure has recently brought forward, and which has been received with so much popular excitement. He then continues: "We will now proceed to the Faure secondary battery. It is protected by two patents dated October 20, 1880, and February 9, 1881, respectively. In these patents M. Faure describes principally those batteries composed of lead plates laid on frames covered with red lead, and protected by leather, attached by means of lead rivets, an arrangement similar to the rectangular balteries of M. Plante. The actual batteries are not so made, being constructed as follows: Two sheets of lead are taken 7.87 inches wide; one of these plates is 23.62 in. long, and 0.04 in. thick; the other is 15.75 inches long and 0.02 inch thick. Each plate is covered on both faces with a layer of red lead reduced to a paste by water, 1.76 lb. being spread over the larger plate, and 1.54 lb. over the smaller. On each face thus prepared a sheet of parchment paper is placed, and the whole is introduced into a sheath of thin leather. One plate is then put on top of the other and rolled up, strips of rubber being interposed obliquely, as shown in the sketch. The roll is then placed in a cylindrical lead cell, the outside of which is strengthened with copper bands, and the inside covered with red lead and leather, so as to increase the useful surface of the battery. The latter then presents the appearance shown in the sketch, and one of the projecting stems from the lead plates is bent over and soldered to the inclosing cylinder, which is ready for use when it has been filled with water with about 10 per cent of sulphuric acid. The apparatus when charged weighs about 20lb. It will be seen that this differs from the Plante secondary battery only in the employment of red lead. The material chiefly employed is the same, the mode of construction is precisely similar, the leather takes the part of the cloth previously used by M. Plante; it has no merit in itself; on the contrary, it is a cause of resistance, and is liable to deterioration, being useful only to keep the red lead in place. It is, in fact, this red lead which constitutes the new feature, and gives the special advantage to the apparatus.


"According to the inventor there are two advantages gained. The long and delicate operation necessary to prepare the Plante battery is not required. (This operation consists in passing through the battery an electric current, when oxygen goes to one plate, and produces a thin coat of peroxide of lead, and hydrogen goes to the other plate.) The second advantage claimed is that the battery has a storage capacity much greater than that of Plante; the proportion, according to M. Reynier, being, as deduced from numerous experiments, forty times greater with equal weights of batteries. The first advantage claimed may be readily conceded, and it is one of considerable practical importance and value. The second cannot be admitted, as will be seen from what follows. M. Hospitalier and myself were very desirous to subject the Faure battery to precisely the same tests that we have made with the Plante battery.

"To do this we first addressed ourselves to the proprietors of the invention, who replied that they could not intrust us with the apparatus; that they would not object to trials, but only after some time. Since this communication we have heard nothing from them. In the absence of direct data we will reason on the figures supplied, and the experiments made by the proprietors of the Faure battery before the public. It has been said and repeated officially that in a Faure battery weighing 165 lb., there could be stored up a quantity of electricity able to produce an effort equal to one horse power, for one hour, or 3.28 foot-pounds per second and per pound of battery. We have only seen the apparatus producing power, on one occasion, at the Societe d'Encouragement. Then it was far from giving this result; the battery weighed 326lb., but instead of giving 1,070 foot pounds per second it only gave 339 foot pounds. The apparatus might have been working under unfavorable conditions; it might have been doing far less than its maximum. We do not wish to draw any deductions from this experiment, which was, however, a very unfortunate one, and we will for the moment accept the 3.28 foot pounds per pound of battery. We ought here to examine what is the duty of the apparatus. In reference to this M. Reynier made before the different societies an algebraical calculation which is published in the Transactions of the Academy. This calculation was met — at the Societe de Physique — by many reasonable objections, the principal one being that it was useless, the only conclusion M. Reynier having drawn from it being that the more slowly the battery was discharged the better results that it gave, but no algebra was required to prove this. It is a general characteristic of the Plante secondary and of some primary batteries, as well as of dynamo machines. By using the battery very slowly, therefore, its duty is claimed to be 80 per cent, and as this proportion may be true of the Faure as well as of some other batteries, we will accept it. Admitting then this 80 percent, 11,800 foot pounds of actual work per pound weight of battery would represent 14,750 foot pounds stored up within the battery. This figure is, up to a certain point, confirmed by an experiment made at the Societe de Physique, where eight batteries, maintained, at a red heat during one hour and forty minutes, a platinum wire 13 feet long and 0.048 inch diameter. M. Reynier calculated that the total calorific work (interior and exterior) was equal to 253 foot pounds per second, or 1,518,000 foot pounds in all. According to M. Reynier, the weight of the batteries was 123 lb., so that the power stored up was equal to 12,341 foot pounds per pound of battery. There must have been a slight error here, because, as we have already seen, the useful weight of each battery cannot at the lowest estimate be less than 176 lb., giving a total of 140.8 lb., or 10,840 foot pounds per pound. According to the careful experiments we have made the useful storing power of the Plante secondary battery is 11,350 foot pounds per pound of battery, so that according to the different weights taken, the ratio of the latter to the former is 1.30, 1.08, or 0.95. This is a very long way off the forty times of M. Reynier. That gentleman, informed of this great difference, objected that the Plante battery we had employed must have been an exceptionally good one; those from which he had deduced his comparison had been furnished to him by M. Breguet. If this was the case these Plante cells did but little credit to the renowned maker who supplied. Besides, as a matter of fact, the batteries we experimented with were taken from those made by M. Plante for sale for medical and other purposes. Moreover it must be remembered that there are at present no Faure batteries made for sale, the ones already produced having been made by M. Faure's own hands or under his directions, and it is only just to institute a comparison between the Faure battery made by M. Faure, and the Plante battery made by M. Plante.

"The results we have given cannot be far from the exact truth; a priori there can be no reason why a battery in which the red lead is spread by hand, should be, weight for weight, superior to an apparatus in which the peroxide is furnished gradually by electricity, and experiments entirely confirm this deduction. The Faure battery is better adapted for industrial purposes, it has more solidity, and can, moreover, be made of larger dimensions; but these advantages might be obtained with the Plante battery if desired; the Faure cell does not require a preliminary electrical process to render it fit to receive the charge, which is a very great advantage, and besides it offers greater resistance for an equal surface, while it is less liable to damage than the other apparatus. But although the Plante battery has been in existence since twenty years, no one has ever suggested its employment is a means of producing power and light, and for several very good reasons, of which we will mention only one — that of transport — which has been treated in the company's prospectus as a detail of insignificance, and referred to only as it were in an excess of scrupulous minuteness.

"In order to furnish a force equal to one horse power during ten hours, ten batteries weighing 165 lb. each must be employed. This is throwing out of consideration the fact that a part of the charge only can be utilized on account of the fall of the potential below the necessary point, which would take at least 25 per cent off its utility. Making no allowance, however, for this, 1,650 lb. would have to be carried twice, that is to say, 1 1/2 tons of battery would be transported daily, besides all other expenses, for a charge of 10 francs a day; we leave the reader to draw his own conclusion. In fact, to maintain that this mode of electrical distribution is more economical than by wires, where they can be used, is to maintain that the present system of distribution of water involves the sinking of an enormous capital in buried pipes, that in these pipes there is always a considerable loss, and that it would be cheaper to substitute a house-to-house system of water transport by means of improved barrels. But this is a point we do not press; it belongs to commerce, not to science, and this journal has nothing to do with money interests. But science suffers much from enterprises of this kind, it scares away confidence from serious undertakings and exaggerated promises unfulfilled create the utmost distrust in subsequent undertakings of a cognate nature; the public not having obtained what they looked for turn away and refuse to have anything to do with more modest but useful applications which are offered to them. Will it not be thus with the Faure apparatus? The experiences obtained have much interest. The inventor mentions in his patents various special applications,especially for tramways, for which the battery may have a useful future. But why does not the inventor confine himself within the limits of possibility?

"Whatever future may be in store for it, we are at least indebted to it for having drawn special attention to the study of electrical accumulators. Since the announcement of the Faure battery, we know of four others in course of development, all of them of novelty and interest, and all promising a useful though less ambitious future.

"M. Reynier, at the last seance of the Societe de Physique, remarked sadly that he did not ignore the relative imperfection of the apparatus he represented, but both M. Faure and himself had been unable to complete them themselves before bringing them before the public, and he trusted soon to be able to show far better results than those given up to the present time. It is an unfortunate position for a man of science to find himself exhibiting and praising without restriction an apparatus of which he sees and acknowledges the shortcomings; it is, in fact, a false position, and one which he would do better to avoid."

[Lock]

Still trying to track this guy down...

There are a couple of stories. About English cycle manufacturer Starley trying to motorize one of his trikes in 1881 but finding it (the batteries) "too heavy"... And in the same year Charles Jeantaud and Camille Faure building an "electric vehicle" from a Tilbury style buggy with a Gramme motor and "Fulmen" battery.

Fer now I'm going with Gustave Trouve...

One snippet:

Parisian electrical precision instrument maker, Gustave Trouve, arrived on the scene. In May 1880 he patented a small 11lb (5kg) electric motor and described its possible applications (Patent N°136,560). Trouve suggested using two such motors, each driving a paddle wheel on either side of the hull. Later he progressed to a multi-bladed propeller. Modifications to this master patent date from August 1880, then March, July, November and December 1881. To quote: “It is the rudder containing the propeller and its motor, the whole of which is removable and easily lifted off the boat…”

With this invention, Trouve could not only lay claim to the world’s first marine outboard engine but, in taking the same motor and adapting it as the drive mechanism of a Coventry-Rotary pedal tricycle or velocipede, Trouve also pioneered the world’s first electric vehicle. On 1 August 1881 Trouve made his benchmark report to the French Academy of Sciences, stating: “I had the honour to submit to this Academy, in the session of 7th July 1880, a new electric motor based on the eccentricity of the Siemens coil flange. By suggestive studies, which have allowed me to reduce the weight of all the components of the motor, I have succeeded in obtaining an output which to me appears quite remarkable.

A motor weighing 5kg [11lb], powered by 6el of Plante producing an effective work of 7kgm per second, was placed, on the 8th April, on a tricycle whose weight, including the rider and the batteries rose to 160kg [352lb] and recorded a speed of 12km/h.

The same motor, placed on the 26 May in a boat of 5.5m long by 1.2m beam [18 x 4ft], carrying three people, give it a speed of 2.5m [per second] in going down the Seine at Pont-Royal and 1.5 m [8 & 5ft] in going back up the river. The motor was driven by two biochromate of potassium batteries each producing 6el and with a three-bladed propeller.

On the 26th June 1881, I repeated this experiment on the calm waters of the upper lake of the Bois de Boulogne, with a four-bladed propeller 28cm [11 ¼in] in diameter and 12el of Ruhmkorff-type Bunsen plates, charged with one part hydrochloric acid, one part nitric acid and two parts water in the porous vase so as to lessen the emission of nitrous fumes. The speed at the start, measured by an ordinary log, reached 150m [490ft] in 48 seconds, or a little more than 3m [10ft] per second; but after three hours of functioning, this had fallen to 150m in 55 seconds and after five hours, this had further fallen to 150m in 65 seconds.

One bichromate battery, enclosed in a 50cm [20in] long case, will give a constant current of 7 to 8 hours. There is a great saving of fuel and cleanliness.”

During the 15 years that followed, it is estimated that over 100 Trouve electric motors were installed in pleasure launches. Some of these were fitted with his electric headlights and klaxons. There was, for example, the Sirene, a charming electric boat which he built for Monsieur de Nabat, arranging it so that her owner could change at will from propeller to paddles. This boat, whose owner used her three times a week during long periods, measured 29ft 6in long by 6ft beam (9 x 1.8m) and cruised regularly at between 8 ½ and 9 ½ mph (14-15km/h), her propeller turning at between 1,200 and 1,800 rpm.

To show the speed with which an electric boat could move in a race situation, on 8 October 1882 a Trouve craft was launched onto the River Aube and steered onto the race circuit only five minutes before the start. It left at gunfire and spectators noticed, not without astonishment, that in this famous race the boat covered more than 2 miles (3.2km) in 17 minutes, averaging 7mph (11km/h) and slowing down to make four turns around the buoys!

In September 1888 a Trouve boat was sent to China to fight against opium smuggling on the China Sea. 49ft (15m) long and steel-hulled, it weighed some 8 tons and the bronze prop had a diameter of about 20in (500mm). One can but wonder at the electric power necessary to shift her along.

eBoaters will appreciate Gustaves work:


Onshore he used one of these:


and here he is, showing off at the International Exposition of Electricity, Paris in November 1881:

[Thud]

Saw this & imediatly thought of this thread:
Baaaa can't get youtube linc to work....try this:
http://www.youtube.com/watch?v=1aVuu0-q8dQ&f

[Lessss]

[Lock]

Hehe... the comment about the one guy escaping hospital covered in bandages and full of splinters OUCH!

Nice site here too for hillclimb/board track fans... Early daze around Akron Ohio:
http://akronmchistory.yolasite.com/

They've added a bunch of vintage vids to Youtube here:
http://www.youtube.com/user/akronmchistory#g/u

like this:

[Lock]

In another recent thread I confused the issue of "world's longest ebike" w/a pic of a bike that didn't have pedals...

When challenged that only "real" bikes have pedals (words to this effect) I posted this pic as another example of a bike w/no pedals:


This just seemed to confuse the issue more as some folks said they were having difficulty seeing any bike in the pic at all... one of those mind tricks etc... so just thought I would throw another pic of a similar but Old School (much older) bike into this thread... here:


So, sorry for any confusion!

These stand up scooters (aka "foot bike") are my personal choice for wheels. They have been around a long time, and adding a power assist just makes them that much more fun and practical...

tKs
1oCk

[Lessss]

I too only see one bike above.

Hobby horse aka Strider aka kick scooter aka a dozen other names. That is what I will present to a Judge who says bikes operate by pedal power.

[Lock]

OK, so looks like Gustave Trouvé was our first ebiker, while Professors Ayrton and Perry take the prize for first British ebikers, but the Professors still win the prize for first ebike with electric lights. They used incandescent light bulbs made by Sir Joseph Swan... a couple of these:


These ebikers were so hard core... Gustave made his own motors and Plante cells! Ayrton and Perry made and patented their own volt and amp meters:



Ayrton and Perry were real show-stoppers in a world crazy about electricity used mostly for telegraph systems and gaga over the new electric lights...

A first report, published in The Telegraph Journal and Electrical Review on October 28, 1882:

Electric Tricycles. — Last week the passers by were astonished at seeing a tricycle electrically lighted and electrically propelled going down Queen Victoria Street. The source of the electric current was a few Faure's accumulators resting on the footboard, the electric lamps, of which there was one on each side of the tricycle, were incandescent lamps, giving each about four candles, and the electro-motor was one of those recently devised by Profs. Ayrton and Perry, and was fastened under the seat which was occupied by one of the inventors. One speciality of these motors is their compactness and the large amount of power they can furnish for their weight, the total weight of the quarter-horse-power motors, with the Faure's accumulators necessary to propel the tricycle with its rider at the ordinary speed, as well as to electrically light it, being only, we understand, about 1 1/2 cwt., or but little more than that of a second rider.

Then the letters to the Editors:

ELECTRICAL TRICYCLE.
To The Editors of The Electrical Review.

Sirs, — In your last number you favoured your readers with the news of an experiment made with Messrs. Ayrton and Perry's tricycle. The subject of road locomotion by electric energy is of immense interest to all classes. I venture, therefore, through your columns to ask Prof. Ayrton to enlighten the public with fuller particulars concerning this "invention." How many cells do they use to drive their motor, what current and electromotive force, how many hours will the vehicle run on a level road — at what speed, when once charged? What may be the weight and actual power of their motor, what kind of gearing is used to run at any reduced speeds?

A sketch in your valuable paper would prove most instructive. Since the machine has already been exhibited in the streets, there cannot be any further secret about these details. Yours obediently,

A. RECKENZAUN, C.E.

October 30th, 1882.

ELECTRICAL TRICYCLES.
To the Editors of The Electrical Review.

Sirs, — What is the use of an electric tricycle? The Locomotives (Roads) Act, Section 3, enacts that "every locomotive propelled by steam, or any other than animal power, on any turnpike road or public highway, shall be worked according to the following rules and regulations amongst others, namely: Firstly, at least three persons shall be employed to drive or conduct such locomotive; secondly, one of such persons while any locomotive is in motion shall precede such locomotive on foot by not less than 60 yards, and shall carry a red flag constantly displayed, and shall warn the riders and drivers of horses of the approach of such locomotive, and shall signal the driver thereof when it shall be necessary to stop, and shall assist horses, and carriages drawn by horses, passing the same." And by Section 4, the speed at which such locomotives shall be driven along a highway is limited to four miles per hour, and through a city, town, or village to two miles per hour. Is this how electric tricycles are proposed to be driven? That a tricycle is a locomotive within the meaning of the Act of Parliament if driven by other than animal power has been recently decided by the Queen's Bench in the case of Parkyns v. Priest, 7 Q.B.D., 813.

Yours, &c,

CHANCERY LANE.

October 31st, 1882.

ELECTRIC TRICYCLES.
To the Editors of The Electrical Review.

Sirs, — Your correspondent, "Chancery Lane," may well ask "What is the use of an Electric Tricycle?" if in this fast age one is to be compelled to travel at the ignominious rate of four miles per hour and have an avant coureur with a red flag to announce our coming to Hodge and his cart-horses.

Of course we all know that the Act of Parliament was aimed at traction engines, steam rollers, and such like noisy but useful monstrosities, and not at the useful and natty tricycle or any other form of velocipede driven by electricity. The Court of Queen's Bench, however, in their wisdom have decided that tricycles driven by other than animal power do come within the meaning of the Act, and that any person using one except in compliance with the provisions thereof is liable to a penalty not exceeding ten pounds.

Now I take a great interest in electric tricycles, and I quite agree with Mr. Reckenzaun that the subject of locomotion by electric energy is of immense interest to all classes, and being so impressed, I, in my blissful ignorance of the law, set to work to build one, when all at once to my horror and consternation (and I have no doubt to that of many other similar workers in the same cause) came the decision in Parkyns v. Priest. My friends consoled me with the belief that the case would be appealed, and the decision upset. For confirmation of this view I had an interview with my lawyer, but all I got from him was a shake of the head. I frantically endeavoured to impress upon his legal mind the difference between a traction engine and a tricycle, but he refused to be convinced, and pointed grimly to the words of the Act, "other than animal power." These words seemed to haunt me like Banquo's Ghost, and I began to consider their insertion in the Act as a kind of personal
injury, until, one day, a happy thought struck me, which ultimately developed into a practical idea; this I embodied in a specification and submitted it to my grim lawyer, who returned it to me with a grin, and an expression of opinion that an electric tricycle built upon my improved plan would not be an infringement of the Act, but with the natural caution of his class, advised a conference with counsel. A connsel, well-known and respected by most inventors, was thereupon consulted, and my lawyer's opinion fully confirmed. A specification has in consequence been duly filed, and in due course will be made public.

I have only mentioned the above trifling facts for the benefit of our legal friend "Chancery Lane," who, doubtless, has been having a good chuckle over the electricians and their tricycles; but for the information of others I may state that the principle of the invention is the use of electricity as a simple auxiliary, thus reducing the "animal power" required for propulsion to a minimum, but so arranging the machine that without such "animal power" (however small) being exerted continuously the tricycle remains motionless.

I hope to have a machine made on the above principle completed in time for the approaching exhibition, I shall then have great pleasure in sending you full particulars, with diagrams, weight, &c, if you consider the matter of sufficient interest to your readers.

Yours, &c,

JNO. MACDONALD, C.E.

[Lock]

...when all at once to my horror and consternation (and I have no doubt to that of many other similar workers in the same cause) came the decision in Parkyns v. Priest.

`Case yer wondering Loser Boy Parkyns couldn't afford a good lawyer apparently... F'ing STEAM guy mucked things up bad for the rest of us...

PARKYNS v PREIST

[DIVISIONAL COURT]

7 QB D 313

HEARING-DATES: 4 July 1881

4 July 1881

INTRODUCTION:

CASE stated by a metropolitan police magistrate, under 20 & 21 Vict. c. 43.

The appellant, Sir Thomas Parkyns, Bart., who was the owner and inventor of the motor tricycle, was charged under five summonses: (1.) With being the owner of a locomotive propelled by steam on a public highway, which locomotive was not worked according to the rules and regulations in s. 3 of the Locomotives Act, 1865 (28 & 29 Vict. c. 83) and s. 29 of the Highways and Locomotives (Amendment) Act, 1878 (41 & 42 Vict. c. 77), which require that “at least three persons shall be employed to drive or conduct such locomotive”; and “one of such persons while the locomotive is in motion shall precede by at least twenty yards the locomotive on foot. …”:

(2.) With unlawfully driving a locomotive propelled by steam through a town at a greater speed than two miles an hour contrary to s. 4 of the Locomotives Act, 1865:

(3.) With a breach of the Locomotives Act, 1865, s. 7, which requires that “the name and residence of the owner of every locomotive shall be affixed thereto in a conspicuous manner”:

(4.) With a breach of the Highways and Locomotives (Amendment) Act, 1878, s. 28, subs. 1, which requires that “a locomotive not drawing any carriage and not exceeding in weight three tons shall have the tires of the wheels thereof not less than three inches in width,” and of subs. 4, which requires that “the driving wheels of a locomotive shall be cylindrical and smooth soled …”:

(5.) With a breach of the Locomotives Act, 1861 (24 & 25 Vict. c. 70), s. 12, which requires that “the weight of every locomotive … shall be conspicuously and legibly affixed thereon.”

The five summonses were by consent heard together. The facts proved are set out in the judgment. The question for the Court was whether the machine was a locomotive within all or any of the sections referred to.

COUNSEL:

June 20. Mellor, Q.C. (Channell, with him), for the appellant. The machine was invented after, and was clearly not contemplated by, the Locomotives Acts, 1861, 1865, and 1878. Those Acts dealt with heavy machines drawing waggons, steam rollers, and the like; such locomotives emit smoke to the annoyance of passengers, or injure roads by their weight: s. 8 of the Act of 1861, and s. 28 of the Act of 1878. The legislature could not have intended that a tricycle should be preceded by a man with a red flag. The definition of “locomotive” in s. 38 of the Act of

1878 – “any locomotive propelled by steam or by other than animal power” – must be read with reference to the then state of knowledge. “Propelled by steam” means by steam only, and not (as here) by steam as an auxiliary. If taken literally that definition would include a clockwork engine. In Taylor v. Goodwin n(1) a bicycle was held to be a “carriage” within 5 & 6 Wm. 4, c. 50, s. 78, because the case came within the mischief of that Act, but here it is not so. In Williams v. Ellis n(2) a bicycle was held not to be a carriage. If this tricycle is a nuisance it can be stopped at common law or under the Locomotives Acts.

Leese, for the respondent was not heard.

Cur. adv. vult.

July 4. The judgment of the Court (

PANEL: Lord Coleridge, C.J., Pollock, B., and Manisty, J

JUDGMENTBY-1: Lord Coleridge, C.J.

JUDGMENT-1:

Lord Coleridge, C.J.: ,

JUDGMENTBY-2: Pollock, B.

JUDGMENT-2:

Pollock, B.: , and

JUDGMENTBY-3: Manisty, J.

JUDGMENT-3:

Manisty, J.: ) was read n(3) by

JUDGMENTBY-4: LORD COLERIDGE, C.J.

JUDGMENT-4:

LORD COLERIDGE, C.J.: This is an appeal against the conviction of the appellant by a metropolitan police magistrate under five summonses, whereby the appellant was charged with using a certain locomotive propelled by steam, being a motor tricycle, upon a public highway, without observing the conditions prescribed by s. 3 of the Locomotives Act, 1865 (28 & 29 Vict. c. 83), and s. 29 of the Amending Act of 1878 (41 & 42 Vict. c. 77), and by other enactments. It was admitted before the magistrate and before us, that those conditions had not been observed; and the only question raised for our opinion is whether the machine in question was rightly held by the magistrate to be a locomotive within the meaning of these sections. The first of these provides that “every locomotive propelled by steam or any other than animal power on any turnpike road or public highway, shall be worked” according to certain rules and regulations thereinafter contained. Sect. 29 of the second Act repeals a portion of s. 3 of the first Act, and substitutes another regulation to be observed while the locomotive is in motion, but by s. 38 the word “locomotive” is again defined as meaning “any locomotive propelled by steam or by any other than animal power.” The tricycle in question is described in paragraph 8 of the case before us, wherein the evidence of the respondent is set out. He says that he “saw propelled in the public highway, at the rate of about five miles an hour, a tricycle on which was sitting a man working treadles with his feet in the manner in which tricycles are usually propelled. He noticed some metal boxes under the seat of the vehicle, but when the vehicle passed him he saw no sign of steam and heard no noise. The metal cases contained a small steam engine and boiler and a condensing apparatus, and he saw that the steam was up on the occasion.”

On the part of the appellant, Mr. Bateman, an engineer and machinist, was called as a witness. He described the machine as being like an ordinary tricycle, and capable of propulsion in the ordinary way by the feet of the rider, but with auxiliary steam power to assist the rider, which steam power was, however, sufficiently powerful to move the vehicle if desired without the foot motion. In a metal case (size about two feet by two feet by nine inches) placed below the level of the seat and near the feet of the rider is a small copper tubular boiler and an engine. The fuel used is gas evolved from methylated spirit or mineral oil, in the same manner as in the contrivance known as the Whitechapel lamp. There is therefore no smoke, and the exhaust steam instead of being blown off into the atmosphere, producing the puffing noise common to locomotives, is discharged into a coiled pipe in another metal case behind the rider’s seat, and is there condensed and returned by a small pump to the boiler as hot water, thus at once economising water and fuel and preventing escape of steam into the atmosphere. The power of the engine was about one horse power indicated, and it was capable of driving the vehicle on a level road at a rate of nearly ten miles an hour, but not more. When the vehicle was so driven there was nothing to indicate that it was being worked by steam power, and nothing which could frighten horses or cause danger to the public using the highway beyond any ordinary tricycle.

The weight of the machine was proved to be about two hundred-weight, and the tires of the wheels about an inch and a half in width being similar to bicycle wheels, but somewhat stouter and stronger. The tires being of indiarubber no injury would be done to the surface of the road by working the machine on it.

It was further proved that the machine was fitted with a brake sufficiently powerful to stop the machine in a very few yards against the power of the steam even if it continued working. This was effected by the brake having a powerful leverage, so that a force far less than the force of the steam applied to the brake would nevertheless stop the machine. The brake is also fitted with an automatic action, by which when the weight of the rider is off the seat, the seat rises and thereby applies the brake, so that when there is no person sitting on the seat the brake is applied and prevents the machine moving. The machine is guided by a handle, and can be turned completely round in twice its own length. The boiler is tested to bear a pressure of 700 lbs., and it is habitually worked with a pressure of about 150 lbs. Even if the boiler did burst, being tubular and of copper, the only result would be a rent in one of the tubes, and there would be no explosion.

In answer to questions put to him on behalf of the appellant, Mr. Bateman explained that the principle of the invention was capable of extension to larger carriages, but that the use of indiarubber tires practically limited the weight to something not greatly exceeding the weight of this particular machine, and also that the fuel used could not be used economically to obtain very much greater power than was obtained.

It seems scarcely necessary to do more than to read this description, in order to shew that the tricycle in question comes within the words of the above statutes as being “a locomotive propelled by steam, or any other than animal power.” It cannot be less within this description because it is capable of propulsion in the ordinary way by the foot of the rider, it being expressly found in the case that the steam power was sufficiently powerful to move it if desired without the foot motion. It was argued however, on behalf of the appellant, that such a machine could not have been within the contemplation of the framers of the statutes in question, which apparently were intended to be directed against the use of locomotives larger in size and heavier in weight, and therefore more dangerous to persons using the public highway, than the locomotive in question. It is probable that the statute in question were not pointed against the specific form of locomotive which is described in this case. Indeed, such a locomotive was not known when they were passed, and possibly not contemplated. As, however, it comes within the very words of the statutes, it

seems to us that we cannot upon any true ground of construction exclude it from their operation; and it may be observed that even if the fullest scope be given to this argument, Mr. Bateman’s explanation that the principle of the invention was capable of extension to larger carriages, would shew that a locomotive similar in construction and principle to that which is the subject-matter of this case might by reason of its size and power become much more dangerous; and if this be so, the question to be considered in each case would not be whether the locomotive in question properly came within the language of the statutes; but whether, by reason of the size or weight of the particular machine, it came within the mischief supposed to be contemplated, which shews that such an argument is vicious.

Two cases were cited by counsel for the appellant; but, in truth, they have no bearing upon the present case. The first was that of Taylor v. Goodwin n(1) , in which it was held by this Court that a person riding upon a bicycle on a highway at such a pace as to endanger the life or limb of passengers may be convicted of furiously driving a carriage under the provision of the Highway Act (5 & 6 Wm. 4, c. 50, s. 78). The argument in that case turned wholly upon the meaning of the word “carriage” in that Act, and it gives us no assistance. The second case was that of Williams v. Ellis. n(2) In this case, where a local Turnpike Act imposed a toll upon every horse, mule, or other beast, drawing any coach, sociable, chariot, berlin, &c., it was held that a bicycle was not a carriage liable to toll under the Act. This case was decided upon the ground that the carriages referred to in the statute must be carriages ejusdem generis with the carriages previously specified. This does not appear to us to have any material bearing upon the question now before us.

We think that the decision of the magistrate was correct, and that the conviction should stand with costs.

DISPOSITION:

Conviction affirmed.

SOLICITORS:

Solicitors for appellant: Milne, Riddle, & Mellor.

Solicitors for respondent: Gregory, Rowcliffe, & Co.

n(1) 4 Q. B. D. 228.

n(2) 5 Q. B. D. 175.

J. M. M.

[blueb0ttle2]

Circa 1890 electric:

I thought of building something like this just for lols. Lindsay books has reprints of old electric car schematics, and other ancient automotive things. It might be worth a shot, just to look at the faces of the haters in the SUV's.

[Lock]

I thought of building something like this just for lols.

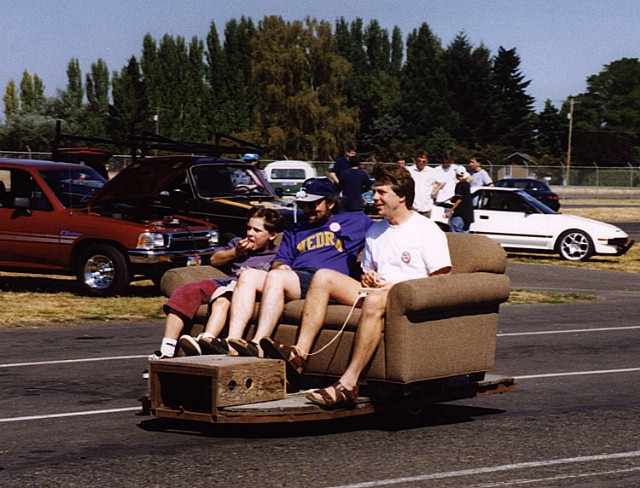

Hehe... that would be... elegant. Otmar electrified a couch waaay back:


But that old trike is sooo stylish!


EDIT: Found out that trike is a 1896 Riker Electric Triumph... Here's another angle:


I thought it was a chain drive, but this looks like the motor is mounted right on the wheel...

[Lock]

A novelty in electric appliances of power for operating a light vehicle is found in the Barrow tricycle (Fig. 217).


In this vehicle the motor is carried on the fork of the steering wheel, which has an internal toothed spur gear in which the pinion of the motor meshes.

The storage battery is placed under the seat of the vehicle and wired to the motor with a flexible loop at the fork swivel. A vertical motion of the steering handle operates a brake. The controller is placed under the seat and operated by a lever at the side.

From Horseless Vehicles, Automobiles, Motor Cycles Operated by Steam, Hydro-carbon, Electric and Pneumatic Motors
GARDNER D. HISCOX, M.E.
1901

[Lock]

`Case yer wondering Loser Boy Parkyns couldn't afford a good lawyer apparently...

Thinkin' I shouldn't be so hard on Sir Thomas... seems he took his case all the way to the top court in England (the "Lord Coleridge, C.J." presiding judge in the final ruling was Lord Chief Justice of England at the time.)

And his steam trike sounds pretty cool too, compared to some examples of "modern" steam bikes posted to Endless Sphere recently that look like sputtering putt-putt kinda machines... Parkyns steam machine was open flame but the recycling of the exhaust steam through the condenser was kinda neat...

From Scientific American magazine, September 30, 1882:

THE STEAM VELOCIPEDE.

The steam tricycle shown in the accompanying engraving, which wc borrow from La Nature, was invented and constructed by Sir Thomas Parkyns, who called it "The Baronet." The apparatus consisted of an ordinary tricycle, to which was adapted a small tubular boiler placed horizontally a little to the rear of the seat, between the two large wheels, and which was heated with petroleum; of a water reservoir, which served at the same time for condensation, by means of a worm; and of a cylinder with truck actuating three gearings, which, in controlling one another, gave motion to the wheels of the tricycle. The apparatus was arranged so as to be actuated with the feet alone, with the engine alone, or by the combined action of the feet and engine. Moreover, it required the action of the feet to start the tricycle going.

Messrs. Bateman & Co., of Greenwich, who were commissioned by Sir Thomas Parkyns to construct his steam tricycle for sale, have been obliged to modify the whole structure of it before offering it to the public; for the inventor, although he possessed excellent ideas and knew how to apply them, was lacking in the special knowledge necessary for the construction of a machine practically adapted for working.

These engineers began by studying the steam tricycle very closely, and, by modifying the form of certain parts and strengthening them, and by replacing the horizontal boiler with a recently invented very powerful rotary motor, they hope in about six months to be able to offer the trade a steam tricycle which shall be perfectly irreproachable as to construction, security, and speed.

Sir Thomas Parkyns' velocipede could scarcely exceed a speed of seven to nine miles an hour, but the new manufacturers desire to make it attain a speed of thirteen miles, and to thus give it the power of ascending declivities of a certain grade, so that it will not bo necessary to combine the action of the feet with that of steam. They will retain the mode of heating by petroleum, as this has the advantage of giving a fire easy to keep up, of giving out no smoke, and of permitting a large amount of fuel to be carried within little space.

Messrs. Bateman & Co. would have carried their studies of the new steam tricycle much further ere this had they not been overburdened with urgent work, and especially had there not been a law in England forbidding the use of any steam motor on the streets unless it was preceded by a person on foot and ran at a maximum speed of three miles per hour.

The inventor hopes, however, before long to obtain permission for the steam tricycle to run without restriction, seeing that it emits no smoke, gives off no steam (owing to its condenser), will make but little noise, and will have the appearance of one of those ordinary tricycles that are met with in so great number in the streets of London.


So if I understand this SA report correctly Parkyns may have been running a steam TURBINE on his trike.... in 1881, watt is kinda cool `cause the Wikipedia entry for steam turbines says that the "modern" steam turbine wasn't invented until 1884 by Sir Charles Parsons...

tks
l0Ck

[Lock]

Odd that Bramley and Parker's unique butt-sniffer power-assist nEVer caught on...


[Lock]

WORTMANN SPECIFICATION.


"This invention relates to a new vehicle, which is to be propelled by the upper or lower extremities of the person or persons which it supports, and which is provided with a fly-wheel in such a manner that the same may at will be thrown into or out of gear. This fly-wheel will gather power in going down-hill, and will then give it up in going up-hill, tliereby facilitating the ascending of hills, and preventing too great rapidity while going down-hill.

" The invention consists in the general combination of parts, whereby two persons may be accommodated on the vehicle, and also in the aforementioned arrangement of the fly-wheel.

" When the fly-wheel is thrown into gear, as afore-said, it will serve to gather power, to facilitate the riding up-hill, and to steady the motion down-hill.

" 2. The fly-wheel K, mounted on a separate shaft, J, the sliding pinion f, in combination with the lever g, substantially as herein shown and described, for the purpose specified.

"The above specification of my invention signed by me, this ninth day of June, 1869.

" Simon Wortmann."
