Super sized stand-up Scooter project. Build thread

[Goped ESR750]

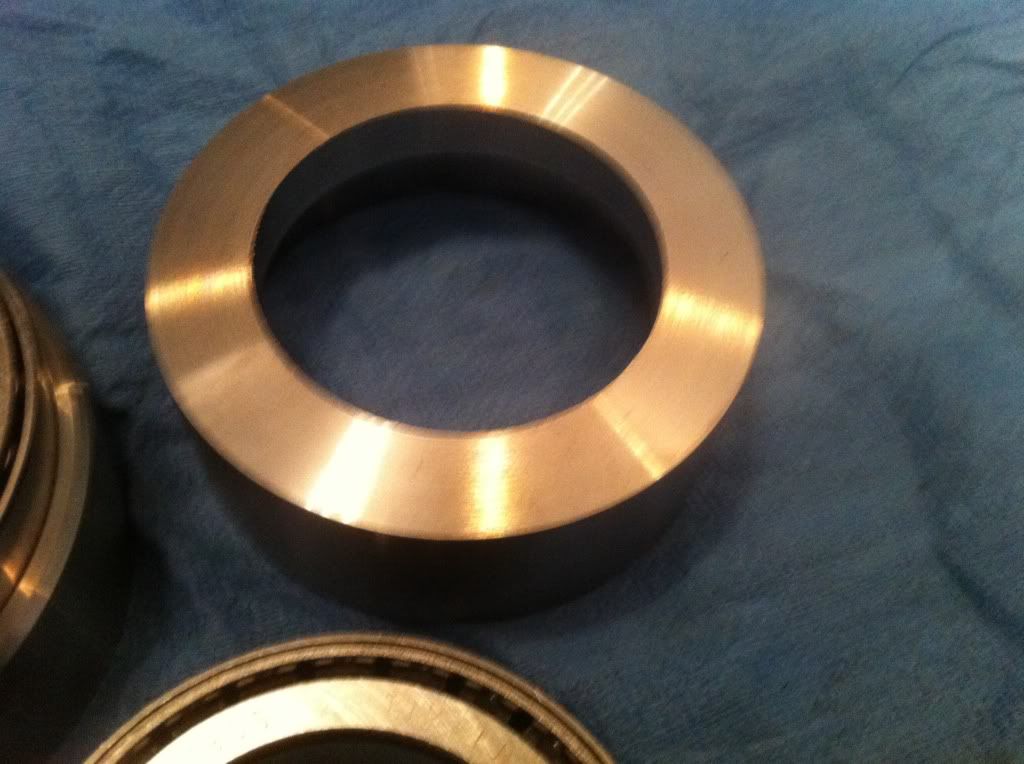

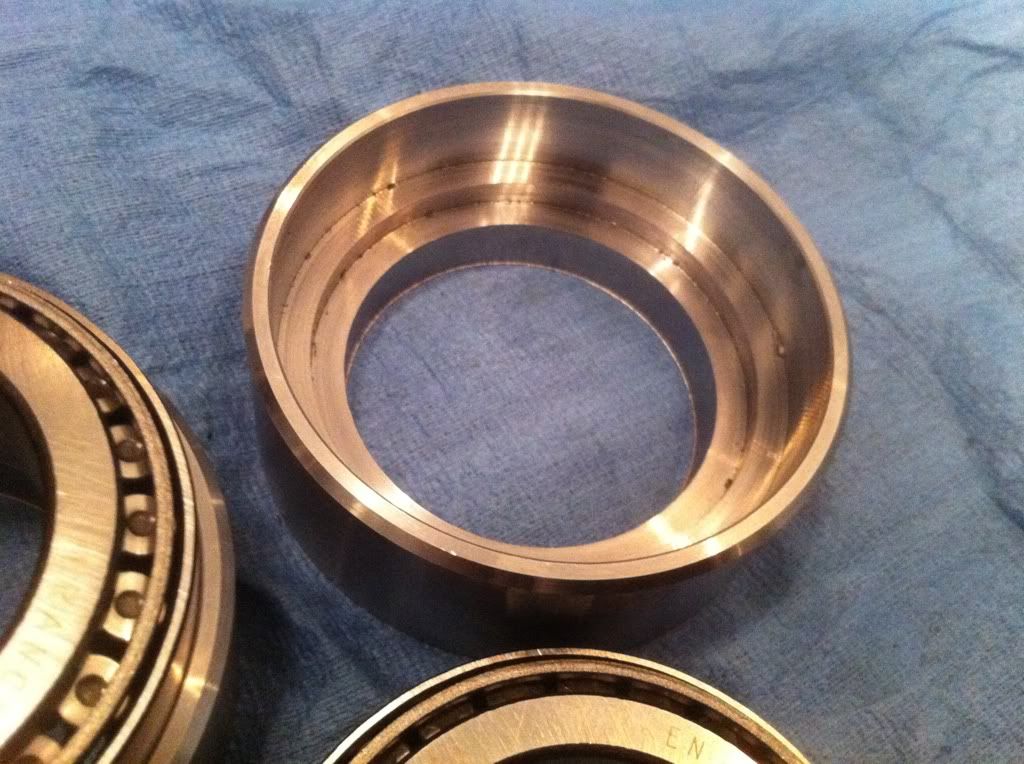

Finished the bearings blanks today ready for milling. Won't be able to do any machining over the weekend. This design certainly will be far stronger and look much better too. The last 10mm step of the bearing cup I bored to 60mm. Only have to open it up on the mill with a tool the same radius as what is on the box section.

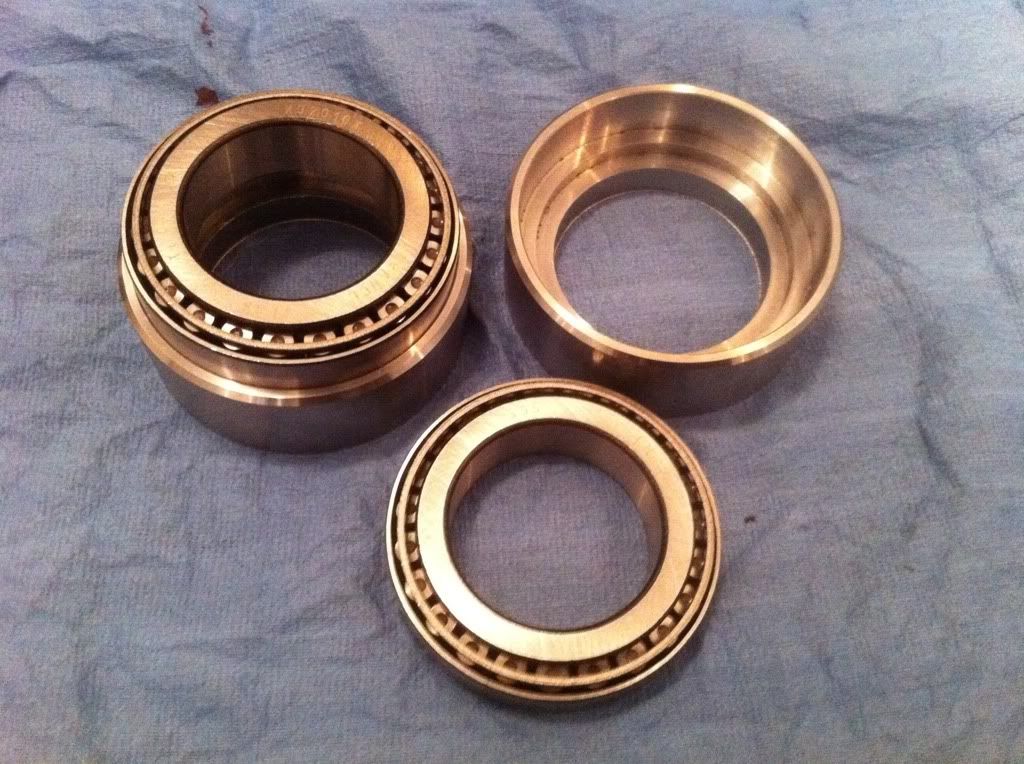

The bearings arrived today as well. They look huge, I only got them this big because with the races pressed in, it gives my full access to the square which is 70mm. Shouldn't get any problems with them, pretty over engineered. I prefer to be safe rather than sorry.

[Goped ESR750]

offered up the headstock with the stem to see how it looks. It is quite a bit higher then it was originally. At least the length of the bearings cup. I could not fit the stem in the lathe to skim the step off, So I made a paralleled step to press on, it's not on yet. I am thinking of grinding the welds off, machining it.. The get it welded again. Think I will have to make a jig to ensure it goes back the same.

I need to get the bearing cup as close as possible though. Will need to cut some of the tube down anyway.

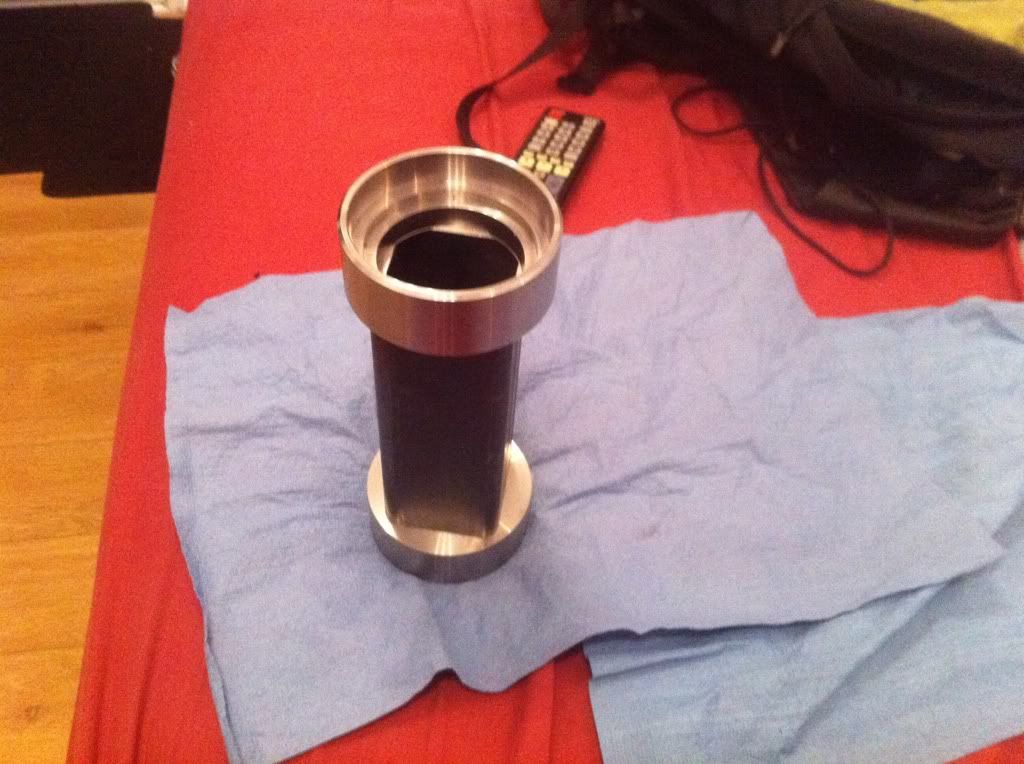

Here is few pictures of where I am at.

[Goped ESR750]

Finally got the bearings cups finished for the CIDLI today. Which was handy as this is the day I had set out to see the guy who is going to weld this for me. I am seeing a custom harley fabricator, who makes all sorts of big bike frames from scratch. So I am getting him to sort the frame welded to the original section I have and then a bend and then weld to the CIDLI knuckle.

Sample block of polyurethane arrived today. I got a 70A shore rating 25x25mm block. I am going to test it a bit, but I am thinking this should be an ideal rating. It bends easy but under compression is good. I am going to see how it reacts with different loadings in a manual and hydraulic press. Manual for rebound shock loading and use the hydraulic press to dump 30 tonnes on it to see what it does.

Probably use rods as opposed to block when it comes to it. am undecided yet. Look forward to getting a rolling frame sorted though.

[Goped ESR750]

Got my callipers back from the powder coaters, and rebuilt them.

Got 15mm rods of poly to use for suspensions, these seem like they will work. Cant quite push them all the way in by hand which is what I needed. Will lubricate them and press them in.

Few pics of where I am at.

[Goped ESR750]

Pressed the polyurethane rods into the square. This was not an easy task, I used Vaseline to lubricate them. I ended up using cables ties covering most of the exposed poly whilst pressing it in. This stopped the rods bending out. This is just a test as the rods will have to come out before welding and powder coating. I am going to have to make a tool to get them back in the box section once it is welded to the frame.

I can see getting the rod in to them made frame is probably going to be a bit difficult.

The second picture is with my mate with all his weight on a spanner driving the inner square. Was able to spin it when used a huge 3m leverage. I think this should be about right. I might go up a grade or use a back stop to ensure it never spins out. Trail and error really have to idea how it is going to work out, but is looking good though.

Cut my front suspension in half. Needed to cut it down to fit in the lathe to skim the old bearing step off. Two blocks where welded on to position it when it goes back.

Few pictures of where I am at.

[Goped ESR750]

Got the front suspension parts welded back together today, they where welded all across the joint instead of the two slugs that where on there before. This should make it a little stronger. Also made a good start on the shaft for the suspension.

The shaft is about 350 long at the moment, the first section on the larger end is for the swing arm to be welded too. As I am not fabricating the swing arm I have left this oversized at 100mm long so the custom builder can tell me how he wants it.

Managed to get two of the sides milled, but ran out of time. Will finish the square tomorrow; this is the part which will drive the inner square on the suspension.

Few pics of where I'm at.

[John in CR]

Looking good Goped. Have you done a rear suspension like that before, or otherwise have experience with the square-in-a-square plus elastimer suspension? I was wondering how you came up with a starting point for sizing and the elastic part.

[Goped ESR750]

Looking good Goped. Have you done a rear suspension like that before, or otherwise have experience with the square-in-a-square plus elastimer suspension? I was wondering how you came up with a starting point for sizing and the elastic part.

Thanks. No, I have not made anything like this before. I needed a compact suspension system, without a shock absorber above the wheel. Goped produce a stand up with a similar far smaller suspension with no bearings. I found out the materials it was made from and sourced my own. I'm not even sure if it will work yet. The sizing just seemed reasonable in relation to the wheel width, and the tubing on the frame.

This is all trail an error. I have ordered the next grade harder rod to see the difference. I have real concerns of spinning the inner square. Under large load I have been able to spin it, but I really don't know what load I am going to get in normal use. Also having the ends capped off will stop the poly compressing out the end which will stiffen it up too. I really prefer to be safe rather than sorry so needs some fine tuning I think.
