Re: KU63 KU93 KU123 controller hacking

Get all your technical information about electric bikes here.

Re: KU63 KU93 KU123 controller hacking

Postby stesteste » Mon Mar 26, 2012 10:25 am

hi i am buying a pro rider
( heres link)
http://www.proridermobility.com/detail. ... ductID=332 VOYAGER ELECTRIC MOUNTAIN BIKE ( heres link)
i asked for some info on the bike and this it what they said
We can confirm that it is a 36V 15Amp controller. There is no need to fit a bigger controller as a 250W peak motor(maximum allowed by LAW) at 36V is just under 7Amp at maximum – Ok peak can be a little higher on load but you are also restricted with a 10Ah Battery.
is the anything i can do to derestrict it ,i beleive it will do 18/19 mph but restricted to 15 uk law ( i will take pic of controller later) i can i change anything on controller to get 10amp or buy different one its only for work but would like to go 18/19 mph thanks in advance
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

Re: KU63 KU93 KU123 controller hacking

Postby stesteste » Mon Mar 26, 2012 10:28 am

hi i am buying a pro rider
( heres link)
hi i am buying a pro rider
( heres link)
http://www.proridermobility.com/detail. ... ductID=332 VOYAGER ELECTRIC MOUNTAIN BIKE ( heres link)
i asked for some info on the bike and this it what they said
We can confirm that it is a 36V 15Amp controller. There is no need to fit a bigger controller as a 250W peak motor(maximum allowed by LAW) at 36V is just under 7Amp at maximum – Ok peak can be a little higher on load but you are also restricted with a 10Ah Battery.
is the anything i can do to derestrict it ,i beleive it will do 18/19 mph but restricted to 15 uk law ( i will take pic of controller later) i can i change anything on controller to get 10amp or buy different one its only for work but would like to go 18/19 mph thanks in advance VOYAGER ELECTRIC MOUNTAIN BIKE ( heres link)
i asked for some info on the bike and this it what they said
We can confirm that it is a 36V 15Amp controller. There is no need to fit a bigger controller as a 250W peak motor(maximum allowed by LAW) at 36V is just under 7Amp at maximum – Ok peak can be a little higher on load but you are also restricted with a 10Ah Battery.
is the anything i can do to derestrict it ,i beleive it will do 18/19 mph but restricted to 15 uk law ( i will take pic of controller later) i can i change anything on controller to get 10amp or buy different one its only for work but would like to go 18/19 mph thanks in advance
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

controller or derestrict info wanted

Postby stesteste » Mon Mar 26, 2012 10:30 am

hi i am buying a pro rider
( heres link)
http://www.proridermobility.com/detail. ... ductID=332 VOYAGER ELECTRIC MOUNTAIN BIKE ( heres link)
i asked for some info on the bike and this it what they said
We can confirm that it is a 36V 15Amp controller. There is no need to fit a bigger controller as a 250W peak motor(maximum allowed by LAW) at 36V is just under 7Amp at maximum – Ok peak can be a little higher on load but you are also restricted with a 10Ah Battery.
is the anything i can do to derestrict it ,i beleive it will do 18/19 mph but restricted to 15 uk law ( i will take pic of controller later) i can i change anything on controller to get 10amp or buy different one its only for work but would like to go 18/19 mph thanks in advance
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

Re: KU63 KU93 KU123 controller hacking

Postby Russell » Mon Mar 26, 2012 12:15 pm

Stesteste,

If you have one of the controllers mentioned in the original post then it comes equipped with a pair of speed limiting wires. With the wires connected the speed is limited, with them disconnected it is not.



-R
Jeep Comanche Trekking Bike w/YOUE 250W geared motor, 42 lbs + 14-15 lb rear trunk bag w/15-16AH battery, tools, etc. 22.5/27 mph (10S 42V/12S 50V) 22A controller, 700Cx40mm tires.


My other E-Bikes: Nashbar Flatbar Road Bike; Electra Townie Cruiser
User avatar
Russell
10 MW
10 MW

Posts: 2083
Joined: Sat Nov 22, 2008 3:08 pm
Location: State of Wisconsin, USA

Re: controller or derestrict info wanted

Postby Tench » Mon Mar 26, 2012 12:58 pm

I bought the ewayfarer from them for the wife, then the mother in law bought one aswell, they are great bikes for the money, hers did an easy 25+ miles on a charge and cruised at 17/18mph no problem. But what your interested in is can it be tweaked up a bit, i tried this by adding some solder to the shunt legs, on the first test ride it took off like a scolded cat for about 3 seconds then the bms tripped out (i believe all the different models use the same battry/bms) i kept reducing the amount of solder untill it would stay engaged, the added performance is usefull but not massive. it pulls hills better and accelerates better but the top speed is not changed much, max range is now 24 miles. I dont think it would be worth changing the controller as the batteries bms will be the limiting factor.
The batteries are very good, i have monitired them over the winter while the bike has not been used and it just holds the charge, i expected it to drop a little each month but this is not the case, it has been sat at 40v all winter.
The head lamp bracket broke but it was no loss as the light was pants and not worth having anyway but the rest of the bike is surprisingly good.
When we visited them they had all the models available for test riding and it looked quite a popular little business.

Cheers Simon.
Project one viewtopic.php?f=28&t=20304&hilit=tench
Project Two viewtopic.php?f=6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.
Tench
100 kW
100 kW

Posts: 1132
Joined: Tue Jul 13, 2010 12:48 pm
Location: Derby UK

Re: controller or derestrict info wanted

Postby Russell » Mon Mar 26, 2012 1:02 pm

Did you see my answer on the other thread?

http://endless-sphere.com/forums/viewtopic.php?f=2&t=37853#p554917

-R
Jeep Comanche Trekking Bike w/YOUE 250W geared motor, 42 lbs + 14-15 lb rear trunk bag w/15-16AH battery, tools, etc. 22.5/27 mph (10S 42V/12S 50V) 22A controller, 700Cx40mm tires.


My other E-Bikes: Nashbar Flatbar Road Bike; Electra Townie Cruiser
User avatar
Russell
10 MW
10 MW

Posts: 2083
Joined: Sat Nov 22, 2008 3:08 pm
Location: State of Wisconsin, USA

Re: controller or derestrict info wanted

Postby stesteste » Mon Mar 26, 2012 1:38 pm

thanks for reply
have you tried to derictrict seperating wires simon and how much solder did u put on the shunt when the bms trips out is it just a case of removing some solder
thanks for comments guys
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

Re: controller or derestrict info wanted

Postby Russell » Mon Mar 26, 2012 2:08 pm

Be sure to look for and disconnect the speed restriction wires if your controller has them FIRST before doing a shunt mod.

-R
Jeep Comanche Trekking Bike w/YOUE 250W geared motor, 42 lbs + 14-15 lb rear trunk bag w/15-16AH battery, tools, etc. 22.5/27 mph (10S 42V/12S 50V) 22A controller, 700Cx40mm tires.


My other E-Bikes: Nashbar Flatbar Road Bike; Electra Townie Cruiser
User avatar
Russell
10 MW
10 MW

Posts: 2083
Joined: Sat Nov 22, 2008 3:08 pm
Location: State of Wisconsin, USA

Re: controller or derestrict info wanted

Postby Tench » Mon Mar 26, 2012 2:42 pm

I only added some solder around the legs of the single wire shunt to build a small fillet up, when this was too much i just melted it again and some was taken back on to the soldring iron, i reduced it untill it would not trip the BMS. I didnt disconect any wires as speed was not my concern, the small wheeled wayfarer model is fast enough at 20mph. They do pull more than 250w during accelaration as standard, it is quite sprightly now and fast enough, you would probably want more than the BMS will allow for the mountain bike though but taking it to the limit like i have is a good improvement.
I imagine that the cells are 1c so the pack is restricted to a 10a max current? 10a x 40v is 400w, this is about all you will get from the std battery BMS.

Simon.
Project one viewtopic.php?f=28&t=20304&hilit=tench
Project Two viewtopic.php?f=6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.
Tench
100 kW
100 kW

Posts: 1132
Joined: Tue Jul 13, 2010 12:48 pm
Location: Derby UK

Re: controller or derestrict info wanted

Postby Tench » Mon Mar 26, 2012 2:46 pm

Russell wrote:Did you see my answer on the other thread?

http://endless-sphere.com/forums/viewtopic.php?f=2&t=37853#p554917

-R

Just had a look at the other thread, i will have a look to see if ours has the same wiring and see how the speed responds to being disconnected.
Project one viewtopic.php?f=28&t=20304&hilit=tench
Project Two viewtopic.php?f=6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.
Tench
100 kW
100 kW

Posts: 1132
Joined: Tue Jul 13, 2010 12:48 pm
Location: Derby UK

Re: KU63 KU93 KU123 controller hacking

Postby stesteste » Mon Mar 26, 2012 4:11 pm

ANYCHANCE OF A PIC OF HOW MUCH SOLDER YOU GOT ON WHILE YOUR AT IT CHEERS
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

Re: KU63 KU93 KU123 controller hacking

Postby d8veh » Wed Mar 28, 2012 4:05 am

On these sort of bikes, it's not the controller that limits the speed. It's the motor/battery.

Some controllers have a pair of wires to fix the speed to 15mph max. They're easy to spot because they're single wires. Most of the other wires are two or more to a connector, so, if you find two single wires connected, disconnect them and see what happens. The most you can expect is to go from 15mph up to about 18mph

You can increase average speed by adding some solder to the shunt in the controller, which gives more torque, as has been indicated above, but often the battery can't give much more and you run the risk of early battery demise and frequent cut-outs.

A very easy way to increase speed is to get a higher voltage battery. A 12s lipo pack at 44v will work with your existing controller and will give about 20% increase in speed (as long as the controller doesn't have speed limit wires connected). You might be able to go to 48v without burning the controller, but you'll have to look inside to see the rating of the capacitors. They need to be 63v or more. 48v will give a 33% increase in speed.
d8veh
100 MW
100 MW

Posts: 2715
Joined: Fri Dec 10, 2010 10:45 am
Location: Telford

Re: KU63 KU93 KU123 controller hacking

Postby stesteste » Wed Mar 28, 2012 2:53 pm

thanks very much some very interesting information given here 18mph on flat will do me just for going to work bike comes tomorow so i look in controller waiting for another member to post pic on how much solder to put on the shunt without it tripping the bms ,,,,,might make a fun project bike in the future for kicks
thanks for all replys,,, learning on each comment thx
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

Re: KU63 KU93 KU123 controller hacking

Postby d8veh » Thu Mar 29, 2012 2:17 pm

stesteste wrote:thanks very much some very interesting information given here 18mph on flat will do me just for going to work bike comes tomorow so i look in controller waiting for another member to post pic on how much solder to put on the shunt without it tripping the bms ,,,,,might make a fun project bike in the future for kicks
thanks for all replys,,, learning on each comment thx


Normally about 1/3 of the legth from one end. You have to be careful that ablob of solder doesn't form on the other side of the pcb and shorts out something. Solder will run through the hole with the shunt in when it's liquid. Turn the controller on its side to prevent this.
d8veh
100 MW
100 MW

Posts: 2715
Joined: Fri Dec 10, 2010 10:45 am
Location: Telford

Re: KU63 KU93 KU123 controller hacking

Postby Tench » Thu Mar 29, 2012 3:20 pm

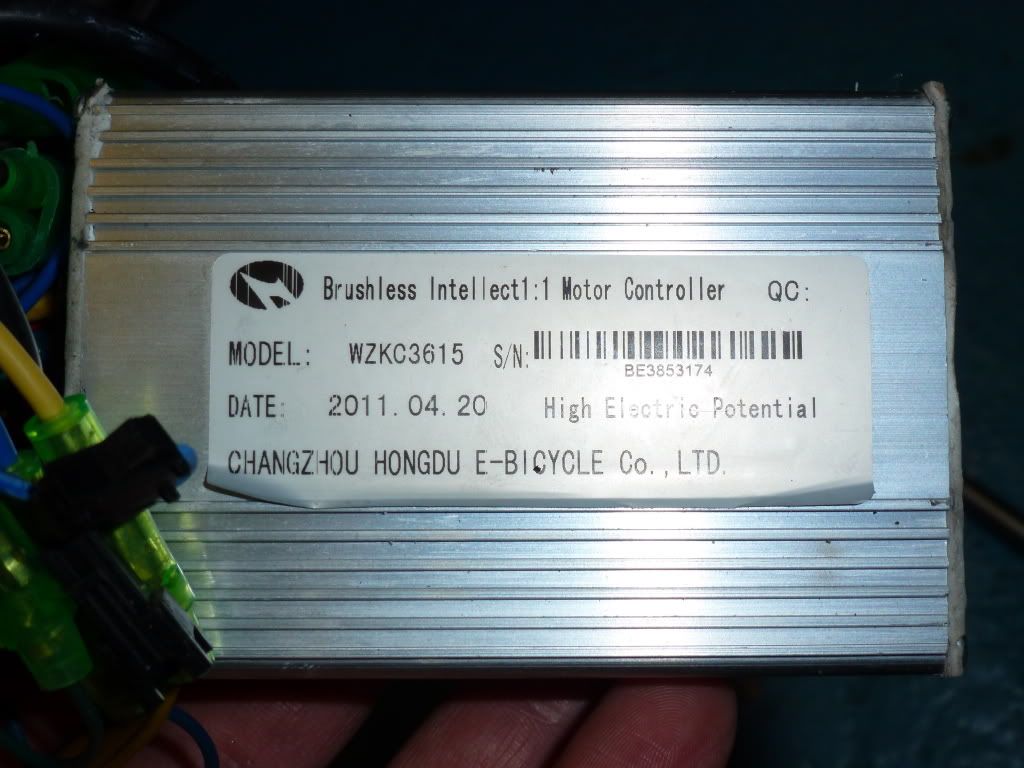

Hi, i have taken some pics of the shunt with the solder added, any more than this caused the bms to trip, and of the controller label, it doesnt have the white wires but there was a single blue wire that came out of the controller and also another it would plug into, these where allready disconnected, they could be alternative timing wires?


Did you get your bike today? are you pleased with it?

Simon.
Project one viewtopic.php?f=28&t=20304&hilit=tench
Project Two viewtopic.php?f=6&t=37489
The uk's first Stealth Bomber

There is a box inside your head, inside amongst others are the words "Wont fit" stop looking for answers in the box, there are no answers only excuses.
Tench
100 kW
100 kW

Posts: 1132
Joined: Tue Jul 13, 2010 12:48 pm
Location: Derby UK

Re: KU63 KU93 KU123 controller hacking

Postby stesteste » Fri Mar 30, 2012 1:10 am

Bike came yesterday fixed it all up mud guard was broke tested lights and pop, smoke tripped motor out. engineer coming on Tuesday peeved off
stesteste
1 mW
1 mW

Posts: 17
Joined: Mon Mar 19, 2012 7:35 am

Re: KU63 KU93 KU123 controller hacking

Postby mr.electric » Sat Dec 22, 2012 3:51 am

Has anyone experienced the KU 123 controller increasing speed as the throttle is turned then dropping speed a bit at full throttle. Max motor speed is at about 3/4 throttle.
I am running a bmc. Motor is unloaded in a stand. Hall type throttle connected.
Also on another note I assume the controller goes to maximum power mode when nothing is connected to the 3 speed switch plug.
-Fat Sand Bike with 9c and 29ah pack

-Giants mascot scooter
User avatar
mr.electric
10 kW
10 kW

Posts: 717
Joined: Wed Jan 03, 2007 12:12 pm
Location: San Francisco

Re: KU63 KU93 KU123 controller hacking

Postby d8veh » Sat Dec 22, 2012 6:55 am

The controller doesn't go to maximum speed with nothing connected to the three-speed switch. Sometimes you can get a significant speed increase, other times you get very little difference. It seems to depend on the exact motor/controller combination. You can get two of the same type of motors that behave differently, and the same with two of the same type of controller. Don't ask me how it works. It must be timing related. One 350w Bafang CST motor I had with a KU123 would only do 20mph (no load) in the middle position (nothing connected), but did 33mph (no load) in position three.
d8veh
100 MW
100 MW

Posts: 2715
Joined: Fri Dec 10, 2010 10:45 am
Location: Telford

Re: KU63 KU93 KU123 controller hacking

Postby mr.electric » Sat Dec 22, 2012 11:32 am

I wish I had bought a 3 speed switch. I will try to find one locally before making another bms battery order.
-Fat Sand Bike with 9c and 29ah pack

-Giants mascot scooter
User avatar
mr.electric
10 kW
10 kW

Posts: 717
Joined: Wed Jan 03, 2007 12:12 pm
Location: San Francisco

Re: KU63 KU93 KU123 controller hacking

Postby teklektik » Sat Dec 22, 2012 12:20 pm

mr.electric wrote:I wish I had bought a 3 speed switch. I will try to find one locally before making another bms battery order.

I believe you will find the 3-speed switch is just an SPDT center-off switch. Find out the connections from someone who has a production switch (a few minutes of multimeter work) and either just jumper it for 'High' or pick up a toggle at Radio Shack or the local auto or hardware store.
User avatar
teklektik
10 MW
10 MW

Posts: 2103
Joined: Sat Mar 26, 2011 1:15 pm
Location: CT, USA

Re: KU63 KU93 KU123 controller hacking

Postby mr.electric » Sun Dec 23, 2012 12:19 pm

I will just use trial and error to find high then permanently connect those wires.
-Fat Sand Bike with 9c and 29ah pack

-Giants mascot scooter
User avatar
mr.electric
10 kW
10 kW

Posts: 717
Joined: Wed Jan 03, 2007 12:12 pm
Location: San Francisco

Re: KU63 KU93 KU123 controller hacking

Postby TheBeastie » Mon Dec 24, 2012 10:11 am

I don't know if you guys have noticed but I just received a new KU123 after I blew my last one.
This new one has changed a bit, there is now an easy way to convert the KU123 between 36v and 48v mode. You can now just merely disconnect a red wire plug and it changes to 48v mode which is good for me since I have both battery types. Also they changed the sticker, notifying buyers of the new option.


Some of the other leads have changed a tiny bit but I don't know what the difference is. One plug has two different plugs joined to the same 2-3 wires, not sure what its for.
Speed Kills Range, 10mph = 46 miles range, 15mph = 30 miles range, 20mph = 20 miles range, 25mph = 13 miles range, 30mph = 8 miles range http://bit.ly/1avtI5Y
No solder bullet connector http://bit.ly/R7SOkP
Over Charging Kills your battery http://bit.ly/1hzWKl4
How far will some people go to sell you dodgey cells! http://youtu.be/eOshOXcSkDA
Got banned on Whirlpool.net.au for merely posting this link in "In the News", On whirlpool you have less online rights then China http://tinyurl.com/ok5py5q
User avatar
TheBeastie
10 kW
10 kW

Posts: 710
Joined: Sat Jul 28, 2012 12:31 am
Location: Melbourne Australia

Re: KU63 KU93 KU123 controller hacking

Postby d8veh » Mon Dec 24, 2012 4:33 pm

mr.electric wrote:I wish I had bought a 3 speed switch. I will try to find one locally before making another bms battery order.

You don't need a three speed switch. You can just shove a bit of wire up the connector. The black is the common wire, so connect each of the other two in turn to the black. One make it go slower and the other will make it go faster. If you decide that you want to keep it in either mode, you can cut the connector of and twist the wires together (or solder them) permanently.
d8veh
100 MW
100 MW

Posts: 2715
Joined: Fri Dec 10, 2010 10:45 am
Location: Telford

Re: KU63 KU93 KU123 controller hacking

Postby schwibsi » Thu Jan 17, 2013 9:16 pm

What's the difference in the 36V and 48V settings?

My KU63 operates without a problem at 12s (50V fully charged)
So, I don't understand,what it does.
By the way, I received a new KU123 this week as well. Haven't tried it out yet, so I'm kinda curious
User avatar
schwibsi
1 kW
1 kW

Posts: 352
Joined: Tue Mar 27, 2012 7:16 pm
Location: Germany

Re: KU63 KU93 KU123 controller hacking

Postby d8veh » Fri Jan 18, 2013 7:25 am

schwibsi wrote:What's the difference in the 36V and 48V settings?

My KU63 operates without a problem at 12s (50V fully charged)
So, I don't understand,what it does.
By the way, I received a new KU123 this week as well. Haven't tried it out yet, so I'm kinda curious

The external connection is basically a jumper that brings an additional resistor in parallel to one in the voltage sensing divider.
Read all about it here:
http://www.pedelecs.co.uk/forum/electri ... oller.html
d8veh
100 MW
100 MW

Posts: 2715
Joined: Fri Dec 10, 2010 10:45 am
Location: Telford
