ES DIY Motor Challenge

Post by Miles » Nov 28, 2009 5:05 pm

What do you think about the idea of a competition for the diy motor builders on ES?

What would be a suitable goal to work towards?

4Nm of sustainable torque per kg of motor weight - passive cooling only - for a motor weighing under 3 kg?

........................................................................................................................................................

Edit

Goal:

- Over 4Nm continuous torque per kg of motor weight.

Rules:

- Less than 3kg in weight.

- No energy input other than that to the motor itself.

- Capable of practical use on an electric bike.

...................................................................................................................................................

Finalised rules:

Three weight categories:
- 3kg or less
- Over 3kg to 10kg
- Over 10kg to 20kg
- Over 20kg to 40kg

Goal

The initial formula for the continuously sustainable specific torque target, in each category, is:

- Specific torque (Nm/kg) = 0.1 * motor weight (kg) + 3
[This will be adjusted by category (raising the bar), as it's achieved.]

Rules

- No energy input other than that to the motor itself.

- Capable of practical use on an electric bike.



Example:
A motor weighing 1.2kg would need to achieve a specific torque of 1.2 * 0.1 + 3 = 3.12 Nm/kg.
So it would need to be able to sustain a torque of 3.12 * 1.2 = 3.74 Nm.

User avatar
HAL9000v2.0
100 kW
100 kW
Posts: 1065
Joined: Apr 14, 2008 6:16 am
Location: Zagreb, Croatia
Contact:

Re: ES DIY motor competition?

Post by HAL9000v2.0 » Nov 28, 2009 5:10 pm

You are aiming on RC type motors only?

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 28, 2009 5:11 pm

No, any motor type you like. Anyway, what's an RC type motor?

User avatar
HAL9000v2.0
100 kW
100 kW
Posts: 1065
Joined: Apr 14, 2008 6:16 am
Location: Zagreb, Croatia
Contact:

Re: ES DIY motor competition?

Post by HAL9000v2.0 » Nov 28, 2009 5:14 pm

IMHO non hub :)

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 28, 2009 5:16 pm

Oh, right... :)

I proposed a torque density goal to keep things as broad as possible.

User avatar
TylerDurden
100 GW
100 GW
Posts: 7543
Joined: Jan 04, 2007 5:50 pm
Location: Wear the fox hat.
Contact:

Re: ES DIY motor competition?

Post by TylerDurden » Nov 28, 2009 5:16 pm

The collaborative environment may suffer if members compete against each other.

Right now, the ES team seems to be winning in the DIY competition versus the rest of the world. :mrgreen:
Have a Nice Day,

TD

___________________________________________________________

FYI: Adding pictures?

Bored?... take a crack at the unanswered posts

Please post your Watts-at-speed in the survey.




User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 28, 2009 5:21 pm

TylerDurden wrote:The collaborative environment may suffer if members compete against each other.
Well, the only prize would be the kudos of breaking the barrier..... If you do it in a secretive way, you lose kudos... :mrgreen:

If we call it a "challenge", is that better?

User avatar
Toorbough ULL-Zeveigh
10 MW
10 MW
Posts: 2273
Joined: Feb 09, 2007 3:02 am
Location: Marlboro

Re: ES DIY motor competition?

Post by Toorbough ULL-Zeveigh » Nov 28, 2009 5:47 pm

it's already a good ol-fashioned space race or rather a safe race.
fess up Miles.
Last edited by Toorbough ULL-Zeveigh on Nov 28, 2009 5:58 pm, edited 1 time in total.
Kick down the barricades Listen what the kids say.
From time to time people change their minds But the Frock is here to stay.
I've seen it all from the bottom to the top Everywhere I go the kids wanna Frock.
Around the world or around the block Everywhere I go the kids wanna Frock.

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 28, 2009 5:51 pm

I see what you mean...............
safe is on his third Damascene conversion of this year..... :)

User avatar
Toorbough ULL-Zeveigh
10 MW
10 MW
Posts: 2273
Joined: Feb 09, 2007 3:02 am
Location: Marlboro

Re: ES DIY motor competition?

Post by Toorbough ULL-Zeveigh » Nov 28, 2009 6:28 pm

so if he wasn't the inspiration for this thread then u must have picked up on the evil disturbance in 'The Force'. :twisted:

first mandorla, now Damascene.
a gagoogling i shall go.
Kick down the barricades Listen what the kids say.
From time to time people change their minds But the Frock is here to stay.
I've seen it all from the bottom to the top Everywhere I go the kids wanna Frock.
Around the world or around the block Everywhere I go the kids wanna Frock.

User avatar
Thud
100 MW
100 MW
Posts: 2809
Joined: Aug 20, 2009 6:20 am
Location: West Michigan,USA

Re: ES DIY motor competition?

Post by Thud » Nov 28, 2009 8:29 pm

I think we should throw the gauntlet to the other forums. (unless all the brain power are same guys here :P )
but I do like the parameters.
Realisticly, how many motor builders do we have here?
I am a hobby machinest, Jack of all trades and electrical bafoon.
Whats hapening in the axial motor thread is a new adventure for me.
get some......

All information & advice provided by Thud are "Open Source" & free for personal use & distribution under the following agreement linked below.
http://creativecommons.org/licenses/by-nc-nd/3.0/

User avatar
fechter
100 GW
100 GW
Posts: 11822
Joined: Dec 31, 2006 3:23 pm
Location: California Bay Area, USA

Re: ES DIY motor competition?

Post by fechter » Nov 28, 2009 8:47 pm

Toorbough ULL-Zeveigh wrote:it's already a good ol-fashioned space race or rather a safe race.
fess up Miles.
That's good for a few laughs. :lol: Good thing I don't need to spend so much time explaining things to him anymore. Only just recently did my total post count exceed his.

I recall a few that have built their own motors. It is not a trivial task.
Before the old V forum crashed, there was a guy in Sweden named Honk that was working on a multi-disk ironless axial motor using multilayer PCB boards for the windings. I wonder what ever happened to him?

I've seen several DIY radial designs that failed after the magnets flew off the rotor.

We'll just have to see what the "Idea Incubator" comes up with.
"One test is worth a thousand opinions"

User avatar
liveforphysics
100 GW
100 GW
Posts: 14455
Joined: Oct 29, 2008 1:48 am
Location: Santa Cruz, CA, USA

Re: ES DIY motor competition?

Post by liveforphysics » Nov 28, 2009 10:38 pm

I've seen 3 things that are factors leading to invention and innovation.

Dumb luck and/or genius

Hardship

Competition



At the moment, most of us here are only working with the first factor. Anything that applies an additional innovation driving force is a very welcome thing IMO.

Competition is what it took to transform engines from 0.04hp/lbs to +2hp/lbs, AND improve reliability and economy.

Motors need the same sort of innovation driving force.

We need to get some innovation driving trash-talking started between other forums. In the automotive racing world, NOTHING makes us hunt harder for every last 0.5% design improvement we can find more than the need to shut-up another trashtalking team/shop/forum on raceday.
Each carcinogen vapor exposure includes a dice roll for cancer.

Each mutagen vapor exposure includes a dice roll for reproductive genetic defects in your children.

Each engine start sprays them into a shared atmosphere which includes beings not offered an opportunity to consent accepting these cancer experiences and defective genetics life experiences.

Every post is a free gift to the collective of minds composing the living bleeding edge of LEV development on our spaceship.

John in CR
100 GW
100 GW
Posts: 13764
Joined: May 20, 2008 12:58 am
Location: Paradise

Re: ES DIY motor competition?

Post by John in CR » Nov 28, 2009 11:23 pm

How about 10nm/kg continuous and 20nm/kg peak? I found something that might help level the playing field a bit, since it has juicy formulae along with a triple rotor/double stator layout in a hub motor layout with real world efficiency of 93% and 97% highway. http://www.itee.uq.edu.au/~aupec/aupec0 ... 0paper.pdf

I'm all for competition, and if we can figure out some way to blend the competitive drive with the multi-brain and wide ranging experience open source sharing approach pervasive here at ES, it could result in a best of both worlds situation.

John

User avatar
fechter
100 GW
100 GW
Posts: 11822
Joined: Dec 31, 2006 3:23 pm
Location: California Bay Area, USA

Re: ES DIY motor competition?

Post by fechter » Nov 29, 2009 12:03 am

I posted this on Thud's thread: http://www.ornl.gov/~webworks/cppr/y2001/rpt/120491.pdf

A similar design objective, but a radial example.

One more thing to throw into the constraints is cost. Super expensive efficient motors are already out there. We need cheap efficient motors. If you're going to DIY, then there are even more constraints in the availble materials and tools. There are going to be trade-offs in design, so anything Thud or anyone else is likely to come up with may not have super advanced fabrication techniques, but I think we could easily make something with more bang for the buck.

I'm always one for making maximum use of available materials. If I can buy something that's close and just modify it, that's easier than starting from scratch. This applies to the pieces as well as the whole.

The 'Sphere has morphed into one of the most open and dynamic idea incubators that I have ever encountered. Members come and go, but all add something along the way. Most of the techinical problems we face are quite solvable, but there just seems to be so many of them it's hard to keep up. I think we've had a large influence on the whole ebike sector either directly or indirectly. Ideas we were bouncing around a couple of years ago are starting to show up in the marketplace. Someday products might actually be built so they work and are reliable.
"One test is worth a thousand opinions"

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 29, 2009 3:05 am

John in CR wrote:How about 10nm/kg continuous and 20nm/kg peak? I found something that might help level the playing field a bit, since it has juicy formulae along with a triple rotor/double stator layout in a hub motor layout with real world efficiency of 93% and 97% highway. http://www.itee.uq.edu.au/~aupec/aupec0 ... 0paper.pdf
Interesting find, John. It's on a completely different scale, though....

I think the 4 Nm/kg target is a more reasonable goal, for us.....

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 29, 2009 3:09 am

fechter wrote: That's good for a few laughs. :lol: Good thing I don't need to spend so much time explaining things to him anymore.
Maybe someone could casually mention transverse flux motors on the MotoredBikes forum....? :mrgreen:

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 29, 2009 4:34 am

Miles wrote: I think the 4 Nm/kg target is a more reasonable goal, for us.....
To give an example:

A 1 kg motor running at 2400rpm would be able to output 1 kW continuously....

John in CR
100 GW
100 GW
Posts: 13764
Joined: May 20, 2008 12:58 am
Location: Paradise

Re: ES DIY motor competition?

Post by John in CR » Nov 29, 2009 6:13 am

Miles wrote:
John in CR wrote:How about 10nm/kg continuous and 20nm/kg peak? I found something that might help level the playing field a bit, since it has juicy formulae along with a triple rotor/double stator layout in a hub motor layout with real world efficiency of 93% and 97% highway. http://www.itee.uq.edu.au/~aupec/aupec0 ... 0paper.pdf
Interesting find, John. It's on a completely different scale, though....

I think the 4 Nm/kg target is a more reasonable goal, for us.....
I didn't mean to suggest a change in goal. There just seemed to be a lot of meat in that paper that might eliminate some of the guesswork. Now that you have me trying to think in terms of torque machine instead of motor, it's especially interesting that Greaves talks about only torque in that paper. LFP is going to see that 250nm continuous 500nm peak and want to put it on his bike as is. I can see him now riding around on what is essentially a lipo battery with wheels and one of these monsters inside the back wheel.
Last edited by John in CR on Nov 29, 2009 2:14 pm, edited 1 time in total.

User avatar
AussieJester
100 GW
100 GW
Posts: 9447
Joined: Mar 11, 2008 3:33 am
Location: Perth Western Australia

Re: ES DIY motor competition?

Post by AussieJester » Nov 29, 2009 6:16 am

Miles wrote: I can see him now riding around on what is essential a lipo battery with wheels and one of these monsters inside the back wheel.
LOL @ Lipo battery with wheels, pretty good description of Lukes bike there Miles :mrgreen:

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 29, 2009 6:29 am

AussieJester wrote: LOL @ Lipo battery with wheels, pretty good description of Lukes bike there Miles :mrgreen:
Yes, but it was John's, Kim... :)

User avatar
Miles
100 GW
100 GW
Posts: 11434
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: ES DIY motor competition?

Post by Miles » Nov 29, 2009 6:42 am

In case anyone needs it, the formula for rotary power is:

Power (Watts) = Torque (Nm) x Angular Velocity (radians per sec)

Angular Velocity = 2pi * 60 * rpm

So:
Watts = Nm * rpm * 2pi / 60 , or
Watts = Nm * rpm * 0.105

Solved for torque:
Nm = Watts * 60 / rpm / 2pi , or
Nm = 9.549 * Watts / rpm.

User avatar
enoob
1 kW
1 kW
Posts: 425
Joined: Oct 15, 2009 8:05 pm
Location: langley bc .

Re: ES DIY motor competition?

Post by enoob » Dec 02, 2009 5:06 pm

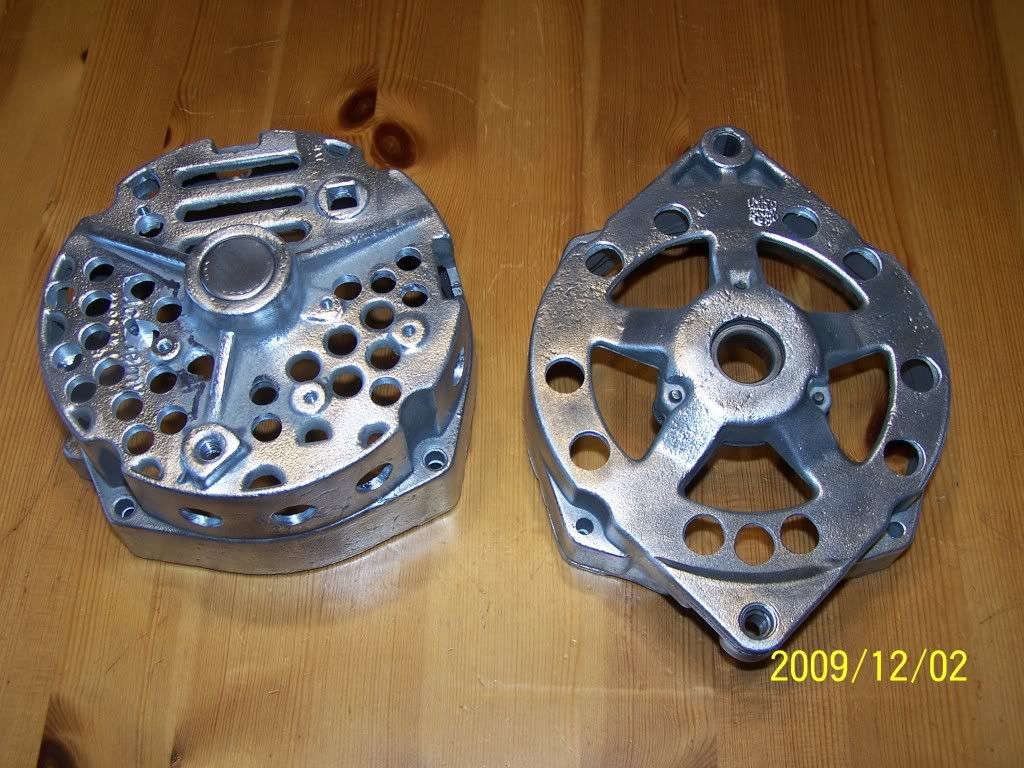

lol. im in if you gents are willing to let my ghetto entry in . id like to see a formula that takes into account $ spent and time in for total power out . that said i have no idea how much time ive put into this and dont really worry about that part.

Otherwise consider this a THROW DOWN. :twisted:

Barring any problems i have found most of the things i need to get this done . the magnets get here in the mornin (shipping weight of 1.7 pounds) and i intend to put around 1-2 pounds of copper in it still. no steel , fibreglass structure for the windings.

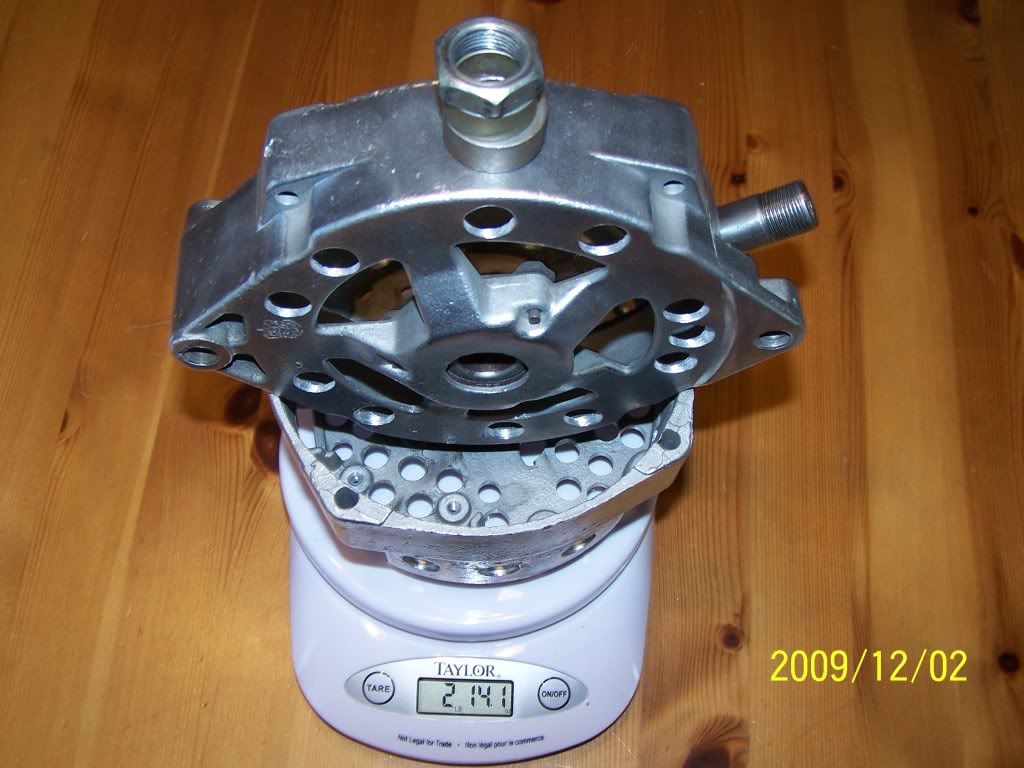

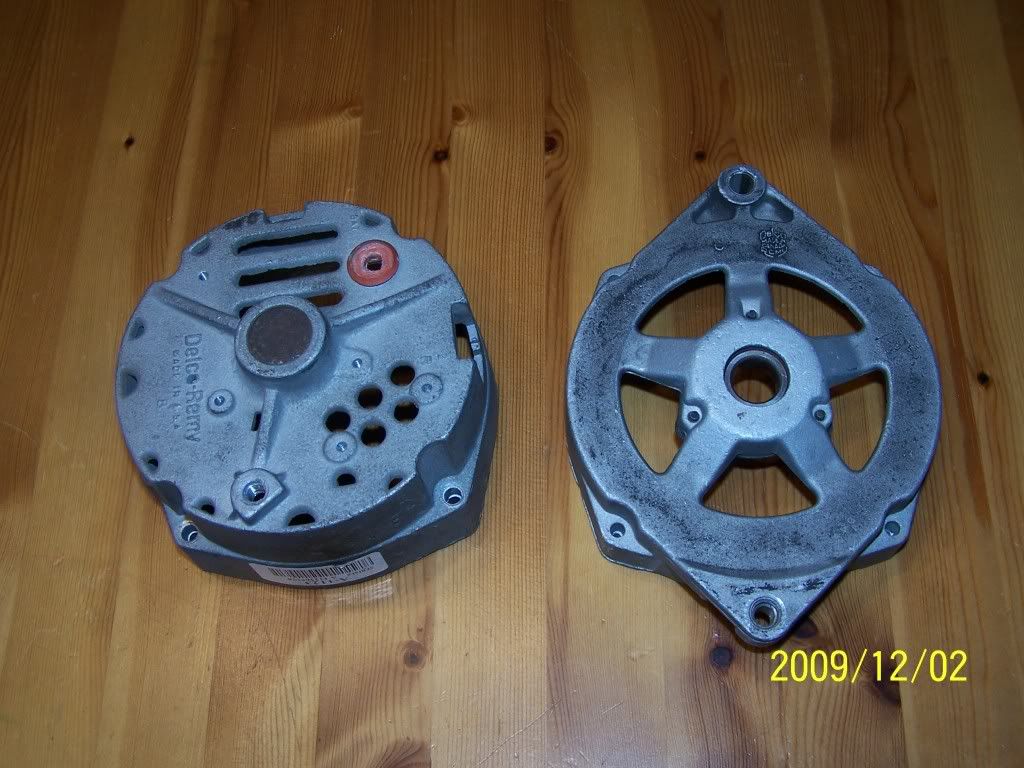

ill have shots of the rotor in the mornin. just working on dressing it up a bit :) . may get lighter as im waffling on some things but i figure i can always get the drill out again and put more speed holes in the case if i need to make a weight requirement. lol
M.E.N.S ex pres and charter member.

User avatar
recumpence
100 GW
100 GW
Posts: 5308
Joined: Apr 19, 2008 8:33 am
Location: On Earth right now. That can change at any time, though..........

Re: ES DIY motor competition?

Post by recumpence » Dec 02, 2009 5:28 pm

This is so cool!

I am an absolute Moron when it comes to understanding motors. But, I can sit back and watch with pleasure.

I am good at implementing someone else's motor onto a bike. It is cool to see people actually start from scratch and make their own working motor. :)

Come on, Gents, lets see some DIY horsepower!

Matt
1% of the world's population can think "Outside the box". The rest are firmly stuck within the box. Where are you?

User avatar
Thud
100 MW
100 MW
Posts: 2809
Joined: Aug 20, 2009 6:20 am
Location: West Michigan,USA

Re: ES DIY motor competition?

Post by Thud » Dec 02, 2009 9:17 pm

Enoob, you are in the lead.
I have been looking at weight reduction all day to better atack the parameters Miles laid out. I am curious how the alternator conversions compair to the other motor options.
on a side note I worked on my eddy brake dyno last night. I overheated the magnet rotor & the epoxy flowed. Fail! interesting gizmo though.( I am thinking a simpler friction brake will have to suffice)
E, how are you going to test you motor?
get some......

All information & advice provided by Thud are "Open Source" & free for personal use & distribution under the following agreement linked below.
http://creativecommons.org/licenses/by-nc-nd/3.0/

Post Reply
