Rapture! by Dusty Donnay

Show off your E-bike creation here.
User avatar
AussieJester   100 GW

100 GW
Posts: 8736
Joined: Mar 11 2008 3:33am
Location: Perth Western Australia

Re: Rapture! by Dusty Donnay

Post by AussieJester » Feb 24 2010 11:53pm

^^ they look a lil 'whimpy' couldn't you find anything larger :mrgreen:

Hope you have a decent soldering iron at hand ;-) HIGHLY recommend the
turbo iron if you (anyone) need
cheap iron upto the task, i bought one after LiveForPhysics recommend them in a thread and couldnt
be more pleased with it, makes short work of saturating 10GA and thicker wire with solder

Best of luck with the wiring, was least favourite part of my build i know that LoL

KiM

BLUESTREAK   1 kW

1 kW
Posts: 469
Joined: May 10 2009 1:53pm

Re: Rapture! by Dusty Donnay

Post by BLUESTREAK » Feb 25 2010 12:15am

HI ALL: You can get these dc-dc convertors a (THUNDERSTRUCK MOTORS.COM) up 48 volt for $25.00 and up to 72 volt $35.00 I ave 2 of each and thay are good people to deal with. :mrgreen:

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Feb 25 2010 10:51am

WOW, that is one sweet iron! I have two that I love, but I need that one too.


AussieJester wrote:^^ they look a lil 'whimpy' couldn't you find anything larger :mrgreen:

Hope you have a decent soldering iron at hand ;-) HIGHLY recommend the
turbo iron if you (anyone) need
cheap iron upto the task, i bought one after LiveForPhysics recommend them in a thread and couldnt
be more pleased with it, makes short work of saturating 10GA and thicker wire with solder

Best of luck with the wiring, was least favourite part of my build i know that LoL

KiM
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Feb 25 2010 10:57am

UGH! I been robbed! LOL Thanks for the link! Hadent seen them before, http://www.thunderstruck-ev.com/index.htm this is them actually. Great stuff! Thanks again. SS

BLUESTREAK wrote:HI ALL: You can get these dc-dc convertors a (THUNDERSTRUCK MOTORS.COM) up 48 volt for $25.00 and up to 72 volt $35.00 I ave 2 of each and thay are good people to deal with. :mrgreen:
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 03 2010 4:28pm

Those big sb50's in red are all my new power lines, the blue,green, and yellow are for my Delta/Wye conversion. Im using the sb50's the pos sides for the original legs, the neg side of each color for the seperated legs. So each color has both ends of that coil, three colors, six leads. But going from the controller to the relays, Im using the 75a power poles.
This is how both my controllers are set up as of now, need to add some sleeving to clean it up, still havent put in a power switch for the Lyens controller, or the usb adapter yet either, tomarrow...usb! I like the mini dry switch methods used, think Ill do that for the power.
heres the inside of my box with the 12FET 45a Infineon, the hall wire block isnt color matched yet, this is a temp set up. The Phase leg connectors are so big you cant even see the red sb50 power connector behind it! LOL The colors on the motor side of the phase is diferent on the blue and yellow cause the motor is golden motor.
Last edited by SilverSurfer on Mar 03 2010 4:43pm, edited 1 time in total.
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 03 2010 4:33pm

Hall wire block,

As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 03 2010 4:34pm

Got a new motor from Lyens for my Delta/Wye conversion! SHWEET!
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 03 2010 4:39pm

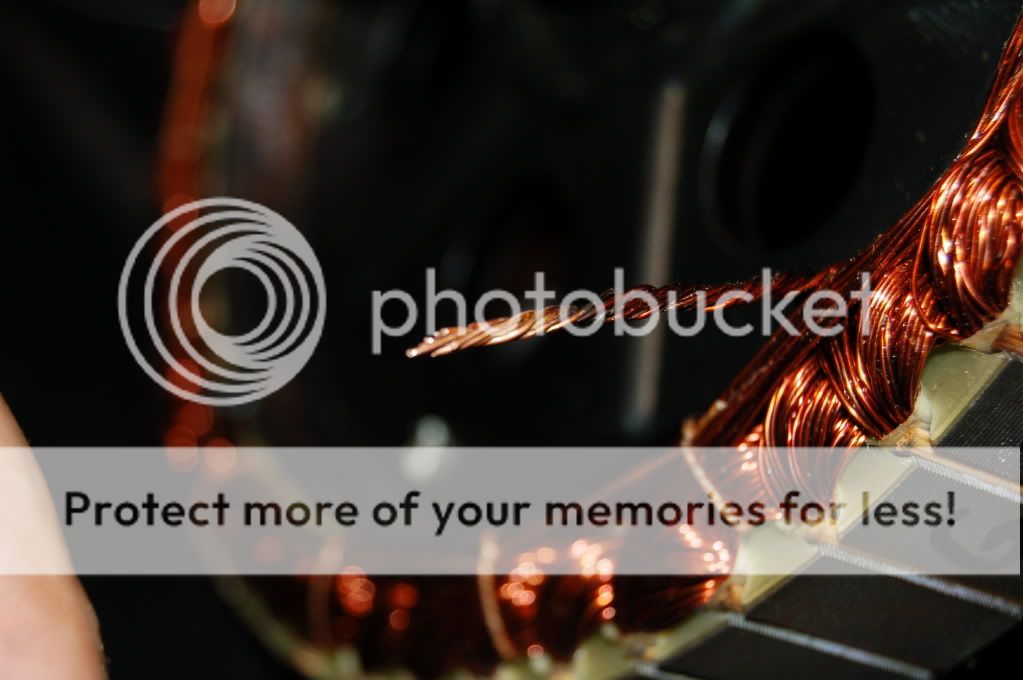

Been working hard to get the delta/wye project going. I got a brand new 9C motor
Not even a mile on it! Time to destroy!

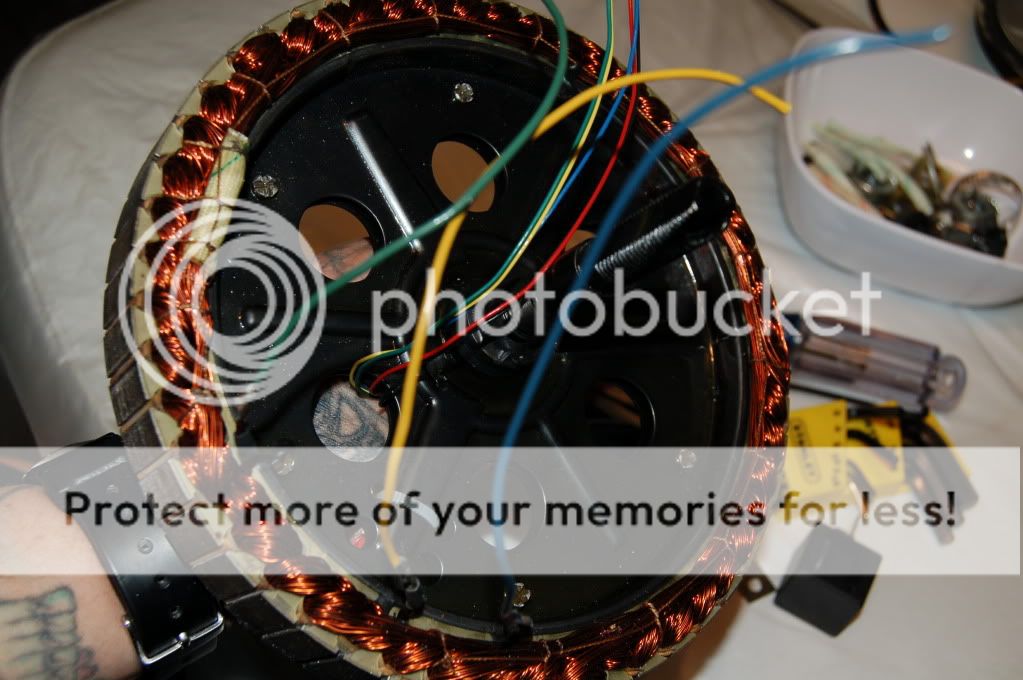

the cover was under much silicone, took alot of work to take off!
used my dremel to grind grooves deep eneough to get a screwdriver under the lip and work around it to loosen the silicone
I like to take pictures of things I might have to reassemble at a later date........never know.
PWNED! LOL

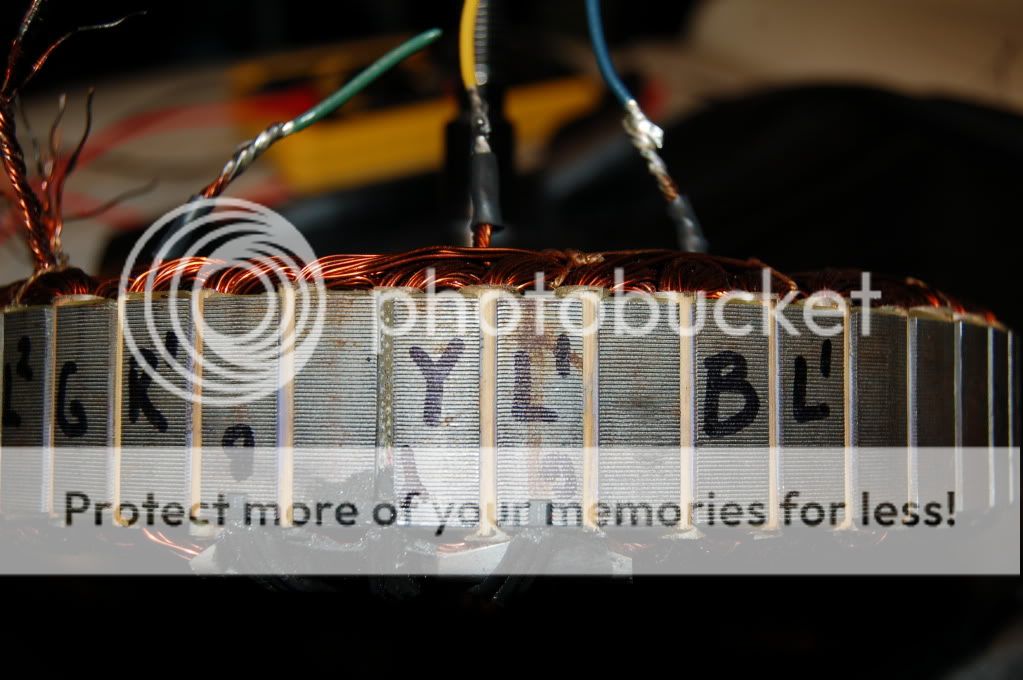

Labeling is good practice too...

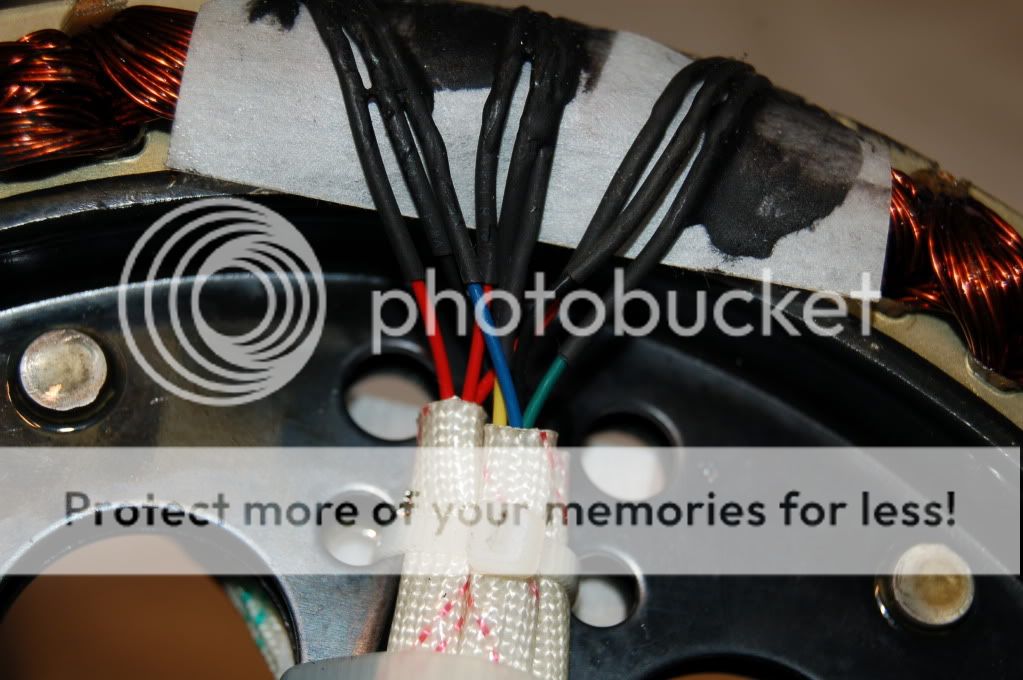

I cut off the old crap and started fresh with my own handiwork, I dont trust these companies to do a great job.

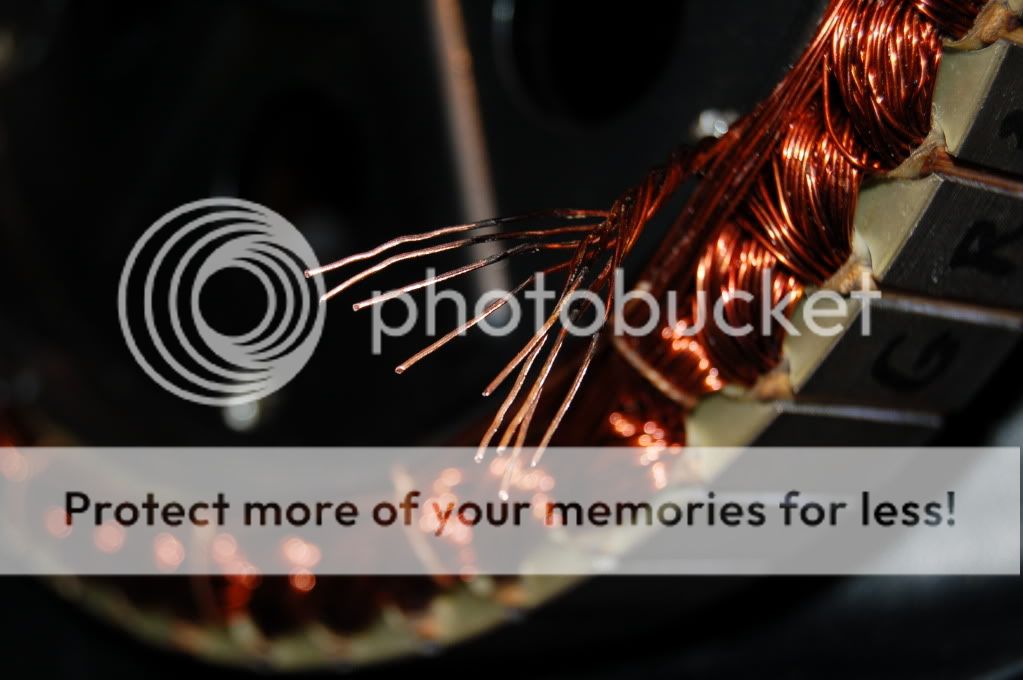

Yup, get some flux and solder in that twist!

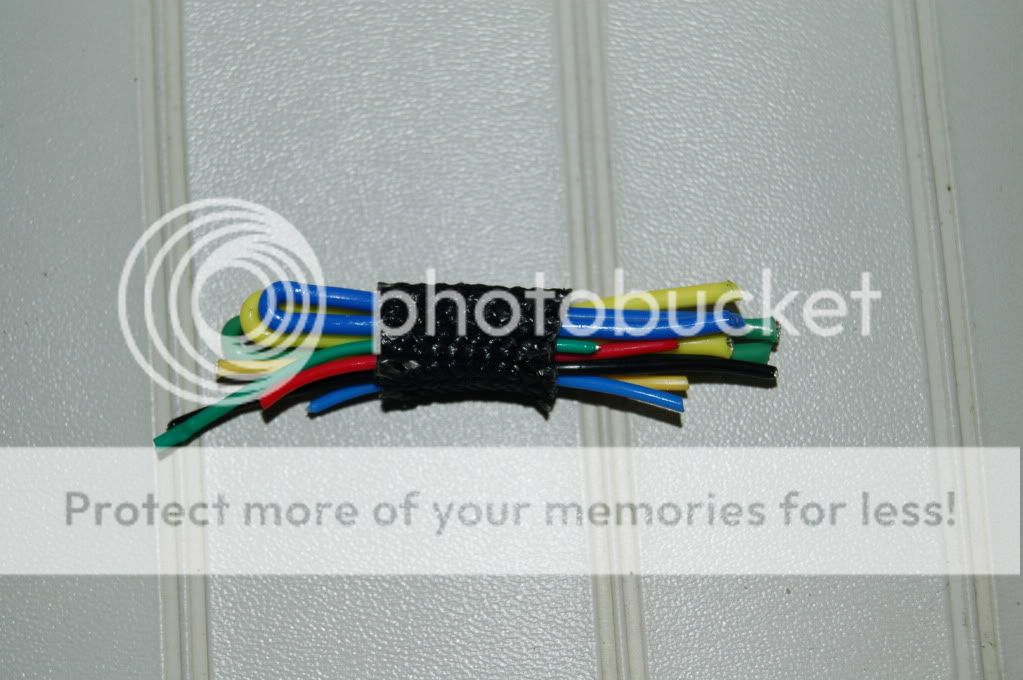

I was wondering if all these wires would fit in my sleeving.... yup!

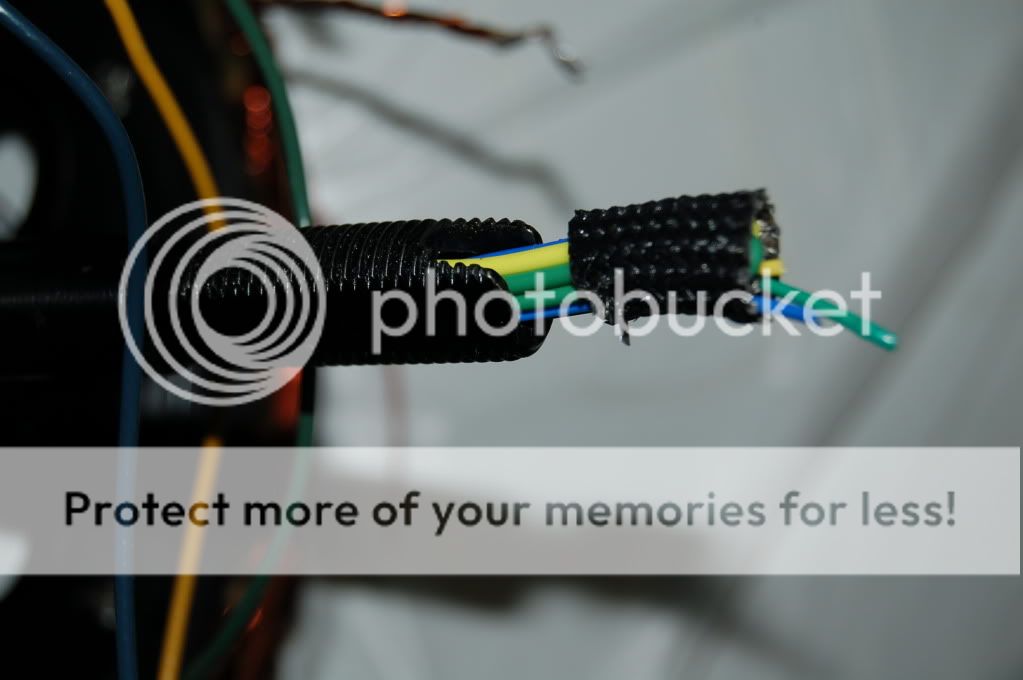

But will they fit in the axle...yup on that too!
Sparing you the spaghetti show, heres my version of the hub. Stainless zip ties, Im afraid of the heat melting the plastic ones.
Isnt she pretty now! Just waiting on more parts! More to come......
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
Hyena   100 GW

100 GW
Posts: 5628
Joined: Aug 13 2008 9:10am
Location: Sydney, Australia
Contact:

Re: Rapture! by Dusty Donnay

Post by Hyena » Mar 03 2010 5:42pm

45a andersons for hall wires ?! Dude talk about overkill...

Re: the side covers, I find you need to start with a smaller screw driver - get the smallest flat blade you can find, even a little jewellers one, get that in first then you can get the bigger ones in.

Sweet looking bike, it should be a beast when done. What sort of current are you planning to run ?
www.HyenaElectricBikes.com
Aussie high powered e-bike kits and custom performance ebikes
New FUTR and Hyena special edition Beta frames now available!
My build and HD video thread____. My youtube channel____ Hyena Facebook page
My bike is writing cheques my body can't cash...

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 03 2010 6:48pm

I have a Lyens 18 FET 72v 65a Infineon going on with the Delta/Wye hub. And am at six 12v 20AH SLA's. The batteries have no problem giving all the amps my controller can push. Heavy, but cheap and good flow! Yes, it is overkill on almost every angle. If they werent so expensive, Id have overkill of LiFePo4's goin on! But the SLA's are working for me while I put my hard money in the other stuff for now. When theres nothing left to do, batteries will be off the hook! I did have the big fat tab connectors for my power wires, but They were melting the plastic boots! Needed better contact! ONLY thing that gets hot now is the hub! Gotta start breaking my work commute into one with a pit stop. Keep it all alive, of course, I could back off the throttle.......NAW!
Hyena wrote:45a andersons for hall wires ?! Dude talk about overkill...

Re: the side covers, I find you need to start with a smaller screw driver - get the smallest flat blade you can find, even a little jewellers one, get that in first then you can get the bigger ones in.

Sweet looking bike, it should be a beast when done. What sort of current are you planning to run ?
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
Hyena   100 GW

100 GW
Posts: 5628
Joined: Aug 13 2008 9:10am
Location: Sydney, Australia
Contact:

Re: Rapture! by Dusty Donnay

Post by Hyena » Mar 03 2010 8:06pm

You shouldn't really be melting stuff. I have essentially the same set up - 72v 60 controller running 10ga power leads and 12ga phase leads with only 45a andersons and they don't get hot. The hub on the other hand you could try and egg on, and that's with air cooling. I'd seriously look into drilling some holes in your side covers or atleast fit a temperature probe.
www.HyenaElectricBikes.com
Aussie high powered e-bike kits and custom performance ebikes
New FUTR and Hyena special edition Beta frames now available!
My build and HD video thread____. My youtube channel____ Hyena Facebook page
My bike is writing cheques my body can't cash...

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 03 2010 10:05pm

Actually, when i was melting stuff i was running some very thin extension cord for powerlines. There was a heat build up at the base of the connector, really melted the boots! I switched to 12g Scosche High Performance Speaker Wire, and beefed up EVERYTHING in the power system, then just kept goin. Got carried away maybe. I am looking at the heat issue seriously, but not sure yet where to go with it yet. I live in Fla. and even if it aint pouring, we get periods of misty rain and wet fog that can rival Seattle! Just today, I left it was dry, and before I got to work went through three mist, and a short light drizzle. If ya ride bike in St. Petersburg and dont want to get wet, stay home. LOL evidently its a subject thats been discussed, though I havent found all the threads yet. I read a little of the holes, and filling with some ah..... mineral spirits? I thought about maybe making some custom heat sink that can go between the spoke runners, even entertained the idea of a radiator. Tonight Im bringing my multimeter home with me, it has a temp guage so I can get an accurate feel for where the heat is at. after ten miles hard ride it was hot, but not rediculous. But this is with the 12FET 45amp controller. The 18FET 65amp hasent even been turned on for the first time yet. Still working out all my mods. Anyway, Im nervous about holes were water can do damage instead of heat. Am I just worried about nothing?
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 05 2010 12:07am

Image Looky! I think its serial number 1~! I always wanted to get the first one of sumthin! WOOO HOOO! Now lets go blow it up!
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 05 2010 12:12am

Here we go with some more fun!
The job...
The box begins...
Playing with stars...(you know, delta/star...I know Im hilarious, no need to compliment the humor)
Progress
Now were talkin pizza, I mean spaghetti~!
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

User avatar
AussieJester   100 GW

100 GW
Posts: 8736
Joined: Mar 11 2008 3:33am
Location: Perth Western Australia

Re: Rapture! by Dusty Donnay

Post by AussieJester » Mar 05 2010 12:57am

Excellent documentation there SilverSurfer thanks for making the effort to document it so clearly! i reckon even
i could tackle a delta wye frock motor 'convertion' using the info you have laid out, and i have had enough trouble in the past
wiring one relay let alone 6 of the suckers ! ...Best of luck with the rest of the work :-)

KiM

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 09 2010 1:07pm

Ok, spaghetti mess into organized......mess.
and tested the relays, all six switched... less than an amp... not a problem!

top speed this morning! lol just had to share...fastest Ive been on it. I know most you guys like Km/hr. But these are MPH!
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

John in CR   100 GW

100 GW
Posts: 14122
Joined: May 20 2008 12:58am
Location: Paradise

Re: Rapture! by Dusty Donnay

Post by John in CR » Mar 09 2010 2:55pm

SS,

Great build. I love everything but the lead, though at least you placed it in as ideal a location as possible. The big rectangle are killing your aerodynamics. Add something rounded on the front and longer and pointed on the back. Complete the look as fuel tanks on an airplane wing, and you'll pick up some speed and range as well as look really cool.

John

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 09 2010 3:56pm

yes, I see what you mean, the flatness is causing friction with the atmospheric gasses!


Some proper shape engineering is in order!

:shock:

John in CR wrote:SS,

Great build. I love everything but the lead, though at least you placed it in as ideal a location as possible. The big rectangle are killing your aerodynamics. Add something rounded on the front and longer and pointed on the back. Complete the look as fuel tanks on an airplane wing, and you'll pick up some speed and range as well as look really cool.

John
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

FeralDog   100 W

100 W
Posts: 238
Joined: Jan 18 2010 3:23pm
Location: South Florida

Re: Rapture! by Dusty Donnay

Post by FeralDog » Mar 09 2010 4:25pm

Add something rounded on the front and longer and pointed on the back.
Maybe some salvaged aluminum cylinders from gas supply, or soft drink-booze cylinders, or scuba tanks? Image
Or a cheaper version would be silver painted PVC sh 40 (or schedule 80)pipe, 6"/"8 inch. Lightweight &Waterproof.
Last edited by FeralDog on Jun 10 2010 4:31pm, edited 2 times in total.

User avatar
Hyena   100 GW

100 GW
Posts: 5628
Joined: Aug 13 2008 9:10am
Location: Sydney, Australia
Contact:

Re: Rapture! by Dusty Donnay

Post by Hyena » Mar 09 2010 5:25pm

Nice work mate, having just done the star delta conversion myself I know it's a bit of a headache working out all the relay/phase wiring!
I trawled through the 9C star/delta thread a few times then sat there for half an hour scribbling out how I'd wire my relays and with what wires where!

Is that top speed of 39mph in delta mode though ? I get pretty much that exact top speed in star mode on 73v
www.HyenaElectricBikes.com
Aussie high powered e-bike kits and custom performance ebikes
New FUTR and Hyena special edition Beta frames now available!
My build and HD video thread____. My youtube channel____ Hyena Facebook page
My bike is writing cheques my body can't cash...

User avatar
Mark_A_W   100 kW

100 kW
Posts: 1480
Joined: Jun 23 2007 2:18am
Location: Sunny Melbourne Australia

Re: Rapture! by Dusty Donnay

Post by Mark_A_W » Mar 09 2010 6:35pm

Hyena wrote:45a andersons for hall wires ?! Dude talk about overkill...

I dunno about that.


The Phase Current can be about 3 times as high as the Battery Current.
Under construction: Giant DH Team, MAC Shanghai, Infineon 18 FET controller, 64v Headway battery. LINK!!

Retired: Kona Dawg Dually + Bomber Triple Clamp forks with Nine Continents front hub motor, 48v 10Ah Headway LiFePO4 Pack + 12v 10Ah Headway LiFePO4 booster pack (nominal 64v).

Powered by the sun :)

Dead: Jamis Dakar frame, Mongoose Pro Downhill frame, cooked Lipo booster pack....and various other bits and pieces...

User avatar
Hyena   100 GW

100 GW
Posts: 5628
Joined: Aug 13 2008 9:10am
Location: Sydney, Australia
Contact:

Re: Rapture! by Dusty Donnay

Post by Hyena » Mar 09 2010 6:57pm

Yeah I know that, and agree you want beefy phase wires.
But he's using 45a andersons for the HALL wires!
www.HyenaElectricBikes.com
Aussie high powered e-bike kits and custom performance ebikes
New FUTR and Hyena special edition Beta frames now available!
My build and HD video thread____. My youtube channel____ Hyena Facebook page
My bike is writing cheques my body can't cash...

User avatar
Mark_A_W   100 kW

100 kW
Posts: 1480
Joined: Jun 23 2007 2:18am
Location: Sunny Melbourne Australia

Re: Rapture! by Dusty Donnay

Post by Mark_A_W » Mar 09 2010 8:45pm

Oh, sorry.

Yes, overkill.

But easy to swap around, and reliable.
Under construction: Giant DH Team, MAC Shanghai, Infineon 18 FET controller, 64v Headway battery. LINK!!

Retired: Kona Dawg Dually + Bomber Triple Clamp forks with Nine Continents front hub motor, 48v 10Ah Headway LiFePO4 Pack + 12v 10Ah Headway LiFePO4 booster pack (nominal 64v).

Powered by the sun :)

Dead: Jamis Dakar frame, Mongoose Pro Downhill frame, cooked Lipo booster pack....and various other bits and pieces...

John in CR   100 GW

100 GW
Posts: 14122
Joined: May 20 2008 12:58am
Location: Paradise

Re: Rapture! by Dusty Donnay

Post by John in CR » Mar 10 2010 1:25am

SS,

Not only are you forcing those 2 flat surfaces through the wind, but at the back you have a vacuum that is pulling reward. If you ever ride into headwinds the effect of those flat surfaces would be huge, and with no wind I guarantee it's costing you over 1mph in top speed. The bike is so cool, I'm thinking of copying it.

Something nice and easy could work, because since that chainguard is dead straight, you can get away with a flat top and bottom. Try it with posterboard to check out the look. 3 ideas are:

1. Use a piece of larger diameter pvc pipe, or sheet plastic or metal to make a half cylinder to simply round the front and back. If you make them a bit longer than the ammo boxes are high and a sheet of something thin to cover the sides, then you could easily straighten out the slightly off angle of the boxes.

2. Better aero than just both rounded could be accomplished with a long piece of sheet aluminum or plastic. Just rivet or glue the 2 ends together face to face to form the rear point. Put it over the ammo boxes and attach with the rounded end in front. The top and bottom would make it form the perfect teardrop shape, as well as give you storage space with a flip up top. Using sheet aluminum you could add little weight and might not even need to paint it.

3. Similar to number 2, but just make the side closest to the bike flat by using something like a piece of plywood. Then use sheet AL, plastic, or even very thin plywood to bend around the ammo box.

User avatar
SilverSurfer   100 W

100 W
Posts: 283
Joined: Nov 26 2009 9:00am
Location: Saint Petersburg, Florida

Re: Rapture! by Dusty Donnay

Post by SilverSurfer » Mar 10 2010 9:17am

No, that stock GM on 72v 45a infineon. Delta/Star not ready quite yet. Probobly a week. Waiting on some goodies, and perfecting my controller.
Hyena wrote:Nice work mate, having just done the star delta conversion myself I know it's a bit of a headache working out all the relay/phase wiring!
I trawled through the 9C star/delta thread a few times then sat there for half an hour scribbling out how I'd wire my relays and with what wires where!

Is that top speed of 39mph in delta mode though ? I get pretty much that exact top speed in star mode on 73v
As you have done unto the least of these my brethren, you have done it unto me. Yeshua (Jesus)

Post Reply
