Monster (build thread, Lots of pics, Bike Porn included)

Show off your E-bike creation here.

Monster (build thread, Lots of pics, Bike Porn included)

Postby Drunkskunk » Wed Apr 11, 2012 4:32 pm

Everyone loves to look at petite girls. The top five actresses are all under 5'6" and 110lbs. But Most of us know when no one is looking, its their chunky cousin we'd rather get in bed. We all secretly want some meat to sink our teeth into. some cushin for the pushin. It may not look as good, but it feels so right. Lets face it, Kate Moss, or Drew Barrymore. We'd all rather be with Drew and her wonderful curves.




The Same is true of Ebikes. That scrawny 7 lbs Carbon fiber race bike looks sexy on the track, but we all know we'd break that fragile thing if we rode it the way we really want to. We want something with Meat. Curves. Padding. Something that can withstand us pounding on all day and night.

Its with this in mind, I started my latest Ebike. its actually been going for a while. a year in planning, 6 months in building, though I have little to show for it. I had to build the tools to build the tools to build the bike first.Welding tables, frame jigs, ect.

Its going to be a full suspension, hand built frame with 4" tires powered by a Monstrous Clyte 5404. I'm planning to push 12,000 watts, but I'll start at 5,000 and work the bugs out first.

All this is meaningless without pics, so here:


Having arrived safely, Monster sees the light of day for the first time.

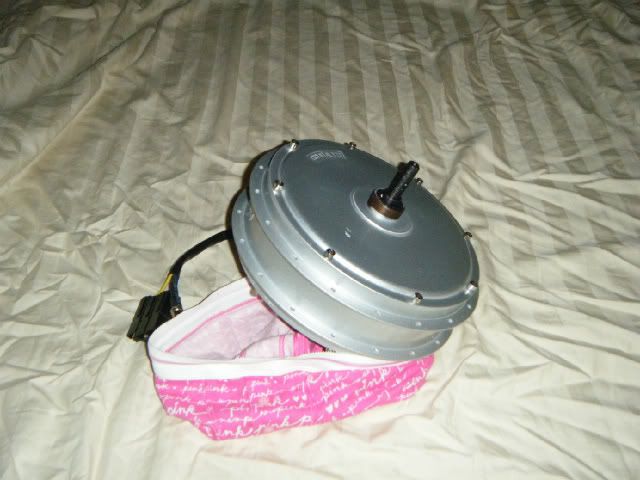

Monster looking sexy in her sassy Panties. (Girlfriend is going to kill me for these pics)

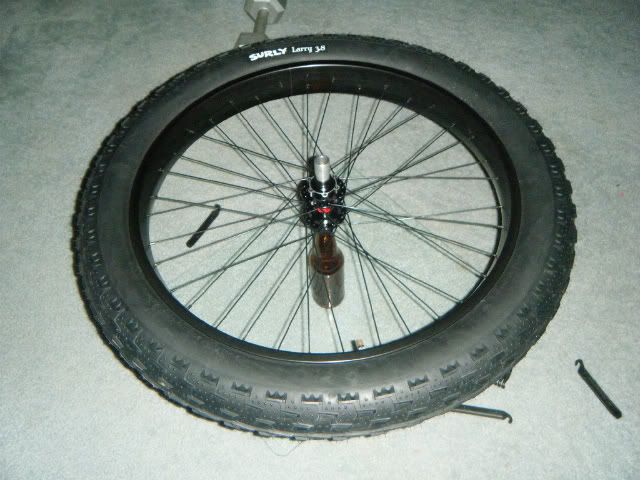

Monster being coy, flashing her spoke lips, just waiting to be mounted.

This is what happens when no one has a 100mm bottom shell in stock for 4 months....

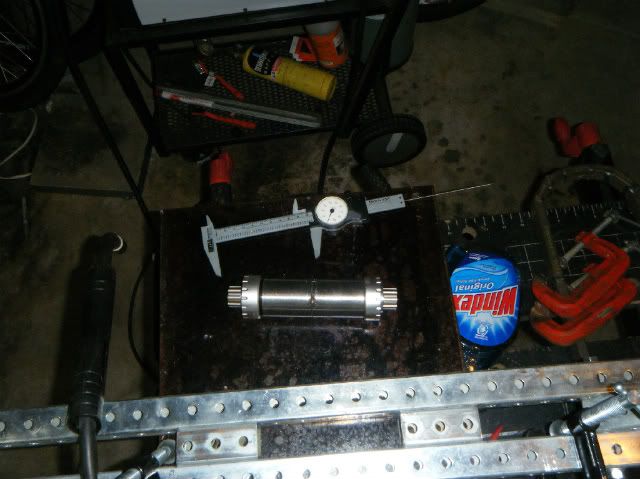

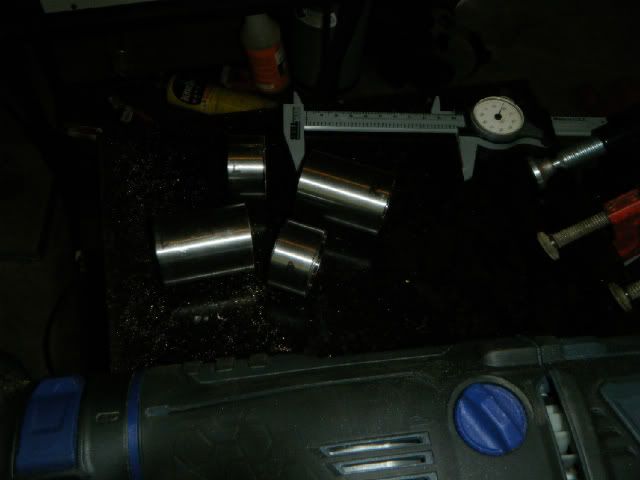

I make my own out of 2 66mm

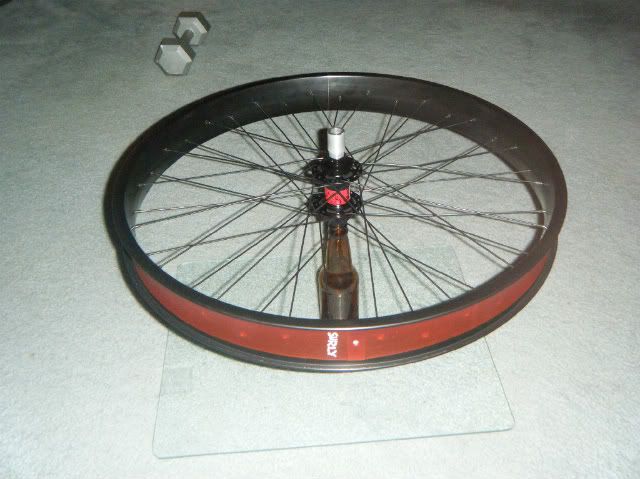

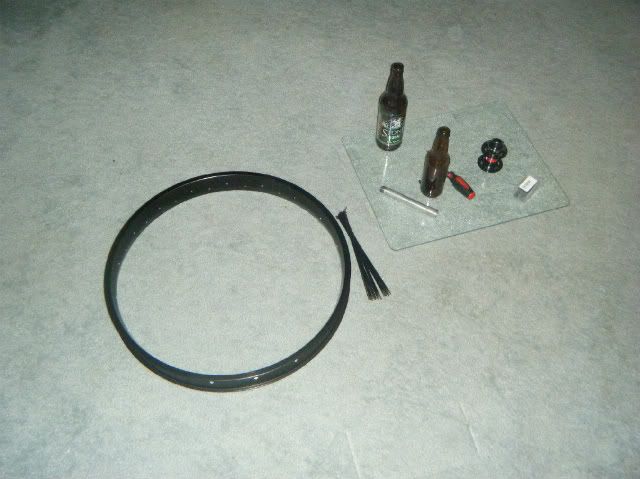

Front wheel going together. 65mm rim, 20X110mm axle









More to come.
Buy the ticket, take the ride.

Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby rui_fujino » Wed Apr 11, 2012 6:31 pm

looking potentially brilliant ebike! What's your bike like?
Project 1: Apollo slant hard tail MTB 52v lifepo4, conhismotor, 52T-11T gearing 39.6mph top speed (with pedal)
Project 2: Diamondback s:10 Full suspension 20s2p (83.5v 10ah Lipo), 35kg, HS3540 sensored (MethTek), 12FET lyen controller, Bulk 600w balance charger.
Top speed 45mph(72.4km/h)
Project 3: DOPPELGANGER d2 Visceral
Project 5 Specialized Epic20s2p (83.5v 10ah Lipo), 30kg,HS3540 sensored (MethTek), 12FET lyen @ 50A
Top speed 45mph(72.4km/h)
User avatar
rui_fujino
1 kW
1 kW

Posts: 422
Joined: Sat Aug 14, 2010 2:10 am
Location: UK/Japan

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby sflorlando » Wed Apr 11, 2012 6:47 pm

Awesome!
sflorlando
100 W
100 W

Posts: 232
Joined: Sat Aug 06, 2011 5:44 pm
Location: Orlando, FL

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby MattyCiii » Wed Apr 11, 2012 7:31 pm

I see you've christened it with some Stone IPA. Nice choice!
1st build: Dahon Jetstream folding bike. Quick, reliable, capable of 32mph. Light enough to lift, folds for easy transport by car/bus/train.
2nd build: RC powered 2009 Norco A-Line. Top speed 39mph. Built like a tank, it's resistant to Boston potholes, can stop on a dime, easily goes up/down curbs when necessary.
3rd build (just started): Scratch build ultimate utility bike. Based on a common power module using a NuVinci left side freewheel.
User avatar
MattyCiii
100 kW
100 kW

Posts: 1436
Joined: Sat May 05, 2007 2:06 pm
Location: Boston, MA, USA

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby hodgie » Wed Apr 11, 2012 7:50 pm

Thanks for the laugh. A man hwo loves to ride!
Own 36V and 24V EVG's with original Heinzemanns. Dirt road and easy trails (but some quite steep and long) in CO mountains + errands in town. Looking to upgrade 24V EVG.
hodgie
10 W
10 W

Posts: 75
Joined: Thu Apr 05, 2012 8:59 pm

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Scruffoid » Wed Apr 11, 2012 11:30 pm

LOL love the bike pron.

Gonna have some fun reading this thread i think :)

Scruff
Hyena Electric Ebike Kit
Crystalyte 3525 Pimped out / 12 FET infineon / xie chang board with 4110 Fets / 22S3P - 90V/15AH Lipo
4KW (45A limited) - 67Km/Hr Max
Build Thread - http://endless-sphere.com/forums/viewtopic.php?f=6&t=38000&p=553791#p553791
User avatar
Scruffoid
100 W
100 W

Posts: 217
Joined: Tue Feb 28, 2012 9:13 pm

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby shorza » Thu Apr 12, 2012 1:10 am

Too many bike pics, and not enough of Drew Barrymore. :wink:

Good luck with the build.
User avatar
shorza
1 kW
1 kW

Posts: 451
Joined: Wed Oct 13, 2010 11:29 pm
Location: Melbourne, Australia

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby lostrack » Sun Apr 15, 2012 11:07 am

Haha, good to inject a bit of fun into the build!

I wish you'd have said NSFW though... That pink underwear pic... :roll:
User avatar
lostrack
100 W
100 W

Posts: 228
Joined: Sat Nov 12, 2011 4:23 pm
Location: London, UK

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Scruffoid » Thu May 24, 2012 7:30 am

so hows is the build progressing?

Scruff
Hyena Electric Ebike Kit
Crystalyte 3525 Pimped out / 12 FET infineon / xie chang board with 4110 Fets / 22S3P - 90V/15AH Lipo
4KW (45A limited) - 67Km/Hr Max
Build Thread - http://endless-sphere.com/forums/viewtopic.php?f=6&t=38000&p=553791#p553791
User avatar
Scruffoid
100 W
100 W

Posts: 217
Joined: Tue Feb 28, 2012 9:13 pm

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Farfle » Thu May 24, 2012 11:17 am

FS fatbike :twisted: :twisted: ??
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com
User avatar
Farfle
10 MW
10 MW

Posts: 2014
Joined: Sun Jun 27, 2010 10:42 am
Location: Bend Oregon

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby dogman » Thu May 24, 2012 1:58 pm

Beach bike! Booyaa! Go use it to throw sand in some jerks face, then zip away with his girl on the back.

Drew is a short skinny girl. Salma Hyack Penelope Cruz or Catherine Zeta Jones for me. At least not skinny on top.
THE LIPO RULES. NEVER ABOVE 4.3V NEVER BELOW 2.7V DON'T PUNCTURE

Ideal charging /discharging range for Lipo, 3.65v minimum 4.1v maximum

See battery technology section, FAQ thread at the top of the page for lipo noob info.

See the frankenbike longtail at the thread below.
viewtopic.php?f=6&t=28389&hilit=bouncing+betty
User avatar
dogman
100 GW
100 GW

Posts: 28042
Joined: Sat May 17, 2008 12:53 pm
Location: Las Cruces New Mexico USA

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby motomech » Thu May 24, 2012 2:21 pm

Dogman, you seem to have a thing for Latinas,
Yo tambien, las chicas mas sexy del mundo :lol:
Motomech(reformed I.C.E. enthusiast)

2003 Rocky Mountain Edge w/2WD. , Q100 "fast wind" W\ Infineon w\ CA-DP frt. and Q100C, "fast wind " w\ an Elifebike QQ-350-9M 17A rear, Cycle Lumenator, 28 mph on 12S
2007 GT Idrive 5 3.0, MXUS geared mini w\ Grin\Infineon 20A on the frt.
viewtopic.php?f=4&t=40567&p=592630#p592630
viewtopic.php?f=6&t=235&p=651777#p651777
User avatar
motomech
100 kW
100 kW

Posts: 1206
Joined: Sat Sep 11, 2010 12:21 am
Location: Tucson Az

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Drunkskunk » Sat Aug 11, 2012 7:57 pm

its been a while. I haven't had much time to work on the bike. maybe too much time looking at Berrymore pics. ;)

But I've got progress! The frame jig finally got finished, and the frame design made it all the way to the garage.. before being thrown out in favor of me freestyling the build.. But I have progress!

First was the wheel. Thanks to JRH for the awesome job on the 12g black spokes and 16mm nipples. Mmmm, big nipples...


And now the frame!

Its sized to hold 12 6s 5000ma HK packs. It only looks tiny next to those monster tires and the Marzocchi Monster fork. The whole frame may weigh 15lbs. I using 1X1/2 .065 Chrome Moly Tubing. Extra thick, extra heavy, but I'm matching the tubing to my welding skill. I can weld tube that thick. I might have been able to do thinner, but I need more practice.

Oh, yeah, Pics... Here:



There's suppose to be a suspension joint in there too, but after a month of planning, design, and build, I had to scrap the whole thing. It was awesome. It was beefier than the suspension joint on my car. it was fatally flawed. Oh well, I learned something.


Lots more work to do!
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Kepler » Sat Aug 11, 2012 10:14 pm

Really like the frame design so far. Looking forward to to seeing how this turns out.
Current Rides

BBS02 powered Specialized Camber: LATEST ROAD and SINGLE TRACK WEAPON http://www.endless-sphere.com/forums/viewtopic.php?f=6&t=60375
eBoost on facebook: http://www.facebook.com/pages/Eboost/200306283342024/
83 Volt 3 kW Stealth Fighter: OFF ROAD http://www.stealthelectricbikes.com/
User avatar
Kepler
10 MW
10 MW

Posts: 2462
Joined: Sun Nov 08, 2009 9:22 pm
Location: Eastern suburbs Melbourne Australia

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Drunkskunk » Sun Aug 12, 2012 4:56 pm

Thanks.
This thing is starting to get to be a Monster project for me, too. I've got $2500 in it so far, and still dont have any of the batteries, the controller, or the rear shock. Or the carbon fiber for the covers. Or the front brakes. I've already blown the budget, but I've also gone way past the finnish date, too. So it's now eating up the budget for a bike I'd planned after this one was done. Oh well, it will be worth it. I'm having fun! :D

This was the original concept drawing for it. Image
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike P()rn included

Postby Drunkskunk » Sun Aug 19, 2012 12:12 pm

2 steps forward, 1.5 steps back, And it's becoming clear to me that I have less skill than I tought I did. I'm in over my head, and may drown. I have no certinty of being able to finish this bike.

AND I LOVE EVERY F***ING MINUTE OF IT! :D

Yeah, I'm having fun. The idea that I have no assurance of success, and no idea what I'm doing is a rush. The knowledge that I'm doing something never done before, or at least rarely done before is a thrill. Its a Challenge!

My rear shock arrived. I was after a new Marzocchi Roco, but ran into a used one on Ebay for less than half the cost. $175 plus another $75 for the spring and mounting hardware. Its a 9 inch shock with 3 inches of travel, and Its in great shape. Having it in hand makes visualizing the rear suspension much easier.
But I threw out my original design, now I need to design a new rear suspension. I think I'll try something adjustable.

I did manage to figure out the rear pivot point. I gave up trying to make my own, and cut one off a Motobecane moped I had been meaning to fix up. Its a perfect fit, mostly.

But then I managed to screw up my bottom bracket. after all the struggle this winter to get a 100mm bottom bracket shell, bearings, and shft, I managed to screw them up. I warped the shell welding it, its now egg shaped. And in the proscess of trying to bend it back round, I managed to jam and destroy one bearing shell. I'm going to have to replace the bearing, cut off the bottom bracket, and start from scratch. Luckily, these parts are more common than they were when I started.


So success and setback. But with luck, I'll have this bike standing on it's own tires by the end of the week.
Attachments
Marzocchi Roco.jpg
Marzocchi Roco.jpg (104.34 KiB) Viewed 10345 times
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Samd » Fri Aug 24, 2012 12:11 am

+1 subscribed. Awesome.
http://ballaratebikes.com/

"Knowledge is knowing that a tomato is a fruit. Wisdom is knowing that a 165mm rear shock can't deliver 220mm of rear swingarm travel." - Oprah Winfrey.
User avatar
Samd
10 MW
10 MW

Posts: 2199
Joined: Tue Jun 28, 2011 11:08 pm
Location: Ballarat, AU

Re: Monster (ARISE!)

Postby Drunkskunk » Fri Aug 24, 2012 5:47 pm

Its Alive!

ok, not really. Its only half done. But the hard work is done. It stands on it's own wheels now.
And thats a 55 inch wheelbase for those wheels. This thing really is a monster bike!


The next big challenge is to make the panels that will fit in all of those open sections. the plan is for carbon fiber to protect the batteries, but I still don't have a way to mount them to the frame.

And the rear swing arm needs some bracing. its strong enough to hold weight now, but flexes.

Last edited by Drunkskunk on Sat Aug 25, 2012 8:41 am, edited 1 time in total.
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby jkbrigman » Fri Aug 24, 2012 6:25 pm

D'skunk, ROKK ON MAN. With 2" tires I thought I was set until I saw those Surly boots! :shock: :shock: :shock:
re: Barrymore: Only a dog wants a bone!
Last edited by jkbrigman on Sat Aug 25, 2012 8:00 am, edited 1 time in total.
eRecumbent. 9C 2810, 6-FET,CA,18S3P LiPo, Kenda Kwest. 33mph max 12.8Wh/mi (22mph avg) Phat Bike Commuter HS3540, 6-FET, 18S3P LiPo, Schwalbe Marathon 47mph max 25 Wh/mi (28mph avg) Basic LiPo Charging Thread , Add Throttle to Multispeed Bike
dogman: "I bet if you just don't ride like a jerk, you can do whatever you want up to the speed where everybody looks at you like this. :shock: "
User avatar
jkbrigman
10 kW
10 kW

Posts: 737
Joined: Fri Oct 28, 2011 12:34 am
Location: North Carolina, Southeast US

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby agniusm » Sat Aug 25, 2012 4:25 am

Looks good. Those rims are huge :shock: . Can you post closeup on your swing arm connection to the frame? I am trying to figure out mine for cargo bike. Cheers
User avatar
agniusm
1 MW
1 MW

Posts: 1603
Joined: Sat Apr 16, 2011 3:06 pm
Location: Lithuania, Zarasai

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Drunkskunk » Sat Aug 25, 2012 8:08 pm

A pic of the swingarm pivot, and a better of the frame. Its off a 78 Motobecane Moped, although I may cut it off and build my own.


The frame is 20LBS right now, and still needs the bracing for the swingarm.



Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby agniusm » Sun Aug 26, 2012 5:13 am

Thanks Drunkskunk. Is it bearing in that tube or some kind of bushing? When i was building my scooter, i used parts from disabled chair, it had plastic bushes. Image I have done 500km, still looks ok. On my cargo bike i found a tube with 2 bearings from same disabled chairs i picked up from scrapyard which i am going to use.
I think you would need to beef up those brackets that hold rear swing arm if going off road as well as the swing arm. I have build mine of off 20x40mm for asphalt use :) Cheers
User avatar
agniusm
1 MW
1 MW

Posts: 1603
Joined: Sat Apr 16, 2011 3:06 pm
Location: Lithuania, Zarasai

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Drunkskunk » Sun Aug 26, 2012 12:14 pm

the pivot has rubber bushings. Its a bit softer than I want, but its strong enough for a moped and was the right width. I may copy it with a polymer bushing instead.

The pivot point is made of 8mm thick steel, but it will get some bracing. I have a lot to do still to the whole back end. The steel I used is 13mm X 26mm and 2mm thick wall

Your cargo bike looks good. Are you going to paint it, or leave it bare steel?
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby agniusm » Sun Aug 26, 2012 12:43 pm

That one was my Meduza scooter i did finish. My cargo bike project is still on computer :) Have most parts and all, working on frame design now while waiting on my bench drill/mill and band saw. Got fed up using angle grinder, need precision. Here is a finished scooter:
User avatar
agniusm
1 MW
1 MW

Posts: 1603
Joined: Sat Apr 16, 2011 3:06 pm
Location: Lithuania, Zarasai

Re: Monster (build thread, Lots of pics, Bike Porn included)

Postby Drunkskunk » Tue Sep 04, 2012 10:48 pm

Progress!
Well, Drew Barrymore Swings, and now my bike does too.

I finally got the Swingarm finished.
Except for the brake cable guides. I've got no clue how I'm going to make those yet. Zip ties would work but I want something more permanent. I can sort that out later. Its functionally finished.
And like Drew, this thing has some mass. Its 8 lbs of swinging goodness. Its also 27 inches long, 10 inches longer than My Kona's Swinger. That means it can move farther without changing angle as much. It should be a smooth ride over small boulders and survive everything short of an IED.
Or maybe not. But I won't be able to kill it.

Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewtopic.php?f=6&t=38667
User avatar
Drunkskunk
100 GW
100 GW

Posts: 5746
Joined: Sat Apr 14, 2007 11:37 am
Location: Dallas, Texas. U.S.A.
