Postby moostrodamus » Sun Apr 25, 2010 7:16 am

I want to build a lipo setup with some RC packs. In researching I realize there are a lot of options with regards to rc packs, chargers and balancers...

Show off your pack! What charging method do you use, what cells, what chargers etc. Include some pics if you can...I don't read so good!!!

Moos
Commuter: Crystalyte HS3540
Infineon 40 amp controller
Ping V2.5 48v 20ah
User avatar
moostrodamus
100 W
100 W

Posts: 177
Joined: Sun Aug 30, 2009 7:03 am
Location: Toronto

Re: Show off your lipo setup!

Postby Metallover » Sun Apr 25, 2010 10:35 am

I run six 5ah turnigy packs at either 66.6v (or 44.4v if I desire). I charge them with a hyperion eos0610i charger. I need to charge them as a 30ah 6 cell pack, and I charge and balance them induvidually every few cycles. The charger is rated for 250w output and has a built in balancer. There is a charger link feature; if you have two identical chargers you can charge 12s packs at 500w. The biggest downside of one charger is the 6s max lipo capability.



Add your bike to the Unofficial E-Bike Garage! - http://spreadsheets2.google.com/ccc?key ... OWcg&hl=en
My Build - Vector Frame, 20s 25Ah LiPo, Max-E, Cromotor - 10.89HP on the Dyno
User avatar
Metallover
10 kW
10 kW

Posts: 524
Joined: Wed Jul 08, 2009 8:09 pm
Location: South Dakota

Re: Show off your lipo setup!

Postby Bazaki » Sun Apr 25, 2010 3:10 pm

Metallover wrote: The charger is rated for 250w output and has a built in balancer. There is a charger link feature; if you have two identical chargers you can charge 12s packs at 500w. The biggest downside of one charger is the 6s max lipo capability.




Do you mean you put 2 chargers in Serie to the 12S pack ? Would that work 100% ?

Would it also be possible to put 2 indentical chargers in parallel ?
User avatar
Bazaki
10 kW
10 kW

Posts: 680
Joined: Fri Dec 25, 2009 6:29 pm

Re: Show off your lipo setup!

Postby Metallover » Sun Apr 25, 2010 3:31 pm

This feature is specific to hyperion chargers. You might be able to hook other chargers together, but I don't know anything about that.


This is what I am talking about. The chargers hook together with a little cable that just sends data.
Add your bike to the Unofficial E-Bike Garage! - http://spreadsheets2.google.com/ccc?key ... OWcg&hl=en
My Build - Vector Frame, 20s 25Ah LiPo, Max-E, Cromotor - 10.89HP on the Dyno
User avatar
Metallover
10 kW
10 kW

Posts: 524
Joined: Wed Jul 08, 2009 8:09 pm
Location: South Dakota

Re: Show off your lipo setup!

Postby Don Harmon » Sun Apr 25, 2010 5:03 pm

Do you ride your bike with these Lipo Packs exposed like you show in the picture?

DH
User avatar
Don Harmon
10 kW
10 kW

Posts: 662
Joined: Tue Mar 06, 2007 12:43 pm
Location: Las Vegas

Re: Show off your lipo setup!

Postby Metallover » Sun Apr 25, 2010 5:25 pm

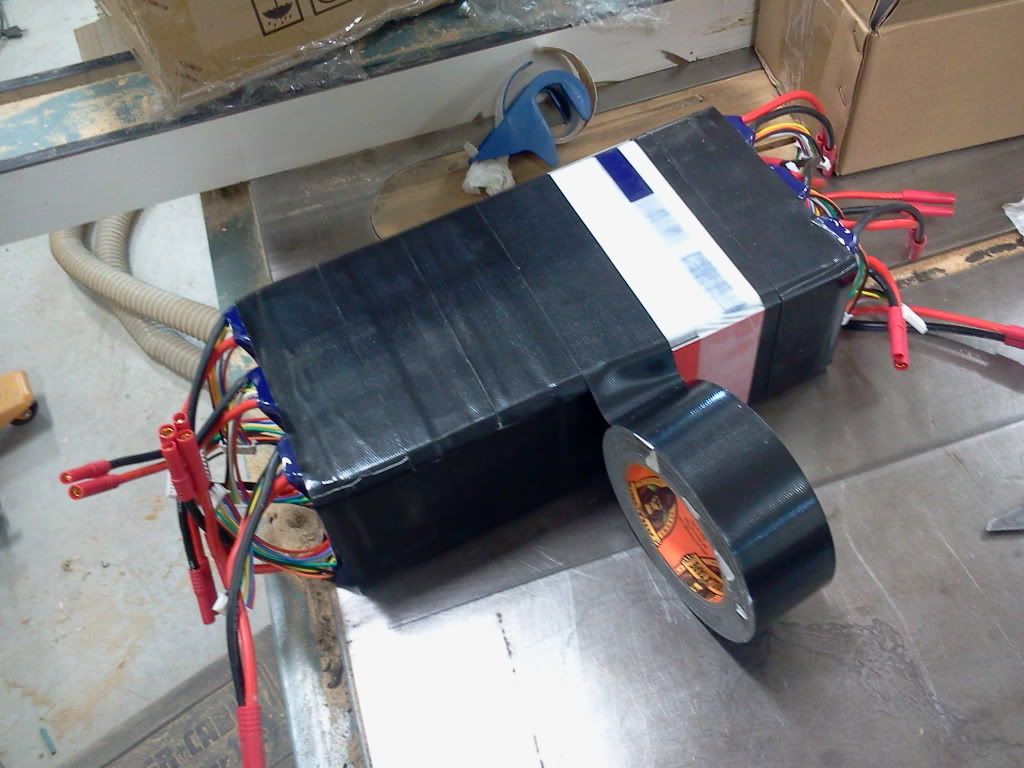

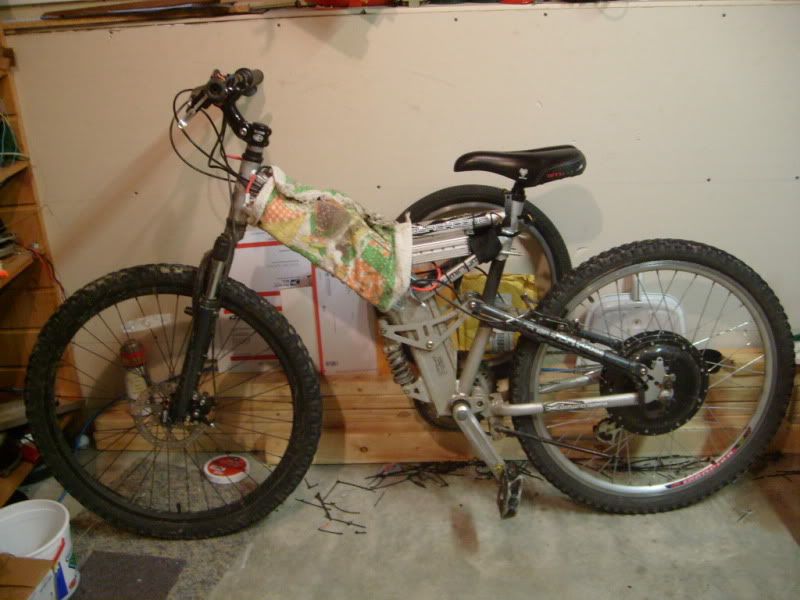

ATM I have a towel I wrap around them and I duct tape that to secure it.


The way I mounted the batteries,, It takes some work to make a nice enclosure. If I plan to leave the bike locked up in public, I'll really need something pedestrian-proof. I am working on a better enclosure, ideas welcome. The one I have right now, I don't think it'll work out because I dont have access to a welder. :|
Add your bike to the Unofficial E-Bike Garage! - http://spreadsheets2.google.com/ccc?key ... OWcg&hl=en
My Build - Vector Frame, 20s 25Ah LiPo, Max-E, Cromotor - 10.89HP on the Dyno
User avatar
Metallover
10 kW
10 kW

Posts: 524
Joined: Wed Jul 08, 2009 8:09 pm
Location: South Dakota

Re: Show off your lipo setup!

Postby wasp » Sun Apr 25, 2010 6:37 pm

Metallover wrote:ATM I have a towel I wrap around them and I duct tape that to secure it.


The way I mounted the batteries,, It takes some work to make a nice enclosure. If I plan to leave the bike locked up in public, I'll really need something pedestrian-proof. I am working on a better enclosure, ideas welcome. The one I have right now, I don't think it'll work out because I dont have access to a welder. :|

lmao...
look at some of the vinyl rain pipe for houses they make cheap bat housings and no welding required
nice bike to
User avatar
wasp
10 kW
10 kW

Posts: 696
Joined: Thu Apr 03, 2008 6:07 pm

Re: Show off your lipo setup!

Postby AussieJester » Sun Apr 25, 2010 7:33 pm

I (currently will be increasing) use 6x22v 5000mah 20c Turnigy packs 44v 15ah
weight is 11 pound or 5kilo. I use GGoodrum parallel adapter boards (see sig for link)

Here's a pic of my pack


And the cable I made to parallel the packs in series.


I use a meanwell 320-48v PSU to charge the pack (in series/parallel config) and a Battery medic to balance (will soon
have GGoodrum charge controller and battery medic mod .see link for these also)

Lipos are housed in a custom fiberglass enclosure i made.

(184.16 KiB) Not downloaded yet


Turnigy meter is used to monitor battery during riding

KiM
User avatar
AussieJester
100 GW
100 GW

Posts: 9445
Joined: Tue Mar 11, 2008 3:33 am
Location: Perth Western Australia

Re: Show off your lipo setup!

Postby moostrodamus » Mon Apr 26, 2010 3:17 am

Thanks Metallover & AussieJester ,

Pics of connections and chargers help alot, I can SEE how stuff gets hooked up...just the way my brain works.

Moos
Commuter: Crystalyte HS3540
Infineon 40 amp controller
Ping V2.5 48v 20ah
User avatar
moostrodamus
100 W
100 W

Posts: 177
Joined: Sun Aug 30, 2009 7:03 am
Location: Toronto

Re: Show off your lipo setup!

Postby ryan » Sat May 07, 2011 6:40 pm

I think this thread ended too soon. I'd love to see more.
Marin DH Electric Mountain Climber. Crystalyte 5304. 72v20Ah (Dual 36v20Ah 12S2P LiFePO4 Headways). 18 FET Low RDS MOSFET Overclocker Ready LYEN Controller. (See Build Thread)
User avatar
ryan
10 kW
10 kW

Posts: 681
Joined: Thu Dec 03, 2009 10:51 am
Location: California Bay Area

Re: Show off your lipo setup!

Postby AussieJester » Sat May 07, 2011 8:10 pm

Since you asked...Here's my new bikes 12s 2p (44v 20ah) LiPO setup...Using 3mmx~8mm thick copper bus bars too parallel/series the main pack
leads. The balancing leads are parallel ed using modified GGoodrum parallel adapter boards available from http://TPPacks.com

Here's some pics of the construction-->







The parallel leads and main charging leads are then connected to a DB25 connector for easy connection to the Hyperion 1420i
charger. I can then bulk charge at ~50V with simultaneous balancing... Main pack leads run via a 12v 400amp capable
battery isolation switch before bolting to another small set of buss bars where additional wires are added for powering
dc/dc converters etc etc...Apologies no pics of this part of the setup at the time i had no access to camera mine failed
not long after taking the bus bar pics.

Hope this helps :-)

KiM
User avatar
AussieJester
100 GW
100 GW

Posts: 9445
Joined: Tue Mar 11, 2008 3:33 am
Location: Perth Western Australia

Re: Show off your lipo setup!

Postby dogman dan » Sun May 08, 2011 5:38 am

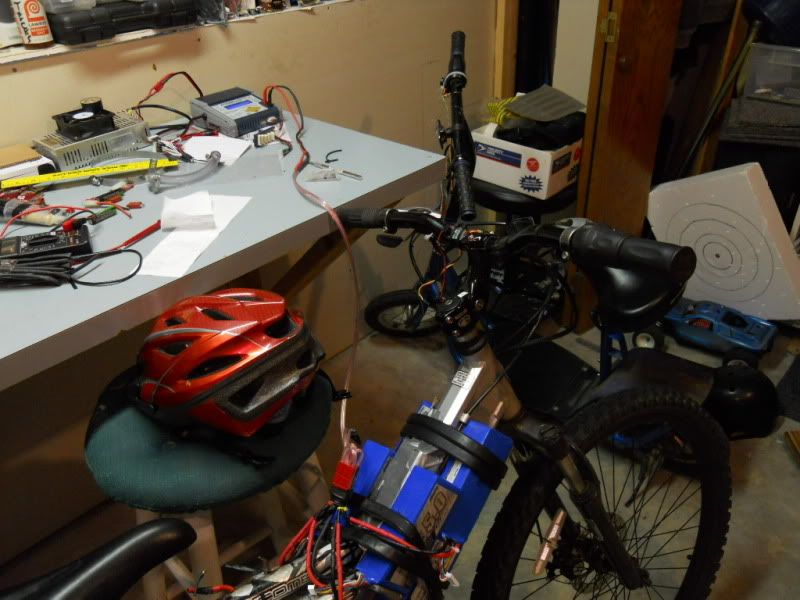

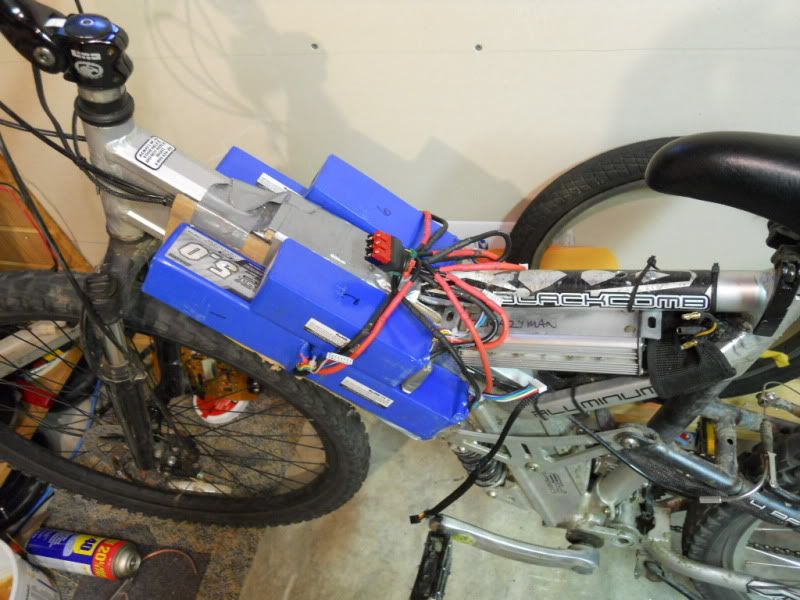

A mo bettah way to carry some lipo on a mongoose blackcomb.


At this time, I actually have a smaller box on the mongoose, which carries 72v 10 ah. But the key element is something a bit more protective than some tape and a towel.

Every time I see lipo just taped to the frame I cringe. I'll assume AJ just left out the pic showing his side covers that protect the batts and beautify the bike.


Here's my charging rig.
A 350 watt power supply runs the two 8s 150 watt chargers. With paralell adapters, I can charge the whole pile shown at once. Usually though, I charge them in paralelled pairs, so two pairs at a time.
For those that still don't know, I work online, for E-bikekit.com

Frankenbike longtail
http://endless-sphere.com/forums/viewto ... cing+betty.

bolt on longtail viewtopic.php?f=6&t=74584

The mixte long tail. viewtopic.php?f=6&t=74384

Beach cruiser converted to long tail. viewtopic.php?f=6&t=67049&p=1045572&hilit=Longtail+beach+cruiser#p1045572
User avatar
dogman dan
100 GW
100 GW

Posts: 33884
Joined: Sat May 17, 2008 12:53 pm
Location: Las Cruces New Mexico USA

Re: Show off your lipo setup!

Postby rscamp » Sun May 08, 2011 8:25 am

Some pics...
Attachments
Battery Charging Table.jpg
Table devoted to battery charging/maintenance
Battery Charging Table.jpg (19.53 KiB) Viewed 5585 times
Orbit Microlader Pro and TP1010C Chargers.jpg
Some older hobby chargers
Orbit Microlader Pro and TP1010C Chargers.jpg (27.34 KiB) Viewed 5576 times
Hyperion 1420i With Balance Cable Extensions.jpg
Hyperion 1420i with extended balance cables
Hyperion 1420i With Balance Cable Extensions.jpg (24.43 KiB) Viewed 5576 times
Meanwell 27V 1000W Power Supply.jpg
27V 1000W Power supply for Hyperion
Meanwell 27V 1000W Power Supply.jpg (22.38 KiB) Viewed 5576 times
Power Resistors.jpg
Power resistors for battery testing
Power Resistors.jpg (27.25 KiB) Viewed 5576 times
Battery Pack.jpg
Battery pack for ebike - made with heat shrink and aluminum reinforcements for corners
Battery Pack.jpg (17.35 KiB) Viewed 5585 times
Battery installed in ICE trike
Rob
Trice QNT with Astro 3215 8T & V4 Drive
Trice Q with Bafang BBS02 at 48V with "500W" limit
Astro 3210-12T + Neugart PLQE60 20:1 Chain-Puller Spring '17
User avatar
rscamp
1 kW
1 kW

Posts: 371
Joined: Sun May 24, 2009 2:24 pm
Location: Ontario Canada

Re: Show off your lipo setup!

Postby rui_fujino » Thu Feb 02, 2012 12:07 pm

I've noticed this thread hasn't been used for a while but since I got new lipo setup completed I thought I'll post them here!

I think it helps new lipo users to see what we do is working here on pictures rather than them asking what to do and telling them what to do...

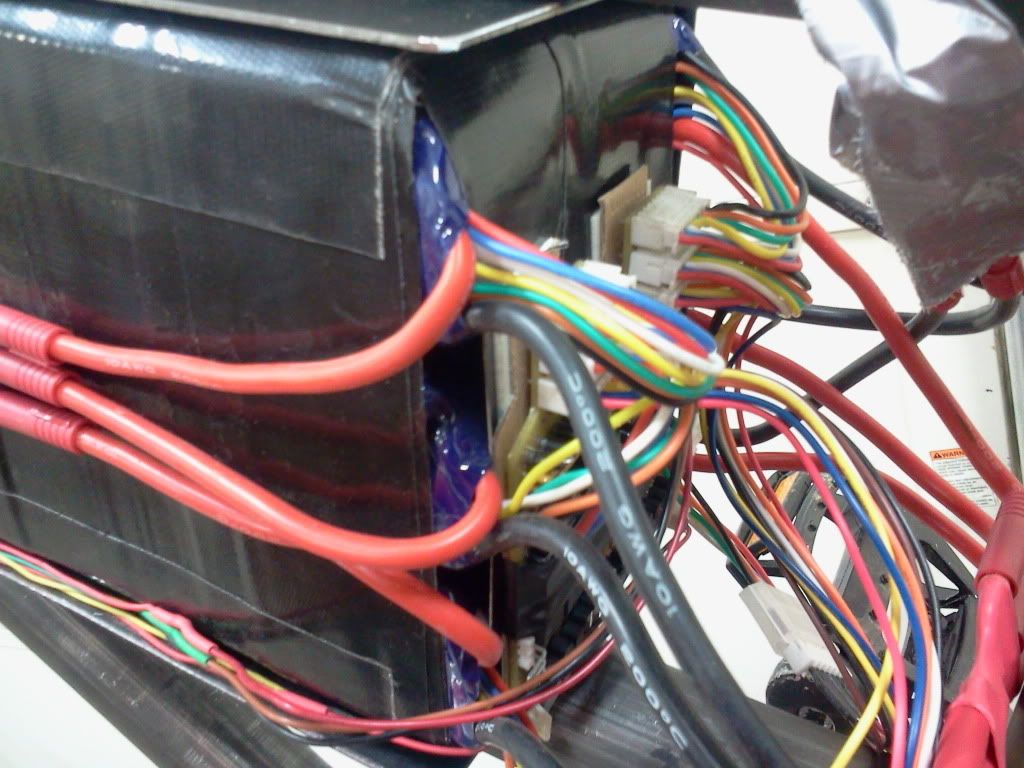

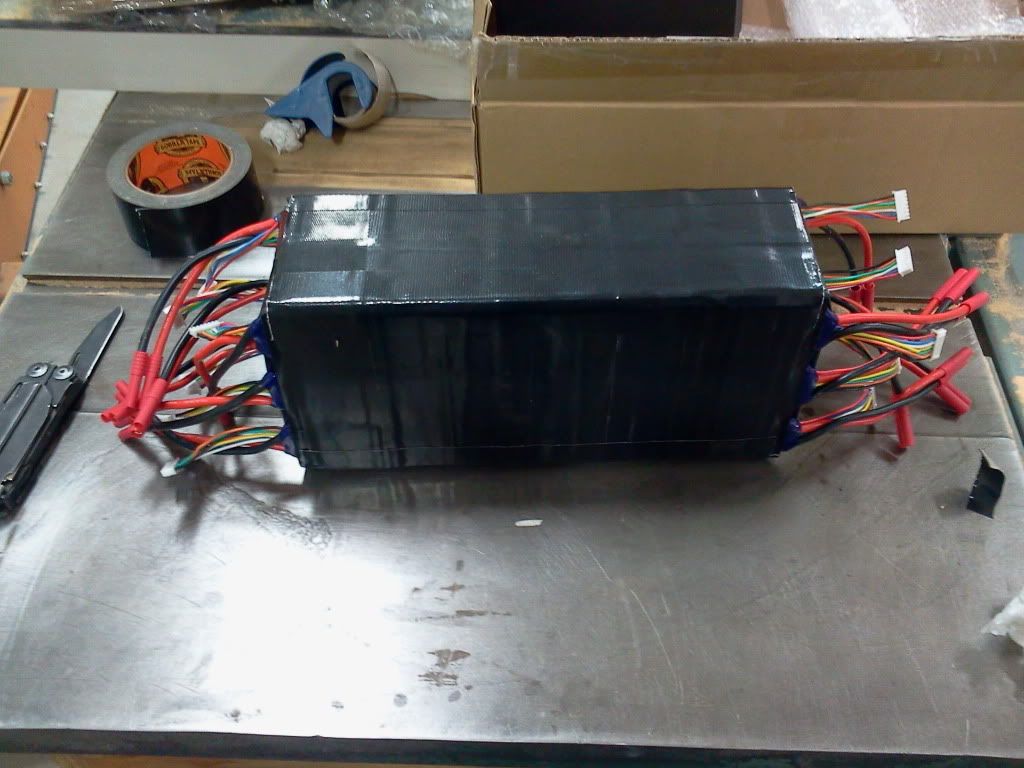

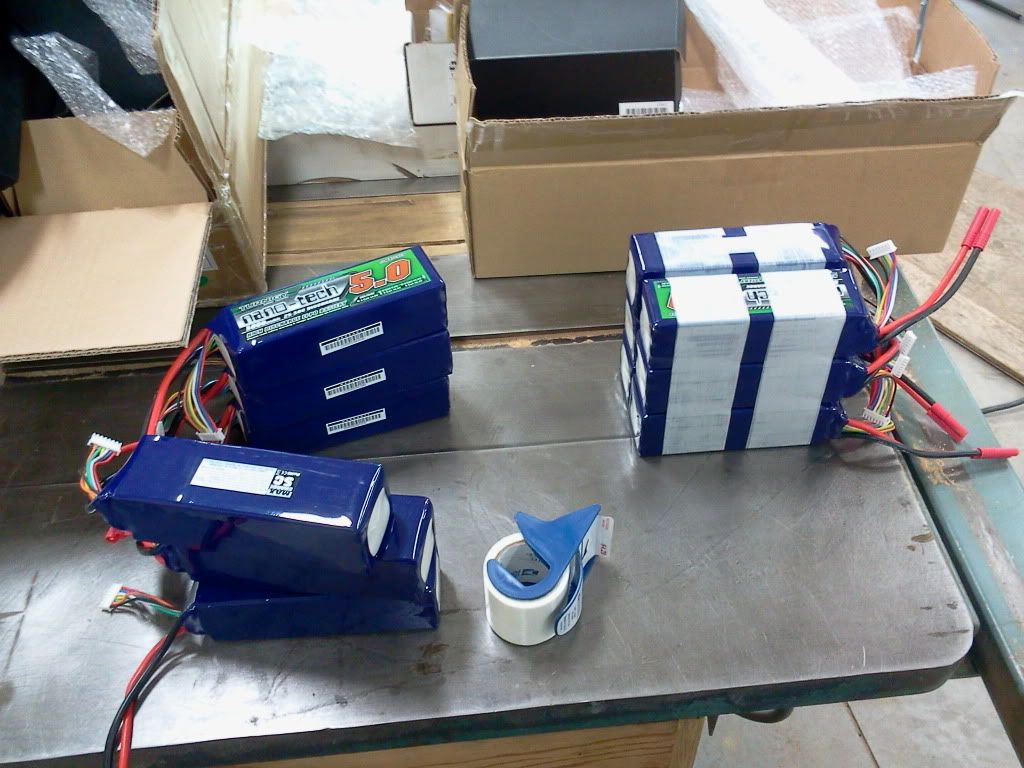

Here is my 20s2p setup. I'm using 8X5s turnigy packs and I have paralleled balance charging tabs for balance charging with battery medics

This is battery medics when its bulk charging to keep all the cells balanced

BMSBattery charger on the back for bulk charging
Project 1: Apollo slant hard tail MTB 52v lifepo4, conhismotor, 52T-11T gearing 39.6mph top speed (with pedal)
Project 2: Diamondback s:10 Full suspension 20s2p (83.5v 10ah Lipo), 35kg, HS3540 sensored (MethTek), 12FET lyen controller, Bulk 600w balance charger.
Top speed 45mph(72.4km/h)
Project 3: DOPPELGANGER d2 Visceral
Project 5 Specialized Epic20s2p (83.5v 10ah Lipo), 30kg,HS3540 sensored (MethTek), 12FET lyen @ 50A
Top speed 45mph(72.4km/h)
EV miles: 3000miles (2015/06/26)
User avatar
rui_fujino
1 kW
1 kW

Posts: 427
Joined: Sat Aug 14, 2010 2:10 am
Location: UK/Japan

Re: Show off your lipo setup!

Postby kfong » Thu Feb 02, 2012 1:45 pm

Go with the 1420i and you can go as high as 28S when 2 are networked together. Best charger for ebike use that I have found.

Metallover wrote:This feature is specific to hyperion chargers. You might be able to hook other chargers together, but I don't know anything about that.


This is what I am talking about. The chargers hook together with a little cable that just sends data.
kfong
10 MW
10 MW

Posts: 2111
Joined: Tue Sep 02, 2008 11:34 am
Location: SE Michigan, USA

Re: Show off your lipo setup!

Postby emergence » Wed Feb 08, 2012 3:07 am

This is a great thread for us Lipo newbies. Please keep posting!

Also re charging I'm still pretty confused about the whole process. I take it if you want to have a single plug solution for charging then you need to make up a series to parallel adapter like AussieJester, disconnect (or use a switch) the pack from your speed controller including the series connections, then plug the parallel connector into the charging rig.

Thanks everyone!
emergence
100 mW
100 mW

Posts: 48
Joined: Thu Nov 10, 2011 7:04 pm

Re: Show off your lipo setup!

Postby emergence » Wed Feb 08, 2012 3:38 am

And I just spotted this which should answer a lot of questions:

http://endless-sphere.com/forums/viewtopic.php?f=14&t=23551
emergence
100 mW
100 mW

Posts: 48
Joined: Thu Nov 10, 2011 7:04 pm

Re: Show off your lipo setup!

Postby amberwolf » Wed Feb 08, 2012 3:45 am

emergence wrote:I take it if you want to have a single plug solution for charging then you need to make up a series to parallel adapter like AussieJester, disconnect (or use a switch) the pack from your speed controller including the series connections, then plug the parallel connector into the charging rig.



Nope. You can use a setup like Method's HVC/LVC built into your pack, and just bulk charge at the same voltage and configuration you ride at. Every so often if you like you can check balance at each of the paralleled balance plugs on the little boards, using your choice of devices from multimeter to Battery Medic or whatever. If they're out of balance enough to warrant it, then use the BM or something like it to manually balance the cells.

If you're not running them down very far most of the time, they're likely to stay in balance pretty well if they were already cycled and tested good and equal to each other to start with.

But if you like, you can also do parallel-series conversions for each charge...it just adds a slight-to-great potential for disasters like SoSauty's (where the entire pack was destroyed because of an accidental cross-connection), depending on how you setup your changeover from charge to ride and back. It's possible to essentially idiot-proof this kind of setup, and not all that hard to do so. But if you don't do that, then it's possible to misconnect things and cause bad stuff to happen. ;)


I'm sure it's possible to cause bad stuff the other way, too, but I suspect it would happen less often and be less disastrous.


So far all I have had to do is bulk charge, but I don't take the pack down very far, and the one I'm using at the moment isn't RC LiPo, but soon I will be using that, too.
User avatar
amberwolf
100 GW
100 GW

Posts: 22764
Joined: Mon Aug 17, 2009 6:43 am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group

Re: Show off your lipo setup!

Postby neptronix » Wed Feb 08, 2012 4:43 am

emergence wrote:This is a great thread for us Lipo newbies. Please keep posting!

Also re charging I'm still pretty confused about the whole process. I take it if you want to have a single plug solution for charging then you need to make up a series to parallel adapter like AussieJester, disconnect (or use a switch) the pack from your speed controller including the series connections, then plug the parallel connector into the charging rig.

Thanks everyone!


Depends on your setup entirely. If you're running up to 14S ( ~52v nominal ), a hyperion 1420 will allow you to charge everything in series.. or even better, balance charge it all..
My first major build: 8T MAC motor on a Trek 4500.
The new all-arounder: Leafmotor 1500w on a Turner O2 full suspension.
The wheelie machine: 20" Rear Magic Pie II on a Trek 4300 MTB

"The best time to plant a tree was 20 years ago. The second best time is now."- Chinese Proverb
User avatar
neptronix
100 GW
100 GW

Posts: 12910
Joined: Tue Jun 15, 2010 5:56 pm
Location: People's republic of Petrolistan ( Utah, USA )

Re: Show off your lipo setup!

Postby emergence » Wed Feb 08, 2012 5:55 am

neptronix wrote:
Depends on your setup entirely. If you're running up to 14S ( ~52v nominal ), a hyperion 1420 will allow you to charge everything in series.. or even better, balance charge it all..


Yes, sorry I was thinking of 50v plus charging where you get more cells in series than hobby chargers can handle.

amberwolf wrote: You can use a setup like Method's HVC/LVC built into your pack


Thanks that sounds good, will search it out.
emergence
100 mW
100 mW

Posts: 48
Joined: Thu Nov 10, 2011 7:04 pm

Re: Show off your lipo setup!

Postby Farfle » Wed Feb 08, 2012 12:33 pm

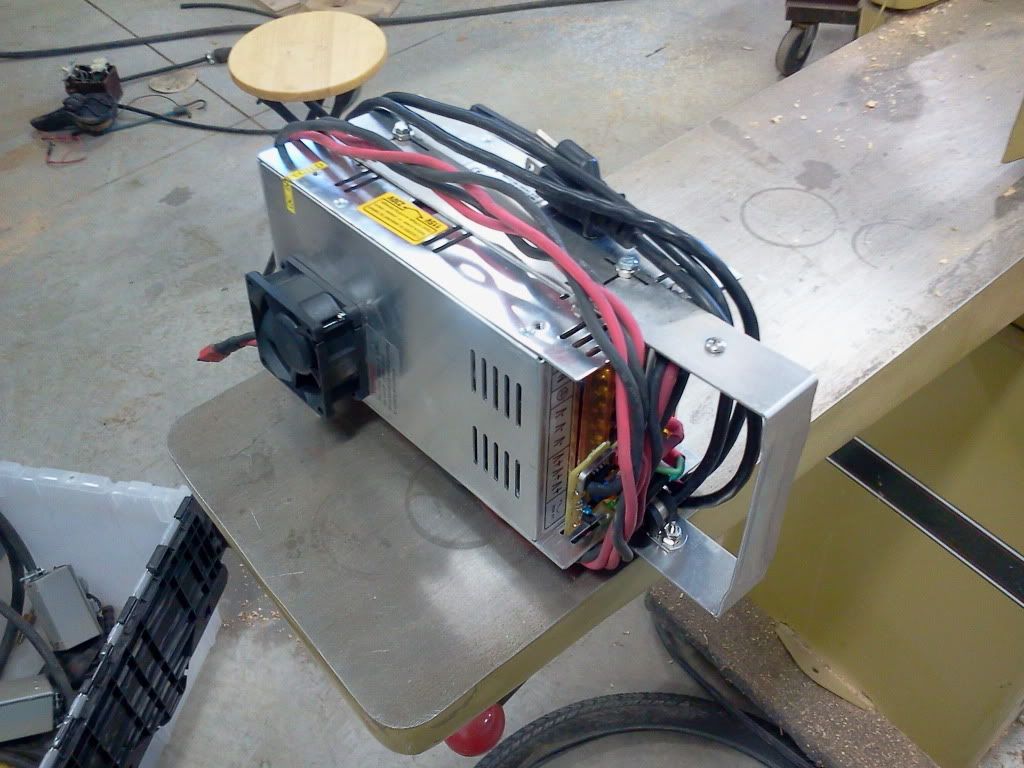

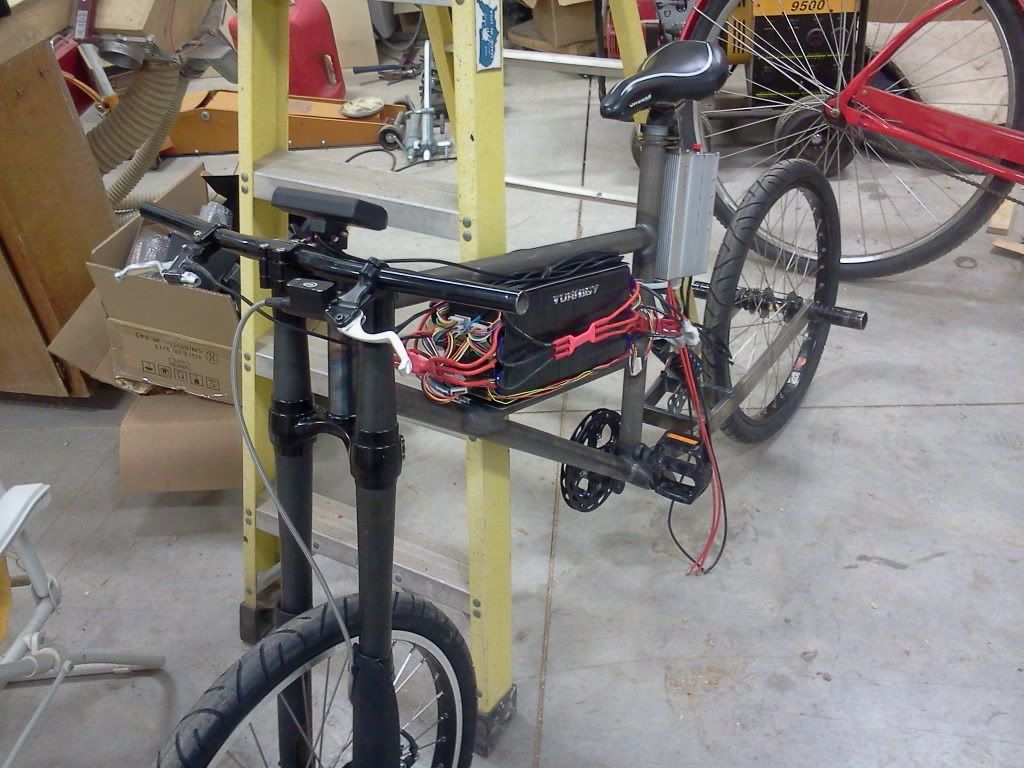

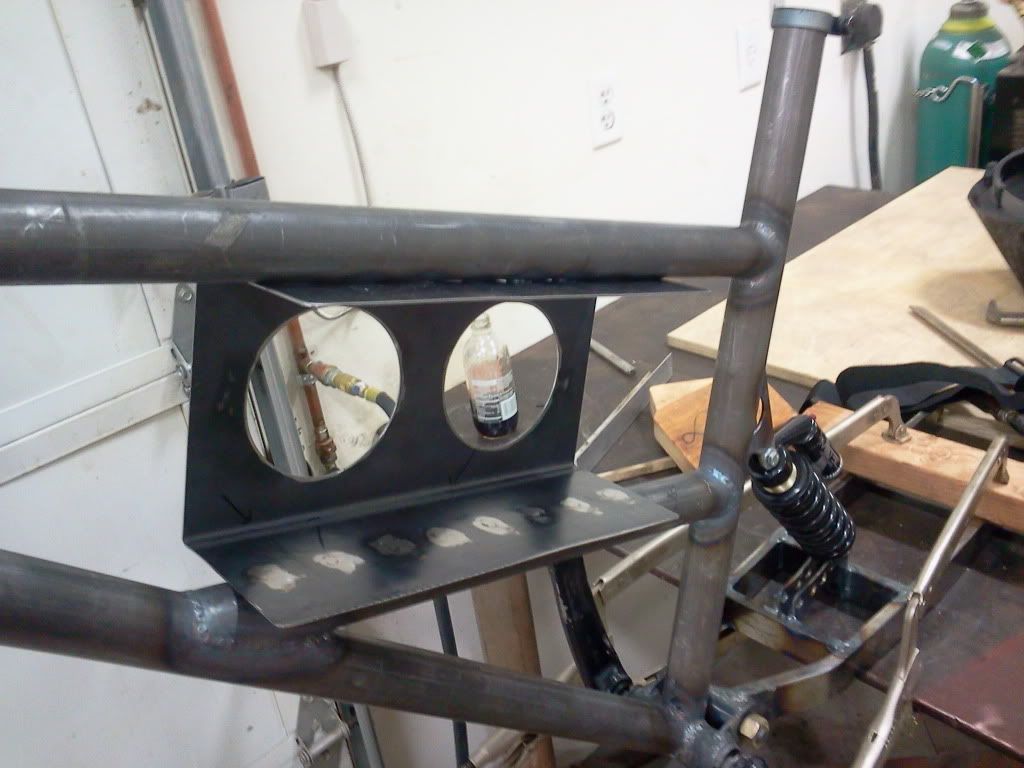

Heres my battery setup, 24s3p of turnigy nano-tech 50c packs. First wrapped in fiberglass tape to prevent expansion, then a layer of aluminum is added to the top and bottom, then the whole thing is wrapped in gorilla tape. it measures exactly 4"x12"x6" .Everything battery side is wired with triple paralleled 10 awg, and everything motor side is single 6awg. Its all charged with a ggoodrum/fechter "lite" BMS mated to a pair of 48v meanwells.







The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com
User avatar
Farfle
10 MW
10 MW

Posts: 2075
Joined: Sun Jun 27, 2010 10:42 am
Location: Moscow, ID

Re: Show off your lipo setup!

Postby corkscrew » Wed Feb 08, 2012 3:55 pm

I have 8 6S 5amp/hr batteries in a 44.4 20amp/hr setup.

8 mount on either side of my trike in stainless steel battery boxes. 4 batteries on each side make for two 6S 20amp/hr packs. They are paralleled together with a anderson connector harness I made, and some 6S balancing harnesses from progressiveRC. A serial adapter cable connects the two packs, turning the pack into a 12S 20amp hour pack. Charging and balancing are done with a Hyperion 1420 charger, and GGoodrum's 12S one plug charger kit. So every time I charge, I make one connection, and it charges and balances for me.

I have room to add another two bricks per side, which would give me 44.4V (49ish off the charger) and 30 amp hours.



I just recently broke the pack down after about a year and over 1000 miles. When I checked each battery individually they all were still within .03 of each other. Only broke it down because the chain chewed through some of my balance wires, and was causing wonky readings @ the charger. Just need to decide if I'm going to order another 4 batteries, or seal it all back up again with new heat shrink.

This photo, despite it's crappy quality shows the new longer parralleled balance harnesses I built. Basically just extended the Progressive RC harnesses to eliminate a JST-XH connection, and give a little more distance. You can sort of see the one plug going from the batteries to the charger.


Here is her all put together. You can see the one plug charge kit hanging off the battery box.

Actionbent T1 Tadpole Trike - 2806 9C Motor in a 700C wheel. 12S 15AH Lipo pack.

--Build thread: viewtopic.php?f=3&t=26520
corkscrew
100 W
100 W

Posts: 156
Joined: Wed Mar 23, 2011 9:20 pm

Re: Show off your lipo setup!

Postby emergence » Wed Feb 08, 2012 4:19 pm

Farfle wrote:Heres my battery setup, 24s3p of turnigy nano-tech 50c packs. First wrapped in fiberglass tape to prevent expansion, then a layer of aluminum is added to the top and bottom, then the whole thing is wrapped in gorilla tape. it measures exactly 4"x12"x6" .Everything battery side is wired with triple paralleled 10 awg, and everything motor side is single 6awg. Its all charged with a ggoodrum/fechter "lite" BMS mated to a pair of 48v meanwells.


Thanks Farfle, that's a lot of grunt! what is the advantage of using the high C nanotech packs when, as far as I can work out 20c packs in 24s will still put out enough watts and amps to destroy any ebike hub and the wiring too? Voltage Sag?

And thanks for the pics, they really help. Nice build!
emergence
100 mW
100 mW

Posts: 48
Joined: Thu Nov 10, 2011 7:04 pm

Re: Show off your lipo setup!

Postby Farfle » Wed Feb 08, 2012 5:24 pm

North of 25 kw a 20c turnigy pack will sag like crazy at only 15ah. The high c rate packs just help reduce the voltage sag. and yes, this will destroy any ebike motor, but im not exactly running a normal ebike motor :twisted: :twisted:
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com
User avatar
Farfle
10 MW
10 MW

Posts: 2075
Joined: Sun Jun 27, 2010 10:42 am
Location: Moscow, ID

Re: Show off your lipo setup!

Postby boppinbob » Wed Feb 08, 2012 6:01 pm

20s1p zippy's in a removable battery box so I can easily charge on or off the bike.
Attachments
Project bike-Genesis v2100, Crystalyte HS 3540 with 72v40A controller and four 5s8Ah zippy lipos in series.
User avatar
boppinbob
1 kW
1 kW

Posts: 356
Joined: Wed Oct 12, 2011 3:23 pm
Location: Houston Tx

Next

Return to Battery Technology

Who is online

Users browsing this forum: No registered users and 15 guests
