Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by fractal » Jun 30 2012 6:32pm

Sacman wrote:
fractal wrote:so i tried charging at 12s. everything is plugged in perfectly but i get a battery connection error. the input voltage is 13 volts. is it possible that its too low for 12s. the manual dosent say shit!!!! (tried charging eac 6s packs separately and it works)
The "battery connection error" doesn't come up if your power supply is too small. If it charges your 6s packs fine it should charge your 12s packs too but just at half the amps. Remember these 1420i chargers were made for use largely by the RC guys who power their chargers with their 12v car batteries while they are out in the field flying their RC planes and helicopters.

I think something is still wrong with your connections when you series charge your two 6s packs. Can you take a pic and post it up?

The easiest way I can tell people to make the connections correct is to make sure pin #1 on port A (black wire) is connected to the same battery pack that also connects to the thick black (-) charge lead.
ok ill do that, but i can confirm that that is the way i plugged it. thanks for all the help!!!!
Norco A-line DH bike with :
«cromotor/hubzilla» from http://www.greyborg.com/
24s 3p Lipo (100v, 15ah)
Methods LVC/HVC cell level protection system http://www.methtek.com
24 fet infineon controller made by Lyen, heavily moded by Methods
8awg harness by Icecube57
17 inch moped rims with Michelin Gazelle tires by John Rob Holmes http://www.holmeshobbies.com
other stuff http://www.ebikes.ca

details
http://www.helicamguide.com

User avatar
Alan B   100 GW

100 GW
Posts: 7740
Joined: Sep 11 2010 7:43am
Location: San Francisco Bay Area, USA
Contact:

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by Alan B » Jun 30 2012 6:38pm

All it take is for one balance lead to not make connection and you'll get this error. Replug everything.

User avatar
fractal   1 kW

1 kW
Posts: 322
Joined: May 10 2011 1:26pm

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by fractal » Jun 30 2012 7:36pm

ok i go it! in the menu it was still set at 6s. so i changed it to 12s and bingo! thanks everyone!
Norco A-line DH bike with :
«cromotor/hubzilla» from http://www.greyborg.com/
24s 3p Lipo (100v, 15ah)
Methods LVC/HVC cell level protection system http://www.methtek.com
24 fet infineon controller made by Lyen, heavily moded by Methods
8awg harness by Icecube57
17 inch moped rims with Michelin Gazelle tires by John Rob Holmes http://www.holmeshobbies.com
other stuff http://www.ebikes.ca

details
http://www.helicamguide.com

999zip999   100 GW

100 GW
Posts: 9318
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by 999zip999 » Jun 30 2012 10:45pm

There you go boy. Thanks Sacman, Alan B

User avatar
hillzofvalp   1 MW

1 MW
Posts: 1876
Joined: Dec 26 2010 2:09am
Location: Los Angeles, CA

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by hillzofvalp » Jul 03 2012 8:24am

Hyperion ought to release a new charger soon that competes with the power lab's power...

999zip999   100 GW

100 GW
Posts: 9318
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by 999zip999 » Jul 04 2012 8:43pm

I fill better with Sacman holding my hand. Thanks. Sucess 12s A123 20ah is charged on the hyperion. One more to go.

User avatar
Sacman   10 kW

10 kW
Posts: 750
Joined: May 27 2008 3:42am
Location: Corona & Irvine, California, USA

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by Sacman » Jul 04 2012 9:08pm

999zip999 wrote:I fill better with Sacman holding my hand. Thanks. Sucess 12s A123 20ah is charged on the hyperion. One more to go.
Hey now... me "holding your hand"... no no ... that's a pretty disturbing image (unless you are a hot young looking woman). :lol:

no but seriously... that Hyperion 1420 is an awsome charger and I'm glad you finally got thru charging 1 of your packs successfully with it. See it isn't so scary is it? You just needed to get comfortable navigating thru all the menus so you can see and monitor the individual cell voltages during the first few charge cycles. And after you've noticed the behavior of how it charges and balances you'll finally learn to trust it and not have to monitor it so closely.

So did you just charge or charge/balance that 1st pack. And did it play that little musical tune when it completed?

User avatar
mistercrash   10 kW

10 kW
Posts: 958
Joined: Mar 09 2011 11:01am
Location: Guelph, Ontario, Canada eh!

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by mistercrash » Jul 04 2012 9:44pm

I use the Hyperion 1420i to balance charge the 14S16P battery I made using 18650V cells. The charger is set to charge each cells to 4.15V. All fourteen cells take charge pretty equally until they all get to the 4.12V mark. Then this one cell drops to 4.00V and the rest keep on going up until they all get to 4.14/4.15V and get the flashing little square beside them. The charger is now in balance mode and is trying to bring that one cell up equal to the others. It takes forever to do that and sometimes I just disconnect everything and stop the charging process.

When I stopped the charge today, the one cell showed 4.03V while all others were at 4.14/4.15V. I checked the voltage of that low cell with a Fluke 113 and it said 4.23V. Is my charger defective or is something wrong with that cell that makes the charger give false readings?
Send $10 at paypal.me/Ray1964 and you will be in my thoughts and prayers.

User avatar
ambroseliao   100 kW

100 kW
Posts: 1221
Joined: Apr 27 2009 3:34pm
Location: Washington, DC, USA area
Contact:

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by ambroseliao » Jul 04 2012 11:12pm

mistercrash wrote:....

When I stopped the charge today, the one cell showed 4.03V while all others were at 4.14/4.15V. I checked the voltage of that low cell with a Fluke 113 and it said 4.23V. Is my charger defective or is something wrong with that cell that makes the charger give false readings?
What did the other cells read with your Fluke meter?
http://www.ebikes.ca/ is the best!

TidalForce M-750X, Tidalforce S-750 with Crystalyte HS3540, 1x TF iO-X Cruiser. E+ 1000W hybrid bike. ebikes.ca DrainBrain & Cycle Analyst meters. GoPro HD Hero2 camera. Bosch Fat Packs, 37V 10Ah LiPO pack. Turnigy Multistar batteries
My blog: http://ebikerider.blogspot.com
Remember LiFEPo4 HVC is 3.65V and LVC is 2.7V

999zip999   100 GW

100 GW
Posts: 9318
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by 999zip999 » Jul 05 2012 12:22am

Mistercash I'm in the same boat.

999zip999   100 GW

100 GW
Posts: 9318
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by 999zip999 » Jul 05 2012 12:35am

Sacman it's my first time so be easy. 500usd of A123 and.inside the garage ? First charge R/C 12s. Thanks again. The konion pack had a drift to 4.22v or more. So the 1420 was single cell charger till now. Konion pack charged with a ping 48v5a turned up tio 74.2v. Because it likes it. With balance wires ect.

User avatar
Sacman   10 kW

10 kW
Posts: 750
Joined: May 27 2008 3:42am
Location: Corona & Irvine, California, USA

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by Sacman » Jul 05 2012 1:11am

mistercrash wrote: When I stopped the charge today, the one cell showed 4.03V while all others were at 4.14/4.15V. I checked the voltage of that low cell with a Fluke 113 and it said 4.23V. Is my charger defective or is something wrong with that cell that makes the charger give false readings?
My best guess is that there is additional resistance in the balance wires of that cell on your charging setup (most likely a pin connection on the JST plug). The additonal resistance could be fooling the charger into thinking that cell has a lower voltage than it actually has (hence when you take the charging leads away and test the cell with your Fluke meter test leads it reads higher voltage). I could be wrong so somebody with a good grasp of electronics theory please chime in and tell me if my reasoning is sound or not.

If you have another identical battery pack, charge it with the same setup and see if the same cell number gives you the same problem. If it does then I'd check the resistance of your balance leads going to that cell and compare it to the resistance of the adjacent balance leads. Also check that the pin/socket connection of the JST plugs are clean. Sometimes a thin crusty film of resin can prevent full contact connection and even read as a small additional resistance.

999zip999   100 GW

100 GW
Posts: 9318
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by 999zip999 » Jul 05 2012 1:39am

Plus cell do have there own level some times good or bad and sometimes zero problems. But I monitor and use... Yea use It or look at it

999zip999   100 GW

100 GW
Posts: 9318
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by 999zip999 » Jul 05 2012 1:46am

Maybe I have H.k. jst 6s balance ext cheapo's on the 74v kniona pack that has hyperion balance wires ? They plug in just fine. ?

User avatar
mistercrash   10 kW

10 kW
Posts: 958
Joined: Mar 09 2011 11:01am
Location: Guelph, Ontario, Canada eh!

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by mistercrash » Jul 05 2012 7:54am

All the other cells were at the 4.14V mark. I was hoping to find another solution to this but I have to take the battery out, open it and check that 16P string to see if a cell came loose. It is very likely that a bad connection is the problem since there are numerous connection points in that battery.

Thanks guys
Send $10 at paypal.me/Ray1964 and you will be in my thoughts and prayers.

cwah   10 GW

10 GW
Posts: 4214
Joined: Jul 24 2011 5:42am
Location: Between paris and london

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by cwah » Jul 07 2012 12:28pm

My hyperion takes forever to charge pack that is not balanced. Here's on charge:

The cell n°1 reaches the peak sooner than others. And the hyperion doesn't allow other cells to go up and it just last forever in this state..

So I stopped the charge, and started the balance mode:

I've been waiting for 4h and it's still not ready yet!! There's only 0.02V difference between the top cell and the others.


Any faster way to reach 4.15V for all cells?
Last edited by cwah on Jul 07 2012 2:25pm, edited 1 time in total.
Help me find my stolen electric brompton: http://bit.ly/1a0vbBC and Bosch Sinus B3 http://bit.ly/1eV0WQz

User avatar
Sacman   10 kW

10 kW
Posts: 750
Joined: May 27 2008 3:42am
Location: Corona & Irvine, California, USA

Re: Hyperion EOS 1420i NET3 14s Balance Charger...

Post by Sacman » Jul 07 2012 2:20pm

Is your final target voltage set to 4.15v because your cell voltages seem to be dropping down away from it.
I'm not sure why your cell voltages are not increasing toward the final target voltage (4.2v) like mine do.

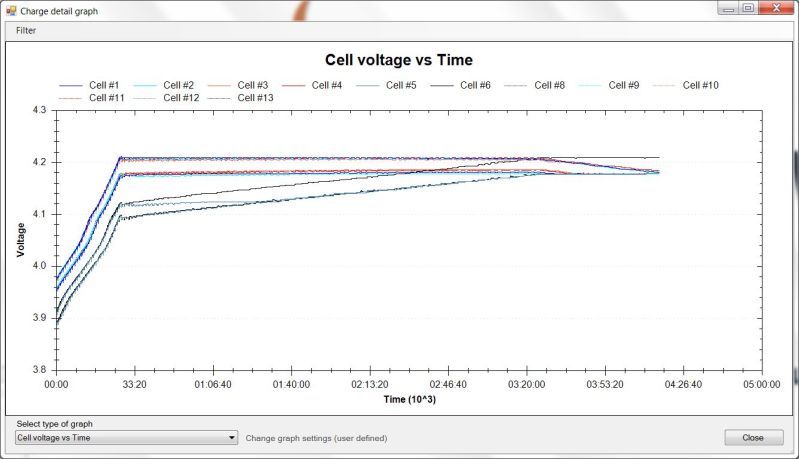

Here's a typical balance session of one of my more unbalanced packs.
