A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 08 2012 6:07am

A123 AMP20M1HD-A Battery pack kit

I do not sell cells and they are not included!

Configurations available:
4S, 6S, 12S, 16S, 18S, 24S, 30S. Other configurations might be available on larger quantities (20pcs)

Balancing connectors and traces capable of 6A continuous (rev2), so it could be charged through it using BC168, Hyena's balance charger etc.

The dimensions of the kits:
4S - 34x160x14mm, packaged weight 241g.
6S - 48x160x14mm
12S - 90x160x14mm, packaged weight 357g.
16S - 118x160x14mm, packaged weight 373g.
18S - 132x160x14mm
24S - 174x160x14mm, packaged weight 535g.
30S - 216x160x14mm


Product Design:


Product images:

Customer pack's:


Tutorials, testing:







Last edited by agniusm on May 16 2017 1:07am, edited 16 times in total.

User avatar
docnjoj   100 GW

100 GW
Posts: 5771
Joined: Sep 29 2007 5:26pm
Location: Fairhope AL

Re: A123 AMP20M1HD-A Battery pack kit

Post by docnjoj » Apr 08 2012 10:43am

I think I replied to another thread but yes! Do you have price and availability yet?
otherDoc
E-bike stable at our house

Steintrike Mad Max full suspension trike rear Cute 100H going on: Whoops, Cute wheel broke but I fixed it.
Sun USX delta trike EbikeKit small geared front wheel sort of front suspension for wife

Agniusm/A123 AMP 20 36 volts on the Steini has been taken off.
2x16000 Multisport from HK now gone as they died after 2 years
New Luna 10S bottle battery 13.6AH now on mine
Relatively New 10S4Px2 for wife's bike giving 20ah @ 40 volts home made Panasonic from Tumich. BMS's rule.

User avatar
ohzee   1 MW

1 MW
Posts: 1715
Joined: Jul 20 2011 1:13pm
Location: Columbus Ohio USA

Re: A123 AMP20M1HD-A Battery pack kit

Post by ohzee » Apr 08 2012 10:48am

Sign me up.

User avatar
neptronix   100 GW

100 GW
Posts: 12708
Joined: Jun 15 2010 5:56pm
Location: California refugee living in Utah, USA
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by neptronix » Apr 08 2012 10:51am

Not interested since i'm not a lifepo4 fan, however i think the idea is quite brilliant and you should go for it.. :)
My first major build: 8T MAC motor on a Trek 4500.
The new all-arounder: Leafmotor 1500w on a Turner O2 full suspension.
The wheelie machine: 20" Rear Magic Pie II on a Trek 4300 MTB

"The best time to plant a tree was 20 years ago. The second best time is now."- Chinese Proverb

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 08 2012 10:53am

Thanks. I dont have the price at the moment mainly because i am negotiating block price with companies. It would be not a big deal if i ordered 2000pcs but on smaller quantities the price goes up (up to 4$per block) which makes the kit totaly unatractive. After i will negotiate the price, will post it here and then its a matter of couple weeks till shipping. cheers

P.S. Moumting plates will have copper pads for blocks on the cell side (not visible on the drawing) and builder will have a possibility to solder blocks on to the board further easing buid proces.

User avatar
Spacey   100 kW

100 kW
Posts: 1463
Joined: May 15 2010 9:38am
Location: United Kindom
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by Spacey » Apr 08 2012 2:50pm

Interested for sure.
http://www.custom-ebikes.com is my new Ebike company serving the Uk and Europe
Free Uk shipping over £49.99

User avatar
ambroseliao   100 kW

100 kW
Posts: 1216
Joined: Apr 27 2009 3:34pm
Location: Washington, DC, USA area
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by ambroseliao » Apr 08 2012 4:59pm

Add me to the interested list. This would make building a pack drop dead simple.
http://www.ebikes.ca/ is the best!

TidalForce M-750X, Tidalforce S-750 with Crystalyte HS3540, 1x TF iO-X Cruiser. E+ 1000W hybrid bike. ebikes.ca DrainBrain & Cycle Analyst meters. GoPro HD Hero2 camera. Bosch Fat Packs, 37V 10Ah LiPO pack. Turnigy Multistar batteries
My blog: http://ebikerider.blogspot.com
Remember LiFEPo4 HVC is 3.65V and LVC is 2.7V

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 08 2012 5:51pm

Forgot to mention (did not included in the sketch), there will be threaded brass rod going through top plate and sticking out 5mm. This will make things easy. The Builder will acquire 2 bullet connectors desired gauge but not less than 4mm (75A) and solder those strait on to the rod. After the pack is finished and top plate is on, they will be screwed in and you have easy unplugging neat terminals. Those who need beefier terminals will be able to use these:
with 4mm nut.
Last edited by agniusm on Apr 08 2012 5:56pm, edited 1 time in total.

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 08 2012 5:55pm

Reserved

999zip999   100 GW

100 GW
Posts: 8354
Joined: Jan 10 2010 1:40pm
Location: Dana Point So. Cal

Re: A123 AMP20M1HD-A Battery pack kit

Post by 999zip999 » Apr 08 2012 6:56pm

Looks good, interested. Like to hang under my top bar ? How's your running ? And your setup ?

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 08 2012 11:11pm

999zip999
Mine is running fine so far. Its couple of days yet so early to say. Mounting options is up to you:)


If possible state configuration you need the kit for , i will run perhaps 4 kits at first and ship them to lucky once, and then everybody will get feedback from them, after there is satisfaction, i can start making larger quantities.

spkpn   1 W

1 W
Posts: 64
Joined: Oct 04 2011 5:44pm

Re: A123 AMP20M1HD-A Battery pack kit

Post by spkpn » Apr 09 2012 6:23am

Id be interested in a 2p set up..

texaspyro   100 kW

100 kW
Posts: 1408
Joined: May 12 2010 6:53pm

Re: A123 AMP20M1HD-A Battery pack kit

Post by texaspyro » Apr 09 2012 6:37am

A 4S config would also be highly useful. 4S of LiFePO is a perfect match for replacing 12V lead acid batteries.

Timmey   10 mW

10 mW
Posts: 20
Joined: Mar 13 2011 8:20am
Location: Eindhoven, The Netherlands
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by Timmey » Apr 09 2012 6:41am

Nice kit, we've been doing something similar to build our 102s1p A123 pack for a Formula Student Electric race car.


User avatar
docnjoj   100 GW

100 GW
Posts: 5771
Joined: Sep 29 2007 5:26pm
Location: Fairhope AL

Re: A123 AMP20M1HD-A Battery pack kit

Post by docnjoj » Apr 09 2012 6:49am

I am interested in 12S configuration please. Thanks
otherDoc
E-bike stable at our house

Steintrike Mad Max full suspension trike rear Cute 100H going on: Whoops, Cute wheel broke but I fixed it.
Sun USX delta trike EbikeKit small geared front wheel sort of front suspension for wife

Agniusm/A123 AMP 20 36 volts on the Steini has been taken off.
2x16000 Multisport from HK now gone as they died after 2 years
New Luna 10S bottle battery 13.6AH now on mine
Relatively New 10S4Px2 for wife's bike giving 20ah @ 40 volts home made Panasonic from Tumich. BMS's rule.

adam78   100 µW

100 µW
Posts: 7
Joined: Feb 28 2009 5:34pm
Location: Czech republic

Re: A123 AMP20M1HD-A Battery pack kit

Post by adam78 » Apr 09 2012 4:17pm

I would be interested in 8s and 10s config.
thx
Adam

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 10 2012 2:15am

OK, so i can tell that standart sizes are not standart at all:) I will include 4S in the availability list, so if you need 10S you could get 6s and 4s, 8s - 4s+4s, 16s - 12s + 4s etc if that works. Remember that all that custom stuff ads to the price and i cant make infividual stuff in one peace quantities unless someone wants to pay top price. Friday going to firm to negotiate PCB prices. cheers

Frank   100 W

100 W
Posts: 134
Joined: Dec 10 2007 11:57am
Location: Maine

Re: A123 AMP20M1HD-A Battery pack kit

Post by Frank » Apr 10 2012 6:14am

This sounds like a good idea - have you actually built a prototype yet?
Frank

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 10 2012 7:03am

Partly yes, i used similar on my e scooter, link in signature. This thou will be more advanced, easy to build with all parts included. Tidy BMS connectors etc.

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 10 2012 10:34am

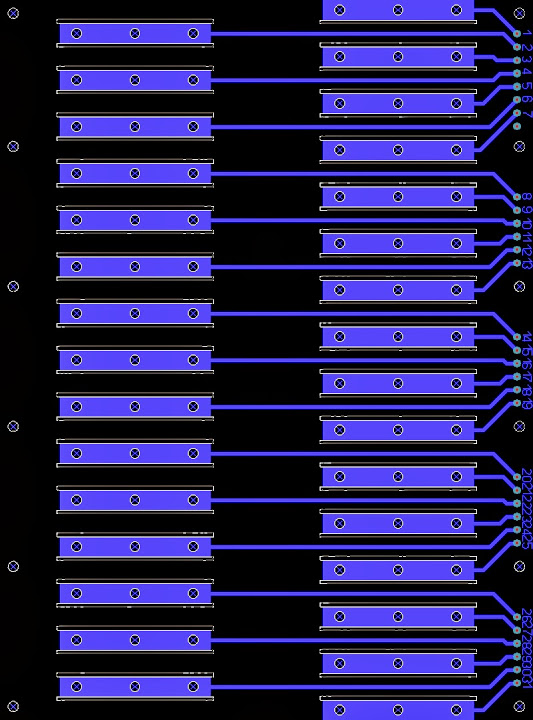

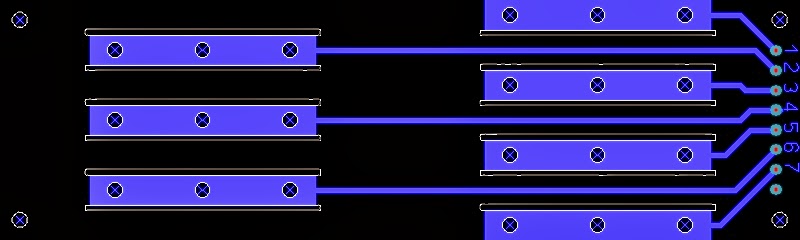

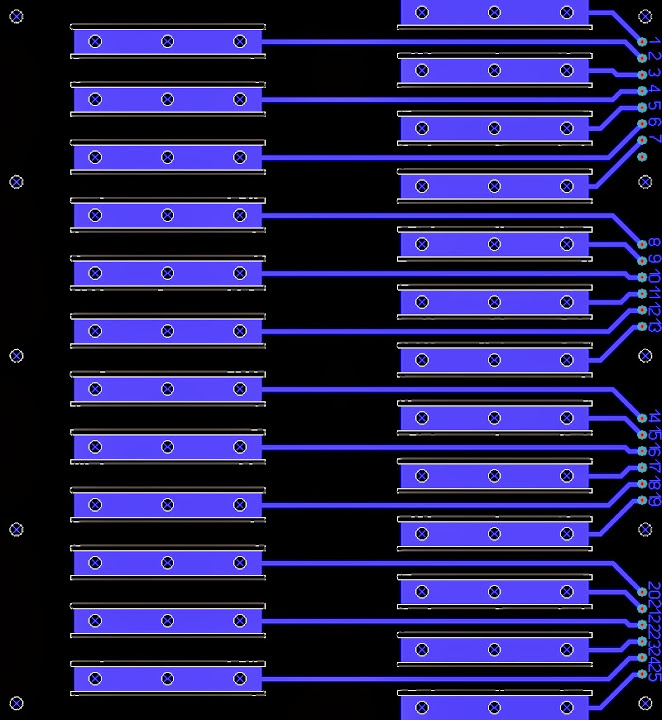

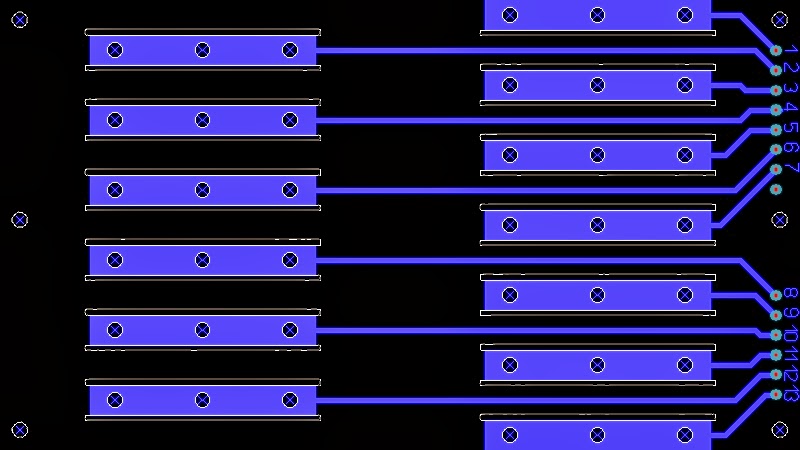

Layout for different configurations. Sizes are:
4S- 34x160
6S-48x160
12S-90x160
18S-132x160
24S-174x160
30S-216x160

Same size top cover with cutout on the right side for connector.
Last edited by agniusm on Apr 10 2012 10:39am, edited 1 time in total.

User avatar
ohzee   1 MW

1 MW
Posts: 1715
Joined: Jul 20 2011 1:13pm
Location: Columbus Ohio USA

Re: A123 AMP20M1HD-A Battery pack kit

Post by ohzee » Apr 10 2012 10:39am

Where do I send my money. Be happy to be a guinea pig :)

Looks great here personally id like 3 or 4 6s kits.

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 10 2012 10:47am

ohzee wrote:Where do I send my money. Be happy to be a guinea pig :)

Looks great here personally id like 3 or 4 6s kits.
You wont be a guinea pig!! All will be checked before shipping. Me risking big time on this :) Changing thickness of blocks to reduce weight and cost: 45x6x3

Those interested, please PM me configuration and how many units you will need, i will try to reduce my risk in buying material i need. I will list unit and shipping prices when arranged with 3rd parties.

Thank yo

cassschr1   10 kW

10 kW
Posts: 510
Joined: Aug 14 2009 11:57am
Location: LaCrosse, Wisconsin

Re: A123 AMP20M1HD-A Battery pack kit

Post by cassschr1 » Apr 10 2012 10:49am

How about one for 28 s . Thats 100v charged for the a123 packs. Will 100v caps and fets take the 30s version, I wonder.
I personally would like one for 40s also.

User avatar
Doctorbass   100 GW

100 GW
Posts: 7425
Joined: Apr 08 2007 2:24am
Location: Quebec, Canada East
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by Doctorbass » Apr 10 2012 10:58am

Timmey wrote:Nice kit, we've been doing something similar to build our 102s1p A123 pack for a Formula Student Electric race car.

Interesting, is this project you talk about with teh ermax motor? http://www.diyelectriccar.com/forums/sh ... 60574.html

Doc
CURRENT PROJECT: 2WD duo MXUS/Max-E ebike 32kW
http://endless-sphere.com/forums/viewto ... =3&t=65764
-Fastest speed record 117 km/h on flat
-Fastest 1/4 mile@ 114km/h on flat and 16.316 sec
-Succeded to haul a 19200 pounds schoolbus!
113kmh Gianthttp://www.evalbum.com/3406
Mongoosehttp://www.evalbum.com/1947
YOUTUBE---https://m.youtube.com/user/Doctorbasss
http://twitter.com/DocbassMelancon
I speak FRENCH and english

User avatar
agniusm   10 MW

10 MW
Posts: 2246
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: A123 AMP20M1HD-A Battery pack kit

Post by agniusm » Apr 10 2012 1:32pm

cassschr1 wrote:How about one for 28 s . Thats 100v charged for the a123 packs. Will 100v caps and fets take the 30s version, I wonder.
I personally would like one for 40s also.
You will get 28s by using 24s+4s, 40s using 30s+6s+4s.
You cant possibly make a product for everyone, sorry about that.

And please, keep it on topic. Cheers

Post Reply
