Re: 18650 battery Kit development and discussion

Post by tomjasz » Feb 12 2015 6:35pm

agniusm wrote: I am just amazed, how there is none such kit available on the market, surely Chinese are scanning these forums as well:)
That's two of us! I hope someone is! The links above show there is someone thinking. I'm going to try to see if there is a chance for a group order. I really like the design! WOW!
Thanks Justin_le we're here thanks to you. All the best to the mods for their tireless work keeping it on an even keel.

User avatar
tomjasz   10 GW

10 GW
Posts: 4100
Joined: Mar 29 2014 1:45pm
Location: Out riding, MN USA
Contact:

Re: 18650 battery Kit development and discussion

Post by tomjasz » Feb 13 2015 1:29pm

riba2233 wrote:Just give me some time to track down the link.

EDIT: Ok, here it is. Wireless design :) But if I see it well, they still have to weld the positive side of cells which are on topmost position.

http://akbattery.en.alibaba.com/product ... eries.html

http://akbattery.en.alibaba.com/product ... _safe.html

http://akbattery.en.alibaba.com/product ... _Pack.html

This company has a representative in the USA. I'll be speaking with them this afternoon about the solderless system.
Thanks Justin_le we're here thanks to you. All the best to the mods for their tireless work keeping it on an even keel.

User avatar
riba2233   1 MW

1 MW
Posts: 1842
Joined: Jun 30 2013 10:23am
Location: Croatia

Re: 18650 battery Kit development and discussion

Post by riba2233 » Feb 13 2015 5:08pm

Great, tell us the results! :)
My electric moped: http://www.evalbum.com/4966

My electric car: http://www.evalbum.com/5364

User avatar
tomjasz   10 GW

10 GW
Posts: 4100
Joined: Mar 29 2014 1:45pm
Location: Out riding, MN USA
Contact:

Re: 18650 battery Kit development and discussion

Post by tomjasz » Feb 13 2015 6:04pm

Well China you know, is on vacation. However I just got some stunning prices, low, for LifePO4 packs. More to come.
They are on it and promise results on the solderless system parts for 18650. I'm told the parts ARE available. Now we wait for the New Year to end. First week of March for any solid answers but I'm locked in...

We should entertain a battery group buy come March. Certainly a group buy on the solders system components. Again, I'm amazed at this USA companies price point. I'm VERY positive. There may be a wheel and no need to reinvent it!
Attachments
Thanks Justin_le we're here thanks to you. All the best to the mods for their tireless work keeping it on an even keel.

User avatar
agniusm   10 MW

10 MW
Posts: 2361
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: 18650 battery Kit development and discussion

Post by agniusm » Feb 15 2015 5:13pm

Interesting. Would be good to have some close ups as its not clear what they do at the negative end. It looks like spring tab. One concern is that spring tab. You better have it on the side cause the more cells you put on top, the more presure pushes on bottom cell, unless there is a ring stop. Its still not the same what I have imagined. You still need enclosure.
Damn, I have spent some time getting new drawings which eliminate 18650 holders. Will do 10S6P and will get it 3D printed, hopefully diy some copper tabs to see if it will work at all.

User avatar
tomjasz   10 GW

10 GW
Posts: 4100
Joined: Mar 29 2014 1:45pm
Location: Out riding, MN USA
Contact:

Re: 18650 battery Kit development and discussion

Post by tomjasz » Feb 15 2015 6:46pm

They do enclosures as well. Waiting for more answers. Unfortunately their primary design is not eBikes and some of the sizing is odd IMO. BUT the information, as you noted, is still sketchy.

I am waiting for a confirmation on their LifePO4 36V 10Ah packs too. Knowing the "power rangers" <tongue in cheek> here aren't much interested but I am, and a few others lie myself are, interested in a pack that's good for 2000 charges to 80%.

Time will tell, damn if this didn't have to be found during the New Year/Spring shut down.
Thanks Justin_le we're here thanks to you. All the best to the mods for their tireless work keeping it on an even keel.

User avatar
parabellum   10 MW

10 MW
Posts: 2067
Joined: Nov 19 2010 9:55am
Location: Dominican Republic, north.

Re: 18650 battery Kit development and discussion

Post by parabellum » Feb 15 2015 7:08pm

I still do not understand how exactly it works. I see the theory but physical pressure needed?

User avatar
tomjasz   10 GW

10 GW
Posts: 4100
Joined: Mar 29 2014 1:45pm
Location: Out riding, MN USA
Contact:

Re: 18650 battery Kit development and discussion

Post by tomjasz » Feb 15 2015 7:27pm

parabellum wrote:I still do not understand how exactly it works. I see the theory but physical pressure needed?
tomjasz wrote: Waiting for more answers...

Time will tell....
Thanks Justin_le we're here thanks to you. All the best to the mods for their tireless work keeping it on an even keel.

User avatar
agniusm   10 MW

10 MW
Posts: 2361
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: 18650 battery Kit development and discussion

Post by agniusm » Feb 15 2015 7:40pm

Looks like for the negatibe side plastic tray has a metal insert grab the cell firmly, hence the cut shrik tube. Positive side has a metal spring. Negative and positive trays/holders are conductive at the top as well. I just dont see how it is all attached together and all, perhaps through some of those vent holes. Conductor plate is for series connection to loop back. Might be over engineered.

User avatar
parabellum   10 MW

10 MW
Posts: 2067
Joined: Nov 19 2010 9:55am
Location: Dominican Republic, north.

Re: 18650 battery Kit development and discussion

Post by parabellum » Feb 15 2015 7:57pm

tomjasz wrote:
parabellum wrote:I still do not understand how exactly it works. I see the theory but physical pressure needed?
tomjasz wrote: Waiting for more answers...

Time will tell....
Anyway weigh and volume figures are far better then my build. Hope that current rate will not disappoint.

Lurkin   100 kW

100 kW
Posts: 1428
Joined: Jan 18 2015 4:31pm
Location: Melbourne, VIC, AUS

Re: 18650 battery Kit development and discussion

Post by Lurkin » Jun 27 2015 1:52am

Any update on these? seems like a doable idea...

User avatar
agniusm   10 MW

10 MW
Posts: 2361
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: 18650 battery Kit development and discussion

Post by agniusm » Jun 27 2015 2:24am

So far got quote for punch making copper plates, 3000eur. Not gonna happen at those prices. Will look to east

User avatar
agniusm   10 MW

10 MW
Posts: 2361
Joined: Apr 16 2011 3:06pm
Location: Lithuania, Zarasai
Contact:

Re: 18650 battery Kit development and discussion

Post by agniusm » Dec 16 2015 9:04am

So i had a bit of time to play with this no solder/weld concept. I had a lot of thinking about it during past months and decided to give a shot at modular 18650 design. I am working on 4P module, not intending to make 5p or 6p. It will work as 8P though. Not to talk too much, photos talk best.
This is the first attempt:

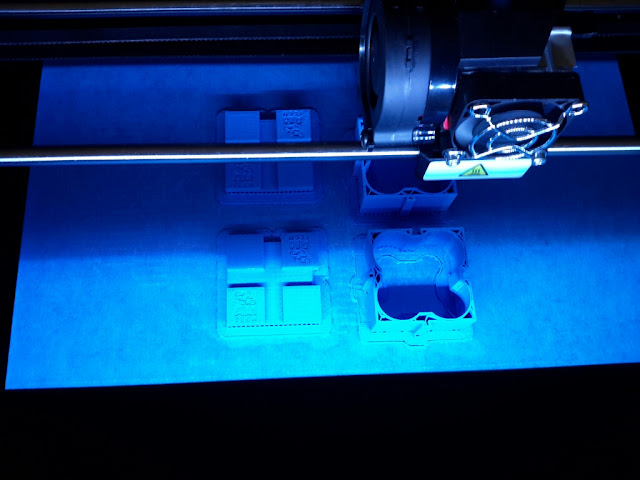

Then i thought i will try something screwless, the printer is at work now and i will have prototypes tomorrow:



I have left out copper tabs, but the idea is that those will have longer strip that will fold on dowetail joint and then slide together making connection with posibility to solder at the end of the strip. I am thinking of nickel plating them to avoid oxydation. Channels in the lid are made for balancing connectors to be attached and hiden with the diy lid of the whole pack.

My last prototype allows to form different shape batteries, also it is possible to join two main bodies together to form tube like battery pack.
I am looking to make it as simple as possible with as few pars as i can.
At the moment there will be 3 different parts, main body, lid, copper plate. I envision that i would open online service to purchase separate parts so anyone could build their pack as they like and not be limited by whats available. Its not for the power bikes but i think it will be good for low to average power builds.
There will be some DIY needed with connectors and protection boards (another part that i have in mind is plastic box with dowetail connectors to attach to the battery)
I have not yet looked into manufacturing of this kit but i will sure to try my best to make it happen.
I will also continue working on the 10s and 14s 6p ready battery kits which will require only cells of your choice. I need to refine my design and print out prototypes to see how all fits and looks.
Thanks for visiting.
