Post by litespeed » Mar 05 2016 1:19pm

Actually in my case it was too much power with nothing absorbing it. When one of my tips was not directly above the battery case to be welded to. My nickel tabs were large and had to guess where the battery electrode was at below it.....I had a few bad guesses.

Tom
Attachments
I'm married so you know I'm no stranger to pain!

Skrzypas   10 W

10 W
Posts: 65
Joined: Jun 16 2014 3:08pm
Location: Warsaw, Poland

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Skrzypas » Mar 05 2016 2:26pm

Offroader wrote:Does cutting the nickel tabs like shown in the picture help with the welding?

What exactly is a blowout?

When you apply spot welding electrodes to such stripes (that's actually my picture) the whole current must flow from one electrode through cell back to the second. It means 100% of power goes to make a weld. If you don't cut the stripes, something like half of your current goes through the stripe (burning it) and only the second half does the welding...

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 05 2016 2:42pm

Skrzypas, did you find this a good solution?

How much has it helped you? It seems it may be the way to go. I have one of those heavy duty paper cutters that seems to cut right through this stuff fairly easily and straight.

Skrzypas   10 W

10 W
Posts: 65
Joined: Jun 16 2014 3:08pm
Location: Warsaw, Poland

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Skrzypas » Mar 05 2016 2:47pm

All laptop manufacturers use this technology, see picture of a pair of cells from a brand name laptop. So I just learned from professionals.

And this is the only way my spot welder welds .3 nickel.

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 05 2016 2:59pm

Interesting, I should have tried this. Does the whole strip need to be cut?

Seems like only the part you weld needs to be cut. Reason I ask is I intend to solder a wire to the strip before welding and will not be able to cut the entire strip.

I got to make fast decisions here because My new frame is here next week and want to get my Q76R rolling as soon as possible.

I am considering cutting .2 nickel into 27x12 mm strips and using that between each two cells.

I got lots of .3 x 8 nickel also, may try to see if that welds good with the cutting, because it was not weldable without cutting it.

I wish I didn't blow my fets on my welder by trying to use too much power.. oh well got to wait for parts now.

Lurkin   100 kW

100 kW
Posts: 1428
Joined: Jan 18 2015 4:31pm
Location: Melbourne, VIC, AUS

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Lurkin » Mar 05 2016 4:03pm

You can also buy pre made strip this way.

Skrzypas   10 W

10 W
Posts: 65
Joined: Jun 16 2014 3:08pm
Location: Warsaw, Poland

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Skrzypas » Mar 06 2016 5:20am

Lurkin wrote:You can also buy pre made strip this way.
Where?

kdog   10 kW

10 kW
Posts: 589
Joined: Feb 02 2014 9:22pm
Location: hobart, tasmania

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by kdog » Mar 06 2016 6:29am

OR- I think there's info here already on the slots. Makes a big difference in ease of welding. Forces current down into the can. Must have one electrode either side of slot for it to work ( definitely not on same side).3 mm is very thick- not really that good for the can cause its too strong but you might be ok.
If you were almost able to weld .3 without slotting then I'd say you'd be able to with slots.

mailer   100 µW

100 µW
Posts: 8
Joined: Feb 16 2016 12:35pm
Location: Slovenia

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by mailer » Mar 07 2016 11:41am

Skrzypas wrote:
Lurkin wrote:You can also buy pre made strip this way.
Where?
You can find nickel strips like this on Aliexpress:
http://www.aliexpress.com/store/product ... 97526.html
Before order try to check if this are real nickel or just nickel coated stripes, because there is a big difference. I think we shoud have a "recomended nickel stripe sellers" theme here on the forum, because a lot of newbies (me included) doesn't want to make the same mistake like some other ES members to buy a kilo of pure nickel stripe and then use it as a door stopper. :D Actually there shuld be a list for every part of recommended parts for e-bike builders.

You will also need some spacers for your cells to form a nice looking pack:
http://g01.a.alicdn.com/kf/HTB1R6CfKpXX ... -Black.jpg

User avatar
Samd   1.21 GW

1.21 GW
Posts: 3667
Joined: Jun 28 2011 11:08pm
Location: Ballarat, AU
Contact:

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Samd » Mar 07 2016 3:34pm

Great thread
http://ballaratebikes.com/

"Knowledge is knowing that a tomato is a fruit. Wisdom is knowing that a 165mm rear shock can't deliver 220mm of rear swingarm travel." - Oprah Winfrey.

Skrzypas   10 W

10 W
Posts: 65
Joined: Jun 16 2014 3:08pm
Location: Warsaw, Poland

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Skrzypas » Mar 08 2016 1:41am

Coming back to the "grooves" or "linear holes" in the stripes: has anyone an idea how to do / buy a DIY puncher to make such ca. 8 mm long holes?

I'm thinking of converting an office puncher now.

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 08 2016 2:05am

Skrzypas wrote:Coming back to the "grooves" or "linear holes" in the stripes: has anyone an idea how to do / buy a DIY puncher to make such ca. 8 mm long holes?

I'm thinking of converting an office puncher now.
I believe someone mentioned to use a dremmel. Just get the right thickness blade and grind the groove?

kdog   10 kW

10 kW
Posts: 589
Joined: Feb 02 2014 9:22pm
Location: hobart, tasmania

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by kdog » Mar 08 2016 2:27am

Scissors for end cuts, dremmel for middle ones. Aim for about 2-3 mm beyond the closest weld as a starting point for length. Prob 8-9mm as a start, as narrow as possible. Longer cuts have a bigger effect (to a point) but reduce strength and current carrying. I have found a mild benefit with even just a scissor slice- ie no material removed and sides of cut still touching. Keeps as much nickel as possible remaining... increased resistance across slice must be just enough.
I just had a thought... A punch of the right shape would be awesome cause it can be tedious work doing all those slices. :?

User avatar
Cowardlyduck   100 MW

100 MW
Posts: 2637
Joined: Jun 26 2011 8:41pm
Location: Canberra, ACT, Australia

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Cowardlyduck » Mar 08 2016 6:36am

kdog wrote:I just had a thought... A punch of the right shape would be awesome cause it can be tedious work doing all those slices. :?
I had the exact same idea reading all this.
How about a leather punch...they make 2x3mm hole punches:
http://www.ebay.com.au/itm/Oval-Shape-H ... 1031236336

If 2mm wide is ok, I could see that working well. :)

Otherwise, just use a small screwdriver over a piece of wood for the same effect

Cheers
Custom made 18650/21700 battery packs

Modified Stealth Fighter - Force air cooled motor @ 6KW, Adaptto Mini-E. 49AH, 52V 18650 - 2.5Kwhr
Cowardlyducks - Stealth Fighter Videos

BikeE recumbent commuter - 9C, 6Fet Grinfineon, internal 17AH, 52V, + on-board solar.

Ebike Garage - My YouTube Ebike ramblings.

High Power LiPo wiring harnesses - 4P - XT90, HXT4mm, 5.5mm. 200Amp+ capable. Global shipping.

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 09 2016 2:16am

I did some testing with .3 nickel and cutting it down center. Makes a big difference when it is cut in half.

However, I am not so sure if I want to deal with .3 nickel. This is what I found by cutting .3 nickel in half.

It is hard to get consistently good welds compared to using .2 and .15.

many times I can break the .3 nickel off without pliers. Even when I get a good weld the .3 nickel seems easier to break off than .2 nickel. I believe the extra pulse time or amps needed to weld .3 nickel makes the weld less strong and more burnt.

With .3 nickel I found that I usually have one side that welds better than the other. This isn't the case nearly as much with .2 and .15 nickel.

That being all said, it is a must to cut or make grooves in the .3 nickel. It is weldable, but I've had too many issues with it and decided not to use it. I just don't feel confidant using it because of too many inconsistencies.

For my build I will cut custom .2 x 12mm nickel strips from a larger nickel sheet and this gives me exactly the same current handling as .3 x 8mm nickel that I have. The .2 will have much more consistent welds and is also much easier to weld.

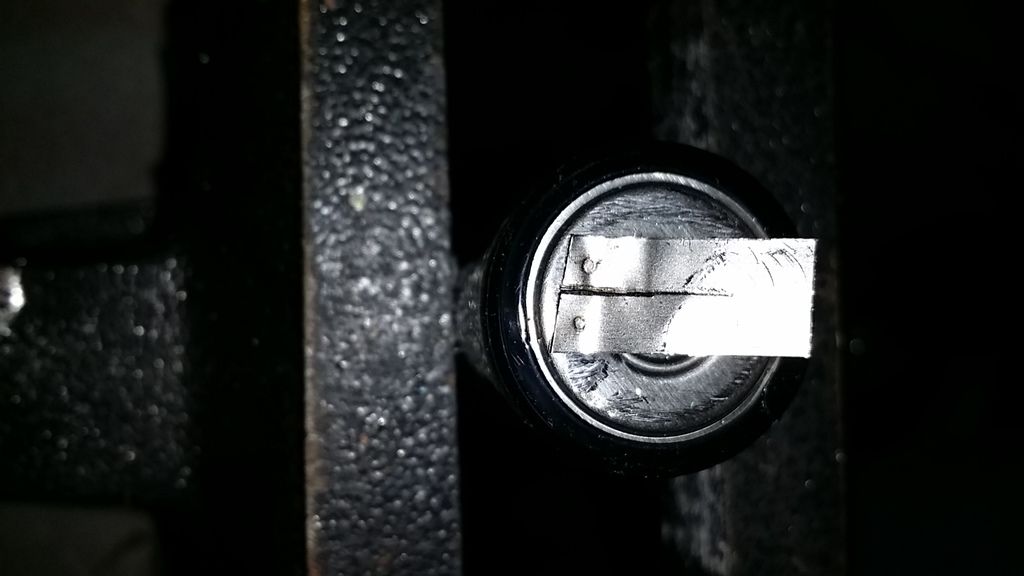

Here is a decent weld below on .3, pulled off with holes in nickel.

Skrzypas   10 W

10 W
Posts: 65
Joined: Jun 16 2014 3:08pm
Location: Warsaw, Poland

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Skrzypas » Mar 09 2016 10:12am

Offroader wrote:For my build I will cut custom .2 x 12mm nickel strips from a larger nickel sheet and this gives me exactly the same current handling as .3 x 8mm nickel that I have. The .2 will have much more consistent welds and is also much easier to weld.
Where did you buy a 0.2 nickel sheet?

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 09 2016 11:23am

Skrzypas wrote:
Offroader wrote:For my build I will cut custom .2 x 12mm nickel strips from a larger nickel sheet and this gives me exactly the same current handling as .3 x 8mm nickel that I have. The .2 will have much more consistent welds and is also much easier to weld.
Where did you buy a 0.2 nickel sheet?
I bought this, but it is on the expensive side. You'll have to do the math to compare it to other nickel sold. It could be up to 50% to 100% more expensive.

I tested it with salt test and grinding test, and it is 99% nickel. Right now this is the only confirmed .2 99% nickel that I know of.

What we need to do is contact one of these sellers to make a custom size for us. I think .2 x 12 mm would be best. I guess we could also use .2 x 18mm to maximize width.

http://www.ebay.com/itm/99-96-Pure-Nick ... xyeZNTSPEu

I'm going to cut my nickel in 12mm x 27mm strips to fit between two cells to save on cost as each of these will have a 16 AWG wire soldered in the middle to connect the cells in series. I'll then solder a thin strip for balancing over this. No reason to use the .2 nickel to connect cells that only need to be balanced.

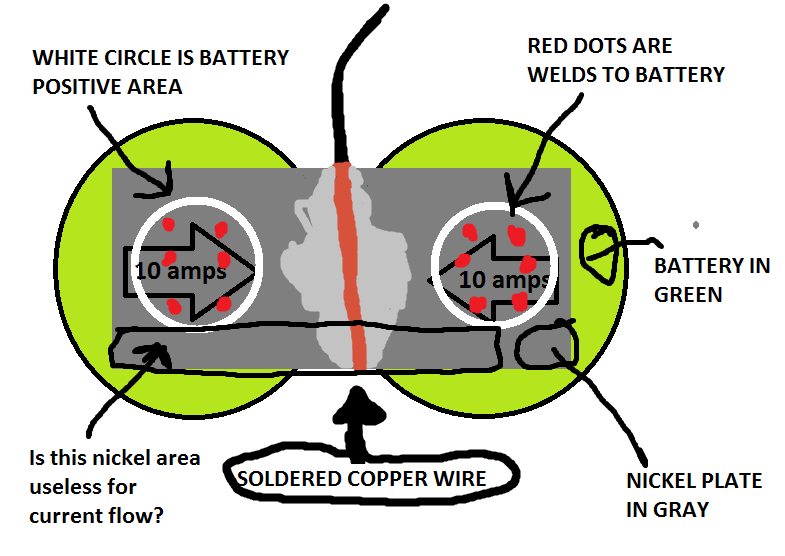

Here is what I plan to do, I made this picture for something else but here it is.


User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 09 2016 11:23pm

Skrzypas wrote:From what I observed during my initial tests, it is very important how you weld the second stripe. The current does not like to flow through a small spot weld and chooses to flow mainly through the first layer of the metal stripe.
I was testing that with steel stripes I couldn't reach 50% "efficiency of adding more layers". I can make some specific tests if you want.

To avoid this it is better to spot weld two stripes at once to the cell terminal. From what you said before it is rather clear you won't be able to do it in this way, but please - try and share the results.
I don't get why you recommend welding two layers at once.

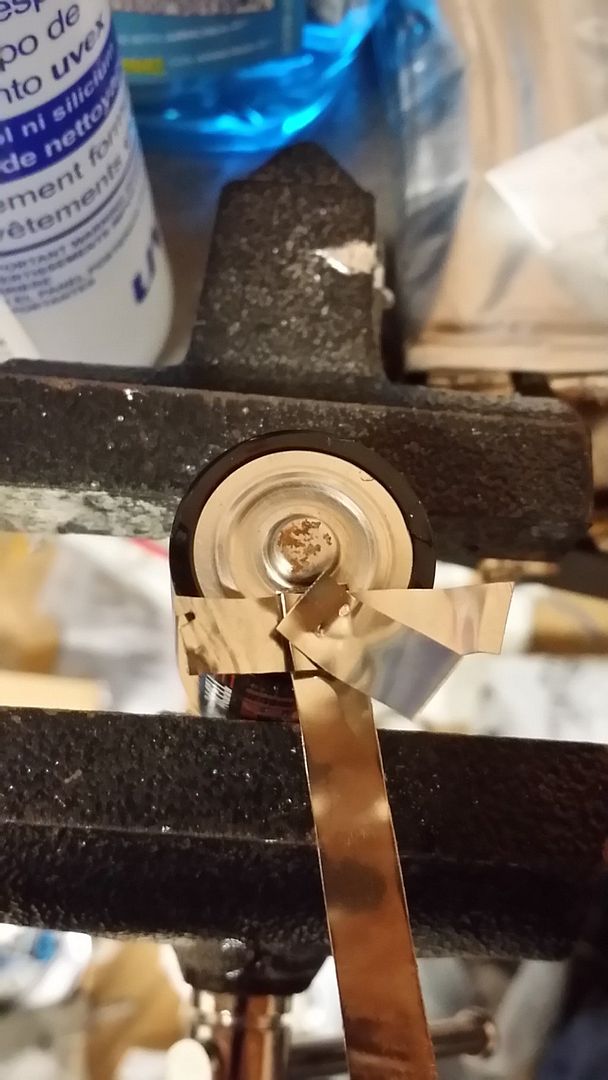

I test welded here on top of each other. First .2 nickel, then .15, .15 and .15. For 4 layers.

Each layer welded very easily to each other and the welds were very strong, I wasn't able to pull them apart by hand and when I finally did they ripped holes in each other.

If you need to pass current just get .15 nickel and weld layers, very easy.


Skrzypas   10 W

10 W
Posts: 65
Joined: Jun 16 2014 3:08pm
Location: Warsaw, Poland

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Skrzypas » Mar 10 2016 1:49am

What I observed is when you weld multiple layers at once, the current path is:
1. from cell terminal to the weld
2. from the (thick) weld, the current distributes between 2-3 stripes pretty evenly.

When you weld stripes your way, the path is:
1. from cell terminal to the weld
2. from the weld to the first stripe
3. and then the current can choose either run where it should through the first stripe or "choose a narrow path" through another weld to the second stripe.

Option 2 has potentially higher resistance and more heat generation.

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 10 2016 2:42am

Hey everyone, need some advice here.

When using the hot glue, why did the person in the video shoot the glue from the top after already gluing the cells earlier?

Please watch the first 30 seconds of the video, but look at 0:27 where he squirts the hot glue down already glued cells.

What I don't understand is why do this after he already glued them at 0:22 ?

I'm surprised he was able to squirt anything down after the glue already dried.

Thanks.


User avatar
Allex   1 GW

1 GW
Posts: 3203
Joined: Dec 05 2011 8:46am
Location: Stockholm, Sweden

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Allex » Mar 10 2016 3:41am


User avatar
Relanium   10 W

10 W
Posts: 95
Joined: Nov 25 2012 12:38pm
Location: Slovenia, EU

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Relanium » Mar 10 2016 7:08am

Offroader wrote:Hey everyone, need some advice here.

When using the hot glue, why did the person in the video shoot the glue from the top after already gluing the cells earlier?

Please watch the first 30 seconds of the video, but look at 0:27 where he squirts the hot glue down already glued cells.

What I don't understand is why do this after he already glued them at 0:22 ?
Why not?
Makes the pack as compact as possible.

User avatar
Offroader   10 MW

10 MW
Posts: 2466
Joined: Sep 08 2013 9:03pm
Location: USA

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Offroader » Mar 10 2016 11:47am

What I question is it looked like he ran the hot glue down the sides of the cell, then later sprayed it from the top of the cell. So he would be spraying hot glue down already glued cells.

Maybe I misunderstood and he only sprayed it down the top on some of the cells, and ran it down the side for some of them.

User avatar
Nobuo   10 kW

10 kW
Posts: 839
Joined: Nov 21 2014 3:38am
Location: Madrid

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Nobuo » Mar 10 2016 1:43pm

OP here also the builder :o

In that case specially the battery was made first sticking and welding 15p blocks, and then sticking each other up to the final shape. As you don't have time to put 8 strips of silicone and then stick the modules (silicone would harden), you are obliged exclusively in that case to insert the glue over the anodes and cathodes holes to mount 15p blocks each other, and only a pair of large strips along cells belong to battery width.

However, in standard cases and battery constructions, despite you use a generous quantity mounting them one by one, (adding the silicone over all the height in the space between 3 faced cells), once you have the block, or the whole battery, is greatly recommended to add a final portion between anodes and cathodes in the small hole each 3 faces cells let, with this method you increase enormously the strength, compact and integrity of the final battery, making much more durable and resistant over the years of vibrations and extreme seasons temperatures.

Secondary you are making the anodes and cathodes sides of the battery full of small toeholds along the whole surface, increasing slightly the anodes protection, specially when the battery is installed in plain face cases
* Lithium + Air = Fire * <-----> ** Lithium + Chemical-Additives + Air = ZERO Fire **
<Battery and EV works>
https://facebook.com/evmadrid1
<Battery building resources>
http://www.endless-sphere.com/forums/vi ... 14&t=68005

User avatar
Cowardlyduck   100 MW

100 MW
Posts: 2637
Joined: Jun 26 2011 8:41pm
Location: Canberra, ACT, Australia

Re: 18650 spot welding -how to- ULTIMATE REPOSITORY

Post by Cowardlyduck » Mar 10 2016 6:02pm

I also wonder if a good amount of hot glue surrounding the cells adds some thermal advantage or disadvantage.

On the one hand, it would act as a thermal delay mechanism, kind of like how wax is sometimes used. It would also prevent the heat of one cell transferring as quickly to surrounding cells.

On the other hand, it probably adds unwanted insulation to the cells, and once it gets hot/melts the heat will remain for some time in the whole pack.

I was thinking of padding my future built packs with 1mm or 2mm thick thermal padding (used for GPU's) underneath the heat-shrink. This way if the pack is inside a metal container like a frame, the heat has a pathway (although not optimal) to reject some excess heat. The only catch to this is in the winter you kind of want some insulation to warm your pack. I guess there are drawbacks either way unless you employ some active thermal management system.

Cheers
Custom made 18650/21700 battery packs

Modified Stealth Fighter - Force air cooled motor @ 6KW, Adaptto Mini-E. 49AH, 52V 18650 - 2.5Kwhr
Cowardlyducks - Stealth Fighter Videos

BikeE recumbent commuter - 9C, 6Fet Grinfineon, internal 17AH, 52V, + on-board solar.

Ebike Garage - My YouTube Ebike ramblings.

High Power LiPo wiring harnesses - 4P - XT90, HXT4mm, 5.5mm. 200Amp+ capable. Global shipping.

Post Reply
