BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 08 2019 3:00pm

EDIT:

***EVERYTHING*** I know about this, all the information I have about this, is here in this thread; please don't PM me for more info (I don't have any), just ask in this thread, and maybe someone else will know.


First: You accept all responsibility for performing any or all of the steps below, and if your stuff explodes in a supernova, or simply fails to ever work again, sorry about that, I can't help you there. ;)

Assume that performing any or all of these steps will invalidate any warranty you might have (might not, but, it could).

So if either of the above gives you even the slightest hesitation, stop reading and go ride. :)


If you don't KNOW that you need this fix, DON'T do it.


These instructions on updating the Bafang BBSHD firmware, to fix the problem with using 52v packs, were sent to me anonymously. I rewrote them to compensate for filename changes of what's actually on the first site, and the filename of the actual firmware file sent, and combined the two separate sets of instructions given as they cover the same things in different levels of detail. Some steps have been broken down into individual steps for clarity; not having one of these units I don't know if I've done them right.

If anyone with the equipment that has done (or can do) the steps finds anything incorrect or insufficient, let me know and I'll update the instructions, to make this as easy, painless, and foolproof as possible for anyone that needs to do this.

I don't know what the "programming cable" itself looks like at the BBSHD end, presumably the same as the Display cable.

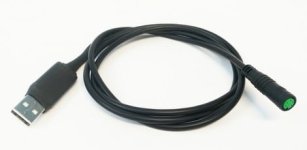

EDIT: here's a pic of a bafang usb-serial cable:
bafang programming cable.jpeg
bafang programming cable.jpeg (14.02 KiB) Viewed 3546 times
I've also included the original instructions at the end of the text file attached to this post (which also contains these instructions).

The file attached CRR10E4830E105001.1_190413-1.txt will need to be renamed CRR10E4830E105001.1_190413-1.bin because the forum won't allow a .bin file upload. Alternately it is also attached as a .ZIP file you can extract the .bin file from.
CRR10E4830E105001.1_190413-1.txt
(60 KiB) Downloaded 260 times
CRR10E4830E105001.1_190413-1.zip
(19.86 KiB) Downloaded 220 times


1-- Download the file stc-isp6.86.rar from http://www.stcmicro.com/rjxz.html
(file also attached to this post, or skip step 1 and 2 and download the stc-isp-15xx-v6.86E.zip from the attached file)
stc-isp6.86.rar
(3.5 MiB) Downloaded 142 times
stc-isp-15xx-v6.86E.zip
(3.54 MiB) Downloaded 235 times
2-- Extract stc-isp-15xx-v6.86E.exe from that file (using WinRar, 7zip, etc; a google search will locate the appropriate websites for those, and instructions how to use them) and run the program
3-- Insert the programing cable (USB-Serial Adaptor) into the computer's USB port, and install whatever software it requires. (Note says that FTDI based USB-serial adapters work well, but I assume you MUST use a USB-serial that's got the right connector for your BBSHD, presumably the round 5 pin green Higo). A COM port (often Com5) will be assigned to the port--if it tells you which one that is, write it down.
4-- Open the STC programing software.
5-- Select "Single Chip Microcomputer Type":"IAP15W4K61S4" (which is under "STC15W4K32S4 Series");
6-- Select the Com port that was assigned to your preferred USB-Serial Adaptor. (If you're not sure which one it is, it shouldn't hurt to try any of the ones it lists until one of them works)
7-- Change the settings for Max Baud to 57600 and Input IRC frequency to 18.432 Mhz
8-- Press "Open a Program File" (may be labelled "Open Code File"), and browse to the location you saved the attached file CRR10E4830E105001.1_190413-1.bin, and open it.
9-- Plug in the programing cable (using the EB-BUS; one end of the EB-BUS is linked to the EB-BUS cable at the controller, and the display cable at the other end of the EB-BUS is linked to the programing cable);
NOTE: Presumably this means you follow these steps:
9a- Turn off ebike battery's power switch
9b- Disconnect ebike battery from BBSHD
9c- Disconnect LCD
9d- connect round end of USB-serial cable to the connector you just disconnected LCD from
10- Plug ebike's battery into BBSHD, but do not turn on the battery power;
11- Press "Download/Program"
12- Turn on the battery's power switch.
13- You should see the progress bar scroll across if it is successful.

Presumably when it gives the message that everything is complete, you can then:
14- power off the battery
15- disconnect USB-serial from bike
16- reconnect LCD to bike
17- power on battery
18- ride and have fun!


I have not viewed the following link; presumably it is a video version of these instructions:

https://youtu.be/6fvJVz30LU8
Attachments
bbshd instructions rewrite.txt
(3.71 KiB) Downloaded 254 times
originial (confusing) instructions.txt
(1.23 KiB) Downloaded 172 times
Last edited by amberwolf on May 12 2019 3:41pm, edited 2 times in total.

furcifer   10 kW

10 kW
Posts: 601
Joined: Dec 21 2018 12:36pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by furcifer » May 08 2019 6:08pm

Nice. If I hadn't gone through the trouble of making gaskets and siliconing in the new controller I'd be tempted to give this a whirl. I imagine you can do it without the controller being installed on the motor but you can't test it? At least not any way I can think of.

User avatar
amberwolf   100 GW

100 GW
Posts: 27404
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 08 2019 10:57pm

furcifer wrote:
May 08 2019 6:08pm
Nice. If I hadn't gone through the trouble of making gaskets and siliconing in the new controller I'd be tempted to give this a whirl. I imagine you can do it without the controller being installed on the motor but you can't test it? At least not any way I can think of.
To do this on a bare controller, one would need to either:
-- make a cable to go from the controller's LCD port to an LCD-style connector (or whatever style is on the USB-serial adapter being used) and to battery power,
or
-- hook up teh controller to the regular wiring harness for battery power and the LCD connector.

The same setup would allow you to test it, as it should no longer display the voltage error (though it may have others for the unconnected parts).

It's possible the update wont' even work without the rest of the stuff connected, but I doubt that, since they probably use the same procedure to program them at the factory (no idea what, if anything, that they actually test, though).

If you end up trying this, please note down the steps (and wiring of harness created for it, with pictures if possible) and post them here to be added as an alternate set of instructions.

furcifer   10 kW

10 kW
Posts: 601
Joined: Dec 21 2018 12:36pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by furcifer » May 09 2019 7:20am

amberwolf wrote:
May 08 2019 10:57pm
furcifer wrote:
May 08 2019 6:08pm
Nice. If I hadn't gone through the trouble of making gaskets and siliconing in the new controller I'd be tempted to give this a whirl. I imagine you can do it without the controller being installed on the motor but you can't test it? At least not any way I can think of.
To do this on a bare controller, one would need to either:
-- make a cable to go from the controller's LCD port to an LCD-style connector (or whatever style is on the USB-serial adapter being used) and to battery power,
or
-- hook up teh controller to the regular wiring harness for battery power and the LCD connector.

The same setup would allow you to test it, as it should no longer display the voltage error (though it may have others for the unconnected parts).

It's possible the update wont' even work without the rest of the stuff connected, but I doubt that, since they probably use the same procedure to program them at the factory (no idea what, if anything, that they actually test, though).

If you end up trying this, please note down the steps (and wiring of harness created for it, with pictures if possible) and post them here to be added as an alternate set of instructions.
Right now I'm short a Higo connector. They're great connectors but a PITA for DIY.

Cbisbaf   1 mW

1 mW
Posts: 15
Joined: May 04 2019 3:26pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by Cbisbaf » May 10 2019 4:27am

this is my cable works for this firmware fix just posting this to help anyone that needs tips on a quick easy programming cable could be done with no soldering iron or heat shrink.

video link usb cable:[youtube]https://youtu.be/gdmv0JjRdL4[/youtube]

uk ebay: https://www.ebay.co.uk/itm/CH340-Gold-U ... Swn8pbGiuK
uk amazon: https://www.amazon.co.uk/DSD-TECH-adapt ... pons&psc=1
silicone wire:https://www.ebay.co.uk/itm/Flexible-Sil ... 34dd12c815

User avatar
fechter   100 GW

100 GW
Posts: 14069
Joined: Dec 31 2006 3:23pm
Location: California Bay Area, USA

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by fechter » May 10 2019 12:10pm

Cbisbaf wrote:
May 10 2019 4:27am
this is my cable works for this firmware fix just posting this to help anyone that needs tips on a quick easy programming cable could be done with no soldering iron or heat shrink.
Just be very careful to plug the wires into the right pins on the Higo.

I've also had problems with some of the cheap ftdi adapters. The Bafang controller needs the logic "low" to be really low, like less than 0.5v. Some adapters only bring it down to 0.7v and you have connection problems. This can be fixed by putting a 1k or so resistor from Tx to ground to pull it a little lower.
"One test is worth a thousand opinions"

SuperSl0w   1 mW

1 mW
Posts: 10
Joined: Dec 22 2018 11:48am

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by SuperSl0w » May 11 2019 9:42am

Actual firmware for the controller. NICE!!
First of all, I ride with a 48v battery what is the 52v mod actually?
We have 3 bbshd's in the family.

I bought mine from Luna 2 years ago.

My sister bought her bbshd a few months ago from aliexpress. Here hardware version and firmware version is different then mine. Her bbshd PAS mode is more fluent, and no overshoot. I used the same controller settings to test this.

Will maybe this firmware version also fix other issues?

furcifer   10 kW

10 kW
Posts: 601
Joined: Dec 21 2018 12:36pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by furcifer » May 11 2019 11:24am

SuperSl0w wrote:
May 11 2019 9:42am
Actual firmware for the controller. NICE!!
First of all, I ride with a 48v battery what is the 52v mod actually?
We have 3 bbshd's in the family.

I bought mine from Luna 2 years ago.

My sister bought her bbshd a few months ago from aliexpress. Here hardware version and firmware version is different then mine. Her bbshd PAS mode is more fluent, and no overshoot. I used the same controller settings to test this.

Will maybe this firmware version also fix other issues?
It's not a mod per se, most controllers don't throw an overvoltage code until something like 61 volts. For someone reason it changed recently.

User avatar
fechter   100 GW

100 GW
Posts: 14069
Joined: Dec 31 2006 3:23pm
Location: California Bay Area, USA

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by fechter » May 11 2019 12:04pm

It will be good to see if it fixes the bad behavior with hitting the throttle while pedaling.
"One test is worth a thousand opinions"

User avatar
tomjasz   10 GW

10 GW
Posts: 4094
Joined: Mar 29 2014 1:45pm
Location: Out riding, MN USA
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by tomjasz » May 11 2019 2:48pm

I'm told there are several firmware versions. Also told the programming cable is used for firmware as well. Sadly no one seems to have, or is willing to share the firmware for the 0 Pas "issue".

It could well be a fix for both. I parted ways with my BBSHD and can't test.
Thanks Justin_le we're here thanks to you. All the best to the mods for their tireless work keeping it on an even keel.

User avatar
amberwolf   100 GW

100 GW
Posts: 27404
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 11 2019 3:09pm

I've attached another firmware file I found in another post here on ES; I have NO idea what it does or if it works. If it bricks your controller using it, well, you have a brick. ;) Anyone trying it out, consider yourself warned. :lol:


I also found this link, when looking around the web for more firmware files, that appears to be a BBSxx guide to various things. No idea if any of it is useful
https://www.poweredride.com/info/bbshd- ... -resources
https://penoff.me/2016/01/13/e-bike-con ... -software/
Attachments
CRR10E5228E1050221_190418.txt
(60 KiB) Downloaded 89 times
CRR10E5228E1050221_190418.zip
(19.77 KiB) Downloaded 47 times

SuperSl0w   1 mW

1 mW
Posts: 10
Joined: Dec 22 2018 11:48am

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by SuperSl0w » May 11 2019 5:06pm

amberwolf wrote:
May 11 2019 3:09pm
I've attached another firmware file I found in another post here on ES; I have NO idea what it does or if it works. If it bricks your controller using it, well, you have a brick. ;) Anyone trying it out, consider yourself warned. :lol:


I also found this link, when looking around the web for more firmware files, that appears to be a BBSxx guide to various things. No idea if any of it is useful
https://www.poweredride.com/info/bbshd- ... -resources
https://penoff.me/2016/01/13/e-bike-con ... -software/

Where did you find the firmware files? I'm not going flash random stuff to my controller.. :)

User avatar
amberwolf   100 GW

100 GW
Posts: 27404
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 11 2019 5:20pm

The posts give all the info I have on them. You can search the filenames with google and the forum search and perhaps find other info I don't have (I haven't tried).

Anyone using them does so at their own risk, and I accept no responsibility whatsoever for the results, good or bad.

The only guarantee I give is that you will be following instructions sent anonymously to me, and rewritten by someone (me) that has never had one of these bits of equipment, no experience with them, etc. I don't know what the firmware is for, what it changes from the firmware already in any particular controller, etc.; it's purported to fix the issue noted in the OP, but I couldn't tell you a thing about it.

If you don't want to use it, that's perfectly ok by me.

I only put this thread up in case it is of use to those that choose to accept the (potentially expensive) risk.

Cbisbaf   1 mW

1 mW
Posts: 15
Joined: May 04 2019 3:26pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by Cbisbaf » May 12 2019 2:42pm

it works perfect for the job had the issue now i dont

User avatar
amberwolf   100 GW

100 GW
Posts: 27404
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 12 2019 3:41pm

To all those PMing me about this thread / issue:

***EVERYTHING*** I know about this, all the information I have about this, is here in this thread; please don't PM me for more info, just ask in this thread, and maybe someone else will know.

Antenor   100 W

100 W
Posts: 132
Joined: May 09 2016 9:38am

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by Antenor » May 13 2019 2:44am

Cbisbaf wrote:
May 12 2019 2:42pm
it works perfect for the job had the issue now i dont
Solves the throttle problem or only the overvoltage problems?
Thanks

Rydon   100 W

100 W
Posts: 236
Joined: Aug 11 2016 5:26pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by Rydon » May 16 2019 12:00am

Followed Amberwolf's instructions and fixed a voltage problem on one motor and resurrected another that my more advanced Bafang BESST system had bricked. Sent him a thank you. :)

There is no throttle problem but then none of my motors have ever had a throttle problem. Even ones imported recently.

User avatar
amberwolf   100 GW

100 GW
Posts: 27404
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 16 2019 12:56am

Thanks---I'm glad this is helping people!

User avatar
fechter   100 GW

100 GW
Posts: 14069
Joined: Dec 31 2006 3:23pm
Location: California Bay Area, USA

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by fechter » May 16 2019 8:08am

Rydon wrote:
May 16 2019 12:00am
Followed Amberwolf's instructions and fixed a voltage problem on one motor and resurrected another that my more advanced Bafang BESST system had bricked. Sent him a thank you. :)

There is no throttle problem but then none of my motors have ever had a throttle problem. Even ones imported recently.
Which file did you use?
"One test is worth a thousand opinions"

pestrya   1 µW

1 µW
Posts: 3
Joined: May 16 2019 5:33pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by pestrya » May 16 2019 5:39pm

Hi guys.
I specially registered to say thank you very much to "amberwolf" for the instructions and for the files.

I updated the firmware.
I used CRR10E4830E105001.1_190413-1.bin firmware file.
I also updated the STC program to version v6.86q
Error code-07 is no longer!
Attachments

User avatar
fechter   100 GW

100 GW
Posts: 14069
Joined: Dec 31 2006 3:23pm
Location: California Bay Area, USA

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by fechter » May 17 2019 9:56am

That's great! Thanks for the report.
"One test is worth a thousand opinions"

furcifer   10 kW

10 kW
Posts: 601
Joined: Dec 21 2018 12:36pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by furcifer » May 17 2019 6:04pm

I'm confused, can this be done with the normal programming cable? I was under the impression this was different.

User avatar
amberwolf   100 GW

100 GW
Posts: 27404
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by amberwolf » May 17 2019 10:28pm

furcifer wrote:
May 17 2019 6:04pm
I'm confused, can this be done with the normal programming cable?
AFAIUI, that's what the instructions say--the bafang USB-serial cable, that plugs into the LCD port on the wiring harness to the controller (in place of the LCD). Some days back I updated the instructions with a photo of a cable from another site that described the settings changes process (different from the firmware process, but using the same equipment apparently).

furcifer   10 kW

10 kW
Posts: 601
Joined: Dec 21 2018 12:36pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by furcifer » May 18 2019 10:16am

amberwolf wrote:
May 17 2019 10:28pm
furcifer wrote:
May 17 2019 6:04pm
I'm confused, can this be done with the normal programming cable?
AFAIUI, that's what the instructions say--the bafang USB-serial cable, that plugs into the LCD port on the wiring harness to the controller (in place of the LCD). Some days back I updated the instructions with a photo of a cable from another site that described the settings changes process (different from the firmware process, but using the same equipment apparently).
I saw that, and the post from Cbisbaf. I just wanted to make sure before I brick a 48V controller, they're annoying but functional.

Rydon   100 W

100 W
Posts: 236
Joined: Aug 11 2016 5:26pm

Re: BBSHD Voltage Problem Firmware Update & Instructions

Post by Rydon » May 21 2019 2:32am

If you get an error 30h after flashing, you may need a different bin file. Some controllers appear to require the bin file posted but others get error 30h but come alive after flashing with CRR10E4830E105001.1_APP_190311.bin

Post Reply
