RC throttle interface build tutorial........

Discussions related to motors other than hub motors.
This includes R/C motors, botttom bracket, roller and geared drives.
User avatar
adrian_sm   10 MW

10 MW
Posts: 2404
Joined: Feb 23 2009 12:54am
Location: Melbourne, Australia
Contact:

Re: RC throttle interface build tutorial........

Post by adrian_sm » Sep 05 2012 10:59pm

roblenderman wrote:Not 100% sure how to set the throttle limits.
Easy. Check the manual for your ESC but usually you just...... Hold the throttle at 100%, turn on the ESC, it should beep, then turn the throttle to 0%, more beeps. Done.
Build #1 ~28kg ~ 700w Avanti Hardtail Crystalyte 408, 48V10Ah Headway. ~5500 kms to date. (retired)
Build #2 ~30kg ~2000w Giant AC Dually Crystalyte 408, 48V10Ah Headway + 6s10Ah LiPo = 70V. ~15000 kms to date [SOLD]
Build #3 ~13kg ~2000w Commuter Booster <1kg Friction Drive
Build #??? ~21kg ~1500w Adrian's Bafang BPM Hardtail MTB Bafang BPM code12, 15s LiPo, ~40kph, ~30kms

renaatdb   1 µW

1 µW
Posts: 2
Joined: Nov 13 2009 10:08am

Re: RC throttle interface build tutorial........

Post by renaatdb » Feb 16 2013 11:53am

Hello,
I have servotester.
http://www.hobbyking.com/hobbyking/stor ... rvo_Tester
Also Hall sensor
I did the following

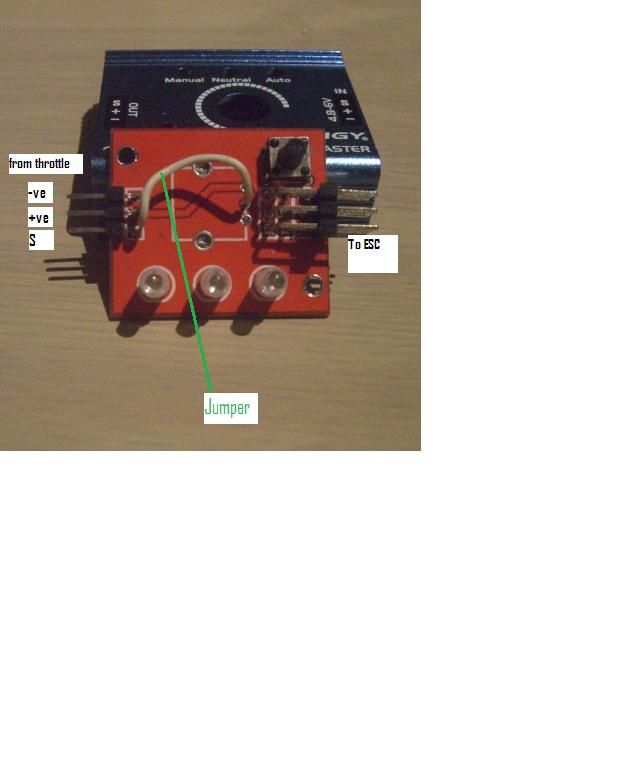

1) remove the potentiometer.
2) insert a jumper lead from the input signal pin to the potentiometer socket centre pin location.
3) reassemble and plug in your throttle.
But it did not work for me.
Testing the hall sensor give me 0,7 - 4 V
What else I can do?

Tanks

User avatar
garp   10 mW

10 mW
Posts: 32
Joined: Aug 30 2010 10:07pm
Location: Eden, New South Wales, Australia

Re: RC throttle interface build tutorial........

Post by garp » Feb 16 2013 11:28pm

This is great! Thank's all. Speaking as a newbie, this was one of the things I puzzled over.

User avatar
AussieJester   100 GW

100 GW
Posts: 8736
Joined: Mar 11 2008 3:33am
Location: Perth Western Australia

Re: RC throttle interface build tutorial........

Post by AussieJester » Feb 16 2013 11:33pm

renaatdb wrote:Hello,
I have servotester.
http://www.hobbyking.com/hobbyking/stor ... rvo_Tester
Also Hall sensor
I did the following
1) remove the potentiometer.
2) insert a jumper lead from the input signal pin to the potentiometer socket centre pin location.
3) reassemble and plug in your throttle.
But it did not work for me.
Testing the hall sensor give me 0,7 - 4 V
What else I can do?

Tanks
I could be wrong often am, but i never had any luck connecting a hall sensore effect throttle to
a servo tester, actually when Hyena was over he tried and blew up a servo tester :-| Dunno if it can be done?
I have always used Magura (pot) throttles...

KiM

User avatar
gwhy!   1 MW

1 MW
Posts: 1651
Joined: Jun 08 2011 3:47pm
Location: Bristol, Uk

Re: RC throttle interface build tutorial........

Post by gwhy! » Feb 17 2013 1:44pm

AussieJester wrote:
renaatdb wrote:Hello,
I have servotester.
http://www.hobbyking.com/hobbyking/stor ... rvo_Tester
Also Hall sensor
I did the following
1) remove the potentiometer.
2) insert a jumper lead from the input signal pin to the potentiometer socket centre pin location.
3) reassemble and plug in your throttle.
But it did not work for me.
Testing the hall sensor give me 0,7 - 4 V
What else I can do?

Tanks
I could be wrong often am, but i never had any luck connecting a hall sensore effect throttle to
a servo tester, actually when Hyena was over he tried and blew up a servo tester :-| Dunno if it can be done?
I have always used Magura (pot) throttles...

KiM
It really depends on the servo testers design, you will need to test by looking at the pot in the servo tester to see if both ends of the pot are connected to the rest of the circuit first, then with a voltmeter mesure the voltage across the pot if it dont read a steady 5v then its not doing to work

edit: if only 2 connections from pot to servo tester then will only work with a pot throt, if 3 connections from pot to servo tester and there is 5v across the pot then a hall throt should work.


Hillhater   100 GW

100 GW
Posts: 10143
Joined: Aug 03 2010 10:33pm
Location: Sydney ..(Hilly part !) .. Australia/ Down under !

Re: RC throttle interface build tutorial........

Post by Hillhater » Feb 18 2013 7:06pm

AussieJester wrote:
I could be wrong often am, but i never had any luck connecting a hall sensore effect throttle to
a servo tester, actually when Hyena was over he tried and blew up a servo tester :-| Dunno if it can be done?
I have always used Magura (pot) throttles...

KiM
Sure can...... read page 2 of this thread.
This forum owes its existence to Justin of ebikes.ca

dirkdiggler   10 kW

10 kW
Posts: 600
Joined: Oct 18 2012 1:31am

Re: RC throttle interface build tutorial........

Post by dirkdiggler » Feb 26 2013 10:27pm

Would this work for the reverse order? I want to control the motor controller using a RC transmitter. I would not think so, but I'm just curious if that would work.
Sorry for the newbie question.

Hillhater   100 GW

100 GW
Posts: 10143
Joined: Aug 03 2010 10:33pm
Location: Sydney ..(Hilly part !) .. Australia/ Down under !

Re: RC throttle interface build tutorial........

Post by Hillhater » Feb 26 2013 11:11pm

Err ? am i missing something ?.. but RC ESC's ( motor controllers) are designed originally to work with RC gear.
You just need a receiver to plug the ESC into .
This forum owes its existence to Justin of ebikes.ca

dirkdiggler   10 kW

10 kW
Posts: 600
Joined: Oct 18 2012 1:31am

Re: RC throttle interface build tutorial........

Post by dirkdiggler » Feb 26 2013 11:44pm

Let me clarify that. I want to use an ebike controller with remote control on a mt. board setup.

Hillhater   100 GW

100 GW
Posts: 10143
Joined: Aug 03 2010 10:33pm
Location: Sydney ..(Hilly part !) .. Australia/ Down under !

Re: RC throttle interface build tutorial........

Post by Hillhater » Feb 27 2013 12:46am

Ahh, OK different issue.
This thread is about getting a RC, ESC working with a hard wired throttle.
This forum owes its existence to Justin of ebikes.ca

dirkdiggler   10 kW

10 kW
Posts: 600
Joined: Oct 18 2012 1:31am

Re: RC throttle interface build tutorial........

Post by dirkdiggler » Feb 27 2013 1:33pm

Yeah, I know. Just thought someone that might have done this servo tester fix would know if it works the opposite way. I am not smart enough to figure that out by myself. Figured it was a possibility to use the servo test in reverse order and have the rc signal converted into a hall effect. But anyway...

User avatar
gwhy!   1 MW

1 MW
Posts: 1651
Joined: Jun 08 2011 3:47pm
Location: Bristol, Uk

Re: RC throttle interface build tutorial........

Post by gwhy! » Feb 27 2013 2:27pm

I have put to much thought into it but cant you use the servo to turn a 5k pot, should be pretty easy to sort out..

dirkdiggler   10 kW

10 kW
Posts: 600
Joined: Oct 18 2012 1:31am

Re: RC throttle interface build tutorial........

Post by dirkdiggler » Mar 02 2013 6:04pm

That's something I hadn't thought of, doh! I will look into doing it that way.

gboybst578   10 µW

10 µW
Posts: 5
Joined: Nov 16 2011 6:18pm
Location: California

Re: RC throttle interface build tutorial........

Post by gboybst578 » Mar 30 2013 6:58pm

Has anyone done this for this servo tested and if so can someone give some input?

http://www.hobbyking.com/hobbyking/stor ... ester.html

thanks

Slowrider   100 mW

100 mW
Posts: 44
Joined: Apr 28 2013 2:26pm
Location: Skien, Telemark, Norway

Re: RC throttle interface build tutorial........

Post by Slowrider » Feb 16 2014 3:39pm

Hope you can help me out here,
I am building a Stiga Snowracer with a outrunner to drive the snowracer, I am alomost finished with the mechanical side. And have the motor up and running with a servo tester,but would like to add a throttle handle so that it is easyer for the kids to ride it.

Here is the setup I have
5S Lipo connected with a Sbec that is connected to the ESC
and the throttle i would like to connect.

Question:
Where do I connect the 4 wires from the throttle ? I do not need "power indicator" on the handle so maybe I only need to connect 3 wires ?
How do I connect the Sbec if I remove this and insted connect the throttle on this side ?

I hope you understand, and can help me with this. The snow is melting fast here so I need to fix this fast :)
Here is a render of how the Snowracer should hopefully work,it is mainly designed to be used on the street with fairly hard snow.

Slowrider   100 mW

100 mW
Posts: 44
Joined: Apr 28 2013 2:26pm
Location: Skien, Telemark, Norway

Re: RC throttle interface build tutorial........

Post by Slowrider » Feb 16 2014 4:13pm

I also have this throttle from Alien power system.
Electric Throttle 1-4v hall effec

If it is more suited for the job ?

User avatar
gwhy!   1 MW

1 MW
Posts: 1651
Joined: Jun 08 2011 3:47pm
Location: Bristol, Uk

Re: RC throttle interface build tutorial........

Post by gwhy! » Feb 16 2014 7:42pm

first i would start with th ealian throttle as it only has 3 wires and these wires are obvious what goes where, unless soemone can say for sure what color wire goes where on the 4 wire throttle, one of the wire will be for th eleds on the throttle but your guess is as good as mine to which one, red = 5v black =gnd , other color = signal ( on the 3 wire throttle )

you will need to take a nice close up picture on the underneth and top of the servo tester board so someone can tell you how to wire everthing up ( or even if its possible to do with the servo tester that you have )

User avatar
teklektik   10 GW

10 GW
Posts: 4020
Joined: Mar 26 2011 1:15pm
Location: CT, USA

Re: RC throttle interface build tutorial........

Post by teklektik » Feb 16 2014 10:28pm

One thing you might consider is using a Cycle Analyst V3 with an external shunt. This would give you battery monitoring, allow you to use any throttle, and eliminate the servo tester. The CA can provide the BEC as well.

The V3 with pulse throttle output wasn't around when this thread started but is an option now. You can read about the setup procedure in this Guide. Not an inexpensive solution and maybe not something you want to get into when your time this season is so short, but if you want monitoring anyway, it might give you an integrated solution.

Not sure who you have for local distributors - Grin Tech could tell you. I know Reinhard at cycle-analyst.de is pretty close by geographically.

Just a thought...
Visit Grin Technologies at www.ebikes.ca
Build Thread: 2WD Yuba Mundo V4

User avatar
Dauntless   100 GW

100 GW
Posts: 7740
Joined: May 29 2010 1:49am
Location: Coordinates: 33°52′48″N 117°55′43″W

Re: RC throttle interface build tutorial........

Post by Dauntless » Feb 17 2014 1:07am

All right, I was trying to figure out how to find this thread again. My backups failed of course, when my computer went all my links went with it, 30-40 threads here included. I'll just tell people this is probably the most useful thread for anyone interested in the RC controllers.
Any sufficiently advanced technology is INDISTINGUISHABLE FROM MAGIC!
- Arthur C. Clarke

User avatar
gwhy!   1 MW

1 MW
Posts: 1651
Joined: Jun 08 2011 3:47pm
Location: Bristol, Uk

Re: RC throttle interface build tutorial........

Post by gwhy! » Feb 17 2014 7:30am

Slowrider wrote:Hope you can help me out here,
I am building a Stiga Snowracer with a outrunner to drive the snowracer, I am alomost finished with the mechanical side. And have the motor up and running with a servo tester,but would like to add a throttle handle so that it is easyer for the kids to ride it.

Here is the setup I have
5S Lipo connected with a Sbec that is connected to the ESC

Question:
Where do I connect the 4 wires from the throttle ? I do not need "power indicator" on the handle so maybe I only need to connect 3 wires ?
How do I connect the Sbec if I remove this and insted connect the throttle on this side ?

I hope you understand, and can help me with this. The snow is melting fast here so I need to fix this fast :)

Yes a CA will be a much better option and allow so much more ( but at rather a higher cost )

I just looked back at page one of this thread and looks like someone has aready documented the details about using this servo tester http://endless-sphere.com/forums/viewto ... 28&t=12196

Slowrider   100 mW

100 mW
Posts: 44
Joined: Apr 28 2013 2:26pm
Location: Skien, Telemark, Norway

Re: RC throttle interface build tutorial........

Post by Slowrider » Feb 17 2014 12:37pm

Many thanks for the feedback so far, bare with me as I am a noob when it comes to electronics.

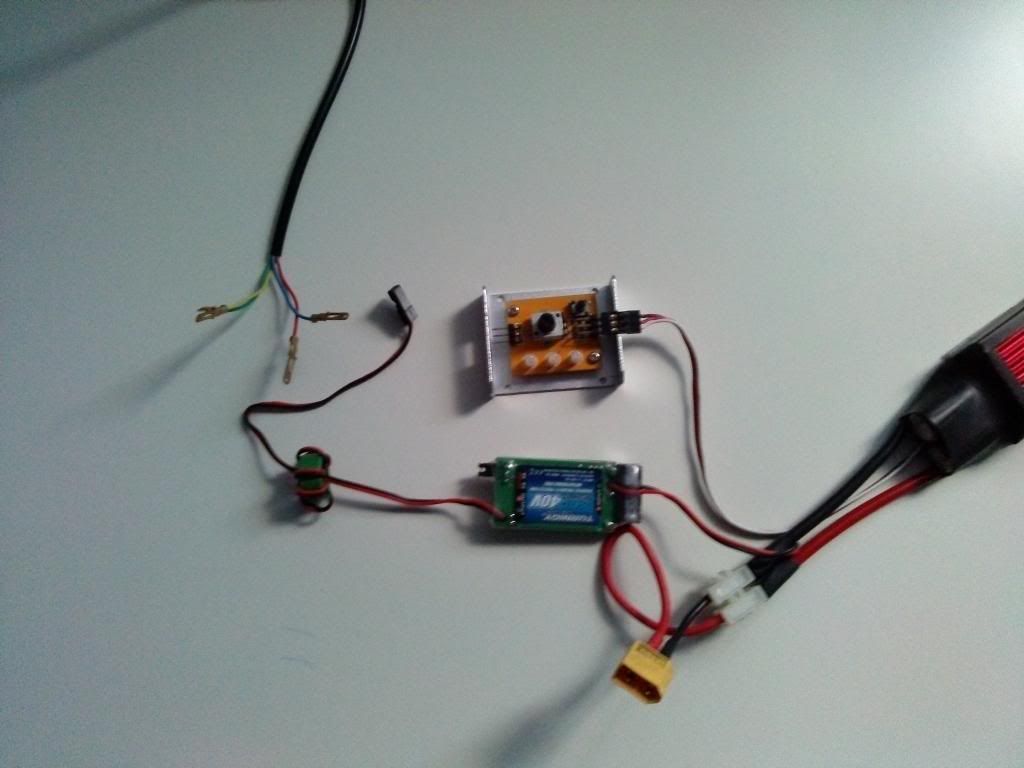

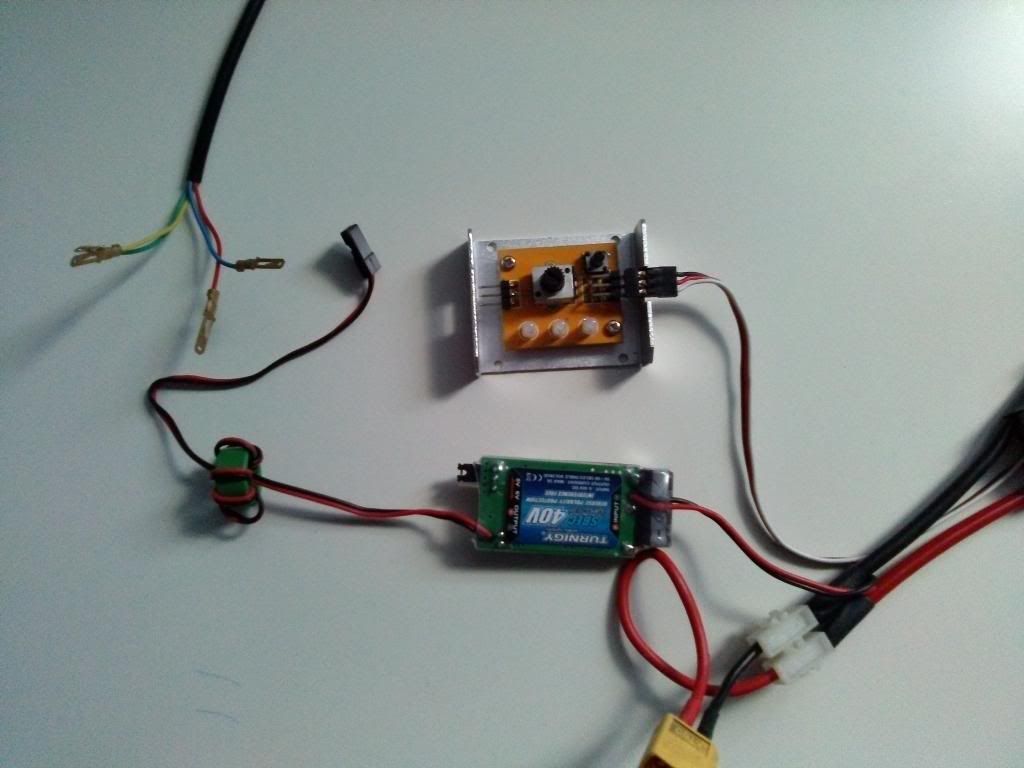

This is where I am at right now,

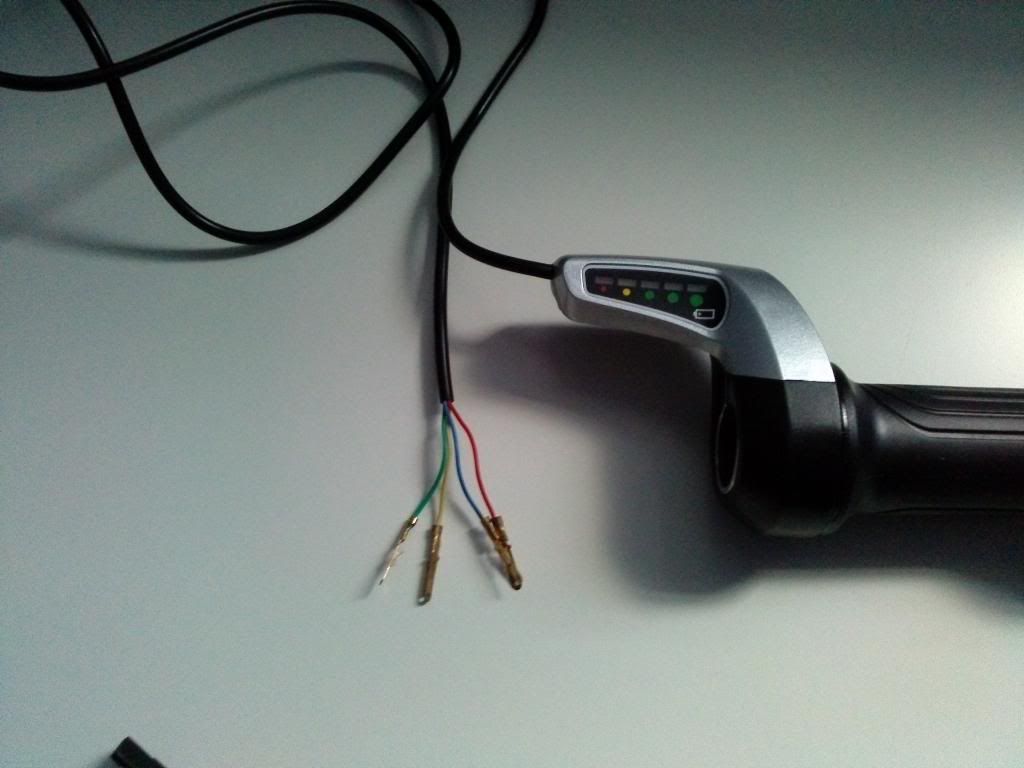

I connected the ailien power throttle with black to -, red to +, and white to signal. This makes sense to me if we consider the connection digram on the Turnigy unit.
So next I need to remove the pot (we will now use the pot in the hand throttle) and make a jumper wire like hill hater described on this picture.

BUT, where do I connect the Sbec to supply the 5V for the ESC ???

Slowrider   100 mW

100 mW
Posts: 44
Joined: Apr 28 2013 2:26pm
Location: Skien, Telemark, Norway

Re: RC throttle interface build tutorial........

Post by Slowrider » Feb 18 2014 6:01am

Anyone that can help me with where to connect the 5V from the bec to the modded servo tester or is this just not possible ?

User avatar
gwhy!   1 MW

1 MW
Posts: 1651
Joined: Jun 08 2011 3:47pm
Location: Bristol, Uk

Re: RC throttle interface build tutorial........

Post by gwhy! » Feb 18 2014 6:29am

Slowrider wrote:Anyone that can help me with where to connect the 5V from the bec to the modded servo tester or is this just not possible ?
just connect the output ( + , gnd ) of the BEC to the + and gnd of the servo tester, you could connect to the +,gnd of the throttle input.

Slowrider   100 mW

100 mW
Posts: 44
Joined: Apr 28 2013 2:26pm
Location: Skien, Telemark, Norway

Re: RC throttle interface build tutorial........

Post by Slowrider » Feb 18 2014 11:13am

gwhy! wrote:
Slowrider wrote:Anyone that can help me with where to connect the 5V from the bec to the modded servo tester or is this just not possible ?
just connect the output ( + , gnd ) of the BEC to the + and gnd of the servo tester, you could connect to the +,gnd of the throttle input.

Like this ?
