Postby Whiplash » Thu Dec 27, 2012 3:46 pm

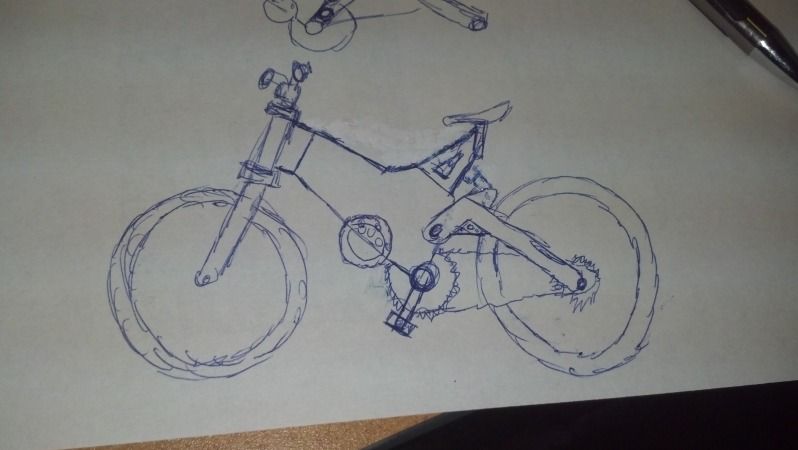

Here is my first sketch of what I want to try, the MAC is converted to mid drive style so the body of the hub does not spin but it bolted into the chassis using the cover bolts to both mount the motor and to increase rigidity of the frame. This will allow the frame yo be nice and narrow as it will be only as wide as the motor. This is nice for riding in the rough stuff but necessitates putting the batteries all in line so hopefully it will allow at least 20AH of 12s but I think it will. Any input is very welcome!




GO TO LAST PAGE FOR CURRENT UPDATES!
Last edited by Whiplash on Sat Jan 04, 2014 9:11 pm, edited 11 times in total. View post history.
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Thu Dec 27, 2012 4:03 pm

The exciting part of this for me is that I can oil cool the motor and use the ALY frame as the heat sync! I think it will allow great power potential from the little MAC motor and also still be nice and quiet!
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby 2moto » Thu Dec 27, 2012 5:41 pm

Hats off for having a crack at building a frame. It can be a very satisfying journey.

Have you considered what happens to the chain when the rear suspension compresses?

A very similar thread and comments here: viewtopic.php?f=2&t=43599
2moto
100 W
100 W

Posts: 172
Joined: Mon Jan 30, 2012 5:48 pm
Location: North Yorkshire, UK

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Thu Dec 27, 2012 6:05 pm

Yes it should slack or tighten a bit but if I get the chain the right length the derailleur should be able to handle it. There are many frames with this design... Hopefully it'll work! ;-)
Last edited by Whiplash on Thu Dec 27, 2012 6:06 pm, edited 1 time in total. View post history.
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby Dauntless » Thu Dec 27, 2012 6:58 pm

Interesting frame, even without finish detail. Is the crank on the swingarm or the main frame? Is it a jackshaft for the motor?
Any sufficiently advanced technology is INDISTINGUISHABLE FROM MAGIC!
- Arthur C. Clarke
User avatar
Dauntless
100 GW
100 GW

Posts: 5674
Joined: Sat May 29, 2010 1:49 am
Location: Coordinates: 33°52′48″N 117°55′43″W

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Thu Dec 27, 2012 8:32 pm

The motor does not require any more reduction, that's the beauty of the 12T MAC. The cranks will hopefully be on the main frame because it will greatly simplify construction. I know I'll get some chain growth/shrink during travel but I hope to minimize that with pivot placement...
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby MitchJi » Thu Dec 27, 2012 9:09 pm

Hi,
Whiplash wrote:The cranks will hopefully be on the main frame because it will greatly simplify construction...

With a custom frame I'd put the motor between the cranks and the rear sprockets for the reasons I mentioned here:
http://endless-sphere.com/forums/viewtopic.php?f=28&t=45245&p=680987#p680987

In any case good luck!
Best Wishes!

Mitch


The best quality batteries and lowest priced batteries for DIY EV's are tier 1 OEM Quality Cells from salvaged (wrecked) EV packs. Two examples are Chevy Volt and Nissan Leaf packs.

Nissan Leaf Module specs are here
Chevy Volt Pack Info - Salvage 16kwh Packs Under $2k here
The cells are rated conservatively by GM at 7.8C, Yabert's tests of Volt packs on the DiyEv car forum suggest a higher C rate, 15+ C!.

$1,400 plus $360 freight. Still over $1k less than new lead!
User avatar
MitchJi
1 GW
1 GW

Posts: 3177
Joined: Mon Jun 02, 2008 8:09 pm
Location: Marin County California

Re: New TIG welder will be here soon! Starting frame design

Postby teklektik » Thu Dec 27, 2012 9:17 pm

It's not OT if it's in the title, so - curious which TIG you went after :)
Visit Grin Technologies at www.ebikes.ca
Build Thread: 2WD Yuba Mundo V4
User avatar
teklektik
1 GW
1 GW

Posts: 3409
Joined: Sat Mar 26, 2011 1:15 pm
Location: CT, USA

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Thu Dec 27, 2012 10:21 pm

Well, I was limited on funds so I shopped around a LOT and found the best deal to be this one

http://www.everlastgenerators.com/Power ... 10-pd.html


It is IGBT switched and uses Siemens modules so for its price it seems quite good. I got it shipped to my door for $800 and considering it fared as good or better than the Miller Diversion of $1500+ in an independent test I saw I figured it should be pretty good! Its nice too since its an inverter type its quite small for its power too! Its about 1/4 the size of my old Miller Syncrowave 250DX water cooled unit I had to sell a few years back....
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Thu Dec 27, 2012 10:28 pm

Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby teklektik » Thu Dec 27, 2012 10:30 pm

Thanks for the rundown. I was looking a year and a half ago which is an eternity in today's market. About to start looking again and glad to steal a little of your research. Thanks!
Visit Grin Technologies at www.ebikes.ca
Build Thread: 2WD Yuba Mundo V4
User avatar
teklektik
1 GW
1 GW

Posts: 3409
Joined: Sat Mar 26, 2011 1:15 pm
Location: CT, USA

Re: New TIG welder will be here soon! Starting frame design

Postby neptronix » Thu Dec 27, 2012 10:33 pm

Whiplash wrote:Well, I was limited on funds so I shopped around a LOT and found the best deal to be this one

http://www.everlastgenerators.com/Power ... 10-pd.html

It is IGBT switched and uses Siemens modules so for its price it seems quite good. I got it shipped to my door for $800 and considering it fared as good or better than the Miller Diversion of $1500+ in an independent test I saw I figured it should be pretty good! Its nice too since its an inverter type its quite small for its power too! Its about 1/4 the size of my old Miller Syncrowave 250DX water cooled unit I had to sell a few years back....


I heard about this online when looking into welding. Please follow up with how it goes with this welder.
And good luck with your frame!
My first major build: 8T MAC motor on a Trek 4500.
The new all-arounder: Leafmotor 1500w on a Turner O2 full suspension.
The wheelie machine: 20" Rear Magic Pie II on a Trek 4300 MTB

"The best time to plant a tree was 20 years ago. The second best time is now."- Chinese Proverb
User avatar
neptronix
100 GW
100 GW

Posts: 12963
Joined: Tue Jun 15, 2010 5:56 pm
Location: People's republic of Petrolistan ( Utah, USA )

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Thu Dec 27, 2012 10:46 pm

Sure thing! It has a 5 year warranty so it should be pretty good, we'll see....
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby crossbreak » Fri Dec 28, 2012 12:59 am

nice design whiplash! Nice to see how my idea gets children :) how fast will it go, i mean, why dont you want to drive the pedals through the MAC shaft, getting rid of the freewheel crank and some front sprocket diameter (=more ground clearance for free)?

Edit: I added a link to this thread to the collection post in the "hub motor conversion thread" viewtopic.php?f=28&t=45245&p=659473#p659473

Will it be 2-link or 4-link suspension? If you do 2-link (like I guess from the drawing) I propose to align the pivot point and to the chain line to gain a more driveable suspension feedback.
Last edited by crossbreak on Fri Dec 28, 2012 1:13 am, edited 1 time in total. View post history.
User avatar
crossbreak
100 MW
100 MW

Posts: 2807
Joined: Tue Aug 02, 2011 11:20 am
Location: Germany

Re: New TIG welder will be here soon! Starting frame design

Postby bØb » Fri Dec 28, 2012 1:52 am

How fast do you want top speed to be @ what pedal cadence?
I'm being serious here. This is not a joke!

bØb
I'm not building an Electric Bicycle because I want to save the World. I just don't like to pedal!
BTW I'm also disappointed in the "Myans Calendar" just "Sloppy Workmanship"
bØb
1 W
1 W

Posts: 62
Joined: Mon Nov 19, 2012 4:35 pm
Location: North West Florida, USA

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Fri Dec 28, 2012 9:26 am

Well, I would like to get close to 40mph if I can. 38ish would be fine in high gear but with a low gear top speed of about 10mph Max so it will still climb a wall like it does now. Cadence at top speed is not too much of a concern but I would like to keep it under 100 at cruising speeds like maybe 28-30 just so the rider can add their 100 or so watts of power just for the sake of range.. I realize I will either need a custom rear cluster or two speeds on the motor to do this and the cluster seems easiest. I am not opposed to losing the freewheel cranks if I can find a simple, good looking way to do it. Since this will be my first frame from scratch, I need to keep it simple, I can always improve the design later...
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Fri Dec 28, 2012 3:31 pm

OK I am leaning toward CrossBreak's idea with the motor driving the cluster directly and having a fixed crank on the left side to pedal through the motor. Please disregard the bad paint skills... Anybody feel like figuring out the gearing for me using a 6T MAC at 12S LiPo? I am looking to get close to 40MPH top speed and still have a granny gear for rock crawling below 10MPH. I MAY need two speeds on the motor drive side but I am not sure. It also looks like I will likely have to lower the motor a bit more in the frame so the swing arm can make its sweep without the chain hitting it...but the drawing would show the bike at its nominal height with the rider on board so it will sit higher in back when unloaded. I COULD put an idler on the arm pivot for the chain to hit when it compresses as well as a last resort but I hope to avoid things like that..
Attachments
Mid drive minus freewheel cranks...JPG
Mid drive minus freewheel cranks...JPG (34.66 KiB) Viewed 6310 times
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Fri Dec 28, 2012 3:53 pm

OK Played around with the gears, it looks like a 12-36 casette should be ideal for me with a 12T front cog on the motor. This gives me a 1:1 ratio for the tall gear, simulating the same thing the motor will see if it was in the wheel so it should handle it fine, and it will also get me the speed I want, Then if I shift into the low gear (36T) I will get a top speed of around 10-12 MPH so it should be very similar to my existing setup that works SOOO well! I am getting excited about this now! I think it will be truly the best of both worlds in one bike! Somebody double check me though since I am not the BEST at gear math...

Thanks!
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby MitchJi » Fri Dec 28, 2012 5:58 pm

Hi,

Drive configured like this?:
Best Wishes!

Mitch


The best quality batteries and lowest priced batteries for DIY EV's are tier 1 OEM Quality Cells from salvaged (wrecked) EV packs. Two examples are Chevy Volt and Nissan Leaf packs.

Nissan Leaf Module specs are here
Chevy Volt Pack Info - Salvage 16kwh Packs Under $2k here
The cells are rated conservatively by GM at 7.8C, Yabert's tests of Volt packs on the DiyEv car forum suggest a higher C rate, 15+ C!.

$1,400 plus $360 freight. Still over $1k less than new lead!
User avatar
MitchJi
1 GW
1 GW

Posts: 3177
Joined: Mon Jun 02, 2008 8:09 pm
Location: Marin County California

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Fri Dec 28, 2012 6:44 pm

Similar but with the pedal gear on the left side of the bike...
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder will be here soon! Starting frame design

Postby crossbreak » Fri Dec 28, 2012 6:59 pm

saw this bike at mobilitec last year, does anyone know who build it?`
Last edited by crossbreak on Sat Dec 29, 2012 8:33 am, edited 2 times in total. View post history.
User avatar
crossbreak
100 MW
100 MW

Posts: 2807
Joined: Tue Aug 02, 2011 11:20 am
Location: Germany

Re: New TIG welder will be here soon! Starting frame design

Postby spinningmagnets » Fri Dec 28, 2012 7:24 pm

Its from Hanebrink, here's a review: http://www.electricbike.com/hanebrink/

Last edited by spinningmagnets on Fri Dec 28, 2012 7:24 pm, edited 1 time in total. View post history.
User avatar
spinningmagnets
100 GW
100 GW

Posts: 10604
Joined: Fri Dec 21, 2007 10:27 pm
Location: Ft Riley, NE Kansas

Re: New TIG welder will be here soon! Starting frame design

Postby Whiplash » Sat Dec 29, 2012 8:56 pm

OK I think I am ready to at least start the motor conversion! Thanks to Crossbreak and Mr electric, I am convinced this is the way to go and will do so hopefully tomorrow or at the very least get started! Very exciting! The motor I have has a steel gear in it so its good for some real power! I'll document and record every step of the motor as well so anyone willing can try it! Thanks for the help guys! Oh and thanks BOB for the gear ratios!
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net
User avatar
Whiplash
1 GW
1 GW

Posts: 3079
Joined: Mon May 10, 2010 2:55 pm

Re: New TIG welder! New ALY frame and CONVERTED MAC!

Postby crossbreak » Sat Dec 29, 2012 10:24 pm

I'm waiting keen for this documentation! Even after 20pages of discussion in the other thread, it's not completely clear for me how to do it. this would be something for the wiki :)
Last edited by crossbreak on Sat Dec 29, 2012 10:25 pm, edited 1 time in total. View post history.
User avatar
crossbreak
100 MW
100 MW

Posts: 2807
Joined: Tue Aug 02, 2011 11:20 am
Location: Germany

Re: New TIG welder! New ALY frame and CONVERTED MAC!

Postby bandaro » Tue Jan 01, 2013 1:17 am

quick sketch of possibilities.
Attachments
003 - Copy copy.jpg
User avatar
bandaro
10 kW
10 kW

Posts: 529
Joined: Tue Jun 01, 2010 2:17 am
Location: Canberra, Australia

Next

Return to E-Bike Non-hub Motor Drives

Who is online

Users browsing this forum: No registered users and 9 guests
