New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 12 2018 4:15am

A new competitor joined the eBike mid drive market.
There is not much information available yet, so I opened this topic to consolidate all the information available.

The motor is said to be a BBS01 clone made by bafang but with torque sensing. The engineers are said to be ex-engineers from bafang who wanted to fill the demand for torque sensing.

The difference with the TongSheng TSDZ2 is higher torque(90Nm), more quiet(<52dB) and bigger nylon gear.


TongSheng on the left, Lingbei on the right.

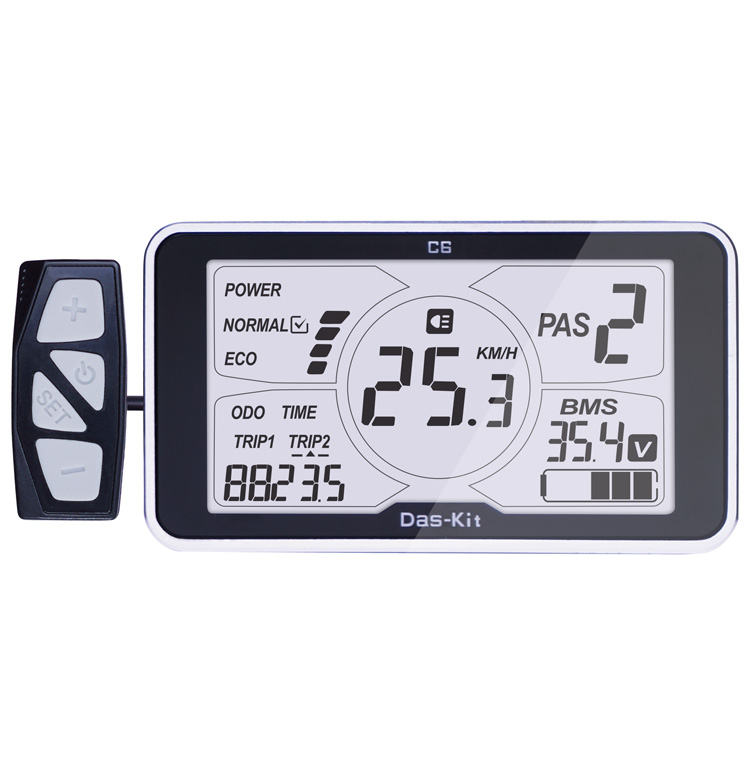

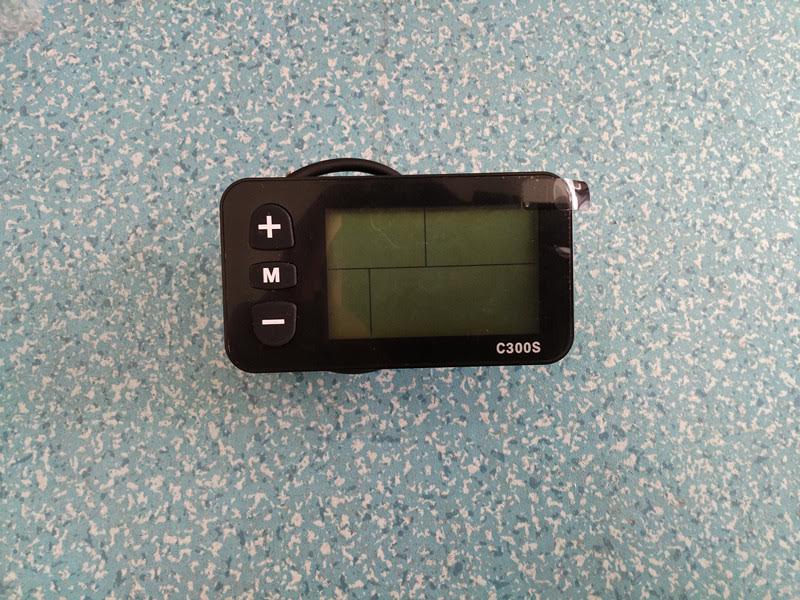

There are two displays available for now:
C600 and C300. The C600 has a throttle.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 12 2018 4:33am

I have ordered this motor in 48V 500Watt version. Should take about 2 weeks for delivery.
When I get it I'll open it so we can take a look at the electronics and see if we can make a combined effort with the TSDZ flexible open firmware @casainho is working on.

anttipaa   10 W

10 W
Posts: 88
Joined: Feb 18 2014 1:31pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by anttipaa » May 12 2018 10:28am

Where did you order it? Can you measure can it be fitted to bikes with 73mm BB.

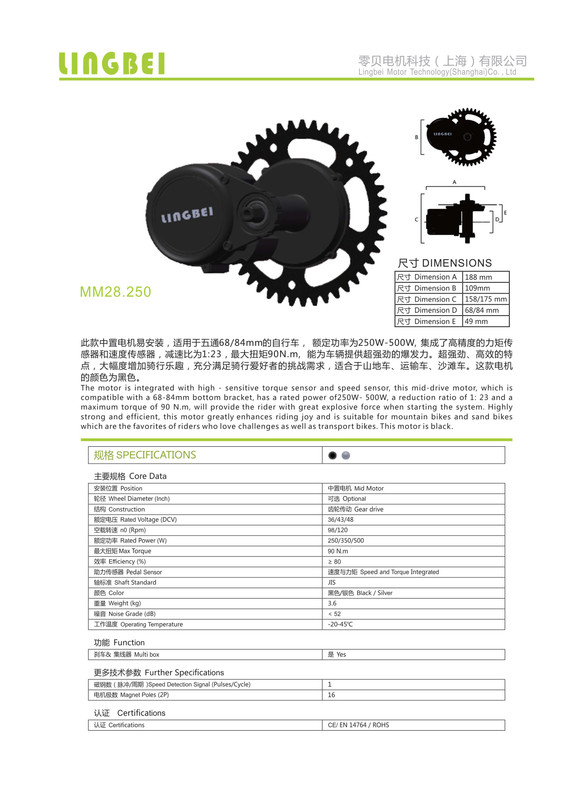

http://lingbeimotor.com/a/products/p1/14.html
Here they say it is compatible with 68-84mm bottom brackets.
Canyon Torque + ?

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 12 2018 11:24am

anttipaa wrote:
May 12 2018 10:28am
Where did you order it? Can you measure can it be fitted to bikes with 73mm BB.
http://lingbeimotor.com/a/products/p1/14.html
Here they say it is compatible with 68-84mm bottom brackets.
I ordered it from OKFeet/Green Pedel on Aliexpress. 390$ including shipping for the 48V500W version.
When it arrives I'll measure it.

I told them to check this forum, maybe they can answer some of our questions here as well.

VisionxOrb   1 µW

1 µW
Posts: 4
Joined: May 08 2018 1:51pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by VisionxOrb » May 13 2018 6:15pm

They need to clone the bbshd in a torque sensitive version. That would be awesome.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 17 2018 1:39pm

I think i found another seller of this motor. This time it's called outrider OR01M1.

Found a power curve as well: http://webcache.googleusercontent.com/s ... clnk&gl=nl

anttipaa   10 W

10 W
Posts: 88
Joined: Feb 18 2014 1:31pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by anttipaa » May 24 2018 7:05pm

Have you received your motor?
Canyon Torque + ?

ScooterMan101   1 MW

1 MW
Posts: 1624
Joined: Oct 06 2012 4:45pm
Location: South of San Jose, California.

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by ScooterMan101 » May 24 2018 10:17pm

Looks like it is only the C300 display, not the C600
which means
No throttle ?

fantasy2 wrote:
May 17 2018 1:39pm
I think i found another seller of this motor. This time it's called outrider OR01M1.

Found a power curve as well: http://webcache.googleusercontent.com/s ... clnk&gl=nl
My first conversion ...

https://endless-sphere.com/forums/viewt ... 1#p1077497

It's 2018 already, lets get some real , improved e-bike / e-velomobile / e-motorcycle designs .

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 1:27am

anttipaa wrote:
May 24 2018 7:05pm
Have you received your motor?
Not yet. I will receive it today!
ScooterMan101 wrote:
May 24 2018 10:17pm
Looks like it is only the C300 display, not the C600
which means
No throttle ?
Depends on the seller. I bought the C600 with throttle. They have different displays available when you contact them.


By the way, they got new stock for this motor.
When I get it today I will make pictures and hopefully some pictures of the inside as well.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 8:12am

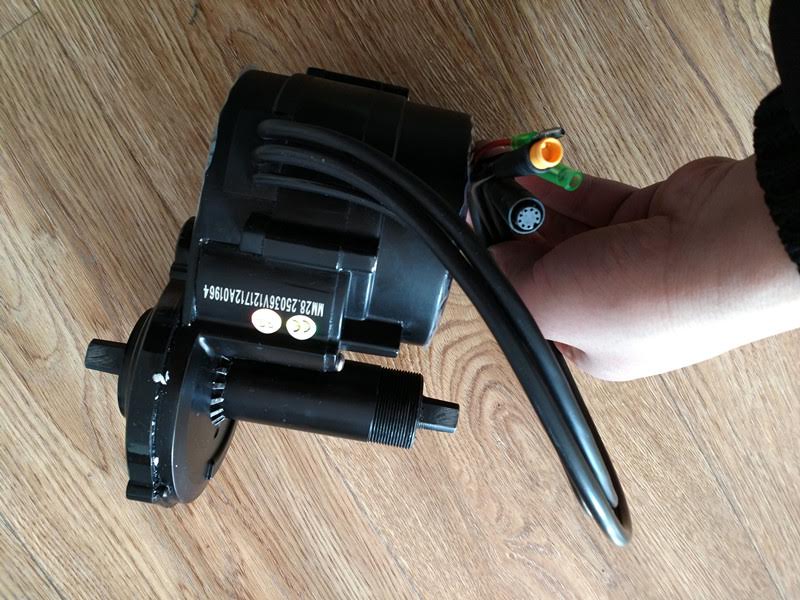

Got the motor and assembled it already on the bike. Really simple! :D

However, I have some mixed feelings about how it operates. This motor is really silent. Very hard to hear it.
But the power assist levels are just.. strange. I have the feeling I'm driving a bafang BBS motor without torque sensor.

When I'm in high gear and start to peddle, the support doesn't feel natural. The motor is so strong that it pulls you quickly to 15km/hr. When you start to peddle from stand still, it takes about 2 seconds for the motor to kick in, you'll notice it as it starts to pull the bike.

This happens most noticeably on PAS level 2 to 5. Every PAS level about 2 feels as the motor is pulling you and at PAS level 3 you don't need to apply any force to the bike for it to go.

I'm wondering if it really has/uses torque sensing. Or maybe I'm at a too high gear for it to work properly.

By the way, it's just too easy to drive 45km/hr without any effort lol.

casainho   100 MW

100 MW
Posts: 2649
Joined: Feb 14 2011 2:43pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by casainho » May 25 2018 8:17am

So you need to open the motor to inspect for a torque sensor. Please try to take pictures of the motor controller :-)
Developer of the Flexible OpenSource firmware for EBike motor controllers (TSDZ2 and KT) and LCDs (KT-LCD3 and Bafang 850C color LCD).

If you like my work, you can consider making a donation. I am being using the donations to buy needed resources for my developments. My paypal: casainho AT gmail.com.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 10:21am

casainho wrote:
May 25 2018 8:17am
So you need to open the motor to inspect for a torque sensor. Please try to take pictures of the motor controller :-)
Yeah, I'm afraid it is time to open the motor.

This feels like just another cadence sensing mid drive. I feel no feedback when I step on the pedals really hard.

casainho   100 MW

100 MW
Posts: 2649
Joined: Feb 14 2011 2:43pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by casainho » May 25 2018 10:34am

fantasy2 wrote:
May 25 2018 10:21am
casainho wrote:
May 25 2018 8:17am
So you need to open the motor to inspect for a torque sensor. Please try to take pictures of the motor controller :-)
Yeah, I'm afraid it is time to open the motor.

This feels like just another cadence sensing mid drive. I feel no feedback when I step on the pedals really hard.
Well, I remember that KT motor controllers are selling as "torque simulation" using only the PAS (although there are also specific versions of KT controllers for real torque sensors). Let's see if is or not the case of this Lingbei....
Developer of the Flexible OpenSource firmware for EBike motor controllers (TSDZ2 and KT) and LCDs (KT-LCD3 and Bafang 850C color LCD).

If you like my work, you can consider making a donation. I am being using the donations to buy needed resources for my developments. My paypal: casainho AT gmail.com.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 11:56am

Well, it was a challenge to open it up. The whole case was sealed with liquid gasket.

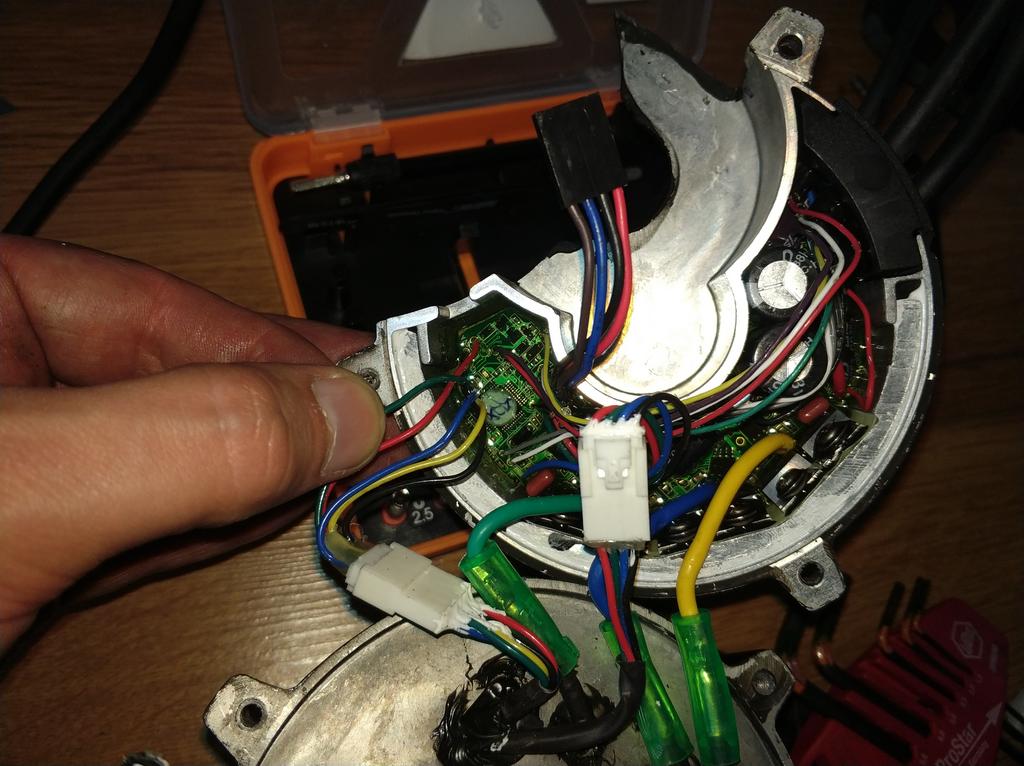

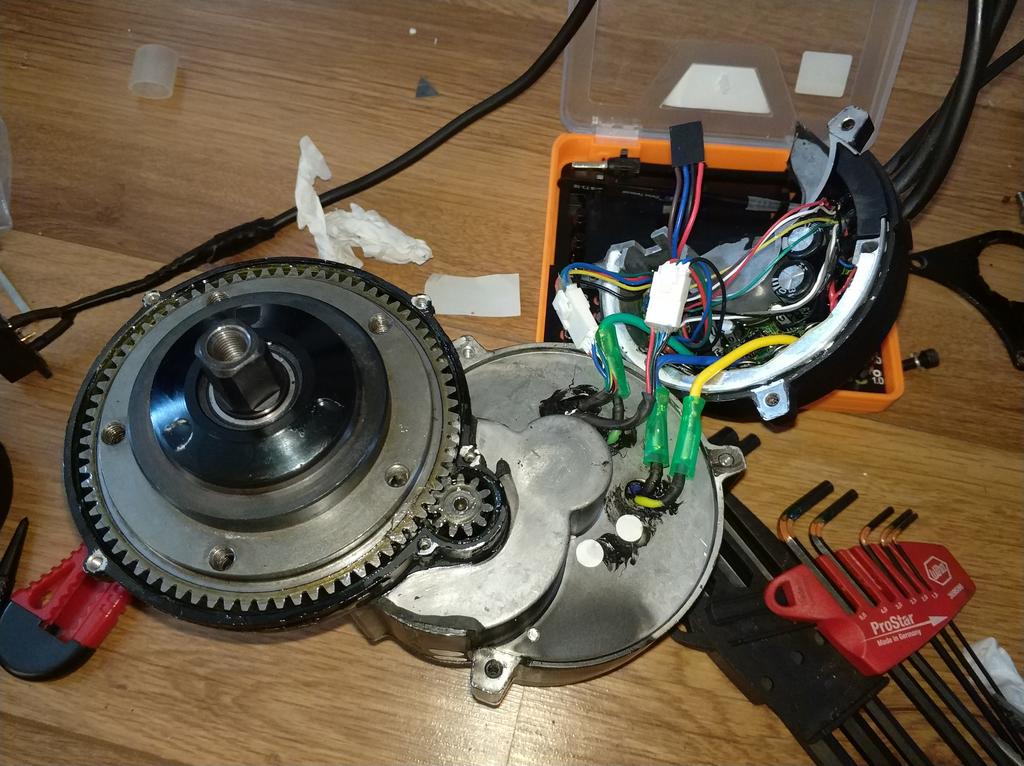

Got some pictures!




fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 12:04pm

What does this learn us?

- The mechanical design is very similar to a BBS01 controller

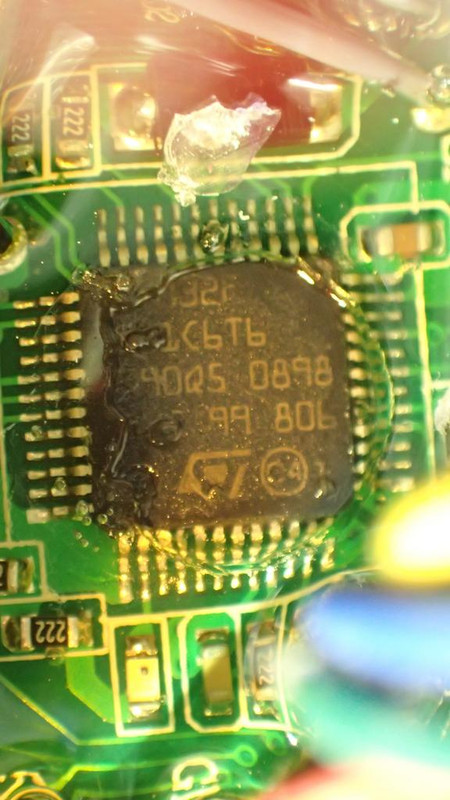

- They use a STM32F101C6T6 microcontroller(weeee!!)
- There is a 4 pin programming cable
- There are two cables going into the motor. One 5 pin, one 4 pin. So it really is a PAS + torque sensor?

The thumb throttle they use is the same as bafang.

So if there is a torque sensor, then the PAS is really too strong with the 500 Watt motor and gear ratio I use.

I think I need a special wrench to remove the big gear.

casainho   100 MW

100 MW
Posts: 2649
Joined: Feb 14 2011 2:43pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by casainho » May 25 2018 12:56pm

Thanks for sharing!!

About that STM32, great they are using it as it is programmable and very popular :-)

It runs at 36MHz and has only 32kbytes flash. The KT controllers and TSDZ2 use STM8 at 16MHz and also with 32kbytes flash.
I think they are doing just the same as STM8 does, because although that STM32 is faster, 32 bits, etc the limitation is on the available flash memory.

STM32 with 64kbytes or more could be nice maybe to add sensorless algorithm and/or higher PWM frequency to have motor rotating faster. I guess that can be an advantage of that controller but still, I bet they are using the 16kHz frequency and so the limit should be near of 550 ERPS for the motor (this is near the 4000 RPM of TSDZ2 motor).
Developer of the Flexible OpenSource firmware for EBike motor controllers (TSDZ2 and KT) and LCDs (KT-LCD3 and Bafang 850C color LCD).

If you like my work, you can consider making a donation. I am being using the donations to buy needed resources for my developments. My paypal: casainho AT gmail.com.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 1:54pm

They advertise the STM32F101 as very suitable for sensorless FOC and have quite some info on it on how efficient it is, so this might be a slight different control than in the STM8.

I don't have spares and need the bike next week so I'm not going to hang the controller on my scope.

I asked the supplier if the firmware can be upgraded and the issues I'm having with the motor control. Maybe they have software similar to bafang to change all the motor settings. Would be cool :)

The gear ratio is 1:23 and the RPM should be 120 so that should be 2760 rpm max on the motor.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 25 2018 3:51pm

Anyone got a clue what error code 24 might be?
When I turn the display on it starts to blink after a few seconds.

Sometimes the motor works, sometimes it doesn't.

Dogboy1200   100 W

100 W
Posts: 166
Joined: Aug 27 2015 8:07am
Location: Maryland

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by Dogboy1200 » May 25 2018 8:46pm

If there is a torque sensor, there must be some type of load cell between the axle that the pedals are connected too and the large gear that the motor drives and has the chain ring connected to it. Pull the axle and see if there is more than just a freewheel under there.
2007 Transition Preston FR BBS02 https://endless-sphere.com/forums/viewt ... 28&t=73635 Now HD https://endless-sphere.com/forums/viewt ... &start=225
2006 KTM 250 XC-W
2005 crf50 stunt bike
Oset 12.5 (son's bike)
PW50 (son's bike)
Mongoose Kids Fat Bike BBS02 https://endless-sphere.com/forums/viewt ... =6&t=84133 https://endless-sphere.com/forums/viewt ... e#p1232034

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 26 2018 3:01am

The large gear is helt in place with what seems to be a nut that needs a three point wrench. I don't have it.

The supplier again confirmed it is a torque and speed motor. However they set 60% speed and 40% torque because some customers complained about the TSDZ2 being too much labour intensive..

I still have the error 24, they offer me to send a new 4 way cable but I'm not sure if that is the cause of the error? I can still drive the bike and everything seems functional except that it blinks an error.

The motor is really silent when operating correctly. However, after removing the motor and assembling it again on the bike I have this weird vibration and I have no idea where it comes from. Not even sure if it's coming from the motor. It isn't always there.


AviatorTrainman   1 µW

1 µW
Posts: 4
Joined: Feb 09 2018 10:21am

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by AviatorTrainman » May 27 2018 7:33am

fantasy2 wrote:
May 25 2018 12:04pm
- They use a STM32F101C6T6 microcontroller(weeee!!)
- There is a 4 pin programming cable
Does this mean that the motor could be programmed to weigh the PAS and torque sensor differently? I'd consider this motor if so, because I would prefer it to be pure torque, or maybe pure torque for the first 4 levels, then cadence + torque in level 5. I want to be superman! :D

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 27 2018 9:12am

AviatorTrainman wrote:
May 27 2018 7:33am
fantasy2 wrote:
May 25 2018 12:04pm
- They use a STM32F101C6T6 microcontroller(weeee!!)
- There is a 4 pin programming cable
Does this mean that the motor could be programmed to weigh the PAS and torque sensor differently? I'd consider this motor if so, because I would prefer it to be pure torque, or maybe pure torque for the first 4 levels, then cadence + torque in level 5. I want to be superman! :D
Absolutely. It is now 60% PAS and 40% torque. In the beginning I thought the torque sensor didn't work but it does work, although I think it is badly balanced for my bike.

The PAS settings seem to set the cadence speed. Higher PAS = faster supported rotation. That's basically how the bafang motors work. However, the motor only starts to push when you put force on the pedals -unlike bafang- just rotating the pedals isn't enough and that's where the torque sensor kicks in. This gives(to my impression) better control over the bike, cause sometimes you just want to pedal without going faster(for example when you're slowing down and want to switch gears when you have a derailleur).

I would like to see a different balance. I find the cadence/pedal speed a little bit too fast for my liking on every setting.

Something like:
1 - 3 = pure torque -> Great when cycling with other people who don't have a motor cause you can adapt your cadence speed to them.
and 4-5 = PAS + torque -> For when you are alone and want to drive fast(ie. home to work). Still having better control over the bike than pure PAS. I do like this mode in some way as it just brings you to a semi fixed speed and is not as labour intensive as torque only. If for example you only set the torque sensitivity very high without cadence, you are constantly being pushed and your bike speed varies. PAS+Torque for commuting might be best of both worlds.

When everything works I can really recommend this motor. It's absolutely dead silent! The designers used bigger gears and all gears are helix(unlike TSDZ2). I cycled with people with other motors such as Bosch and Yamaha and you just couldn't hear this lingbei motor. The yamaha being clearly the most loud one.

The 500Watt, 48Volt motor I have pushed me to 45km/hr and 40km/hr up hill with some headwind without much effort. Pretty incredible.

SlowCo   10 kW

10 kW
Posts: 906
Joined: Jan 05 2015 5:43pm
Location: The Netherlands

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by SlowCo » May 27 2018 2:58pm

Thanks for sharing, great info!

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 27 2018 3:45pm

Graag gedaan. ;)

Did another test ride.. This beast is awesome already but things can still be optimised. The supplier OKFeet is responding very fast and cooperative so I can definitely recommend him.

fantasy2   10 W

10 W
Posts: 69
Joined: Apr 30 2018 3:40pm

Re: New "Lingbei MM28.250 torque sensor mid drive"

Post by fantasy2 » May 28 2018 3:49pm

I can now confirm it indeed has a torque sensor. There is a three hall-sensor cable going to the motor for cadence and another 4 pin cable is going up to the bottom bracket. Tongsheng only uses 2 wires if I'm not mistaken so this could be a different torque sensor.

The blue gear is bigger as well as the gear coming out of the motor. The motor has 16 magnets. All gear are helix.

Programming cable is on the way so we can take a look at the firmware.

The motor assembly has much larger ground clearance than the TSDZ2. It sits close to the diagonal tube of the frame opposed to the TSDZ2 which is mounted below the bottom bracket.

I'll share detailed pictures soon!

Post Reply
