Spoke Washers? (redux)

General Discussion about electric bicycles.
Post Reply
NorCalTuna   1 W

1 W
Posts: 58
Joined: Mar 24 2010 2:52am

Spoke Washers? (redux)

Post by NorCalTuna » Nov 10 2010 6:32am

Is it dangerous to run enough (aluminum) washer to mate a 6mm hole in a rim with a 4mm nipple? The wheel has dished spoke holes, and I'm imagining the aluminum washer deforming into the gap.

am I nuts?

thanks

User avatar
amberwolf   100 GW

100 GW
Posts: 25691
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Spoke Washers? (redux)

Post by amberwolf » Nov 11 2010 12:48am

Yes. To both questions. :lol:

If the washers were thick steel ones, then maybe it'd be ok, but aluminum washers are going to deform or worse they will just crack and split suddenly, and you'll be left with nothing holding your nipples. ;)

The spoke that happens to will no longer be under tension, and the ones around it will now be increased tension. Their washers are then that much more likely to break, and then you quickly reach the point where enough spokes come off the rim to leave you without an actual wheel, and it will collapse, with you spilled on the road. :(


A similar but possibly less likely to fail scenario is if you had the spoke heads at the spoke flanges on the hub (rather than the nipples on the rim) being washered for size mismatch. But even this will still fail without steel washers; I used thin brass ones and did not even get the wheel tensioned much less trued and definitely not even on the bike yet before it began popping heads thru the spoke flange holes, destroying the spoke heads in the process.

See here for pics:
http://www.endless-sphere.com/forums/vi ... 88#p326088

User avatar
liveforphysics   100 GW

100 GW
Posts: 14005
Joined: Oct 29 2008 1:48am
Location: Santa Cruz, CA, USA

Re: Spoke Washers? (redux)

Post by liveforphysics » Nov 11 2010 4:20am

No aluminum.

Use stainless steel washers.
Each carcinogen vapor exposure includes a dice roll for cancer.

Each mutagen vapor exposure includes a dice roll for reproductive genetic defects in your children.

Each engine start sprays them into a shared atmosphere which includes beings not offered an opportunity to consent accepting these cancer experiences and defective genetics life experiences.

Every post is a free gift to the collective of minds composing the living bleeding edge of LEV development on our spaceship.

User avatar
Drunkskunk   100 GW

100 GW
Posts: 6977
Joined: Apr 14 2007 11:37am
Location: Dallas, Texas. U.S.A.

Re: Spoke Washers? (redux)

Post by Drunkskunk » Nov 11 2010 9:59am

Use Brass washers. it's either a #8 or a #10 washer, I forget which, and it's a perfect fit.
The nipples are likely chrome plated brass, so the washer will deform at the same rate as the nipple, ensuring they maintain the same tension.

I've done this on a bunch of rims. the spokes need a little more attention the first 500 miles to keep them tight, but after they seat in fully, there's no trouble with them.
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewto ... =6&t=38667

John in CR   100 GW

100 GW
Posts: 13535
Joined: May 20 2008 12:58am
Location: Paradise

Re: Spoke Washers? (redux)

Post by John in CR » Nov 11 2010 10:52am

Isn't upgrading the spokes to a larger size that properly fits the rim the correct solution?

User avatar
Drunkskunk   100 GW

100 GW
Posts: 6977
Joined: Apr 14 2007 11:37am
Location: Dallas, Texas. U.S.A.

Re: Spoke Washers? (redux)

Post by Drunkskunk » Nov 11 2010 11:32am

Depends on the situation. If the hole is drilled for 12 guage, and he wants stronger, lighter, or better spokes, then probably not. Not much available in quality 12g spokes at the moment. None of the major spoke manufacturers areselling 12g. The Phill wood spoke threader doesn't currently offer a 12 guage die last time I checked, so threads have to be cut, not rolled. 14 guage usualy is the upgrade, as a quality 14g like a DT swiss is far stronger than the craptastical 12g that may wheel builders are forced to use.
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewto ... =6&t=38667

User avatar
johnrobholmes   1.21 GW

1.21 GW
Posts: 3940
Joined: Jul 07 2008 2:19pm
Location: Missouri
Contact:

Re: Spoke Washers? (redux)

Post by johnrobholmes » Nov 11 2010 11:40am

I offer quality 12ga in whatever length is needed, so there are options.

I would agree that it is better to use the proper size nipple in the first place. I am assuming that he is using a motorcycle rim that is made for either 11 or 10ga.

User avatar
vanilla ice   100 MW

100 MW
Posts: 2778
Joined: Sep 05 2007 9:15pm
Location: socal dude

Re: Spoke Washers? (redux)

Post by vanilla ice » Nov 11 2010 12:50pm

Wouldn't something shaped like this be ideal.. I have a pack of the brass washers if I need em for a lace but this seems better.


User avatar
johnrobholmes   1.21 GW

1.21 GW
Posts: 3940
Joined: Jul 07 2008 2:19pm
Location: Missouri
Contact:

Re: Spoke Washers? (redux)

Post by johnrobholmes » Nov 11 2010 1:08pm

Yeah, those would be better than just plain washers. What are those, grommets?

User avatar
Drunkskunk   100 GW

100 GW
Posts: 6977
Joined: Apr 14 2007 11:37am
Location: Dallas, Texas. U.S.A.

Re: Spoke Washers? (redux)

Post by Drunkskunk » Nov 11 2010 1:16pm

vanilla ice wrote:Wouldn't something shaped like this be ideal.. I have a pack of the brass washers if I need em for a lace but this seems better.
Those do look better. can you get a spoke wrench on the flats with one of those on it?
whats the name and sorce of thise? I might try them next time.
Buy the ticket, take the ride.
Monster Bike:http://endless-sphere.com/forums/viewto ... =6&t=38667

User avatar
amberwolf   100 GW

100 GW
Posts: 25691
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Spoke Washers? (redux)

Post by amberwolf » Nov 11 2010 6:26pm

They look like lacing eyelets for shoes or leatherwork, before the tool is used to crimp them down around the hole in the leather.

User avatar
vanilla ice   100 MW

100 MW
Posts: 2778
Joined: Sep 05 2007 9:15pm
Location: socal dude

Re: Spoke Washers? (redux)

Post by vanilla ice » Nov 11 2010 7:28pm

Amber is right.. that is leather in the background. I've never tried it, don't have any, just seen them and thought the shape made more sense. You can get the flat brass ones for like a dollar for fifty from McM.. I got to see how much these are.

NorCalTuna   1 W

1 W
Posts: 58
Joined: Mar 24 2010 2:52am

Re: Spoke Washers? (redux)

Post by NorCalTuna » Nov 11 2010 10:10pm

To fill a little more info in, my front hub is fork specific and has 14 ga holes. My wheel is 6 mm, as it's uhh, a moped wheel. Thats why I'm stuck with the little nipples. I like the bushing Idea, I like it a lot.

I wonder if there's some little part from mc master carr...

User avatar
johnrobholmes   1.21 GW

1.21 GW
Posts: 3940
Joined: Jul 07 2008 2:19pm
Location: Missouri
Contact:

Re: Spoke Washers? (redux)

Post by johnrobholmes » Nov 12 2010 9:16am

Is the nipple hole 6mm on the rim? Sounds like 12ga spokes would be better suited for the rim. Drilling out your hub .3mm is much safer than using washers in this case. I have done this quite a few times, I lace up moped rims into weird stuff quite often. Let me know if you need any resources or help.

NorCalTuna   1 W

1 W
Posts: 58
Joined: Mar 24 2010 2:52am

Re: Spoke Washers? (redux)

Post by NorCalTuna » Nov 12 2010 9:07pm

I appreciate that JRH! I'm thinking I'm going to pull the project out of the LBC as they're unwilling to even entertain drilling the hub... I'll post some pics and talk to my fab guy and see what the weather brings. The other thought I had was having larger nipples made up.

User avatar
The Stig   100 kW

100 kW
Posts: 1024
Joined: Nov 15 2008 6:26pm
Location: Boston

Re: Spoke Washers? (redux)

Post by The Stig » Jun 26 2013 5:52pm

THREAD DIG!


I need washers to put between 12ga niples(4.95mm OD under the head) and an aluminum rim that will be drilled out to 5mm at the angle the spokes will be laced. The rim is double walled so the washers need to have an OD of 8mm or less to fit past the first wall of the rim... (I doubt it would be better to drill out the outer wall of the rim)

Either I hunt for the ideal hardware store brass washer/auto store aluminum washers in the area or I get proper rim washers real fast... I just want the strongest, lowest maintenance rim, for low cost. noise and weight aren't of much concern.


Any sources for specifically 12ga rim washers in the north east or Boston? Or anywhere for that matter?

User avatar
The Stig   100 kW

100 kW
Posts: 1024
Joined: Nov 15 2008 6:26pm
Location: Boston

Re: Spoke Washers? (redux)

Post by The Stig » Jun 27 2013 2:34pm

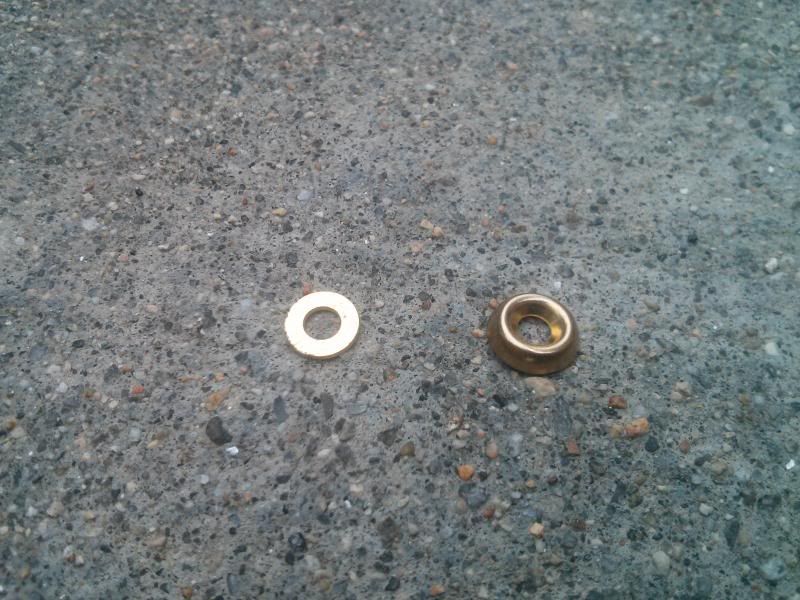

here are some potential candidates. The finish washer on the right is a bit bigger then the hole in the outer wall of the rim. Both washers have an ID that's a bit too small


User avatar
amberwolf   100 GW

100 GW
Posts: 25691
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Spoke Washers? (redux)

Post by amberwolf » Jul 15 2013 3:09pm

Regarding sizes of washers, #6 is just small enough to not have typical spoke heads pass thru them, but not small enough to actually use--under tension the heads will deform the washers and pull thru anyway. They *might* work for some spoke nipples though.

#8 would probably be too big for the nipples, and is definitely too big for the heads.

#4 might be small enough for the heads but I think they'd still be too big.

#2 is probably a perfect fit, but I haven't found either #2 or #4 locally to try them. I dunno if the odd# sizes exist but if they do maybe they would work even better.

(I tried the #6 on a Crystalyte HS3540 hubmotor, using the Grin Tech Sapim spokes, because the flange holes on the HS are HUGE and can pass the whole spoke head right thru them. :( With the washers it's a little better, but I can only lace the wheel with the heads out on the flange, not heads-in like I wanted to for a "wider stance" of the spokes for what should be better side-loading ability.)


Oh, also, stainless washers bend pretty easily, so I'd recommend heavy duty ones, like the Grade 8 or something.

User avatar
The Stig   100 kW

100 kW
Posts: 1024
Joined: Nov 15 2008 6:26pm
Location: Boston

Re: Spoke Washers? (redux)

Post by The Stig » Jul 15 2013 4:31pm

hmmm... I think I ended up using #10 SAE washers because the inside Dia of them is 5.5mm and the shafts of my 12ga nipples were 5mm. The wheel is built and looking good, MAC hub, 100mm Wide rims, 12ga spoke in a 1-cross pattern and crossed over from left to right. All black!

User avatar
amberwolf   100 GW

100 GW
Posts: 25691
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Spoke Washers? (redux)

Post by amberwolf » Jul 16 2013 1:17pm

Yeah, if you have really big spoke nipples then using those washers for the rim sounds good.


In my case I'm not worried aobut the rim (couldn't fit washers inside the holes of the doublewall anyway), but rather the head end at the spoke flange on the rim.

User avatar
The Stig   100 kW

100 kW
Posts: 1024
Joined: Nov 15 2008 6:26pm
Location: Boston

Re: Spoke Washers? (redux)

Post by The Stig » Jul 17 2013 12:38am

yeah, I wasn't sure what spoke head meant.

I was just over at your other thread, and yeah some of those washers under the spoke heads look a bit iffy.

Maybe you could double up on this type of countersunk washer. That way you would still maintain the same bend in the spokes leading up to the head, but you would still have thicker material holding onto the spoke heads.

User avatar
speedmd   100 MW

100 MW
Posts: 2787
Joined: Nov 14 2012 12:16pm
Location: new england

Re: Spoke Washers? (redux)

Post by speedmd » Jul 17 2013 9:53am

http://www.chickencycles.co.uk/index.php?cat=22&sub=83


they got them and the mating nips !

cheers

User avatar
The Stig   100 kW

100 kW
Posts: 1024
Joined: Nov 15 2008 6:26pm
Location: Boston

Re: Spoke Washers? (redux)

Post by The Stig » Jul 18 2013 12:34am

I think we were talking about the spoke heads (hub end) not the nipples?

User avatar
speedmd   100 MW

100 MW
Posts: 2787
Joined: Nov 14 2012 12:16pm
Location: new england

Re: Spoke Washers? (redux)

Post by speedmd » Jul 18 2013 10:40am

Hi Stig

Got it, the first item on the link I attached is for the swagged head end of the spokes. Sold in lots of 500.

cheers!
