ES Motor Project?

Electric Motors and Controllers
Post Reply
User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

ES Motor Project?

Post by Miles » May 24 2012 2:38am

If we could decide on a specification that would satisfy enough people on ES, we could design our own motor. It might be possible to have the laminations made in sufficient quantity to justify the cost of tooling for stamping.

[Edit: Split from: http://endless-sphere.com/forums/viewto ... 30&t=40074 ]

User avatar
Jeremy Harris   10 GW

10 GW
Posts: 4208
Joined: Oct 23 2007 4:15pm
Location: Salisbury, UK

Re: Machining a Brushless motor design

Post by Jeremy Harris » May 24 2012 9:01am

Miles wrote:If we could decide on a specification that would satisfy enough people on ES, we could design our own motor. It might be possible to have the laminations made in sufficient quantity to justify the cost of tooling for stamping.
Are they best stamped, do you think, or would laser cutting be an option?

Given the mix of skill on ES it may well be we could put together a motor that meets the needs of a lot of forum members, perhaps farming out the CNC work and lamination cutting and putting together a kit of parts for a wind-your-own motor. The first challenge would be deciding on a size and design. I'd like to see an out runner that's about 100 to 120 mm stator diameter, with a stator length of around 100 mm or more. A 12 slot, 14 magnet set up would be fine for me, and if we could choose dimensions that suit an off-the-shelf neo magnet so much the better.

Has anyone tried contacting the power croco/power ditto people to see if they have parts available?
Please ask questions on the forum, rather than by PM, as it helps others and you'll get a better range of answers.

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Machining a Brushless motor design

Post by Miles » May 24 2012 9:34am

Jeremy Harris wrote:Are they best stamped, do you think, or would laser cutting be an option?
I was only thinking of the price. I think stamping is cheaper beyond a certain quantity. In some ways, laser is better - no tooling costs, no need for post annealing, possibility to tweak the design, etc. I guess one could start with laser cutting and then move to stamping if/when the demand justified it.

User avatar
Thud   100 MW

100 MW
Posts: 2686
Joined: Aug 20 2009 6:20am
Location: West Michigan,USA

Re: Machining a Brushless motor design

Post by Thud » May 24 2012 1:47pm

For your pleasure,

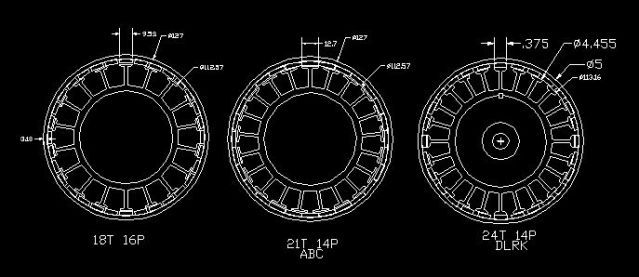

Here is a dxf of some stator configs utilizing standard NEO's & DOM steel for the flux cans.

[The extension dxf has been deactivated and can no longer be displayed.]

I guess i'll put this here at the risk of duplication when I actually make time to finish the motor prototyping project.

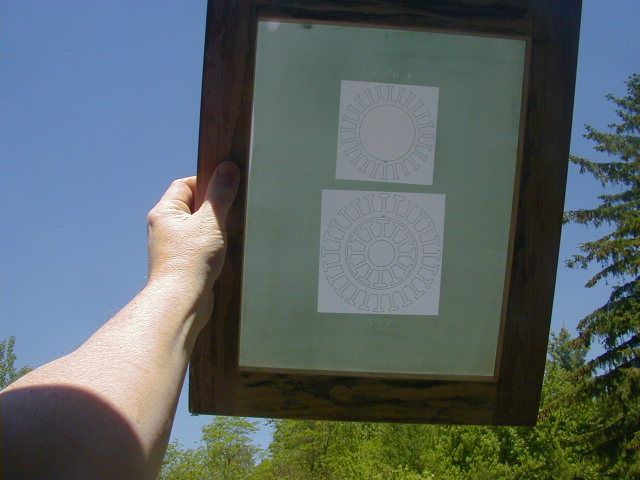

I bought a stock of .008"t shim stock to make laminations & planned on insulateing them with a thin nomex sheet between each lam. The steel is (1080 low carbon) no where near real lamination stock but the only thing in my price & availability range.

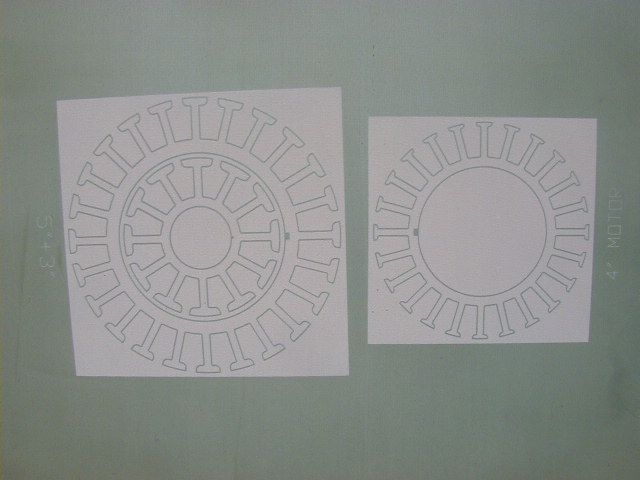

After considering my options, I decided photo etching was the only reasonable way a guy in his basment could pull off making a batch of perfect laminations. I Have the screenprint that nests a 3" & a 5" motor in a single pc of stock.
but my shim stock was rolled...I cut it to size on a paper cutter but it has a permanent "cup" in the stock that needs to be relaxed before I can start the printing proccess. (i'll clamp the whole stack between 2 plates & take it to red heat & let it cool slowly to unstress the steel)
Around the new year I purchased the latest Pulsed EDM board from Ben Flemming. Once I have EDM capability it will be a walk in the park to cut proper punch dies for MASS PRODUCTION :twisted:

Any one have any idea on what it would take to make a nice Laser for a bench top cnc ?(Co2 60+ watts?) I searched a little one night, but A clear example W/enough documentaion for me to plagerize didn't apeare....havn't got back to that one yet.
let the conversation continue.
get some......

All information & advice provided by Thud are "Open Source" & free for personal use & distribution under the following agreement linked below.
http://creativecommons.org/licenses/by-nc-nd/3.0/

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 24 2012 2:31pm

Thud's layouts (above DXF):

3" OD: 2.54" stator 12t 7p [DLRK]

4" OD: 24t 14p [DLRK]

4.5" OD: 4.46" stator 18t 12p [ABC]

5" OD: 24t 14p [DLRK]

6" OD: 24t 16p [ABC]

User avatar
mdd0127   100 kW

100 kW
Posts: 1084
Joined: Sep 30 2008 4:43pm

Re: ES Motor Project?

Post by mdd0127 » May 24 2012 2:36pm

You are awesome Thud!

If you start making motor kits and the guys in Russia get their full sine controller and computer/meter off the ground, I'll probably get excited about the future of e-bikes again.

A couple of quick suggestions for ultimate motors would be liquid coolant channels in the stator, and a 5mgt driver pulley integrated into the endcap. Also, I like the idea of developing a larger diameter outrunner like the 5 or 6 inch size. It could be really thin in cross section for people with lower power needs and thicker for freaks like me. There are plenty of options already out there for smaller diameters. I think that the increased torque capability and narrower cross section would fit most builds better.

I wish there was some way I could be of more help to this project!
Turn it OFF!!!

Apocaloptimist! (thx Kiwi!)

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 24 2012 2:50pm

Jeremy Harris wrote: I'd like to see an out runner that's about 100 to 120 mm stator diameter, with a stator length of around 100 mm or more. A 12 slot, 14 magnet set up would be fine for me, and if we could choose dimensions that suit an off-the-shelf neo magnet so much the better.
How about making the stator diameter 112mm? :)

I think an outrunner is still best at that size. At 150mm and above, it seems less clear cut.

Design for 2 stack lengths? 50mm and 100mm?

I'm keen on 18t 16p. It has a high winding factor and (like 9t 8p) the BEMF is very close to sinusoidal.

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 24 2012 3:32pm

Ref: Winding Factors and Joule Losses of Permanent Magnet Machines with Concentrated Windings
Freddy Magnussen and Chandur Sadarangani, Royal Institute of Technology, Department of Electrical Engineering,
Stockholm, Sweden.
Attachments
IR-EE-EME_2003_029.pdf
(469.54 KiB) Downloaded 347 times

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 24 2012 3:50pm

What is the range of nominal speeds we need to cover?

User avatar
liveforphysics   100 GW

100 GW
Posts: 14134
Joined: Oct 29 2008 1:48am
Location: Santa Cruz, CA, USA

Re: ES Motor Project?

Post by liveforphysics » May 24 2012 4:09pm

Miles wrote:
I'm keen on 18t 16p. It has a high winding factor and (like 9t 8p) the BEMF is very close to sinusoidal.

You loose the ability to use Sevcons and Kellys when you increase the pole count. Unfortunately, low pole count motors have additional iron weight and torque ripple.
Each carcinogen vapor exposure includes a dice roll for cancer.

Each mutagen vapor exposure includes a dice roll for reproductive genetic defects in your children.

Each engine start sprays them into a shared atmosphere which includes beings not offered an opportunity to consent accepting these cancer experiences and defective genetics life experiences.

Every post is a free gift to the collective of minds composing the living bleeding edge of LEV development on our spaceship.

User avatar
Thud   100 MW

100 MW
Posts: 2686
Joined: Aug 20 2009 6:20am
Location: West Michigan,USA

Re: ES Motor Project?

Post by Thud » May 24 2012 4:21pm

For design considerations, I am letting "on the shelf" magnets & available tube diameters dictate the motor design.

A 112mm (ish) stator fits lovely into a 5" shell with 3mm thick magnets.

At 16 pole pr's we would have to use 10mm wide magnets. (but an 18t 8p fits with gaps) we can increase copper & concentraight buy stepping to 21t 14p here is a screen shot side by side....along with my 24t 16p

Take your pick.....

Now for some question of my own:
given the same direction of the turns in an ABC wound motor.....will inductance be greater when compaired to another configuration? the 18t motors are typicly AaABbBCcC wound & it looks like an inductance crippiling effect we have observed on the colossis motors.
fizzin to get my learn on....
get some......

All information & advice provided by Thud are "Open Source" & free for personal use & distribution under the following agreement linked below.
http://creativecommons.org/licenses/by-nc-nd/3.0/

User avatar
Farfle   1 MW

1 MW
Posts: 1756
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: ES Motor Project?

Post by Farfle » May 24 2012 7:28pm

Hmm, if we make a monster low kv outrunner could it do 20 kw on a single reduction?? If so, I would gladly donate my two lathes and mill. If you need anything made; shafts housings, bells etc...
Just send me cad files.
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 25 2012 3:00am

Farfle wrote:Hmm, if we make a monster low kv outrunner could it do 20 kw on a single reduction??
The size we're considering at the moment wouldn't be able to achieve that.

User avatar
mdd0127   100 kW

100 kW
Posts: 1084
Joined: Sep 30 2008 4:43pm

Re: ES Motor Project?

Post by mdd0127 » May 25 2012 3:06am

10kw is enough to scare most people, even experienced riders on a sub 100lb machine so I think that the sizes you're considering are just perfect.
Turn it OFF!!!

Apocaloptimist! (thx Kiwi!)

User avatar
Jeremy Harris   10 GW

10 GW
Posts: 4208
Joined: Oct 23 2007 4:15pm
Location: Salisbury, UK

Re: ES Motor Project?

Post by Jeremy Harris » May 25 2012 3:32am

I agree, start with something that's around that power level max, with a known to be good pole count/slot arrangement and that uses stock materials. The 5" tube, 3mm magnets, 112 mm stator sounds a good starting point to me. Motor length could be adjusted for power easily enough - longer would be better in terms of electrical efficiency, from proportionally less end turn loss, but at the cost of poorer cooling. Still, the power freaks could always look at liquid cooling the bearing housing themselves, by making up a custom carrier.

That's one advantage of going down the "sort some parts as a collective" route, people will be free to use the hard to source parts (stator lams, maybe the machined cans unless they happen to have a biggish lathe) as-is but could make up their own shafts, bearing carriers etc to suit their own project. Even a small Chinese bench lathe could turn out a bearing carrier without too much trouble.
Please ask questions on the forum, rather than by PM, as it helps others and you'll get a better range of answers.

John in CR   100 GW

100 GW
Posts: 13825
Joined: May 20 2008 12:58am
Location: Paradise

Re: ES Motor Project?

Post by John in CR » May 25 2012 5:24am

Miles wrote:I'm keen on 18t 16p. It has a high winding factor and (like 9t 8p) the BEMF is very close to sinusoidal.
I like the 18t, but I wonder about the 16p. The 93% peak efficiency hubbies I have are a 150mm X 50mm long stator with 18t, and the windings are beautiful with very little end copper. They have 20 magnets though and the magnets are curved. How is the 16p and advantage over 20? Does the better shaped BEMF make it easier to drive?

John

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 25 2012 5:39am

John in CR wrote:How is the 16p and advantage over 20?
Reduced iron losses. At the speed of a hub motor, it's not that important.

That was the reason for this question:
Miles wrote:What is the range of nominal speeds we need to cover?

nieles   10 kW

10 kW
Posts: 672
Joined: Jul 14 2008 5:39pm
Location: The Netherlands

Re: ES Motor Project?

Post by nieles » May 25 2012 5:49am

what about your axial flux motor miles, did you abandon that project?

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 25 2012 5:54am

nieles wrote:what about your axial flux motor miles, did you abandon that project?
No, I'm still working on it. It would be too expensive/difficult for a project like this, though, and it's unproven.

User avatar
Farfle   1 MW

1 MW
Posts: 1756
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: ES Motor Project?

Post by Farfle » May 25 2012 9:52am

Doh, I punched in 20kw without stating it as a burst rating, 10kw cont would be awesome on a single reduction...
Test Review Revise Repeat

John in CR   100 GW

100 GW
Posts: 13825
Joined: May 20 2008 12:58am
Location: Paradise

Re: ES Motor Project?

Post by John in CR » May 25 2012 1:58pm

Miles wrote:
John in CR wrote:How is the 16p and advantage over 20?
Reduced iron losses. At the speed of a hub motor, it's not that important.

That was the reason for this question:
Miles wrote:What is the range of nominal speeds we need to cover?
With the approx diameter 5" motor you wanted I'd want to go with the 100mm stator length. Could handle a 10-12kw input in the 2000-2500rpm range?

BTW, did you ride someone's high powered rig and now you need one too or was I wrong in thinking you were after the lower power end of the spectrum?

John

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 25 2012 2:25pm

John in CR wrote: Could handle a 10-12kw input in the 2000-2500rpm range?
That's around 45Nm of torque. I'd guess not.
BTW, did you ride someone's high powered rig and now you need one too or was I wrong in thinking you were after the lower power end of the spectrum?
It would be good to have something I could run at around 1200 rpm. I'd only want a 50mm stator length.

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 25 2012 3:40pm

Thud wrote: At 16 pole pr's we would have to use 10mm wide magnets. (but an 18t 8p fits with gaps) we can increase copper & concentraight buy stepping to 21t 14p here is a screen shot side by side....along with my 24t 16p

Take your pick.....
21t 14p would have greater cogging. If we want to run this at relatively slow speeds...

24t 14p has quite a low winding factor (0.76).

My vote is with 18t 16p.

BTW Thud, you wrote 16 pole pairs. I just assumed you doubled up on the magnets for curvature?

User avatar
Thud   100 MW

100 MW
Posts: 2686
Joined: Aug 20 2009 6:20am
Location: West Michigan,USA

Re: ES Motor Project?

Post by Thud » May 25 2012 4:41pm

I did not, but tha is an option i supose....I been using nomenclature to fit my moods lately... so I have it drawn a little wrong. :oops:

I'll re-sketch it for the 8 pole pr count & adjust the tooth size acordingly for a better "looks about right" design.

back in a bit :wink:
get some......

All information & advice provided by Thud are "Open Source" & free for personal use & distribution under the following agreement linked below.
http://creativecommons.org/licenses/by-nc-nd/3.0/

User avatar
Miles   100 GW

100 GW
Posts: 11024
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: ES Motor Project?

Post by Miles » May 25 2012 5:03pm

I've done a parametric core model. So, we can tweak the parameters to however we want them... :D
Attachments
