Re: Farfle joins the MENS club

Post by Farfle » Jul 17 2012 12:27pm

I sent this DXF to a few lam shops, and laser laminations in AR, can do it for 369 dollars, and may give me a small sponsorship, we will see.
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11030
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle joins the MENS club

Post by Miles » Jul 17 2012 12:50pm

Great! That sounds pretty reasonable. That's just the laser cutting?

If you need any advice on Alibre, feel free to ask - I've been using it for years.
Another possibility: http://www.deelip.com/?p=6517
SketchUp isn't really the right tool.....

What magnets did you use for your simulation?

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 17 2012 4:35pm

Yeah, I like alibre alot, but all I have tried is the 2d modelling. I used n37 magnets out of the materials library on that sim
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11030
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle joins the MENS club

Post by Miles » Jul 17 2012 4:50pm

Farfle wrote:Yeah, I like alibre alot, but all I have tried is the 2d modelling.
Actually, the 2D modelling in Alibre isn't that great.... It's getting some attention at the moment, though.

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 17 2012 8:38pm

Miles wrote:
Farfle wrote:Yeah, I like alibre alot, but all I have tried is the 2d modelling.
Actually, the 2D modelling in Alibre isn't that great.... It's getting some attention at the moment, though.

The other software that I use for 3d is sketchup, and for serious stuff, I have a copy of inventor that im somewhat good at. Inventor is VERY tedious tho.

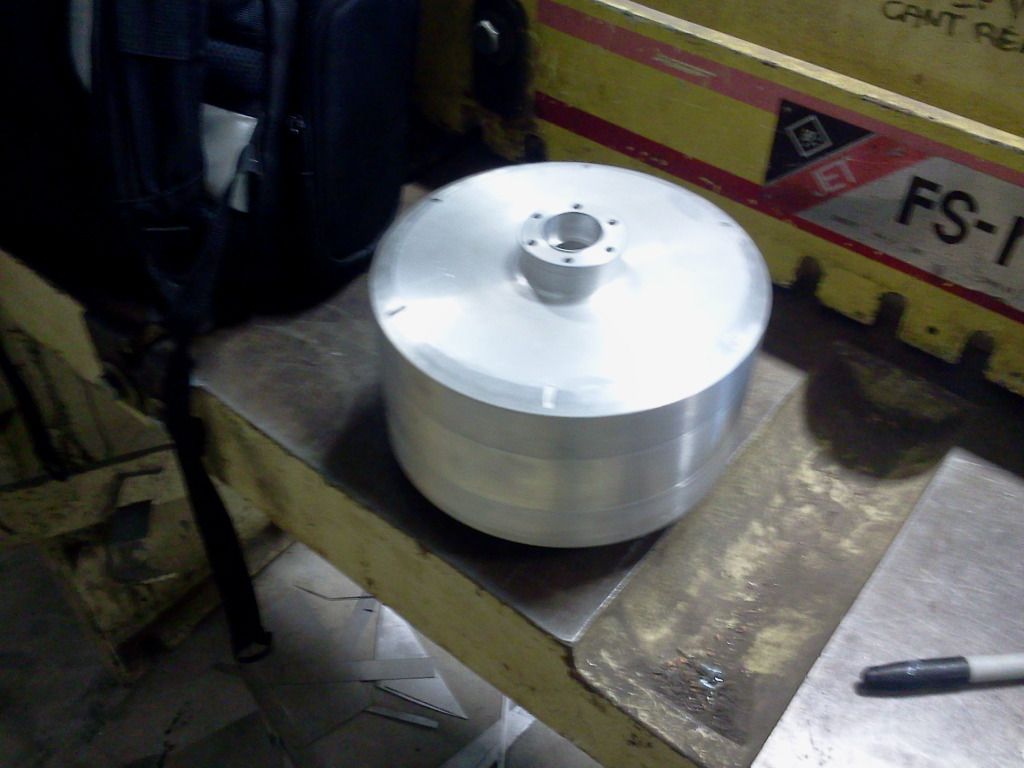

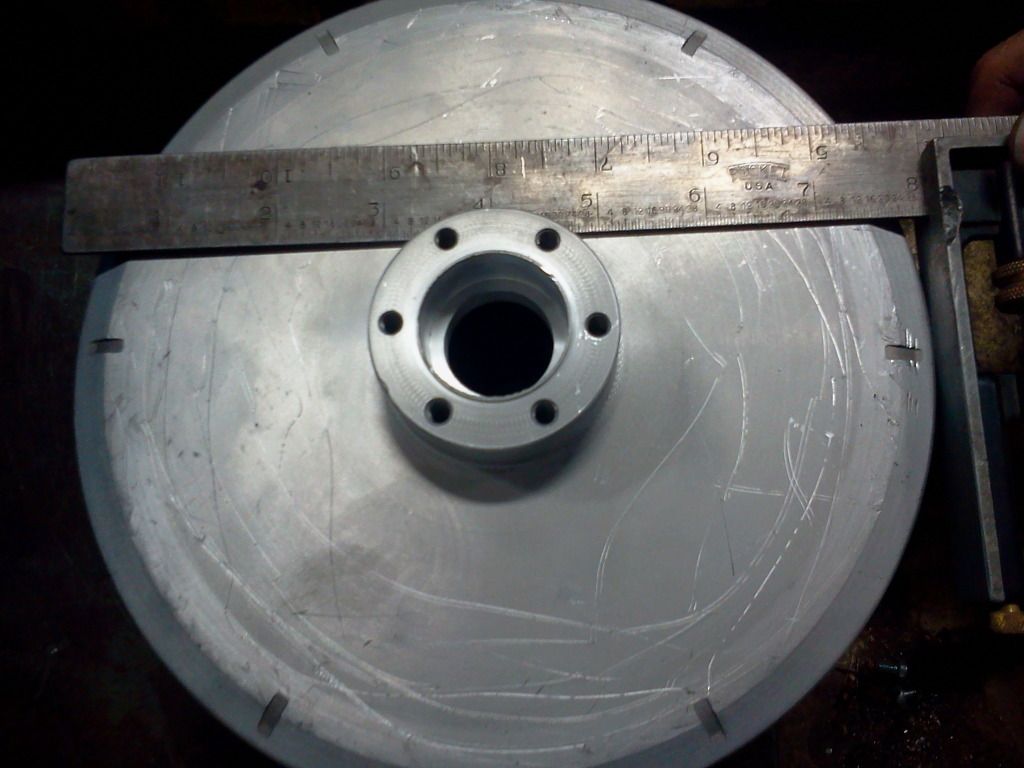

heres some pics of the outside of the motor, and the stator support. Weight so far is 8 pounds:



Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 18 2012 11:51am

Found a little wheel speed /sprocket tooth count calculator online, at 3000 rpm it looks like looks like ill need about a 2.5:1 to 3:1 reduction for 60mph and quick acceleration at 20kw. So, whats the deal with tooth count, I don't really have a good feel for how much can handle how much. So if im running #35, would 20-60 be overkill? or can I get away with 16-48? I have used # 35 in FRC robotics, and have never broken one, but it does seem fairly small, and chews thru smaller alum sprockets quickly, so maybe a steel driving sprocket and a aluminum driven?
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 18 2012 11:24pm

Going to wait for the final RPM of the motor before I order, but im pretty set on #40, it's poetry stout, so it should stand up to the hopefully 20+ hp this motor will put out.
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 19 2012 3:08pm

AWESOME! laser laminations just sponsored me, the lams are shipping out today. The revised design cut from .35mm m15 silicon steel! Woo!
Test Review Revise Repeat

User avatar
bzhwindtalker   1 MW

1 MW
Posts: 1762
Joined: Dec 01 2008 1:03pm
Location: Lyon, France

Re: Farfle joins the MENS club

Post by bzhwindtalker » Jul 20 2012 4:56am

Very nice! Moar motorz :)

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 20 2012 10:21am

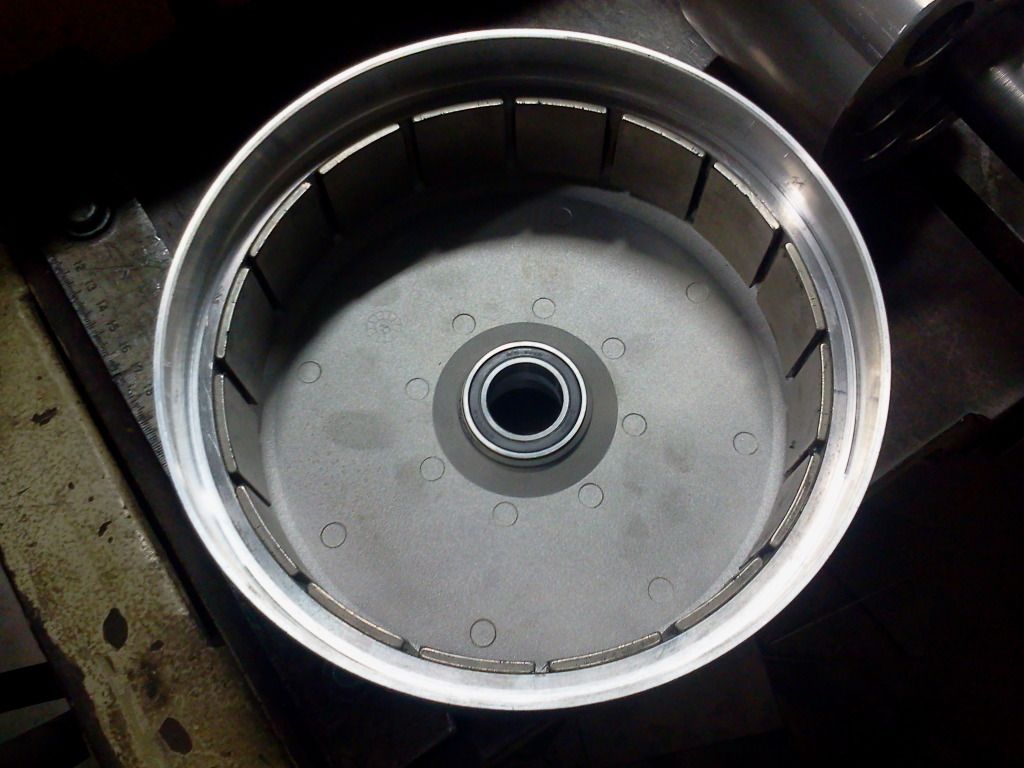

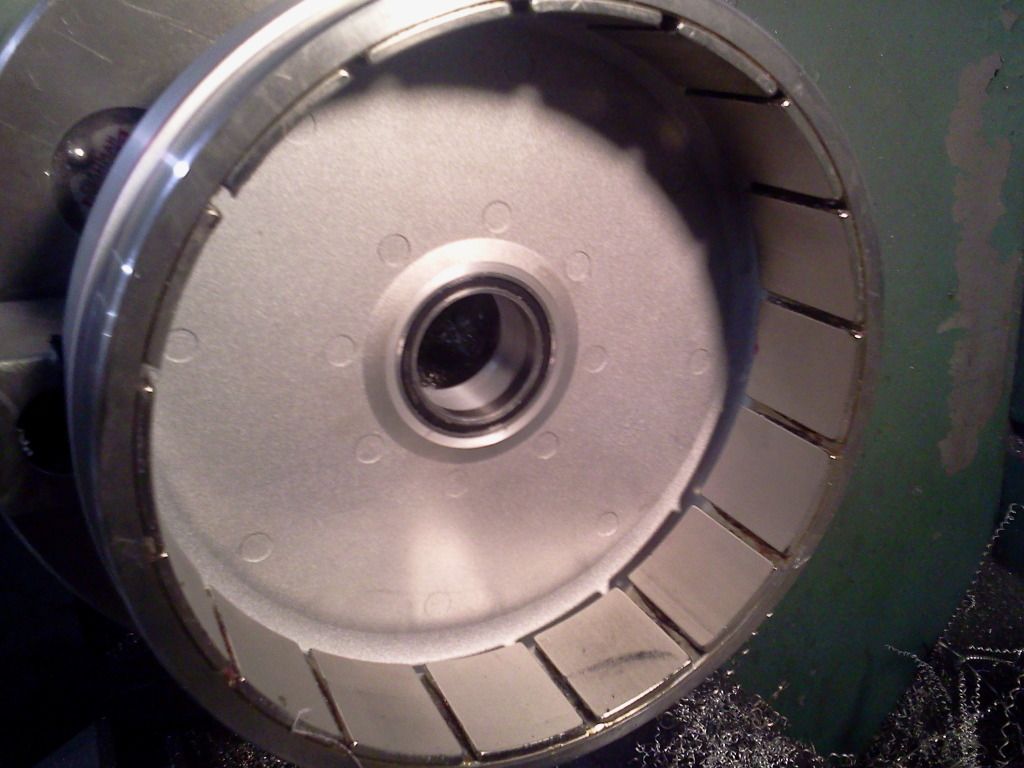

Heres a pic of the complete "can" . Its got less than a thousandth of wobble, so no vibrations spinning at 3000 rpm.



Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 22 2012 11:11am

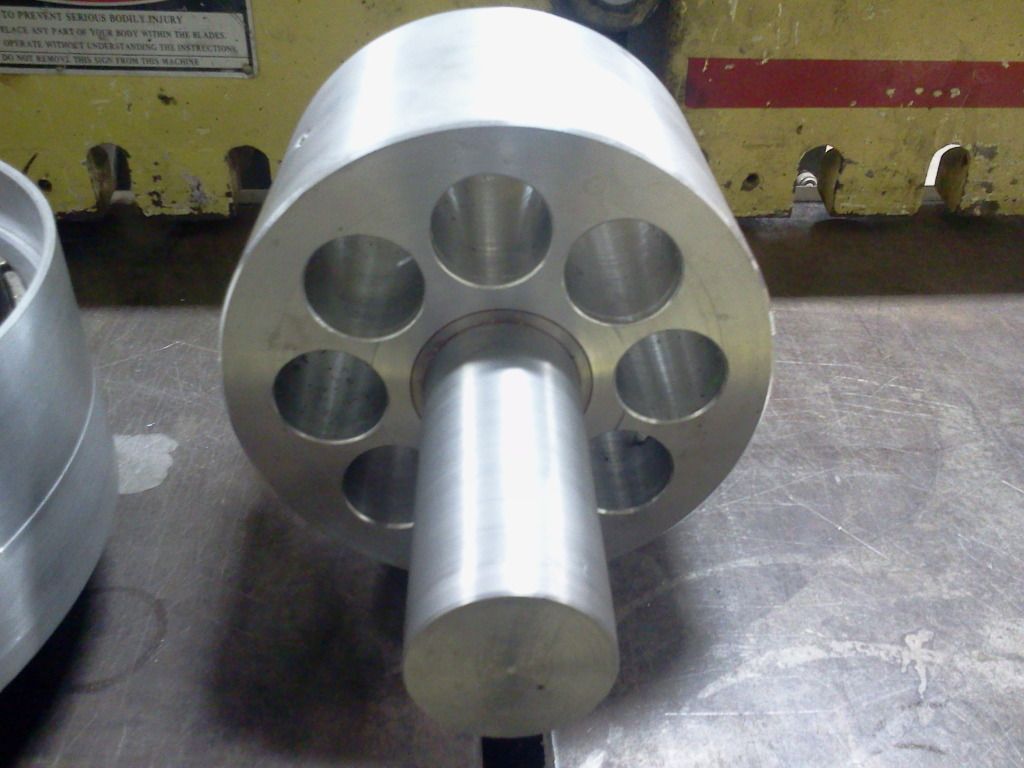

Bearings are machined into the sidecovers, and the new axle is pressed into the the sator center.



Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 23 2012 1:20am

BB concentric swingarm pivot is almost done.

Test Review Revise Repeat

User avatar
johnrobholmes   1.21 GW

1.21 GW
Posts: 3955
Joined: Jul 07 2008 2:19pm
Location: Missouri
Contact:

Re: Farfle joins the MENS club

Post by johnrobholmes » Jul 23 2012 11:50am

That is an outrunner I am most jealous of!!


Those laminations sound slick. You won't be running into much eddy or hysteresis losses, so the motor should stay pretty cool even at 3krpm.

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 23 2012 3:01pm

johnrobholmes wrote:That is an outrunner I am most jealous of!!


Those laminations sound slick. You won't be running into much eddy or hysteresis losses, so the motor should stay pretty cool even at 3krpm.
Thanks man, Im going to be lathing a hub, and ordering a few sets of spokes, so keep an ear to the ground on your end.
Test Review Revise Repeat

User avatar
Alan B   100 GW

100 GW
Posts: 7740
Joined: Sep 11 2010 7:43am
Location: San Francisco Bay Area, USA
Contact:

Re: Farfle joins the MENS club

Post by Alan B » Jul 23 2012 5:19pm

Farfle wrote:
Thanks man, Im going to be lathing a hub, and ordering a few sets of spokes, so keep an ear to the ground on your end.
Looks interesting. Nice machining work.

Don't machinists call that "turning"?

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 25 2012 8:50am

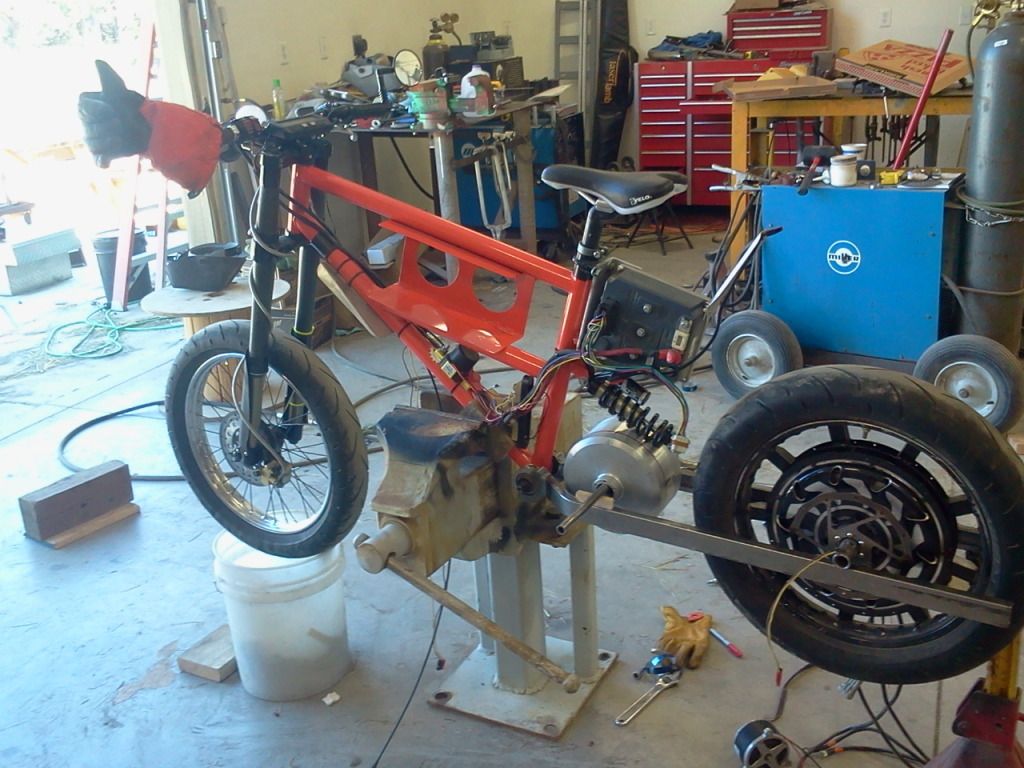

yeah, Its called turning. Anywho, heres a mock up pic of the motor :D .

Test Review Revise Repeat

User avatar
fractal   1 kW

1 kW
Posts: 322
Joined: May 10 2011 1:26pm

Re: Farfle joins the MENS club

Post by fractal » Jul 25 2012 11:27am

nice work!!! is that a dirt bike fork? if so, where did you get the headtube to make a good fit?
Norco A-line DH bike with :
«cromotor/hubzilla» from http://www.greyborg.com/
24s 3p Lipo (100v, 15ah)
Methods LVC/HVC cell level protection system http://www.methtek.com
24 fet infineon controller made by Lyen, heavily moded by Methods
8awg harness by Icecube57
17 inch moped rims with Michelin Gazelle tires by John Rob Holmes http://www.holmeshobbies.com
other stuff http://www.ebikes.ca

details
http://www.helicamguide.com

User avatar
nicobie   10 MW

10 MW
Posts: 2488
Joined: Aug 07 2008 1:48pm
Location: Central Coast CA,USA

Re: Farfle joins the MENS club

Post by nicobie » Jul 25 2012 12:02pm

Looking good!

Nice vise too.
Take it easy... but take it. (Woody Guthrie)

my eTownie build thread: http://endless-sphere.com/forums/viewto ... =6&t=23701
Magazine article https://www.electricbike.com/nicks-etownie/

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 25 2012 12:17pm

fractal wrote:nice work!!! is that a dirt bike fork? if so, where did you get the headtube to make a good fit?
nope, its a Manitou Dorado, you can find them pretty cheap in need of a rebuild, which isn't real hard.
nicobie wrote:Looking good!

Nice vise too.
Its my favorite one :D
Test Review Revise Repeat

User avatar
fractal   1 kW

1 kW
Posts: 322
Joined: May 10 2011 1:26pm

Re: Farfle joins the MENS club

Post by fractal » Jul 25 2012 12:45pm

Hey Farfle, I'm really interested in your rear swingarm linkage. How did you make it ? Are they all custom made pieces? Did you use a special BB? Bearings, ...etc? Having the swingarm link on the BB seems like a good and simple idea.
Norco A-line DH bike with :
«cromotor/hubzilla» from http://www.greyborg.com/
24s 3p Lipo (100v, 15ah)
Methods LVC/HVC cell level protection system http://www.methtek.com
24 fet infineon controller made by Lyen, heavily moded by Methods
8awg harness by Icecube57
17 inch moped rims with Michelin Gazelle tires by John Rob Holmes http://www.holmeshobbies.com
other stuff http://www.ebikes.ca

details
http://www.helicamguide.com

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 26 2012 11:44pm

sweet! the new lams are here!






Test Review Revise Repeat

User avatar
liveforphysics   100 GW

100 GW
Posts: 14134
Joined: Oct 29 2008 1:48am
Location: Santa Cruz, CA, USA

Re: Farfle joins the MENS club

Post by liveforphysics » Jul 26 2012 11:50pm

Right on! You're one of the very few folks on ES who has had custom lams made. I'm pumped to see it all come together!
Each carcinogen vapor exposure includes a dice roll for cancer.

Each mutagen vapor exposure includes a dice roll for reproductive genetic defects in your children.

Each engine start sprays them into a shared atmosphere which includes beings not offered an opportunity to consent accepting these cancer experiences and defective genetics life experiences.

Every post is a free gift to the collective of minds composing the living bleeding edge of LEV development on our spaceship.

User avatar
Miles   100 GW

100 GW
Posts: 11030
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle joins the MENS club

Post by Miles » Jul 27 2012 12:40am

Great! Looking forward to seeing how this performs.

User avatar
nicobie   10 MW

10 MW
Posts: 2488
Joined: Aug 07 2008 1:48pm
Location: Central Coast CA,USA

Re: Farfle joins the MENS club

Post by nicobie » Jul 27 2012 1:00pm

Those are thin!
Take it easy... but take it. (Woody Guthrie)

my eTownie build thread: http://endless-sphere.com/forums/viewto ... =6&t=23701
Magazine article https://www.electricbike.com/nicks-etownie/

User avatar
Farfle   1 MW

1 MW
Posts: 1757
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle joins the MENS club

Post by Farfle » Jul 27 2012 1:03pm

The lams are .014" m19 C5 electrical steel, Im hoping it should keep eddy losses pretty low.
Test Review Revise Repeat
