Re: Farfle joins the MENS club

Post by Farfle » Jul 28, 2012 12:57 am

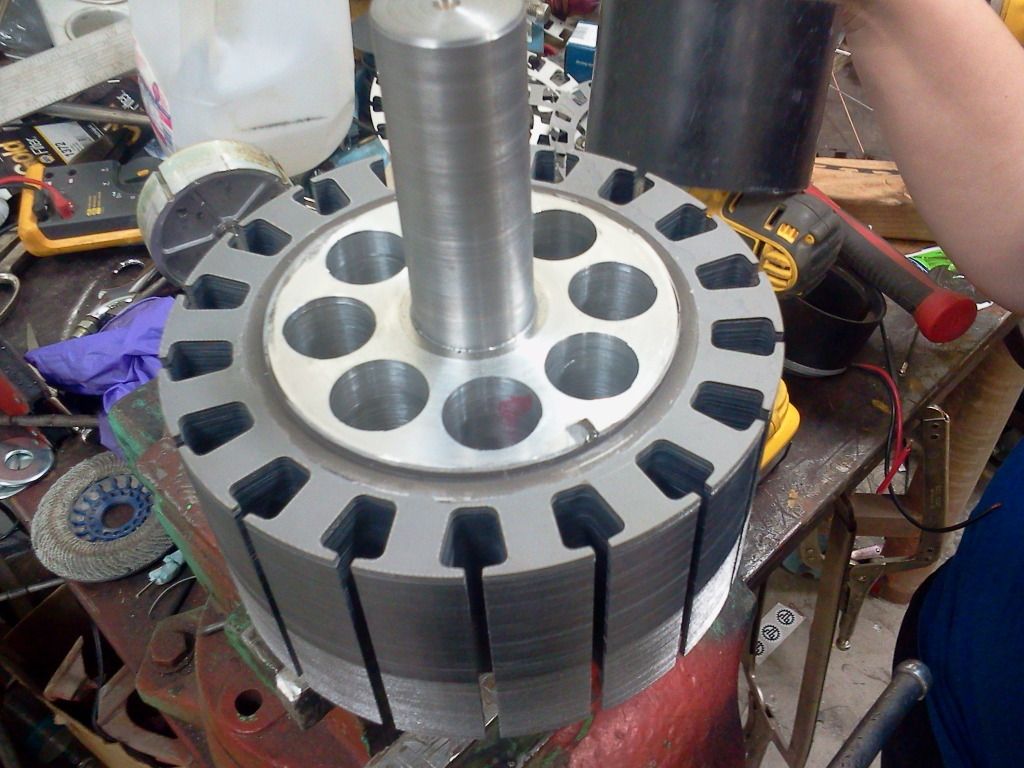

woot! lams are stacked!
aaand it's 11 pm. Im headed out.

The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
bzhwindtalker
1 MW
1 MW
Posts: 1590
Joined: Dec 01, 2008 1:03 pm
Location: Lyon, France

Re: Farfle joins the MENS club

Post by bzhwindtalker » Jul 28, 2012 4:49 am

Beast. Thinking about starting your race motors company yet?

Trackman417
10 kW
10 kW
Posts: 998
Joined: May 05, 2011 9:25 am
Location: Bergen County, New Jersey

Re: Farfle joins the MENS club

Post by Trackman417 » Jul 29, 2012 8:48 pm

Farfle wrote:woot! lams are stacked!
aaand it's 11 pm. Im headed out.

hehe start winding! :wink:
K2 Sidewinder
H4065 36 mph
20s2p 10aH lipo battery pack
If it didn't kill you, it just built your character.
You know your bike is powerful when even you, the builder, can't control it.
Customer 00001 at our very own Bigmooses online store http://mtg-technologies.com/zencart/ Great guy, great products.

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Jul 30, 2012 12:00 am

new stuff incoming! Axle is done, wheel is done, swingarm is next.

Image I
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Jul 30, 2012 11:46 am

Some evcalc shots with some different gearing. With 3.3 kw of waste heat, I don't think that speed is sustainable for long. :twisted: :twisted: :twisted:

The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Jul 31, 2012 1:28 pm

New swingarm is almost done! Just have to make some gussets, mounts for the motor, shock and dropouts.



The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

ejay
10 mW
10 mW
Posts: 24
Joined: Mar 27, 2011 7:18 am

Re: Farfle joins the MENS club

Post by ejay » Jul 31, 2012 1:34 pm

epic.

Mild or Cromo? and dimensions of the swingarm material be good if you can, cheers!

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Jul 31, 2012 1:40 pm

Its 3/4x1.5" and 3/4x3/4" .045 wall high-tensile. One step above mild steel, and one step below chromo. I cant find chromo in rectangular tube that doesn't cost ten bucks a foot. :? :? .
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Jul 31, 2012 9:31 pm

Shes a roller!


The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
biohazardman
100 kW
100 kW
Posts: 1427
Joined: Jun 29, 2008 5:28 pm
Location: Portland,Oregon USA

Re: Farfle joins the MENS club

Post by biohazardman » Jul 31, 2012 9:43 pm

That thing is looking pretty mean for sure. Motor makes my 3220 look more than a bit anemic. Nice werq so far looks like it's going to be a fun one.
Build it like your life depends on it. Cuz it does.
Golden Motor Schwinn first build http://goldenmotor.com/SMF/index.php?topic=279.0
Giant BMC build https://endless-sphere.com/forums/viewto ... &start=390
Short ride vids https://endless-sphere.com/forums/viewto ... 60#p321703

hydro-one
10 kW
10 kW
Posts: 947
Joined: Dec 19, 2008 2:02 pm
Location: winipeg Canada

Re: Farfle joins the MENS club

Post by hydro-one » Jul 31, 2012 11:17 pm

Very nice build so far. Excited to see ur motor come together, we need more motors built by us. !!!!!!!!!! lams look sexy :mrgreen:

now go! Really show the kids what ElEcTrIcKs can do!!!!!!!!! :mrgreen: :mrgreen:

Great work!
Pro ebiker
28s hk lipo
3ooA kelly/cromotor 17"
sana cruz bullit

User avatar
Whiplash
1 GW
1 GW
Posts: 3079
Joined: May 10, 2010 2:55 pm

Re: Farfle joins the MENS club

Post by Whiplash » Aug 01, 2012 2:40 pm

Yikes, that motor is a beast! Bike looks great as usual! Unbelievable craftsmanship!
Power is a fascinating thing, the more you have, the more you want, but the real power is having the restraint not to use it all at once...............Um...Yeah..

The harder you work.....The luckier you get!!

"People who say it can't be done are often interrupted by those that have already figured out how to do it!"

Email me @ currentcycles@gmail.com
OR check out http://www.CurrentCycles.net

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 02, 2012 1:20 am

Question for those more educated than I, since this motor has 18 teeth and 16 mags, would it be wound AaA BbB CcC, twice over? or something different?
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Miles
100 GW
100 GW
Posts: 11452
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: Farfle joins the MENS club

Post by Miles » Aug 02, 2012 2:28 am

Yes.
Attachments

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 02, 2012 4:37 pm

Thanms much for the winding diagram. Progress made today, dropouts are done, when nomex paper shows up, it's winding time.


The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Miles
100 GW
100 GW
Posts: 11452
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: Farfle joins the MENS club

Post by Miles » Aug 02, 2012 5:08 pm

Farfle wrote:Thanms much for the winding diagram.
Ref. : http://www.powerditto.de/bewicklungsrechner.html

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 03, 2012 12:56 am

looking good!

The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
AussieJester
100 GW
100 GW
Posts: 9447
Joined: Mar 11, 2008 3:33 am
Location: Perth Western Australia

Re: Farfle joins the MENS club

Post by AussieJester » Aug 03, 2012 1:45 am

Fantastic! ...thus far IMHO THE best looking custom/purpose built e-race bike
on Endlessphere...."thus far..." ::wink:: Great job Farfle :-)

KiM

User avatar
Miles
100 GW
100 GW
Posts: 11452
Joined: Mar 16, 2007 4:15 pm
Location: London UK

Re: Farfle joins the MENS club

Post by Miles » Aug 03, 2012 1:53 am

Looking good.

Perhaps a slightly darker shade of pink, though? :)

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 03, 2012 11:00 am

Miles wrote:Looking good.

Perhaps a slightly darker shade of pink, though? :)
Thanks AJ, and it does look pink in that picture... its supposed to be red-orange, but looking back thru my pics it shows up pink in a few of them :lol: :lol: .
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 04, 2012 8:20 pm

About to start winding, and have a few questions. the origional wind made 480 rpm at 48v, so 10 rpm/v. Im aiming for 30rpm/v, the original wind was 31 turns of 2 paralell strands of 18awg in delta. so, to get about 3x the kv, ill need 12 paralelled strands with 5 turns 6x less turns to get 3x the kv as the stator is twice as wide. BUT, that's in delta, so in wye that would be 3 turns of 20 paralelled strands :shock: that's a phase wire that's 5awg :shock: im worried about the lack of resistance and inductance this beast will have.
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

Biff
100 W
100 W
Posts: 244
Joined: May 26, 2008 10:58 am
Location: Kelowna, BC

Re: Farfle joins the MENS club

Post by Biff » Aug 05, 2012 1:05 am

Did your controller have field weakening (or over speed) before?

If not you might want to increase your turns back up to 5 turns

If you want around 3000 RPM maximum and plan on using field weakening controller, like the Sevcon Gen4, I would target spinning 2500 No-load without field weakening, if you are planing on running the Sevcon Gen4, the max nominal voltage you will have is 104V, and you want to run that if you want the best performance out of that controller, so I would target 2500RPM/104V is about 24RPM/V or only about 2.4x the KV of the original Motor.

To follow your original math, you had 31 turns, and you doubled the thickness of the stator so you would need 15.5 turns to get the same KV, you want 3x the kv so 5turns, then switching to Wye decreases by 1.73x which would end up with 1.8x the Kv of the original Motor

4 turns WYE shoudl give 2.2x the Kv of the original Motor

3turns WYE should give 3x the Kv of the original Motor.

Based on that I woudl go with 4 turns.

Lets look a the torque numbers though and see what you really want
In other threads you can find that Kt (Nm / A) is equal to 9.549/kv , so a 4 turn WYE,double wide motor with 2.2x the original KV would in theory have 22RPM/V = 0.434Nm / A. I know that RMS amps and DC Volts and stuff are all confusing, but from what I have experianced that conversion works pretty good at predicting Torque / Phase RMS apms as reported by a Sevcon controller. So a Size2 with 250RMS phase amp limit gives 108Nm of torque. With a 20" OD rear tire, you would get about 120kph at 2000 RPM, which sounds about right, maybe a little high for most of the kart tracks and be fun on the road. So you would want a 2:3 ratio on your gearing so 3000 motor RPM = 2000 Wheel RPM, that would multiply your torque at your rear wheel by 3/2, so rear wheel torque is 150Nm. With a 20" OD tire 10"radius (0.254m) that woudl be 590N of force to the ground .. 590N is about 130pounds force. I imagine you and your bike will weight something like 260lbs all up, so that would only give you about 0.5G acceleration. at 1/2G acceleartion your theoretical 0-60 time is around 5.5Seconds, which isn't bad, but it won't make you crap your pants which I think is what you are going for. To do that you would need to upgrade to a larger controller, or go to more turns, maybe 5, and sacrifice power available at top speed, or gear a little shorter which would be easier on your motor / controller, but would certainly limit your top speed.

All this math was done quickly so I could surely have made a mistake .. please check it over and tell me what you think.

-ryan

User avatar
Emoto
1 kW
1 kW
Posts: 496
Joined: Jun 13, 2011 9:31 am
Location: Australia

Re: Farfle joins the MENS club

Post by Emoto » Aug 06, 2012 9:42 am

Farfle
ive only wound 1 rc motor and its been a while but this might be worth a look http://www.bavaria-direct.co.za/models/motor_info.htm
My first build #1 The long road viewtopic.php?f=6&t=50752
Build #2 Scootabot https://endless-sphere.com/forums/viewt ... 35&t=92574
Build #3 Street Machine https://endless-sphere.com/forums/viewt ... =6&t=83235
My Diy cam Before go pro existed https://vimeo.com/33071514

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 06, 2012 1:26 pm

Emoto wrote:Farfle
ive only wound 1 rc motor and its been a while but this might be worth a look http://www.bavaria-direct.co.za/models/motor_info.htm

Thanks man, there are some useful calculators in there.
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

toolman2
1 kW
1 kW
Posts: 419
Joined: Feb 23, 2010 9:34 pm

Re: Farfle joins the MENS club

Post by toolman2 » Aug 07, 2012 8:01 am

Biff wrote:Did your controller have field weakening (or over speed) before?

If not you might want to increase your turns back up to 5 turns

If you want around 3000 RPM maximum and plan on using field weakening controller, like the Sevcon Gen4, I would target spinning 2500 No-load without field weakening, if you are planing on running the Sevcon Gen4, the max nominal voltage you will have is 104V, and you want to run that if you want the best performance out of that controller, so I would target 2500RPM/104V is about 24RPM/V or only about 2.4x the KV of the original Motor.

To follow your original math, you had 31 turns, and you doubled the thickness of the stator so you would need 15.5 turns to get the same KV, you want 3x the kv so 5turns, then switching to Wye decreases by 1.73x which would end up with 1.8x the Kv of the original Motor

4 turns WYE shoudl give 2.2x the Kv of the original Motor

3turns WYE should give 3x the Kv of the original Motor.

Based on that I woudl go with 4 turns.

Lets look a the torque numbers though and see what you really want
In other threads you can find that Kt (Nm / A) is equal to 9.549/kv , so a 4 turn WYE,double wide motor with 2.2x the original KV would in theory have 22RPM/V = 0.434Nm / A. I know that RMS amps and DC Volts and stuff are all confusing, but from what I have experianced that conversion works pretty good at predicting Torque / Phase RMS apms as reported by a Sevcon controller. So a Size2 with 250RMS phase amp limit gives 108Nm of torque. With a 20" OD rear tire, you would get about 120kph at 2000 RPM, which sounds about right, maybe a little high for most of the kart tracks and be fun on the road. So you would want a 2:3 ratio on your gearing so 3000 motor RPM = 2000 Wheel RPM, that would multiply your torque at your rear wheel by 3/2, so rear wheel torque is 150Nm. With a 20" OD tire 10"radius (0.254m) that woudl be 590N of force to the ground .. 590N is about 130pounds force. I imagine you and your bike will weight something like 260lbs all up, so that would only give you about 0.5G acceleration. at 1/2G acceleartion your theoretical 0-60 time is around 5.5Seconds, which isn't bad, but it won't make you crap your pants which I think is what you are going for. To do that you would need to upgrade to a larger controller, or go to more turns, maybe 5, and sacrifice power available at top speed, or gear a little shorter which would be easier on your motor / controller, but would certainly limit your top speed.

All this math was done quickly so I could surely have made a mistake .. please check it over and tell me what you think.

-ryan
that is good info right there, it may appear hard going but well worth a few re-reads to soak it up, quite impressive to begin with just a couple of bits of data about a motor that doesn't exist yet and end with a good ballpark 0-60 time -it all adds up right to me. fine work biff!

Post Reply
