Post by toolman2 » Aug 24, 2012 6:40 pm

Farfle wrote:And what's more awesome, at 250A, the windings will be making only 840 watts of heat.
so its 13.4m ohms resistance per phase? (13.4*250*250=840) -just wondering if thats how you worked it out.

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 24, 2012 8:06 pm

The phase wire is 15 paralleled strands of 18awg. And each phase is roughly 5 m long. So 10m of phase in Wye. Double check my math here but each wire is .021 ohms/meter so .021 ohms x10m /15 strands is .014 ohms per phase. 250a at .014 ohms is 875 watts. Little off my quoted number :oops: but I think I did that calc from a more accurate length of the phase wire.
The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
Farfle
10 MW
10 MW
Posts: 2097
Joined: Jun 27, 2010 10:42 am
Location: Moscow, ID
Contact:

Re: Farfle joins the MENS club

Post by Farfle » Aug 29, 2012 12:29 am

Almost there...

Hopefully should be a roller tomorrow night.

The race bike:
24s5p 50c nano tech
Badass custom mofo outrunner 205x177mm 26kv
Peak power in : 420A at 87v
Peak power out: 34 Hp and 105ft/lb

Build to last...
"It will be assaulted by the elements, It will be ravaged by time and it will be destroyed by the user. BUT, if you Stick to the little rules: K.I.S.S., Overbuild everything, and test, review, revise, repeat. It will last"


Team Farfle blog!! http://www.farfleselectrics.blogspot.com

User avatar
MattyCiii
100 kW
100 kW
Posts: 1483
Joined: May 05, 2007 2:06 pm
Location: Boston, MA, USA

Re: Farfle joins the MENS club

Post by MattyCiii » Aug 29, 2012 12:52 am

Damn!
A massive home built motor, steel frame stout as a wrecking ball, and now an implementation of the mythical sprotor to boot?
:D
1st build: Dahon Jetstream folding bike. Quick, reliable, capable of 32mph. Light enough to lift, folds for easy transport by car/bus/train.
2nd build: RC powered 2009 Norco A-Line. Top speed 39mph. Built like a tank, it's resistant to Boston potholes, can stop on a dime, easily goes up/down curbs when necessary.
3rd build (just started): Scratch build ultimate utility bike. Based on a common power module using a NuVinci left side freewheel.

dbaker
100 kW
100 kW
Posts: 1071
Joined: Oct 24, 2008 2:32 pm

Re: Farfle joins the MENS club

Post by dbaker » Aug 29, 2012 5:47 am

Ebike art :mrgreen: :mrgreen: :mrgreen:

User avatar
fizzit
10 kW
10 kW
Posts: 803
Joined: Mar 10, 2010 10:14 pm
Location: Seattle, WA

Re: Farfle joins the MENS club

Post by fizzit » Aug 29, 2012 3:01 pm

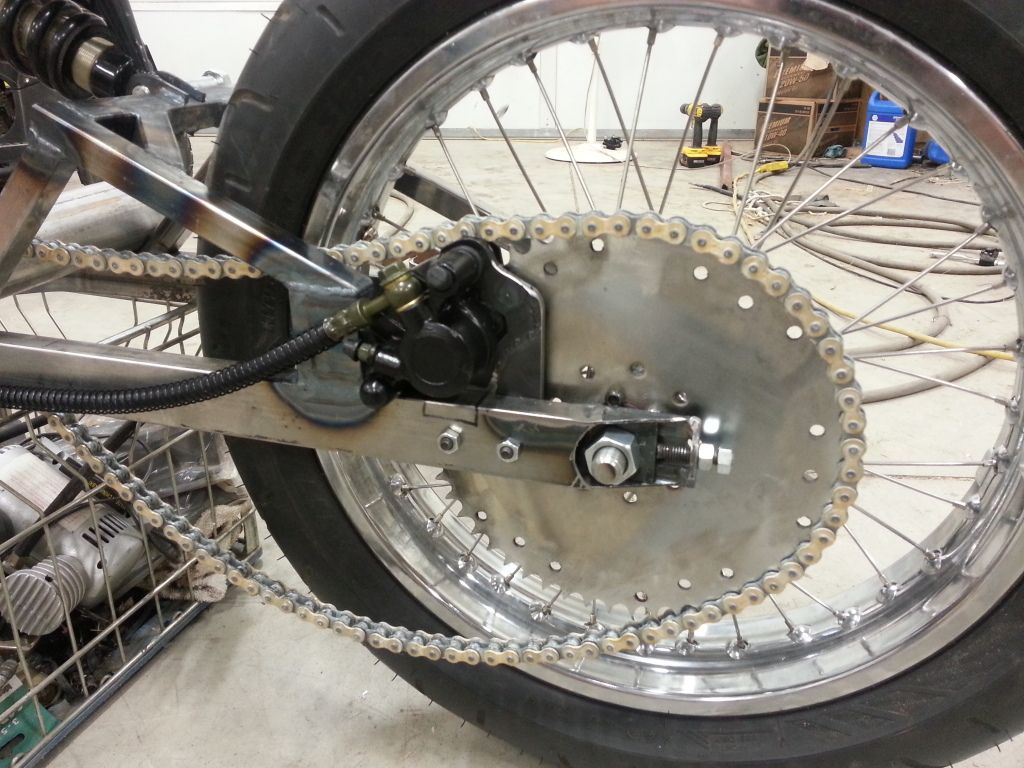

That sprotor looks interesting! I think you will need to be very careful about lubing the chain, otherwise you might almost completely lose your back brake!
