prius inverter gen 3 + toyota rear motor

Abricosvw

10 mW
Joined
May 11, 2018
Messages
34
hi ...
i am from NJ ... ((if someone is nearby??))

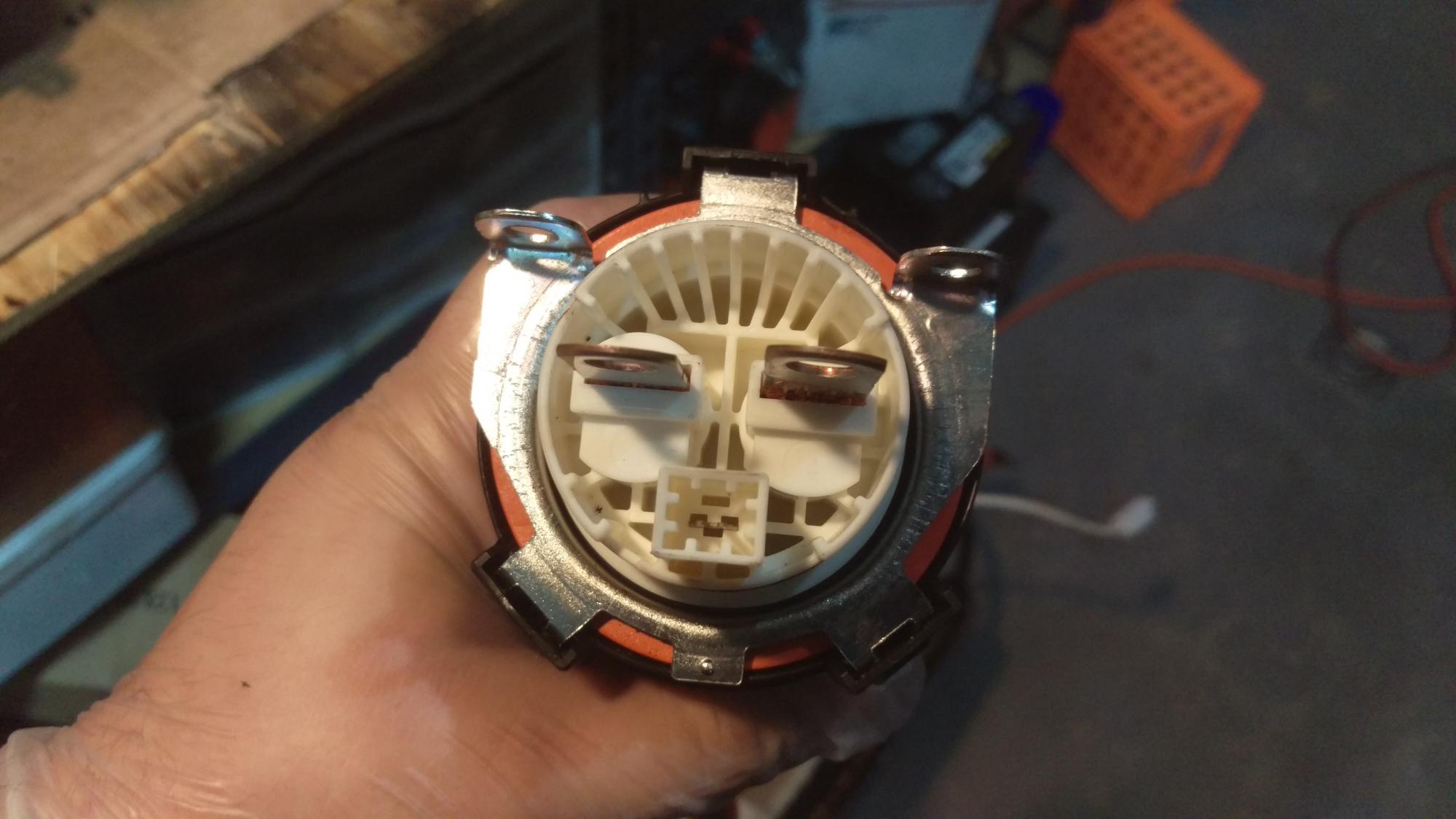

my new project I want to run prius inverter gen 3 + toyota highlander rear motor ... ((homemade hybrid))
I want to install all this set on to 96 vw passat B4 on rear wheels ... ((at an early date))
I do not have much experience and no education but I have a lot of interest ...

my first steps i got highlander rear motor 50KW
on the video, I just test it works or not ((12V cheap chinese driver))
[youtube]https://youtu.be/xrGgDHG6X7w[/youtube]

step two prius inverter gen 3 100KW

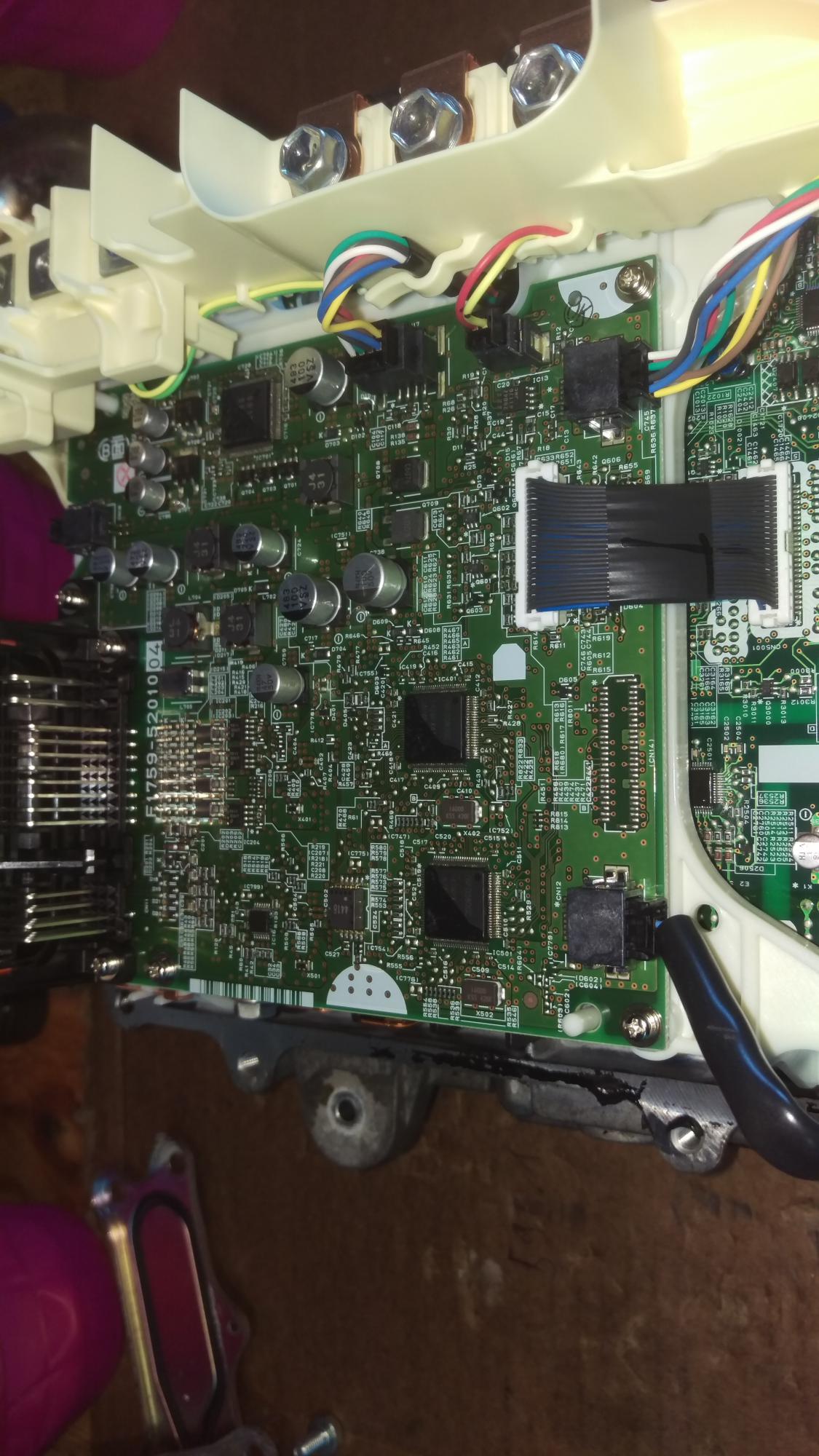

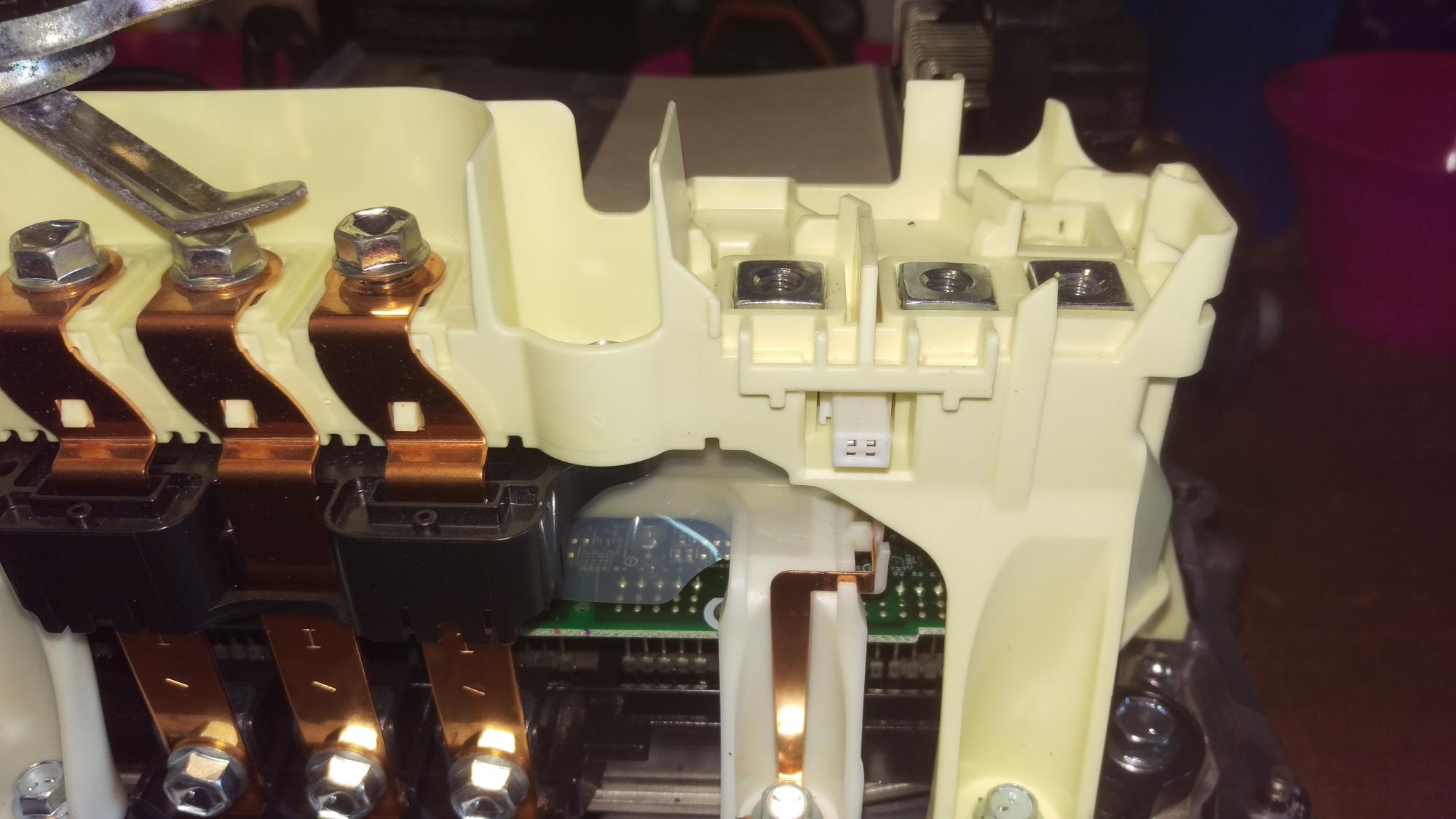

couple of photos














step three inverter connector + pigtail
pigtail from inverter connector is attached to fuse box








I do not have connector from resolver encoder ((sensor))


step four
we need to understand what kind of wires ((enter and exit to the inverter))




if you pay attention to the blue electrical tape ...
there is a twist of wires and a change in the color coloration ...

now we need to somehow manage the inverter ( driver ) ...
so that you can manage and change settings and customize how your electric motor should rotate and work ...
we need Electronic control unit ...
I chose Lebowski's motor control https://endless-sphere.com/forums/viewtopic.php?f=30&t=57877&hilit=Lebowski+Brain+board
in our option We only need Lebowski( chip brain ) ... and an expansion board ...
read the documentation how to manage the program https://endless-sphere.com/forums/download/file.php?id=108834
for windows 10 download Termite version 3.4 - complete setup https://www.compuphase.com/software_termite.htm
If you follow the instructions in the PDF file you will have same as in the photo below Новый точечный рисунок.jpg

:mrgreen: note :mrgreen:
I had a few problems
the first as I understood my laptop does not have ground wire ... I started using a desktop PC the noise was gone ...
there was also a problem with cheap RS232 Serial Port from 5 different worked only one IMAG0006.jpg
