li-ion 18650 Adjustable size BATTERY HOLDER - Honeycomb Layout

Post by KarT_PS » Jan 05 2018 4:34am

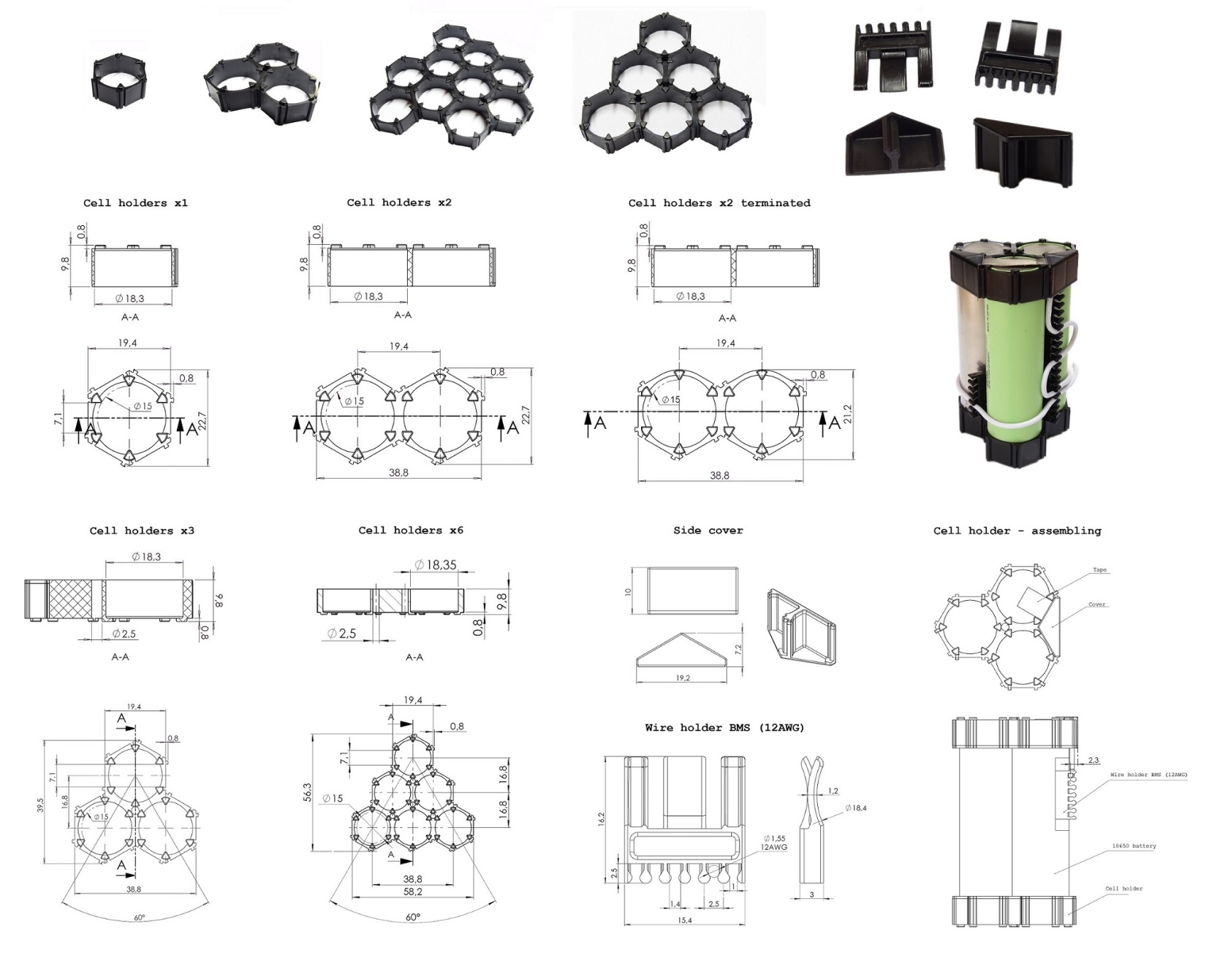

Battery Holder cells that can be combined in a variety of shapes to align to available space. Fits li-ion 18650 batteries.
The cells are placed on a multiple triangle shape (kind of honeycomb) - allows to utilize available space more efficiently.
Distance between cell 19.4 mm.
Material: ABS, Injection Molded, Produced in EU, Patent Pending

Pricing per piece (excl VAT and shipping), MOQ 500 pcs:

BatteryHolder x1 - 0.08 net EUR
BatteryHolder x3 - 0.12 net EUR

Orders via PM.
Shipping from Poland.



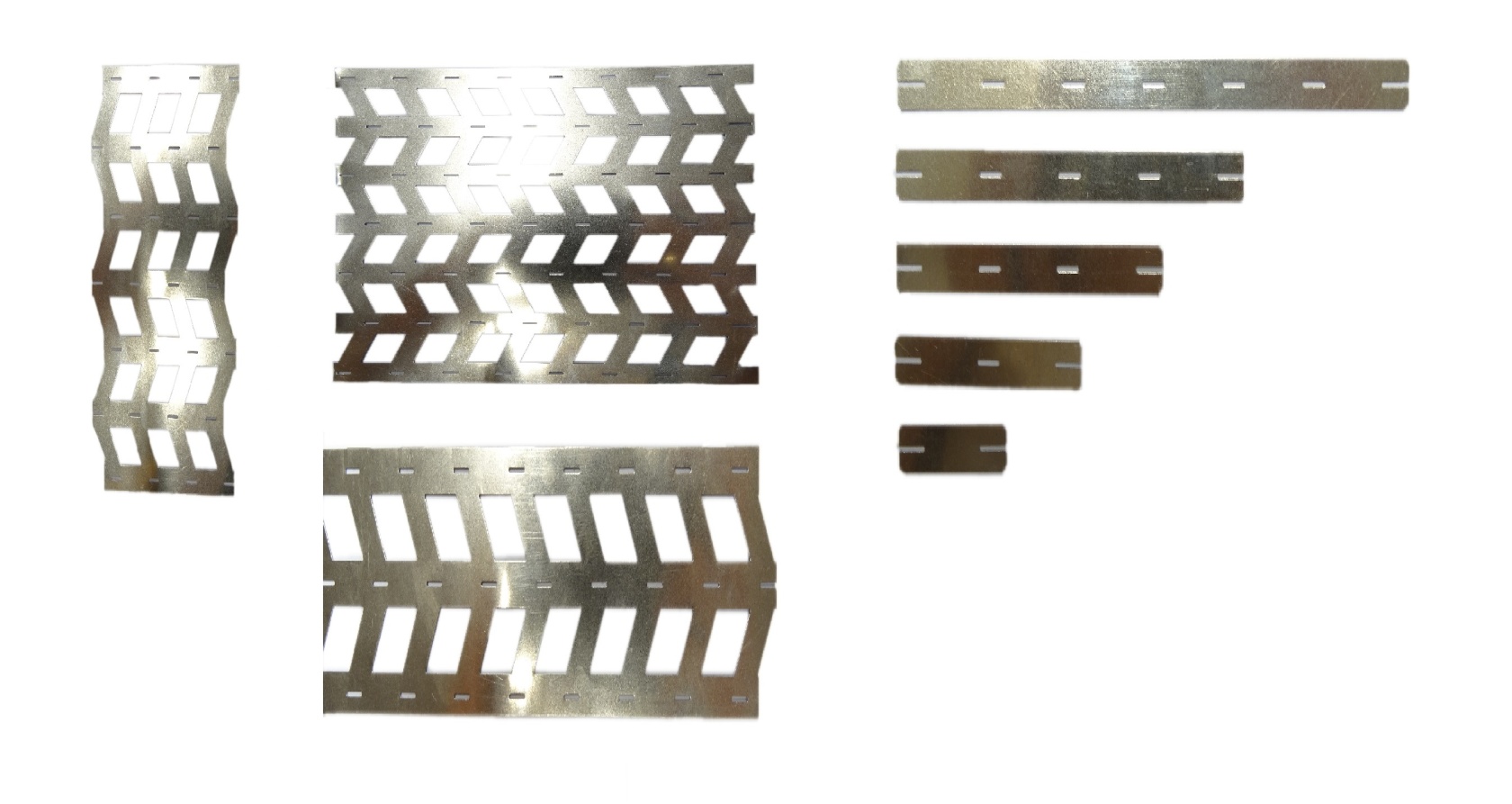

RECENTLY ASSEMBLED BATTERY PACKAGE with Honeycomb BATTERY HOLDER:




KarT_PS   100 µW

100 µW
Posts: 9
Joined: Jan 04 2018 5:36am

Re: li-ion 18650 Adjustable size BATTERY HOLDER - Honeycomb Layout

Post by KarT_PS » Jan 12 2018 1:42am

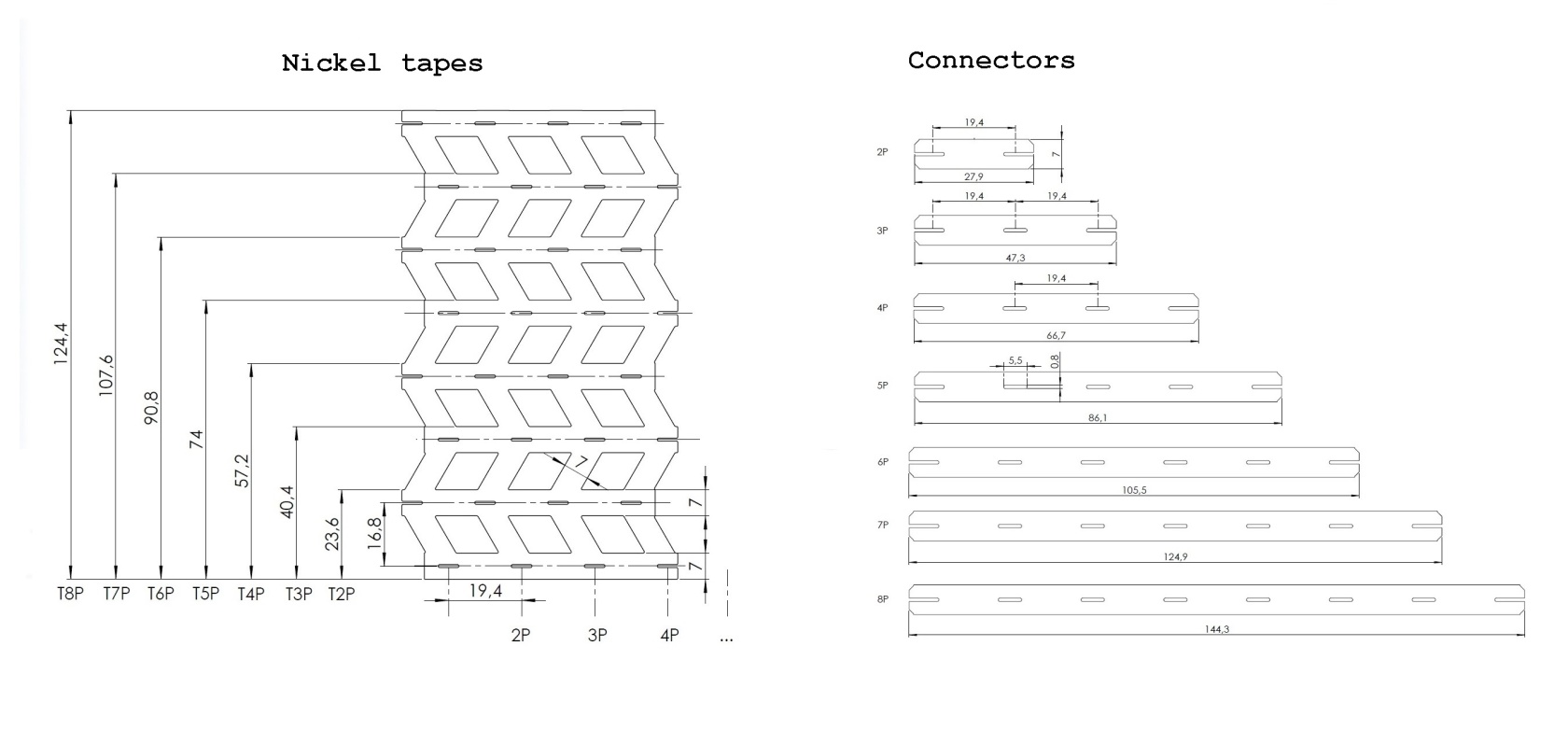

For your reference, the dimension matrix of the 10x10 battery pack:


footbaldd   100 mW

100 mW
Posts: 38
Joined: Dec 29 2017 12:28am
Location: Bmt, Texas
Contact:

Re: li-ion 18650 Adjustable size BATTERY HOLDER - Honeycomb Layout

Post by footbaldd » Jan 16 2018 8:35am

PM sent.

hypertoric_amplituhedron   100 W

100 W
Posts: 151
Joined: Dec 02 2016 7:57pm
Location: Land of the Florida Man

Re: li-ion 18650 Adjustable size BATTERY HOLDER - Honeycomb Layout

Post by hypertoric_amplituhedron » Jan 21 2018 4:21pm

Dude, these look great. Exactly what I'm looking for. I'll be considering these for a few upcoming builds.
There are two types of people in this world.

1. Those who can extrapolate from missing information.

KarT_PS   100 µW

100 µW
Posts: 9
Joined: Jan 04 2018 5:36am

Re: li-ion 18650 Adjustable size BATTERY HOLDER - Honeycomb Layout

Post by KarT_PS » Jan 25 2018 6:31am

Now Battery Holder 2x available!!


footbaldd   100 mW

100 mW
Posts: 38
Joined: Dec 29 2017 12:28am
Location: Bmt, Texas
Contact:

Re: li-ion 18650 Adjustable size BATTERY HOLDER - Honeycomb Layout

Post by footbaldd » Feb 21 2018 8:40pm

The cell holders showed up and look excellent. You do need to pay attention to make sure that all of the dovetail joints are properly connected, and the shipping was quite expensive. Once the package left Poland, which took around a week, it was here within a day and a half (Houston, TX). They are exactly what I was looking for. Thanks again.
