Electric Bubble Gum board mk1

Post by voodoojar » Jul 10 2014 8:15pm

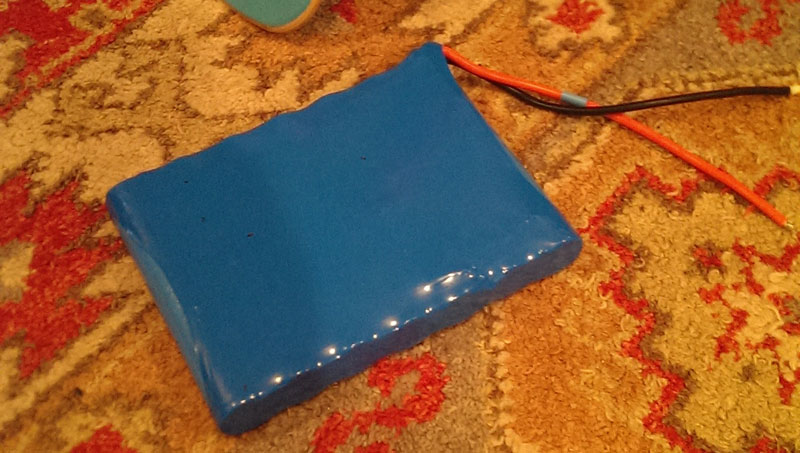

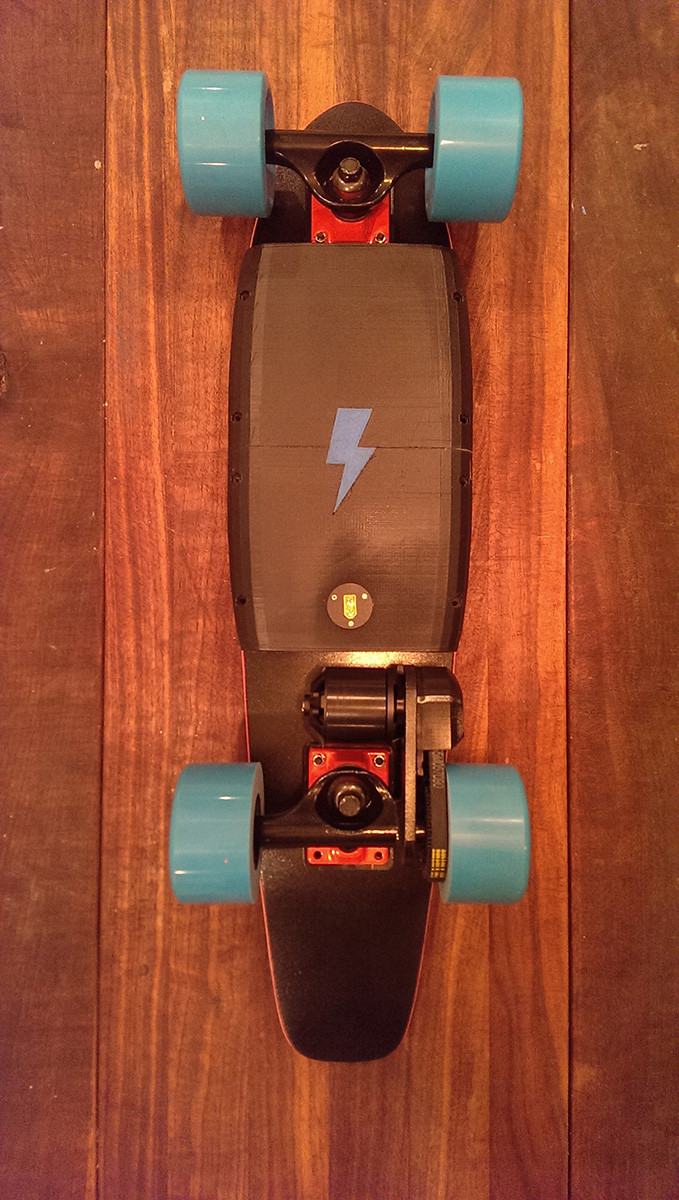

I'm not quite ready to post the entire build yet but I finally got all the wiring and 3D models done and assembled the first prototype. I'm really excited about it and wanted to share.

Im still messing with placement in the case so it's not bolted down yet. I actually have a tone of room inside the case so it will get a good bit smaller for mk2.

Runing a 7s2p lion pack with BMS on/off switch and led fuel gauge. Uses a cheap laptop style charger. Here is one before wiring up.

User avatar
psychotiller   10 kW

10 kW
Posts: 949
Joined: Jan 01 2014 7:11pm
Location: Orange County, Ca USA
Contact:

Re: Electric Bubble Gum board mk1

Post by psychotiller » Jul 10 2014 8:31pm

Sweet!
www.psychotiller.com

builds:
XT Wheels/Custom Hub & mount on Randal 180's/Drop Throughhttp://endless-sphere.com/forums/viewto ... 35&t=59259
6" Pneumatic Tire Drop Down/Drop Through http://endless-sphere.com/forums/viewto ... 35&t=60449
"Have you ever heard of Plato? Aristotle? Socrates? Morons!"-Vizzini

torqueboards   100 MW

100 MW
Posts: 2940
Joined: May 27 2013 10:02pm
Location: San Francisco, CA
Contact:

Re: Electric Bubble Gum board mk1

Post by torqueboards » Jul 10 2014 10:41pm

Looks awesome! I like that small board. I'm sure, you could even fit it in a backpack almost..

What capacity are those packs? What's your cont. amp and peak amp rating for your pack w/ BMS?
DIYElectricSkateboard.com Electric Skateboard Kits

dirkdiggler   10 kW

10 kW
Posts: 628
Joined: Oct 18 2012 1:31am

Re: Electric Bubble Gum board mk1

Post by dirkdiggler » Jul 10 2014 11:03pm

That looks like the smallest e-transporter ever made. You could carry that thing anywhere. Definitely would fit in a small backpack. What are you using for a motor and gearing? The case and gear cover look great. Nice work.

User avatar
Gregory   100 kW

100 kW
Posts: 1084
Joined: Jul 27 2007 9:18pm
Location: Perth, Western Australia

Re: Electric Bubble Gum board mk1

Post by Gregory » Jul 10 2014 11:13pm

Very nice use of a 3D printer.

What ESC are you using for 7S?


1) x5305 Hub Motor in a 24" Sun rim with 10G spokes, Kelly 72601 controller, 74V 10Ah Turnigy LiPo 20C Battery and CycleAnalyst
2) Mac 10T rear hub in a 700C "comfort bike" 15S 5Ah LiPo, stock 28A Xie Cheng controller
3) 38" Longboard, Turnigy 6374, CC Mamba XL2 ESC

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Jul 11 2014 5:25am

torqueboards wrote:Looks awesome! I like that small board. I'm sure, you could even fit it in a backpack almost..

What capacity are those packs? What's your cont. amp and peak amp rating for your pack w/ BMS?

the pack is 6.4ah with max continuous discharge of 20A I've been running one on my other board and it looks like it will do 1.5-2 hours of mixed riding.

User avatar
beto_pty   1 kW

1 kW
Posts: 480
Joined: Dec 17 2013 8:20am
Location: Panama City, Republic of Panama

Re: Electric Bubble Gum board mk1

Post by beto_pty » Jul 11 2014 2:43pm

Gregory wrote:Very nice use of a 3D printer.
Nice catch greg..
Yes very nice enclosure...humm... 8)
Do or Do not. There is no try
PATY/neta http://endless-sphere.com/forums/viewto ... 35&t=65384
MIni-motor Build http://endless-sphere.com/forums/viewto ... 35&t=56839
Destroyer http://endless-sphere.com/forums/viewto ... 35&t=58504
Adrianas Board http://endless-sphere.com/forums/viewto ... 35&t=61171
Gargoyle http://endless-sphere.com/forums/viewto ... 35&t=61569
Velociraptor: 6s 10.4ah, Ezrun150, 9.8 mm abec11s, Quanum, 5060NTM, 16/48 hdt5, Piggyback Charge

rutierut   1 mW

1 mW
Posts: 11
Joined: Jun 05 2014 10:19am

Re: Electric Bubble Gum board mk1

Post by rutierut » Jul 11 2014 3:38pm

Belt enclosure looks so clean!

torqueboards   100 MW

100 MW
Posts: 2940
Joined: May 27 2013 10:02pm
Location: San Francisco, CA
Contact:

Re: Electric Bubble Gum board mk1

Post by torqueboards » Jul 11 2014 3:54pm

Is that XT60/90 port for the on/off or for battery charging? Why no motor cover since there is a pulley cover - clearance issues?
DIYElectricSkateboard.com Electric Skateboard Kits

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Jul 11 2014 4:04pm

torqueboards wrote:Is that XT60/90 port for the on/off or for battery charging? Why no motor cover since there is a pulley cover - clearance issues?


I want to do a barrel jack but I don't have any at the moment so just put an XT60 for the charger. my next version with have a barrel jack. This board doesn't have any of the cool stuff like the LED voltage meter and led on/off switch I just wanted to get one running to make sure nothing rubs or breaks too easy. It also still has the plastic motor mount I haven't gotten a chance to weld on the aluminium ones yet. and I'm really curious if a plastic one will last 1 ride.

I suppose I could make one for the motor it just ends up looking like a big coke can on the back, thought it looked cleaner this way. Do you think that's something people want?

torqueboards   100 MW

100 MW
Posts: 2940
Joined: May 27 2013 10:02pm
Location: San Francisco, CA
Contact:

Re: Electric Bubble Gum board mk1

Post by torqueboards » Jul 11 2014 4:53pm

voodoojar wrote:
torqueboards wrote:Is that XT60/90 port for the on/off or for battery charging? Why no motor cover since there is a pulley cover - clearance issues?


I want to do a barrel jack but I don't have any at the moment so just put an XT60 for the charger. my next version with have a barrel jack. This board doesn't have any of the cool stuff like the LED voltage meter and led on/off switch I just wanted to get one running to make sure nothing rubs or breaks too easy. It also still has the plastic motor mount I haven't gotten a chance to weld on the aluminium ones yet. and I'm really curious if a plastic one will last 1 ride.

I suppose I could make one for the motor it just ends up looking like a big coke can on the back, thought it looked cleaner this way. Do you think that's something people want?
Supposedly, that's what people want. Looks nice though without it. I don't find any issues with it being open but I guess a motor enclosure would be a bit better for riding in rain. Barrel jack would be nice..

What infill did you print your enclosure 100%? Plastic might last a few blocks if it's bolted on. If it's just hanging on there tight it most likely would fall I would think once that motor kicks on start.
DIYElectricSkateboard.com Electric Skateboard Kits

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Jul 11 2014 4:57pm

All the Plastic pieces are going to be injection molded once I finalize design. So infill is only like 20% right now and they are only 2.5mm thick. The plastic mount is put on with PC-7 epoxy it's really only there so I can give the welder a visual.

got92   10 mW

10 mW
Posts: 20
Joined: Jun 17 2013 2:57pm

Re: Electric Bubble Gum board mk1

Post by got92 » Jul 12 2014 10:25am

voodoojar wrote:All the Plastic pieces are going to be injection molded once I finalize design. So infill is only like 20% right now and they are only 2.5mm thick. The plastic mount is put on with PC-7 epoxy it's really only there so I can give the welder a visual.
it will bend for sure, i think a lot too. MIne is 9 mm thick with a 50% infill and it bend for 1 mm, it's not so good for the belt. But for a couple ride it's not a problem, right? :D

Carbon   10 mW

10 mW
Posts: 23
Joined: May 11 2014 9:03am

Re: Electric Bubble Gum board mk1

Post by Carbon » Jul 13 2014 11:38am

When will full production or beta testing be available? Is this going to be on a crowd funding site?

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Jul 13 2014 6:09pm

No solid plans yet.I got a bunch of motor mounts welded today and I should have 4 boards ready sometime this week. I was planning to pass them out to friend to ride around and GPS. I'm also working on a website and a short demo video.

I haven't decided whether or not to try crowdfunding there are some negatives to it that I really don't like. I have almost enough parts to make 25 boards so I might just star t there and see if they sell. I'm looking at a sale price of between $400-500 depending on how long it takes to assemble.

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Jul 20 2014 6:40pm

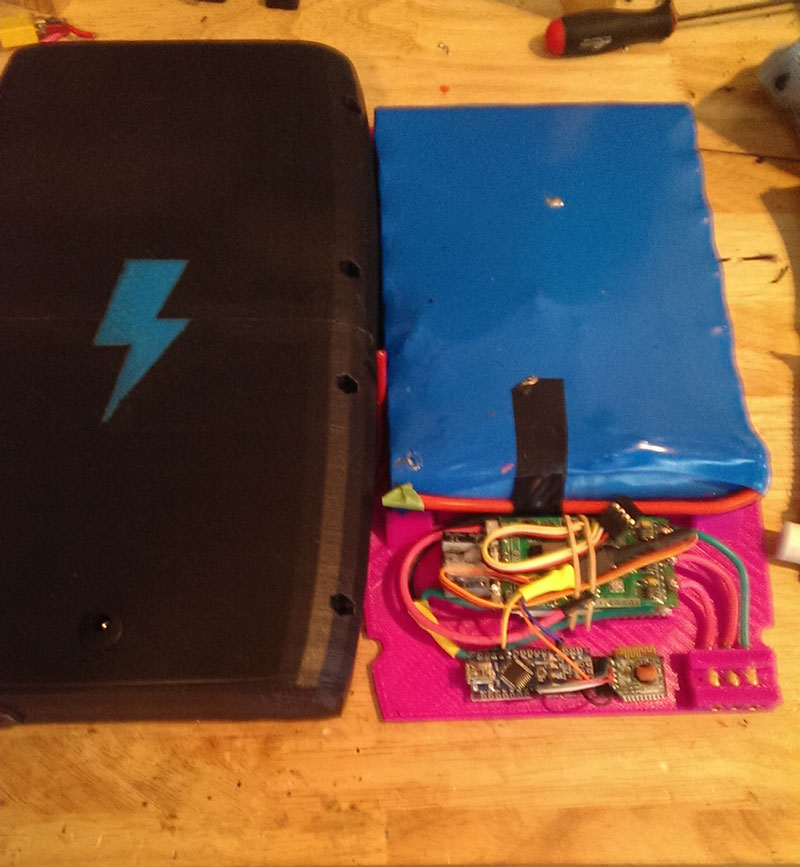

Just finished the first boards electrics. This is a prototype for testing so I left the whole Arduino in there. This is right before I wire it into the case for the on/off switch and charger.

Nikimce   10 mW

10 mW
Posts: 29
Joined: Jun 01 2013 3:55pm

Re: Electric Bubble Gum board mk1

Post by Nikimce » Jul 20 2014 8:54pm

Right on. Looking good. These little rockets are a great idea.

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Jul 24 2014 7:37pm

I turned it on first the first time a minute ago and got so excited I made a video of it.

verruckt   10 mW

10 mW
Posts: 22
Joined: Jun 11 2008 7:57pm
Location: San Diego

Re: Electric Bubble Gum board mk1

Post by verruckt » Jul 25 2014 3:27pm

I really like your design, it looks super clean.

Have you had a chance to test the acceleration at 7s? With such a short wheelbase it seems like it could get a little squirrely at launch :lol:

I've been riding longboards for years, and even still I have to brace myself for that initial acceleration at 6s with my LaGrange setup.

Great work so far - thanks for keeping the thread updated with your progress.

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Aug 16 2014 8:47pm

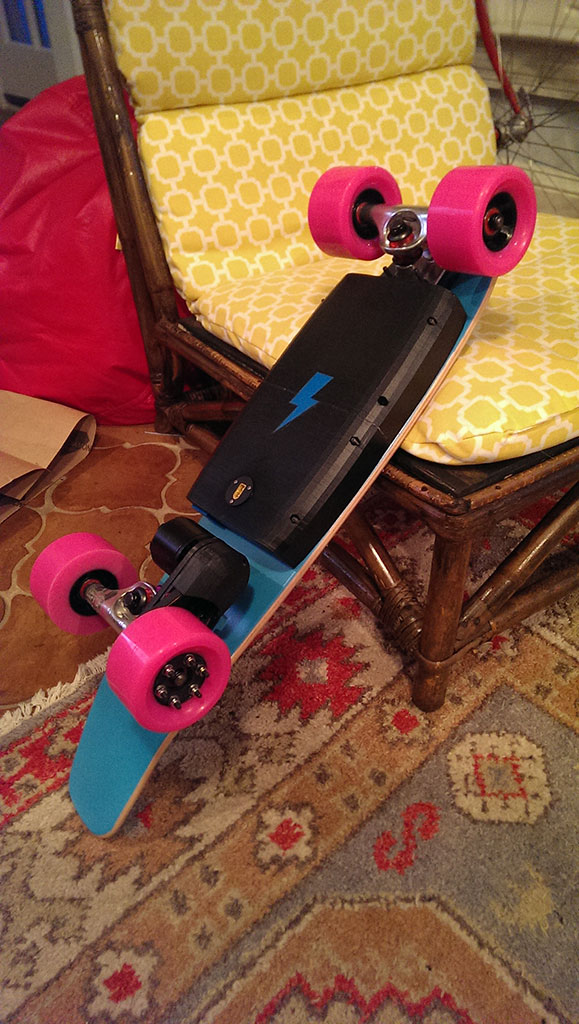

Just finished another demo board. I'm hoping to have 4-5 demo boards ready for the Maker Faire here in Atlanta October 4-5. I also working on some large sized demo boards (36" deck) as well.
This one has an older battery pack on it while I print up some new cases that are going to be 2 cm thinner.

My favorite color combo so far.


Tigerpolis   1 mW

1 mW
Posts: 10
Joined: Jul 25 2014 4:01pm

Re: Electric Bubble Gum board mk1

Post by Tigerpolis » Aug 17 2014 5:08am

Looks nice! Where did you get the battery?

BadWolf   100 mW

100 mW
Posts: 48
Joined: Jul 26 2014 2:01pm
Location: Stockholm

Re: Electric Bubble Gum board mk1

Post by BadWolf » Aug 17 2014 5:49am

Looking good! How/Where did you route the cables from the ESC > motor?

voodoojar   100 W

100 W
Posts: 124
Joined: Jan 09 2014 1:40pm
Contact:

Re: Electric Bubble Gum board mk1

Post by voodoojar » Aug 17 2014 7:08am

The motor isn't plugged in in that picture I plugs into the the case right in front of it. That picture was taken before I screwed the case to the board so I hadn't plugged the motor in yet.

papertriping   10 W

10 W
Posts: 71
Joined: Jul 05 2014 10:49am

Re: Electric Bubble Gum board mk1

Post by papertriping » Sep 12 2014 4:16pm

hey Voodoojar! Thats one awesome looking e-board! congratulations!

Could you please please list down the component you have used on your E-board- namely: motor, ESC, Battery , Reciever and tell us something about how you hooked up throttle via arduino.

Also, how is the board performing? What is the top speed? How long/far can you travel before the Lipo runs out of charge? How much run time do you get? How does it perform on inclines, up hills etc.

I just started work on a similar build. This is what I think it will look like
http://pho.to/76vgi

With my build I dont want to use a traditional RC car Transmitter receiver- so I thought of using a wifi receiver and controlling throttle with my smart phone.
However in your video- i see u using a small single button transmitter- could you tell us something more about this an how u hooked it up? Some more pictures would be awesome!

This information will be of much help to me- Cuz i'm absolutley clueless about what components to buy.- I've started a thread for just this here
http://endless-sphere.com/forums/viewto ... 74#p946174

Thanks!
|Pen E-Board| Smallest E-board ever| http://endless-sphere.com/forums/viewto ... 35&t=63223

razad7@gmail.com   1 W

1 W
Posts: 58
Joined: Sep 11 2013 10:01am

Re: Electric Bubble Gum board mk1

Post by razad7@gmail.com » Sep 14 2014 7:19am

Hey amaizng board.
I'm very interested in your Li ion setup.
What batteries are they (specs) ? Where did you get them?
How long to they last - equal to what Li-Po?
also - what esc are you using and how do you charge them?
thanks!
