Re: Cycle Analyst V3 preview and first beta release

Post by Marc S. » Jun 22 2016 2:24pm

@teklektik: You forgot the first rule of electronics: They run on white smoke and magic. :mrgreen:

User avatar
teklektik   10 GW

10 GW
Posts: 4020
Joined: Mar 26 2011 1:15pm
Location: CT, USA

v3.1 Beta 4 Released!

Post by teklektik » Jun 25 2016 12:10pm

v3.1 Beta 4 Released (DigiAux)

After some additional testing and tweaking, the DigiAux firmware release is ready to go. :D

Related posts:
2-Button PAS Up/Down Level Adjust + Pot Amps Adjust (click for details)

As promised, this release is compatible with the previous 3.1b3 release so you can flash the NoEeprom version and preserve your present settings. There was a tiny change to the Custom Views EEPROM data, but if you just reconfigure that single parameter after flashing, all will be well. Even if you don't need the DigiAux feature, upgrading will fix a couple of other minor bugs and will give you the newer serial data log record format (all mentioned below).

And here's a summary version of the included Release Notes:
3.1b4 Release Notes wrote: Note: V3.1b4 Setup files are **incompatible** with firmware or Setup files of any release prior to 3.1b3 including all earlier 3.1 versions.

IMPORTANT: Please install this package according to README_install.txt. Failure to do so may result in improper operation of the Setup Utility.

IMPORTANT: After installing this zip package on a PC, the Setup utility will no longer be able to properly utilize Setup files prepared for versions prior to 3.1b3. Settings in files prior to 3.1b3 will not display or edit properly and will download to the CA incorrectly resulting in improper CA operation. Similarly, setup files prepared with this release cannot be used with earlier CA 3.1 firmware versions. 3.0 Setup files are unaffected.


>> Any incompatible existing CA setup must be recorded and manually reconfigured over a fresh 'CA3-1b4_firmware.hex' installation.

>> All existing CA Setups prior to 3.1b3 must either be:
  1. exported manually from the CA console (at least the statistics)
  2. OR read by the Setup Utility and preserved in screen snapshots PRIOR to installing this package. Saving to a 3.1 Setup file and reading the file after installing the zip package will not work.
>> Existing 3.1b3 setups are compatible with this release, allowing re-flash of 3.1b4 firmware using the 'xxx_NoEeprom.hex' version to preserve an existing configuration. However, there is a small difference in the Pref->CustViews bit mapping. That particular parameter should be opened in either Console or Software Setup and the custom field selection corrected if necessary.

IMPORTANT: Because the firmware flash will load default settings, throttle voltage configuration may be incorrect. Treat this as an initial CA installation and place the bike on a stand or otherwise elevate the drive wheel to prevent a runaway when the flash completes and before a proper configuration can be restored.

(1) 1730 - (new) Add AuxPot support of pushbutton limit and preset selection
  • This new 'digital' Aux Input mode can operate either as an alternative to, or in conjunction with, the previous 'analog' mode. This gives three hardware configuration options:
    1. Analog Only: any of the existing analog pot/switch options
    2. Digital Only: the new digital 1 or 2 pushbutton options
    3. Analog + Digital: both analog and digital controls to operate two entirely different AuxPot control functions
      (e.g. Digital = 'Amps Limiting' and Analog = 'PAS Assist')
    New V310.cas and V310.hex files are installed with this package to upgrade the Setup Utility to display two Aux categories instead of the original one.
(2) 1730 - (new) Serial log 'AuxA' and 'AuxD' columns replace old 'Aux' column
(3) 1730 - (new) Custom 'AuxA' and 'AuxD' views replace old 'AuxLim' View
(4) 2390 - The Gear-inch Custom View should be suppressed when not pedaling
(5) 2392 - Custom Fields have periodic display glitching
So, as always: "Have at it!" and post up your beta test results and any pics or info on your digital control implementations... :D

Download!
CA3-1b4.zip
(114.04 KiB) Downloaded 50 times
(Previously implemented 3.1b3 beta features (part of this build) described here and in the Release Notes.)
(Newer 3.1b5 beta release available here!)
Last edited by teklektik on Jul 16 2016 7:01am, edited 4 times in total.
Visit Grin Technologies at www.ebikes.ca
Build Thread: 2WD Yuba Mundo V4

lightrush   10 W

10 W
Posts: 82
Joined: Jan 18 2016 7:31pm

Re: Cycle Analyst V3 preview and first beta release

Post by lightrush » Jun 26 2016 2:02pm

Guys, is the following a correct implementation of the digital-only UP/DOWN circuit using a momentary rocker?

larghio   1 mW

1 mW
Posts: 19
Joined: Nov 15 2013 3:42am
Location: Gran, Norway

Re: Cycle Analyst V3 preview and first beta release

Post by larghio » Jun 26 2016 2:43pm

Looking forward to trying it.
Bought dual wuxing buttons, they seem like a good fit for auxd mod http://m.ebay.com/itm/272009885557

Sent from my Nexus 6 using Tapatalk
The commuter: DBS intruder f7, 8t mac 24ah 29e pack from cellman, bms 900 charger, CAv3 PAS&throttle
GF bike: Merida, 12t mac 12s1p turnigy 5ah, CAv3 PAS&throttle
Raptor: Raptor 140, MaxE, CromotorV2, turnigy harpacks 20s5p 25ah, 30a charge coil.

User avatar
teklektik   10 GW

10 GW
Posts: 4020
Joined: Mar 26 2011 1:15pm
Location: CT, USA

Re: Cycle Analyst V3 preview and first beta release

Post by teklektik » Jun 26 2016 4:01pm

lightrush wrote:Guys, is the following a correct implementation of the digital-only UP/DOWN circuit using a momentary rocker?
Exactly right. Thanks for the helpful illustration! :D
(I jazzed it a tiny bit so folks could cut 'n paste it into other posts as needed...)
larghio wrote:Bought dual wuxing buttons, they seem like a good fit for auxd mod...
Wow, those are a great find!
I think I've looked at 1000 different button thingies, but this Wuxing DK-11 has nice buttons you can hit with gloves and lots of room for a couple of parts inside.
  • I've seen a similar unit that Wuxing sells with green and red buttons instead of two green where the red button is locking ON-OFF (not good for this application), so a little care in ordering is needed...
Thanks for the post!
Wrong kind with ON-OFF switch, but dimensions may be helpful
Visit Grin Technologies at www.ebikes.ca
Build Thread: 2WD Yuba Mundo V4

User avatar
justin_le   10 MW

10 MW
Posts: 2233
Joined: May 28 2007 3:27am
Location: Vancouver
Contact:

Re: Cycle Analyst V3 preview and first beta release

Post by justin_le » Jun 26 2016 5:30pm

lightrush wrote:Guys, is the following a correct implementation of the digital-only UP/DOWN circuit using a momentary rocker?
Yes exactly, and here's what that looks like in practice:
DigitalRocker Ex1.jpg
DigitalRocker Ex1.jpg (109.28 KiB) Viewed 2339 times
You may be able to use just the diode and leave out the pull-up reistor in a pinch since there is some level of internal pull-up of the Aux In in the CA, but I'd recommend leaving it there to ensure a stiff signal.

I'm using this $2 rocker switch from digikey which is a drop in fit for the ubiquitous 3-position handlebar switches, so if you have one of those it's quite easy to pop out the latching switch and replace it with the momentary rocker and change the wiring appropriately.
http://www.digikey.com/product-detail/e ... ND/1805175
DigitalRocker In Housing.jpg
DigitalRocker In Housing.jpg (128.83 KiB) Viewed 2339 times
That's a pretty quick and inexpensive way to convert what was just a 3 position switch into now a 5, 10, or however many you want levels you want digital aux input. I'll be prototyping another one which uses a 6-conductor cable in it so that at the other end it has both the male and female 3-pin plugs, allowing you to connect in an analog potentiometer too. That should reflect the circuit design that we bring into production but if all you want is the digital input mode the simple diode and resistor layout above is nice and easy.
Previously competed in the Suntrip race on a back to back tandem solar powered row/cycle trike. 550 watt solar roof, dual Grin All Axle hub motors, dual Phaserunner controllers, 12 LiGo batteries, and a whole wack of gear.

Now back in Vancouver learning to be a dad with my Big Dummy Frame (yes This One, thanks ES!) with GMAC 10T rear hub motor, Phaserunner controller, and 52V 19Ah EM3EV pack
My website: http://www.ebikes.ca
Please contact via email, info@ebikes.ca, rather than PMs, which are disabled

lightrush   10 W

10 W
Posts: 82
Joined: Jan 18 2016 7:31pm

Re: Cycle Analyst V3 preview and first beta release

Post by lightrush » Jun 26 2016 10:10pm

Thanks for proofreading it. That's exactly what I'm planning to do. I have a 3-position switch which I'm converting the way you described. :D

User avatar
izeman   10 GW

10 GW
Posts: 4929
Joined: Jun 21 2011 8:25am
Location: vienna, austria
Contact:

Re: Cycle Analyst V3 preview and first beta release

Post by izeman » Jun 27 2016 1:51am

lightrush wrote:Thanks for proofreading it. That's exactly what I'm planning to do. I have a 3-position switch which I'm converting the way you described. :D
guess who else ordered rocker switches yesterday :)
http://www.aliexpress.com/item/mini-roc ... 99284.html
i like to have spares

and here's another double button switch - seeing "wuxing and dk-11" on the pictures above helped a lot finding it
http://www.aliexpress.com/item/bike-Sco ... 30173.html

Marc S.   100 W

100 W
Posts: 236
Joined: Jul 04 2012 12:23pm
Location: Hamburg, Germany
Contact:

Re: Cycle Analyst V3 preview and first beta release

Post by Marc S. » Jun 27 2016 4:08am

I like these momentary switches for motocycles, they're not exactly cheap, though:

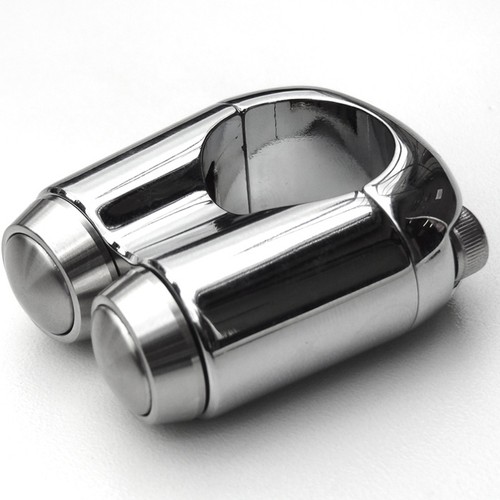

http://www.ebay.de/itm/Motogadget-m-swi ... 1170770489

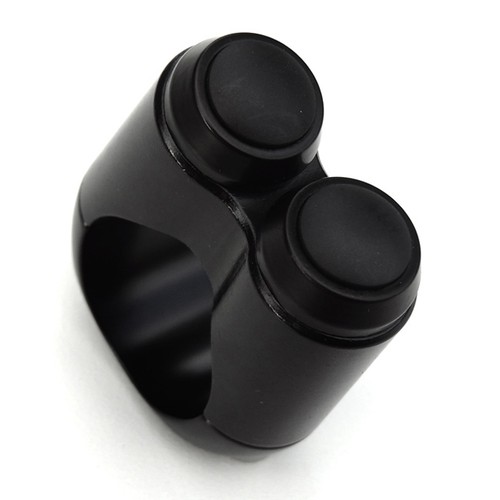

http://www.ebay.de/itm/Schwarzer-Alumin ... SwT6pV0sD-

http://www.ebay.de/itm/Chrom-Aluminium- ... Sw14xWQ3Oi

There is even a three-switch version available:

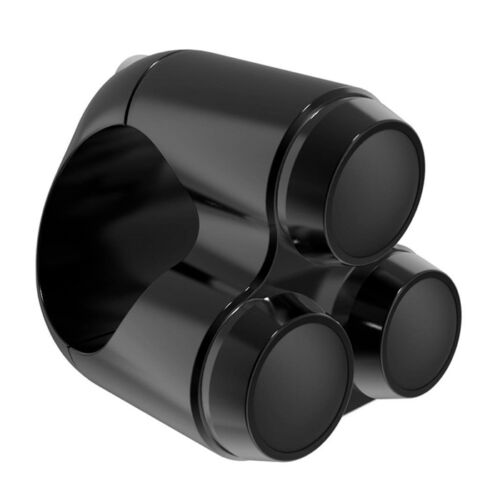

http://www.ebay.de/itm/Schwarzer-Alumin ... SwdG9XRT1b
