Your Creation's Before & After Pics

Show off your E-bike creation here.
User avatar
wasp
10 kW
10 kW
Posts: 706
Joined: Apr 03, 2008 6:07 pm

Re: Your Creation's Before & After Pics

Post by wasp » May 02, 2010 4:58 pm


teamontherun
10 µW
10 µW
Posts: 5
Joined: May 01, 2010 6:59 pm

Re: Your Creation's Before & After Pics

Post by teamontherun » May 09, 2010 2:43 pm

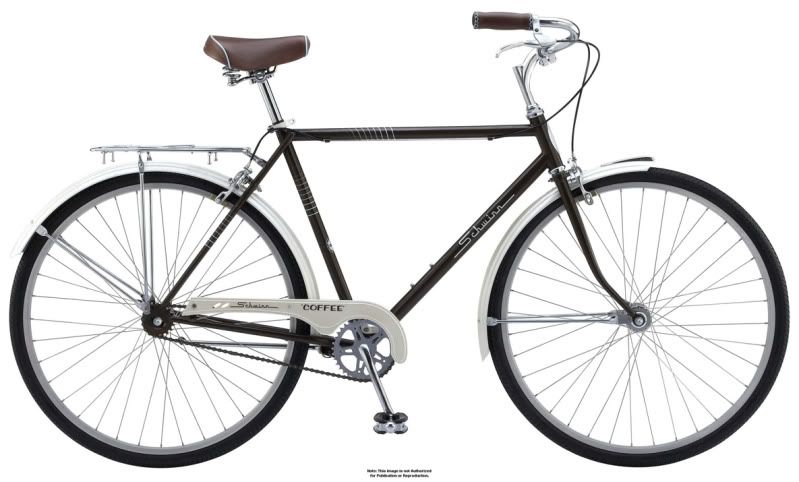

My Schwinn Coffee Before

And after the BL36 kit with ping 36v 15Ah battery. (my stealth install)

User avatar
hurricaniac
1 mW
1 mW
Posts: 19
Joined: Oct 11, 2009 9:57 pm
Location: San Juans, WA

Re: Your Creation's Before & After Pics

Post by hurricaniac » May 11, 2010 6:08 pm

Thanks to all the dedicated ES group for the help and advice on my build. Especially to Gary G, Mike Keefer, Methods and all the other wonderful folks whose great threads, explanations, and responses to my noob questions helped immeasurably.

The bike is an old Iron Horse Maverick 4.0 full suspension with front rear disks. I selected it because it was so cheap on Craigslist and had the big empty triangle for the battery box. I bought Justin's 9C kit with the 35 amp Infineon controller. There's 48V 15ah using 12s3p of 25C Turnigy Lipos. The whole rig is good for 26mph on the flats, but hill climbing is not too impressive. I'm getting about 18 miles on a charge without peddling and some hills.

I copied patrickza's ABS box and added some design mods for the lipos and Czonka relay. Using the Turnigy Lipos was an easy decision since Gary's LVC boards made the hookup so easy. Each one is braced/cradled in an ABS frame so there's no shifting around. It's held together by 4 cabinet bolts with T-nuts. It took a good 30+ hrs to build the thing, and I still have additional "features" that need to be added on. You can see it's growing warts and pimples with all the after-thoughts. The box is nice and narrow, and the handling is great. I can't say it improved the looks of the bike tho, nor is it very stealthy.

I use a 48V 27amp server power supply to charge it using a Cellog8 with a relay to cut it off at HVC of 4.15v per cell -- takes about 20 min. I put them on an iCharger 106B+ for balancing once a week.

Next is a modded controller to go to 72v and beyond...

-Bruce
Attachments
FS Iron Horse Maverick with 2807 9C rear, 12s3p Turnigy Lipos - 200 cycles, 48v 35A Infineon

User avatar
mwkeefer
10 MW
10 MW
Posts: 2453
Joined: Jun 14, 2009 8:47 am
Location: Malvern, PA USA

Re: Your Creation's Before & After Pics

Post by mwkeefer » May 11, 2010 6:15 pm

Bruce,

It looks REALLY good!

One question... where did you source the ABS... I used to have a local car stereo shop who stocked it but they went out of business and even when they were around they never had sheets as large as the stuff your using... I have been looking for a supply for months (literally).

Really... great build, very organized and clean!

-Mike
Regards,
Mike

{My Rides]
2010 Dahon Jack - GNG v1 - LYEN 6FET - 20/40A - 18S2P10AH - Nom:66.6v,1332w
2004 Hard Rock Pro Disc - Recumpence ms eDrive v4 - Astro 3220 4T - 12S2P16AH - HV110 - Left Side Drive - Gearing: 38mph
Nominal Peak Power @ 60 seconds: 5328 watts - Maximum Power: 49.8v, 120A, 5872w
2010 Downtube 8FH - Stock GNG v1 Stock Controller - EB809XC - 12-16S
2012 Downtube Nova 7spd - Stock GNG v2 - 12S2P10AH - EB809 - 12S-16S - 20A/30A,Nom VCC: 44.4, 888w

User avatar
amberwolf
100 GW
100 GW
Posts: 23928
Joined: Aug 17, 2009 6:43 am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Your Creation's Before & After Pics

Post by amberwolf » May 12, 2010 12:13 am

@mwkeefer:
Here in Phoenix, there is a place called Laird Plastics I used to go down to and buy mostly from the scrap bin. Nice people, at least several years ago last time I was there. Whenever I asked about something I didn't see in the bin, if they didn't have it at all they'd offer to order some for me (I never did that, though, as I couldn't use a whole sheet or roll at a time). When I was building this:
and this (the one on the left):
and some other little props to go with it, one person was interested enough to give me some little "keyrings" of old samples of various fluorescent plexiglas colors, to use for data crystals and whatnot. :) I don't have pics of those, though. :(

THey have two locations in PA, too:
http://pittsburgh.lairdplastics.com/ind ... =67&MCU=52
http://philadelphia.lairdplastics.com/i ... d=67&MCU=5

If you don't mind ordering online, there's a number of places.

This place:
http://www.professionalplastics.com/ABS ... RMINGGRADE
is where a guy that consulted me on vacuforming some small project boxes got his. (don't know how it worked out, though; never heard back from him). What he showed me looked pretty good; flexible, didn't smell funny or craze when heated with a hair dryer up close, etc.
They also have a clearance section:
http://www.professionalplastics.com/Pla ... sInventory

They show up at the top of a google search, too:
http://www.google.com/search?q=ABS+sheeting
which is probably why he bought from there, if they also did a year or two ago.

The google shopping search turns up some stuff, too:
http://www.google.com/products?q=ABS+sheeting

User avatar
ryan
10 kW
10 kW
Posts: 681
Joined: Dec 03, 2009 10:51 am
Location: California Bay Area

Re: Your Creation's Before & After Pics

Post by ryan » May 12, 2010 11:33 am

Ingredients:
  • Marin Downhill donor bike, Full Suspension, 26" wheels
  • Crystalyte 5305 (rear)
  • 72v40A Crystalyte 4110 controller
  • (2) 36v20Ah Headway LiFePO4 packs w/ BMS for a total of 72v20Ah
  • Cycle Analyst
  • Old Man Mountain Cold Springs Front Rack (50lbs Load Capacity)
  • Axiom Seymour Panniers
  • Two 3A LiFeP04 chargers
Results:
  • Top speed:
    • 36mph, no wind, flat
    • 45.6mph slight downhill
  • Range: Depends on terrain...
    • 20 miles including 2000-3000 ft of climbing
    • 16 miles, aggressive, WOT up mountain roads
    • Or up to 50 miles (so far) by riding efficiently
    • 40 miles while towing my son in a double trailer.
  • Milestones: Rode 200 miles in the first week
  • Total Cost: About $1800 (not including bike)
  • Any other stats worth mentioning?
Before:
After:
More Photos
Marin DH Electric Mountain Climber. Crystalyte 5304. 72v20Ah (Dual 36v20Ah 12S2P LiFePO4 Headways). 18 FET Low RDS MOSFET Overclocker Ready LYEN Controller. (See Build Thread)

User avatar
vanilla ice
1 GW
1 GW
Posts: 3160
Joined: Sep 05, 2007 9:15 pm
Location: socal dude

Re: Your Creation's Before & After Pics

Post by vanilla ice » May 12, 2010 11:42 am

Before and after.. props to zoot for helping me figure out what ashtabula means.
Attachments

kfong
10 MW
10 MW
Posts: 2111
Joined: Sep 02, 2008 11:34 am
Location: SE Michigan, USA
Contact:

Re: Your Creation's Before & After Pics

Post by kfong » May 12, 2010 9:47 pm

Here are pics of the converted GT. I now plan to get a Cycle Analyst so I can get rid of the wattmeter and long wires. I rode it today and I’m really happy with the results. The right shifter has been moved to the left side. The left shifter has been removed. Shifting is smoother than my old bike. The cheap front shock works fine for street use. The braking is better as well on this bike. The geometry feels better. I can’t wait to take it out on the trails and bash on it. I did have to cut part of the rear fender to get the controller to fit. I also had to redo the controller mounts so it’s lower in profile. There is less space in the back with this bike and I wanted the controller like it was with the old setup. Only took me two days to move the ebike parts from my old bike to the new one.
Attachments
GT polarmar1.jpg
GT polarmar1.jpg (163.61 KiB) Viewed 5197 times
GT ebike.jpg
GT ebike.jpg (158.2 KiB) Viewed 5197 times

Karolis
10 W
10 W
Posts: 85
Joined: Jun 01, 2009 8:03 am
Location: Lithuania, Vilnius

Re: Your Creation's Before & After Pics

Post by Karolis » May 22, 2010 7:08 am

first bike was with 5 SLA (12V, 12AH) - 60V 12Ah, GM 1000W 26" wheel, shunted with 5cm of 12AWG
Second 20S5P A123 66V 11Ah, GM 1000W, 24" wheel, Fechter's BMS 20S, shunted with 5cm of 12AWG

and a little video at home :)
http://www.youtube.com/watch?v=yBEB8xHyLAw

User avatar
thewmatusmoloki
10 kW
10 kW
Posts: 749
Joined: Sep 16, 2008 9:07 am
Location: stabrador Australia

Re: Your Creation's Before & After Pics

Post by thewmatusmoloki » May 22, 2010 9:57 am

I started out with sla's a few years ago, everyone sledges them, but they still get the job done.
Yours are/were mounted in the most premium position on the bike Karolis. Well done.

Finally, after 3 attempts, i now have a digital camera....
So here's some pics, in chronological order of builds.

I always thought that if one was going to make an electric bike, it should not look like those ugly, pus box, p.o.s, electric scooters that the cops in Oz have recently talen an interest in.
So mine are on chopper bicycle frames, for cruising "the strip" here on the gold coast with maximum show off value...

#1from 2007
second and third builds with lifopo4 batts
2nd & 3rd.jpg
my main machine
Dillenger Ebike mechanic

User avatar
thewmatusmoloki
10 kW
10 kW
Posts: 749
Joined: Sep 16, 2008 9:07 am
Location: stabrador Australia

Re: Your Creation's Before & After Pics

Post by thewmatusmoloki » May 22, 2010 10:04 am

And the latest , finished only a couple of weeks ago....
Featuring a mirror stainless steel battery box for the headway.
Also there is one of mine at the golden motor bike show off page and on brett whites GL2 page .

Thanks for looking.
All the best
Matthew.
Dillenger Ebike mechanic

User avatar
thewmatusmoloki
10 kW
10 kW
Posts: 749
Joined: Sep 16, 2008 9:07 am
Location: stabrador Australia

Re: Your Creation's Before & After Pics

Post by thewmatusmoloki » May 22, 2010 10:32 am

I forgot about the trike .....
me trike.JPG
me trike.JPG (89.72 KiB) Viewed 5192 times

Cheers
Dillenger Ebike mechanic

User avatar
Papa
1 kW
1 kW
Posts: 321
Joined: May 13, 2008 1:06 am
Location: NW USA

Re: Your Creation's Before & After Pics

Post by Papa » May 22, 2010 4:22 pm

~ Recycle... Ride your bike again ~

User avatar
dingoEsride
100 kW
100 kW
Posts: 1153
Joined: Apr 15, 2010 2:09 am
Location: Perth, Australia
Contact:

Re: Your Creation's Before & After Pics

Post by dingoEsride » May 24, 2010 8:55 am

nice E character
ride like the wind

User avatar
oldhaq
100 W
100 W
Posts: 291
Joined: Oct 25, 2008 7:29 am
Location: Redcliffe, Queensland, Australia

Re: Your Creation's Before & After Pics

Post by oldhaq » May 25, 2010 9:34 am

Love that mirror finish ss battery box Matt.
Following on from a few pages back https://endless-sphere.com/forums/viewto ... 50#p252774, after putting some better forks on and 26x2.35 Intense knobby tyres the ride has improved a lot, I've actually got some grip now, heaps more.
After a heavy landing the frame downtube bent very slightly at the shock pivot point so I welded in a strengthening brace around the shock to stop it bending any more. Strange as it may sound, I don't mind the bend as it has adjusted the bike geometry for a better handling feel, as the change of shock angle during the initial mod made the bike sit up slightly higher than before, it's back now back closer to normal. I had planned to brace it earlier but never got around to it, glad now I didn't do it then.
Last week I wot at very low rpm up about a 40 deg hill and the blue side fets shorted to + in the 12x irf4310 Lyen controller. Replaced them with the P140NF75 fets that I've been waiting to try out, been hammering it and they seem to be doing the job well, and heat is about the same at 3000w, even went up the same hill slowly as a test. I would expect them to handle it considering I've ran these type in a 6 fet controller at 4500 watt peaks. Thinking about a little extra shunt now...so I can tackle the 60 deg hillsclimbs!
I've also programmed the controller speed control to 120%, top speed increased from 39 to 46kmh. It's good getting something for nothing.
My bikes:
WCC Chopper longtail - https://endless-sphere.com/forums/viewto ... 60#p170594
Choppermeister and JJWCC - https://endless-sphere.com/forums/viewto ... 50#p246270
Huffy MTB https://endless-sphere.com/forums/viewto ... 50#p252774
BMC Super Trail https://endless-sphere.com/forums/viewto ... 61#p619089
www.youtube.com/user/OLDHAQ

I thought of that while riding my bike.
Albert Einstein
on the Theory of Relativity.

User avatar
oldhaq
100 W
100 W
Posts: 291
Joined: Oct 25, 2008 7:29 am
Location: Redcliffe, Queensland, Australia

Re: Your Creation's Before & After Pics

Post by oldhaq » May 26, 2010 8:55 am

btw, please don't get the impression that I am bagging Mr Lyen's controller, It was all my own doing :twisted: . I had the Amp settings ramped up to maximum and testing the throttle settings at 125 and 135%, and it's just a fet that blew anyway. It's all running sweetly again now. I appreciate his endeavors in supplying fantastic equipment at very reasonable prices with service to match.
My bikes:
WCC Chopper longtail - https://endless-sphere.com/forums/viewto ... 60#p170594
Choppermeister and JJWCC - https://endless-sphere.com/forums/viewto ... 50#p246270
Huffy MTB https://endless-sphere.com/forums/viewto ... 50#p252774
BMC Super Trail https://endless-sphere.com/forums/viewto ... 61#p619089
www.youtube.com/user/OLDHAQ

I thought of that while riding my bike.
Albert Einstein
on the Theory of Relativity.

electraflyit
10 W
10 W
Posts: 75
Joined: Jul 08, 2008 12:19 am
Location: Toowoomba, Queensland

Re: Your Creation's Before & After Pics

Post by electraflyit » May 27, 2010 1:28 am

Mathew,

I'll have to see if we can catch up when I'm down a holidays in the new year.
Ain't that Broadwater great.

Eddie

User avatar
thewmatusmoloki
10 kW
10 kW
Posts: 749
Joined: Sep 16, 2008 9:07 am
Location: stabrador Australia

Re: Your Creation's Before & After Pics

Post by thewmatusmoloki » May 27, 2010 1:43 am

Yeah, no worries Eddie.
I live less than a kilometre inland from that view, and yes that is sea world in the background.

Always keen to catch up with other ebikers.
Send me a pm when your coming down.
Cheers
Matt.
Dillenger Ebike mechanic

User avatar
thewmatusmoloki
10 kW
10 kW
Posts: 749
Joined: Sep 16, 2008 9:07 am
Location: stabrador Australia

Re: Your Creation's Before & After Pics

Post by thewmatusmoloki » May 27, 2010 1:48 am

And the same goes any other E.S members that are going to the Gold Coast :D

Send me a pm and I might have a spare bike for you to use whilst here.

Matt.
Dillenger Ebike mechanic

User avatar
lalaland
100 mW
100 mW
Posts: 42
Joined: Dec 31, 2009 8:06 am
Location: Perth, Australia
Contact:

Evolution

Post by lalaland » Jun 01, 2010 11:14 pm

Original
LifePo4
Gone LiPo
Batteries
Left side
Disclaimer: Opinions expressed herein are based on personal experience and observation and should be taken in that context. Verification of opinions is left up to the reader: please consult relevant authorities for hard data. I have no affiliation or commercial interest in any of products that may be mentioned.

User avatar
adrian_sm
100 MW
100 MW
Posts: 2643
Joined: Feb 23, 2009 12:54 am
Location: Melbourne, Australia
Contact:

Re: Your Creation's Before & After Pics

Post by adrian_sm » Jun 01, 2010 11:26 pm

Okay my second bike is relatively complete now so here are the before and after pics.


Before: My old ebike that I grabbed most of tha parts off, and my new dual suspension Giant AC frame
After:
Build #1 ~28kg ~ 700w Avanti Hardtail Crystalyte 408, 48V10Ah Headway. ~5500 kms to date. (retired)
Build #2 ~30kg ~2000w Giant AC Dually Crystalyte 408, 48V10Ah Headway + 6s10Ah LiPo = 70V. ~15000 kms to date [SOLD]
Build #3 ~13kg ~2000w Commuter Booster <1kg Friction Drive in Beta testing (www.commuterbooster.com)
Build #??? ~21kg ~1500w Adrian's Bafang BPM Hardtail MTB Bafang BPM code12, 15s LiPo, ~40kph, ~30kms

kartopla
100 mW
100 mW
Posts: 35
Joined: Mar 29, 2010 11:11 am

Re: Your Creation's Before & After Pics

Post by kartopla » Jun 11, 2010 6:40 pm

8) Hey that's the coolest fabric covering I have seen to date. Looks very professional.

LI-ghtcycle
1.21 GW
1.21 GW
Posts: 3872
Joined: Aug 29, 2009 11:39 pm
Location: Oregon City Oregon

Re: Your Creation's Before & After Pics

Post by LI-ghtcycle » Jun 19, 2010 11:48 pm

Wow, good job Adrian! I second the comment on your great looking fabric battery cover!

I don't know what there is about making a smooth rounded cover versus a hard plastic, but it just looks more like it belongs to me. 8)

What kind of material is it? It looks to by stretchy lycra type stuff attached with velcro?

After seeing that I might have to re-think my plastic battery cover idea! :shock: :D

Also, what type/size battery pack is that?
Thank you Justin_Le for your selfless act of kindness! We all are in your debt.
Back on track E-Bronco! Now with Cro Motor Mid-Drive Goodness!
https://endless-sphere.com/forums/viewt ... 28&t=44997

Vision R40 w/3000w MXUS as mid-drive, NuVinci N171B rear wheel as transmission, Silent yet powerful, running 72v 11.6 ah (20s 18650 Li-Ion) to climb hills, tow trailer with zero pedaling when needed!

https://endless-sphere.com/forums/viewt ... 28&t=75247[/size]

User avatar
adrian_sm
100 MW
100 MW
Posts: 2643
Joined: Feb 23, 2009 12:54 am
Location: Melbourne, Australia
Contact:

Re: Your Creation's Before & After Pics

Post by adrian_sm » Jun 20, 2010 4:54 am

Thanks. I was originally planning on a hard enclosure like e-cannon, but I like the look of the soft one I ended up with. I am still going to put some bash plates underneath to protect the cells. I ride it in the rain no problems. The main down side is that it doesn't provide any security from people tampering with the electronics. Not really an issue for me, as 99% of my rides are too and from work, and secure parking.

Most of the details are on my build log. But I made the cover from a water proof vest

The battery is a 48V10Ah Headway pack.

- Adrian
Build #1 ~28kg ~ 700w Avanti Hardtail Crystalyte 408, 48V10Ah Headway. ~5500 kms to date. (retired)
Build #2 ~30kg ~2000w Giant AC Dually Crystalyte 408, 48V10Ah Headway + 6s10Ah LiPo = 70V. ~15000 kms to date [SOLD]
Build #3 ~13kg ~2000w Commuter Booster <1kg Friction Drive in Beta testing (www.commuterbooster.com)
Build #??? ~21kg ~1500w Adrian's Bafang BPM Hardtail MTB Bafang BPM code12, 15s LiPo, ~40kph, ~30kms

kfong
10 MW
10 MW
Posts: 2111
Joined: Sep 02, 2008 11:34 am
Location: SE Michigan, USA
Contact:

Re: Your Creation's Before & After Pics

Post by kfong » Jun 28, 2010 8:37 am

Thought I post it since it won't be looking much different for a while. I didn't have a before pic but here is the manufacture picture of the bike. The build thread https://endless-sphere.com/forums/vi ... =6&t=12654
Left side 1024.jpg
Left side 1024.jpg[/attachment]
right side 1024.jpg
Attachments
Last edited by kfong on Apr 01, 2011 3:23 pm, edited 3 times in total.

Post Reply
