Post by hkj » Feb 07 2019 3:00am

Here's my second ebike build. I only use it for offroading, single track fun.

Specialized Enduro - 2007
Bafang BBSHD
48V 17Ah Battery
Luna Mighty Mini 30t



Before


Had to do a bit of welding to get some ground clearance.

After


toro1978   1 mW

1 mW
Posts: 15
Joined: Dec 14 2017 2:31am

Re: Your Creation's Before & After Pics

Post by toro1978 » Feb 15 2019 12:12pm

This is a while after I got the bike - on this pic it already has the wheels relaced with other hubs and brakes to prepare it for the motor installation. It also has an air suspension fork (mocked up to look like a double crown fork).
And this is now (with a real double crown fork and same size wheels).
This is the last pic, made me Felt logos for the battery. The seat is a bit more to the front, and a longer stem.

User avatar
Wolfeman   100 W

100 W
Posts: 239
Joined: May 13 2014 12:09pm
Location: West Coast USA

Re: Your Creation's Before & After Pics

Post by Wolfeman » Feb 19 2019 9:45am

toro1978 wrote:
Feb 15 2019 12:12pm
This is a while after I got the bike - on this pic it already has the wheels relaced with other hubs and brakes to prepare it for the motor installation. It also has an air suspension fork (mocked up to look like a double crown fork).
Very cool looking bike Toro, it's got a real Steve McQueen Great Escape look going to it. It looks really comfortable too. Thanks for posting.
Trek 4300 w/ H3580 Crystalyte at 3600W
https://endless-sphere.com/forums/viewt ... =3&t=82738
Worksman Mover M2020-3CB w/DD 750W front hub
https://endless-sphere.com/forums/viewt ... =3&t=96873
Dyno Moto 7 BMX Cruiser w/BBS02
https://endless-sphere.com/forums/viewt ... 1#p1467001

Paderolis   100 W

100 W
Posts: 108
Joined: Dec 14 2013 9:56pm
Location: Las Vegas NV. USA

Re: Your Creation's Before & After Pics

Post by Paderolis » Feb 21 2019 12:59pm

Recently found an old Kona Blast Deluxe on my local CL, so I swapped my kit from the Trek 4300 over to it. Now I have front suspension and hydraulic disc brakes! The Trek 4300 originally came with a suspension fork, but I snapped it when I originally installed a 48v 1000w FHM on it without torque arms. I didn't know the importance of them at the time! I ultimately replaced it with a rigid fork, and installed a 48v 1000w RHM instead. This setup never really gave me any issues, but I always wanted disc brakes and got the Kona at a reasonable price.
Attachments

Djoze   10 µW

10 µW
Posts: 6
Joined: Aug 05 2017 2:34am

Re: Your Creation's Before & After Pics

Post by Djoze » Feb 22 2019 5:04pm

Hello,

Here is my Specialized Sirrus « electro-gravelized ».
BBSHD, 52V (Samsung 30Q), no throttle.
Shimano road shifters, MTB rear derailleur with a 11-46 cassette, 52T front.

11-46 is good for almost everything, from slow speed with 3 kids (one behind me on the bike and two in a trailer!) to fast commuting (around 38mph max).

This machine is extremely efficient and a joy to ride.

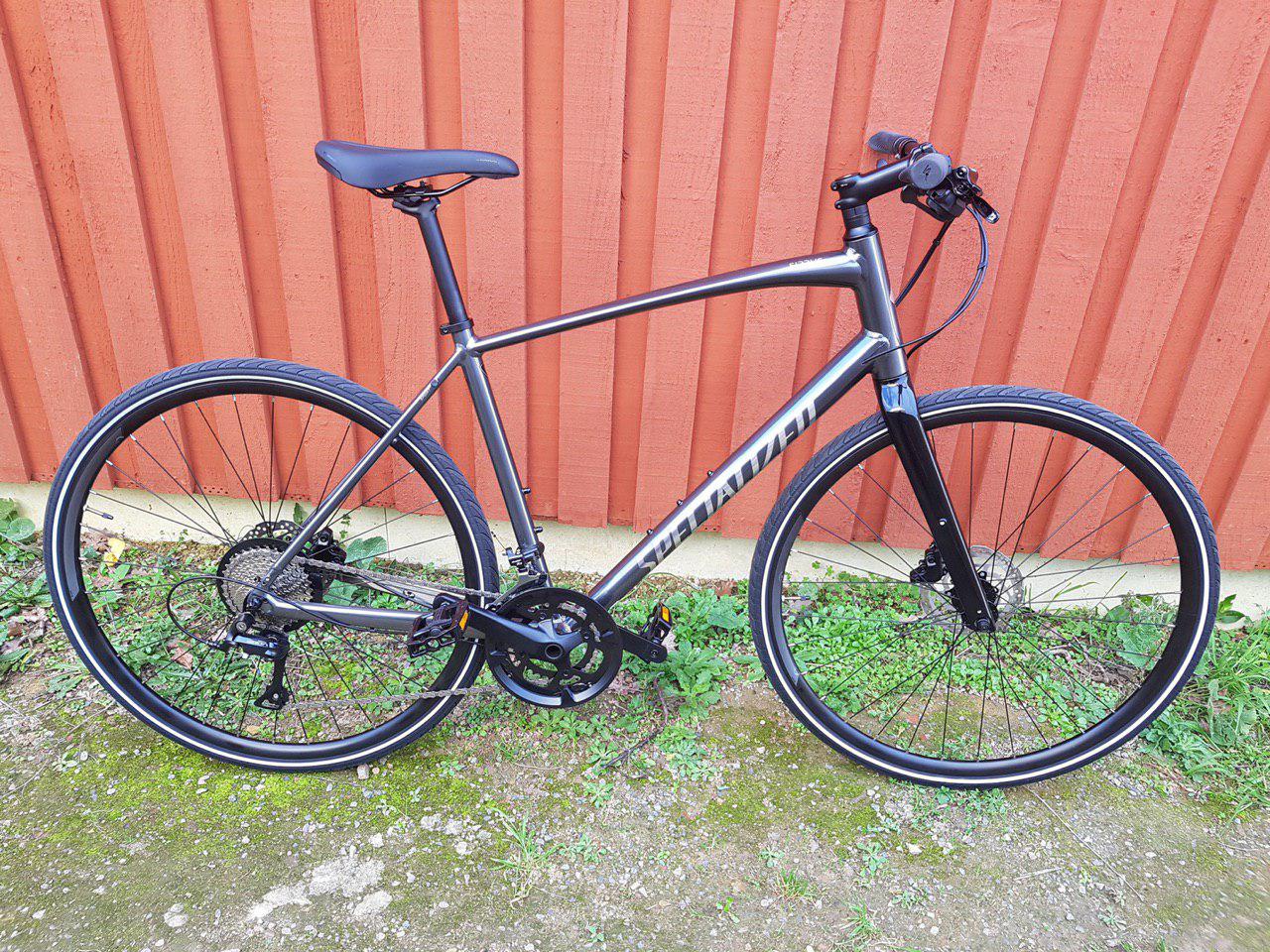

Before :
Full size: https://www.casimages.com/i/19022210525 ... 61.jpg.htm

After :
Full size: https://www.casimages.com/i/19022210525 ... 8.jpg.html


topgun78   1 mW

1 mW
Posts: 18
Joined: Aug 29 2012 3:28pm

Re: Your Creation's Before & After Pics

Post by topgun78 » Feb 23 2019 7:24pm

GIANT MTB ( UNKNOWN MODEL BOUGHT 5TH HAND BUT VERY ROBUST FRAME )
1ST VERSION - 72V 20AH SABVOTON 07260
2ND VERSION - 72V 35AH WITH 3D PRINTED BATTERY & CONTROLLER HOLDER

VERY STABLE DESIGN FAST BIKE. Only Con so far weak breaks they need disk upgrade.
Attachments

tolkaNo   100 W

100 W
Posts: 101
Joined: Dec 29 2017 4:28am
Location: Australia

Re: Your Creation's Before & After Pics

Post by tolkaNo » Feb 24 2019 8:15am



Alot more to come, soon to be 3-4kw

ArtemF   1 µW

1 µW
Posts: 2
Joined: Mar 04 2019 9:27am

Re: Your Creation's Before & After Pics

Post by ArtemF » Mar 04 2019 9:40am

OK, here are my two cents: about two years ago I made the bamboo/carbon bike using a cheap bike as a donor. Overall, I liked the performance of the new frame, but it didn't help to fix a major problem in our area - steep hills :) So, the usage of the bike was more for recreational rather than for commuting purposes. Recently, I've added a simple front hub motor (250W, 36v) and this made a big difference - I can get almost everywhere I need using the bike and I lose not more than 5-10 min for an hour of commuting w.r.t. public transportation or a car. If the assistant is used in an economic mode, the 36v x 8.8 Ah battery lasts for about 50km. If I'm in a rush to get to work then it's closer to 25-30km.
Attachments
before

ArtemF   1 µW

1 µW
Posts: 2
Joined: Mar 04 2019 9:27am

Re: Your Creation's Before & After Pics

Post by ArtemF » Mar 04 2019 9:51am

And here's another creation based on the same hub motor, respoked to 700 wheel. The original bike (I used a stock image since I didn't take one before the conversion) was elegant, but too heavy for my wife to climb the hills (see the previous message).
Attachments

User avatar
electron bom   1 W

1 W
Posts: 51
Joined: Oct 30 2014 7:01am
Location: Raleigh, NC

Re: Your Creation's Before & After Pics

Post by electron bom » Mar 24 2019 5:02pm

Chemistry is neat!

wire.rat   10 mW

10 mW
Posts: 34
Joined: Aug 25 2016 4:17am

Re: Your Creation's Before & After Pics

Post by wire.rat » Mar 30 2019 2:25pm

Fatbike frame 200mm rear axel
locked out front suspension
72v50a gekoo controller
10inch 50H motor
26x2.35 front 130/90-10 rear
18S 20Ah battery


User avatar
DUBRAVKO   10 mW

10 mW
Posts: 22
Joined: Feb 05 2014 3:51am

Re: Your Creation's Before & After Pics

Post by DUBRAVKO » Apr 03 2019 1:54am

Before, and i got this bike with bad rear wheel..



And after restauration;






SlowCo   100 kW

100 kW
Posts: 1130
Joined: Jan 05 2015 5:43pm
Location: The Netherlands

Re: Your Creation's Before & After Pics

Post by SlowCo » Apr 03 2019 3:38am

8) Wow :thumb:

Very clean and stealth build!

User avatar
Wolfeman   100 W

100 W
Posts: 239
Joined: May 13 2014 12:09pm
Location: West Coast USA

Re: Your Creation's Before & After Pics

Post by Wolfeman » Apr 03 2019 10:21pm

SlowCo wrote:
Apr 03 2019 3:38am
8) Wow :thumb:

Very clean and stealth build!
What he said...... Nice!
Trek 4300 w/ H3580 Crystalyte at 3600W
https://endless-sphere.com/forums/viewt ... =3&t=82738
Worksman Mover M2020-3CB w/DD 750W front hub
https://endless-sphere.com/forums/viewt ... =3&t=96873
Dyno Moto 7 BMX Cruiser w/BBS02
https://endless-sphere.com/forums/viewt ... 1#p1467001

colombianAviator   1 µW

1 µW
Posts: 1
Joined: Apr 04 2019 2:50pm

Re: Your Creation's Before & After Pics

Post by colombianAviator » Apr 04 2019 3:16pm

New to ebikes and to the forum...
Really cool creations I have seen so far.
I just wanted to add my less than spectacular "simple" conversions..
I used a 2Ah 60v battery from a snapper leaf trimmer. I did this so I could easily swap out different capacity batteries (since I also have 4Ah batteries that came with my snapper electric lawn mower)
The "battery dock v0.1" was designed in Maya and 3D printed in ABS plastic (better battery dock in the works :) )
1000w hub motor (easily pulls 1500w). 27A controller paired with a kt-lcd3
Attachments

mazdadrags   1 µW

1 µW
Posts: 3
Joined: May 02 2019 2:52am

Re: Your Creation's Before & After Pics

Post by mazdadrags » May 02 2019 3:31am

Was Just a $5 bike from the Scrap yard first picture is the closest I have to a before.. Now have two of them :) check the youtube link [youtube]https://youtu.be/AM1MPMpCVRg[/youtube]
Attachments

Jil   10 W

10 W
Posts: 87
Joined: Sep 07 2017 3:24pm
Location: Bordeaux, France

Re: Your Creation's Before & After Pics

Post by Jil » May 05 2019 5:08am

Here is my second built. I replaced the BBS01 on my Surly Krampus by a G310 motor kit provided by Grin.
Battery 52V/10.5+7Ah, rims Ryde Andra 40, tires Surly Extraterrestrial.

Before :

After :

Jil   10 W

10 W
Posts: 87
Joined: Sep 07 2017 3:24pm
Location: Bordeaux, France

Re: Your Creation's Before & After Pics

Post by Jil » May 05 2019 9:39am

DUBRAVKO wrote:
Apr 03 2019 1:54am
Nice one ! :thumb:
What are your motor and battery ?

WilliAmp   100 µW

100 µW
Posts: 8
Joined: Jan 31 2018 3:42am

Re: Your Creation's Before & After Pics

Post by WilliAmp » May 06 2019 12:18am



User avatar
amberwolf   100 GW

100 GW
Posts: 26892
Joined: Aug 17 2009 6:43am
Location: Phoenix, AZ, USA, Earth, Sol, Local Bubble, Orion Arm, Milky Way, Local Group
Contact:

Re: Your Creation's Before & After Pics

Post by amberwolf » May 06 2019 1:16am

https://endless-sphere.com/forums/viewt ... 0#p1463761

before crash and fork/wheel replacement:

after crash:

after fork/wheel replacment (not sure if I should leave it all black, or paint it red to match like the old one):

User avatar
DUBRAVKO   10 mW

10 mW
Posts: 22
Joined: Feb 05 2014 3:51am

Re: Your Creation's Before & After Pics

Post by DUBRAVKO » May 06 2019 3:06am

Jil wrote:
May 05 2019 9:39am
DUBRAVKO wrote:
Apr 03 2019 1:54am
Nice one ! :thumb:
What are your motor and battery ?
350w geared, 36V 8.7Ah

Marc S.   100 W

100 W
Posts: 233
Joined: Jul 04 2012 12:23pm
Location: Hamburg, Germany
Contact:

Re: Your Creation's Before & After Pics

Post by Marc S. » May 07 2019 3:01pm

Milan GT velomobile (CwA value = 0.0368)

Before:
Two chain wheels, 9-speed derailleur, SRAM Dual Drive = 54 gears

After:



Patterson Metropolis 2-speed drive with shortened cranks, 9-speed derailleur, new lighting system, new wheels, water-cooled drum brakes, rear disk brake, new rear shocks, elastomere suspension, modified steering geometry, various other updates, Bafang SWXH, Phaserunner, 20s battery, consumption around 6Wh/km at 60km/h, 350km battery range, 75km/h top speed
https://etrike.wordpress.com/tag/milan-gt

Still fast enough to smoke some roadies in a peloton, with an empty battery. ;)

User avatar
LightningRods   10 MW

10 MW
Posts: 2152
Joined: Oct 23 2012 7:37pm
Location: Western Oregon, USA

Re: Your Creation's Before & After Pics

Post by LightningRods » May 07 2019 5:31pm

Looks awesome Marc! Twin Spandaus built into the upper cowling would really finish it off!
"I don’t mind that they stole my idea, I mind that they don’t have any of their own.”
-Nikola Tesla

Lightning Rods Web Site http://www.lightningrodev.com
Lightning Rods Facebook Page https://www.facebook.com/pages/Lightnin ... 4531978401

Marc S.   100 W

100 W
Posts: 233
Joined: Jul 04 2012 12:23pm
Location: Hamburg, Germany
Contact:

Re: Your Creation's Before & After Pics

Post by Marc S. » May 07 2019 5:59pm

Hehe!
Since the view would by slightly restricted...


...and the Spandau's degrade the aero propertys, I think an extendable mini-gun turret in the back would be preferable.
It would also cover my six quite nicely. :D

Jil   10 W

10 W
Posts: 87
Joined: Sep 07 2017 3:24pm
Location: Bordeaux, France

Re: Your Creation's Before & After Pics

Post by Jil » May 08 2019 3:19pm

Marc S. wrote:
May 07 2019 3:01pm
Milan GT velomobile (CwA value = 0.0368)
6Wh/km @ 60 kph !! Cx is everything...
What is its weight ?

Post Reply
