HARDTAIL+9C clone Frame Build - (HD videos added 7/28/13)

Show off your E-bike creation here.
Post Reply
User avatar
migueralliart
100 kW
100 kW
Posts: 1268
Joined: Apr 08, 2011 7:32 pm
Location: West Palm Beach , FL
Contact:

HARDTAIL+9C clone Frame Build - (HD videos added 7/28/13)

Post by migueralliart » Jul 14, 2013 8:07 pm

Well I sold all my ebikes already to local customers and only kept my KMX trike .

As for this build the purpose was to find a supplier on ebay that could supply me a frame continuously. My goal was to design a battery frame that could house a 18650 battery and to keep it simple with entry level components so that I could replicate it later on. HEre are the specs;

1- Motor - 9C clone motor
2- Controller- 12 fet infineon controller
3- Battery- 15S4P 18650 Samsung PAck (I envisioned building a bigger pack, but now that pack is going to another build I have planned :twisted: )
4- Left throttle and switch
5- Controller mount and torque arm well you know where those came from LOL
6- Tires - Kenda K838 with rhino liners and thorn resistant avenir tubes

So far the other components were source fairly easy and I'll make a list later here with the specs.

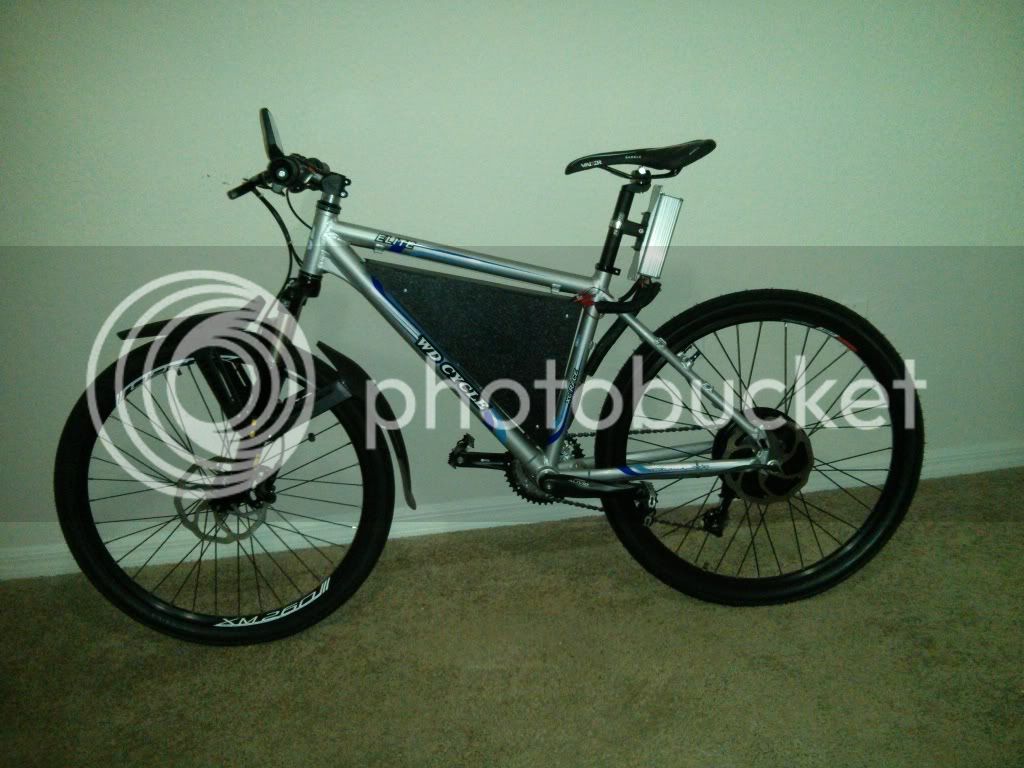

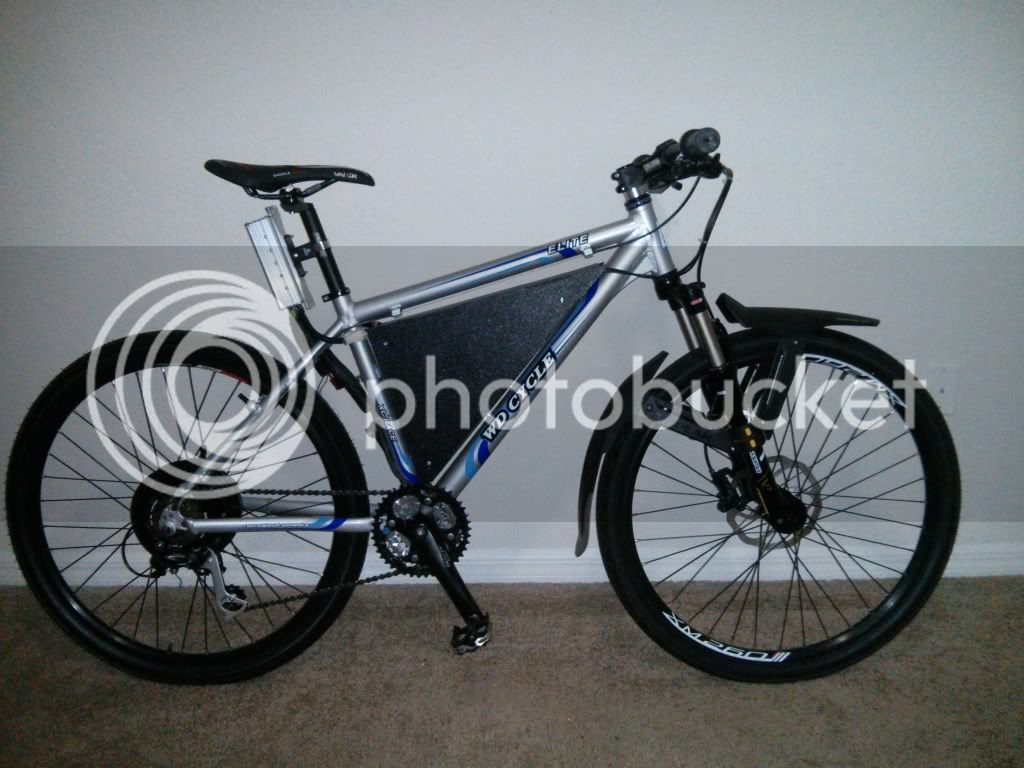

For now enjoy the pics. Videos will come later once I am done with the moving process :?

Still need to figure out the rear brake. I can confirm that AVID Elixirs and 180mm discs don't fit so my next try is the mechanical BB7's in the back with the same 180mm. If anyone has some feedback on that I appreciate it.









Update 7/28/13


Well I ended changing the MAC motor for a 9C. Made a quick video of my test ride and uploaded it to youtube.

I've been updating my 808 cameras and will soon start making some cool videos. Stay tuned!

Here ya go;




Update 9/16/13


Took the bike for a spin this weekend and took some snapshots.

It is interesting to see a texaco gas station abandoned.. whatever



Last edited by migueralliart on Sep 16, 2013 10:06 pm, edited 4 times in total.

User avatar
migueralliart
100 kW
100 kW
Posts: 1268
Joined: Apr 08, 2011 7:32 pm
Location: West Palm Beach , FL
Contact:

Re: HARDTAIL+MAC Frame Build from ground up ...

Post by migueralliart » Jul 17, 2013 10:52 pm

Just managed to get the rear brakes working with the MAC motor.

I bought avid bb7 brakes and 180mm rotors. Removed the outer adjustment plastic and grinded down the adjustment bolt. It fits with approx 1/8" of an inch clearance.

Will start to take some videos soon and upload them here. :)

Also need to figure out fenders for the rear tire.

User avatar
TheBeastie
1 MW
1 MW
Posts: 1636
Joined: Jul 28, 2012 12:31 am
Location: Melbourne Australia

Re: HARDTAIL+MAC Frame Build from ground up ...

Post by TheBeastie » Jul 18, 2013 1:44 am

Looks good. I notice a lot of people do a mod on the BB7 brakes, I got BB5 brakes on my Bafang 500w and it doesn't require any shrinkige mods.

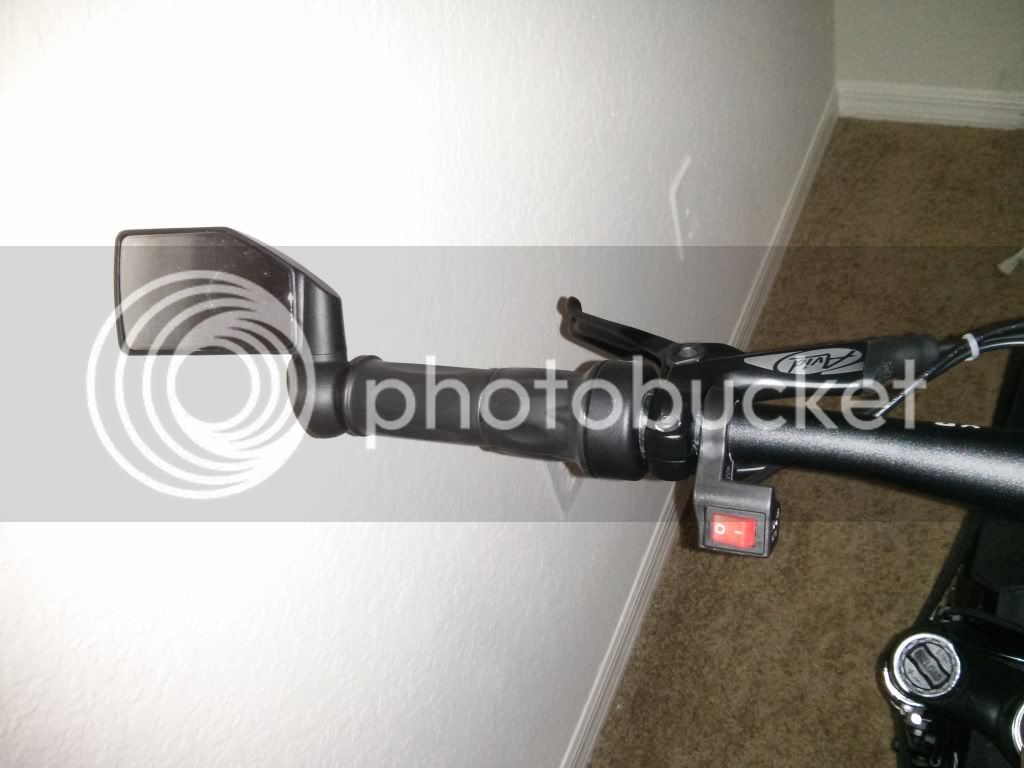

Also I noticed you got a handlebar mirror, does that work well for you? I got a cheaper one the other day from ebay and its crap, its way too small to see anything and it shakes too much when riding.
