Hello all, I am about ready to start designing a new Outrunner for next years race bike. And would love your input.

My goals:

Less than 300mm outer diameter
Less than 100mm total width
Around 100 horsepower output
Less than 60lb or 27.2 kg
Liquid cooling is ok
Total cost under $3500

Techniques that I want to leverage:

Hairpin TIG welded solid-slot windings for > 90% copper fill, and very high thermal resistance.

An alloy of lamination steel that supports high flux densities. (Hiperco etc...)

Segmented magnets

Laminated back iron.

I have run some Ideas thru both femm and emetor, and have a few different approaches that I would love to run past you guys:

1st approach:

12t 10p single or double layer wind
Pros: familiar, .966 winding factor
Cons: needs substantial back iron, and has a half-ass Sine/trap BEMF.

2nd approach:

30t 10p single layer integer wind

Pros: 1 winding factor, near perfect trapaziodal bemf (controllers are cheap) and easy to wind solid slot.

Cons: lots of yolk iron required, totally unfamiliar territory.

Trying to keep the flux gap speed up while keeping the pole count low, to keep my controller options as open as possible.

Anywho, if anyone has any bright ideas/inputs, I would LOVE to hear them, as this is a shot in the dark for me
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 01 2013 8:39pm

Ill post up femm/emetor shots of both approaches later tonight.
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11020
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle's Mk.5 Super badass outrunner

Post by Miles » Nov 02 2013 4:43am

Farfle wrote: 2nd approach:

30t 10p single layer integer wind

Pros: 1 winding factor, near perfect trapaziodal bemf (controllers are cheap) and easy to wind solid slot.

Cons: lots of yolk iron required, totally unfamiliar territory.
You won't necessarily need segmented magnets or laminated rotor for 30t 10p

Lots of yolk iron isn't so much of a disadvantage for an outrunner......

Extra endturn losses from integer winding won't be a disadvantage for solid slot.

User avatar
Miles   100 GW

100 GW
Posts: 11020
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle's Mk.5 Super badass outrunner

Post by Miles » Nov 02 2013 5:21am

Farfle wrote: 1st approach:

12t 10p single or double layer wind
Pros: familiar, .966 winding factor
Cons: needs substantial back iron, and has a half-ass Sine/trap BEMF.
Cons:
Only one winding symmetry.
Higher magnet losses for the single layer winding (which has the 0.966 winding factor).

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 02 2013 12:25pm

Thank you miles

As far as the integer wound motor goes, the bemf is almost perfectly trapezoidal. but when run with a BLDC input in emetor, the torque ripple is pretty bad. I guess I thought if the flux linkage was very trapadoidal, that it would be smoother than that.

And yes, with only one winding symmetry for 12t 10p, emetor wont simulate it, even with credits. So I would just be shooting in the dark with femm flux density analysis.
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11020
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle's Mk.5 Super badass outrunner

Post by Miles » Nov 02 2013 12:39pm

Farfle wrote:As far as the integer wound motor goes, the bemf is almost perfectly trapezoidal. but when run with a BLDC input in emetor, the torque ripple is pretty bad.
What is "pretty bad"? I sampled for torque ripple at no-load and max.Eta.

What is the max. rpm you intend running this motor at?

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 02 2013 2:54pm

I am aiming for 5000-6000 RPM, but if I can get the power I need a a lower rpm, that would be great. The controller options I have in mind either the scott drive 450a 400v controller (not using all the voltage) or the 1000A 120v kelly, or if the stator configuration allows it, twin 600a kelly controllers.
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 02 2013 4:12pm

Miles wrote:
Farfle wrote:As far as the integer wound motor goes, the bemf is almost perfectly trapezoidal. but when run with a BLDC input in emetor, the torque ripple is pretty bad.
What is "pretty bad"? I sampled for torque ripple at no-load and max.Eta.

What is the max. rpm you intend running this motor at?

While running Emetor, I was trying to compare the linear and non-linear simulations. In the linear sim, it has a 16% torque ripple, and in the non-linear sim it is 66% :shock: . Messing with the tooth shape and magnet coverage to see if I can get it to smooth out a little more.
Attachments
iwor-1 nonlinear.pdf
(799.49 KiB) Downloaded 144 times
iwor-1-linear.pdf
(779.18 KiB) Downloaded 84 times
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11020
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle's Mk.5 Super badass outrunner

Post by Miles » Nov 02 2013 4:51pm

You're not even up to peak efficiency, yet :)

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 02 2013 6:07pm

I have gone thru 17 different non-linear sims so far, and have torque ripple down from 66% to 26%, the airgap flux up from .8t to 1.1t, (which I assume is good, its raising the BEMF voltage by almost 20v) and traded the magnets from n45 to n42sh. Am I headed the right direction? :pancake: :pancake: .
Attachments
iwor-17-nonlinear.pdf
(799.58 KiB) Downloaded 82 times
Test Review Revise Repeat

User avatar
Arlo1   100 GW

100 GW
Posts: 8171
Joined: Apr 26 2009 10:36pm
Location: Nanaimo
Contact:

Re: Farfle's Mk.5 Super badass outrunner

Post by Arlo1 » Nov 02 2013 6:24pm

I think so..... :)

I like where this is headed. Solid slot with tig welded aluminum?
My Leaf motor controller build. http://endless-sphere.com/forums/viewto ... 27#p963227
My YSR build http://www.youtube.com/watch?v=BRo8r5g4NBg
RC and most types of Lithium batteries you MUST know your individual cell voltages charging and discharging.
Don't keep them were you cant afford smoke or fire!
Never above 4.2v never below 2.7v EVER!!!
Support me on Patreon. https://www.patreon.com/user/posts?u=6842045
http://www.undergroundelectrics.ca/

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 02 2013 6:33pm

Arlo1 wrote:I think so..... :)

I like where this is headed. Solid slot with tig welded aluminum?
Tig welded copper
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 02 2013 7:18pm

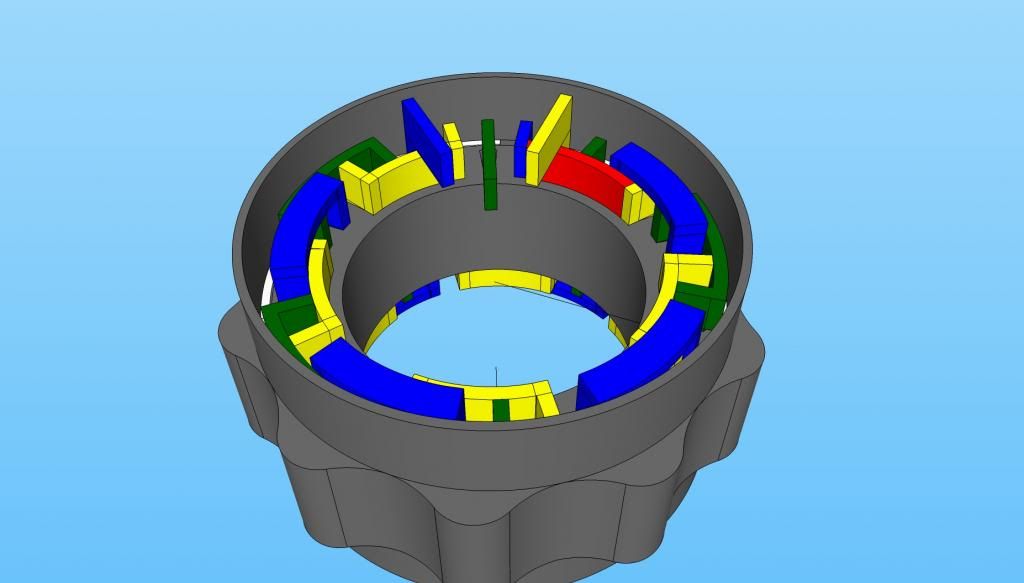

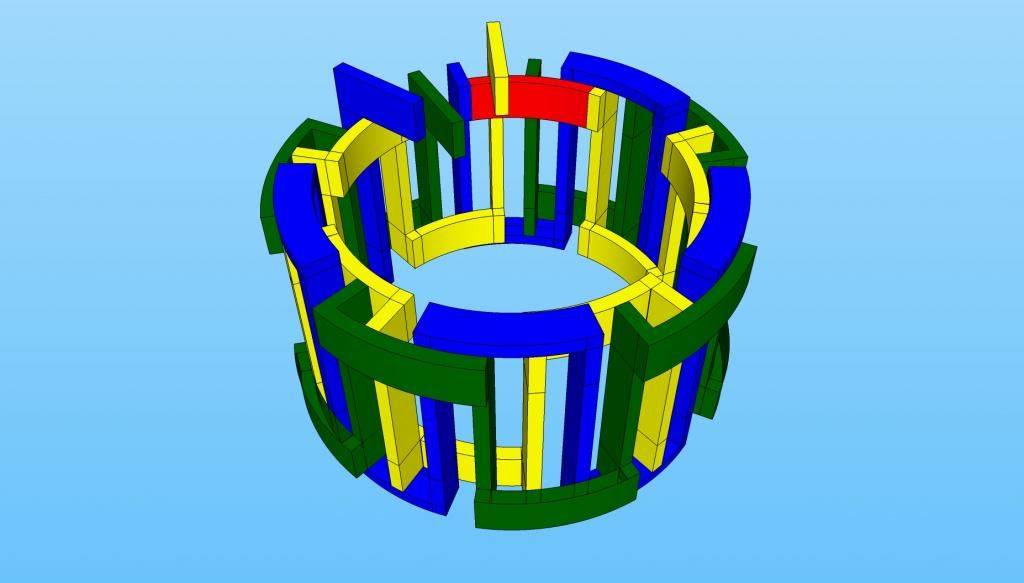

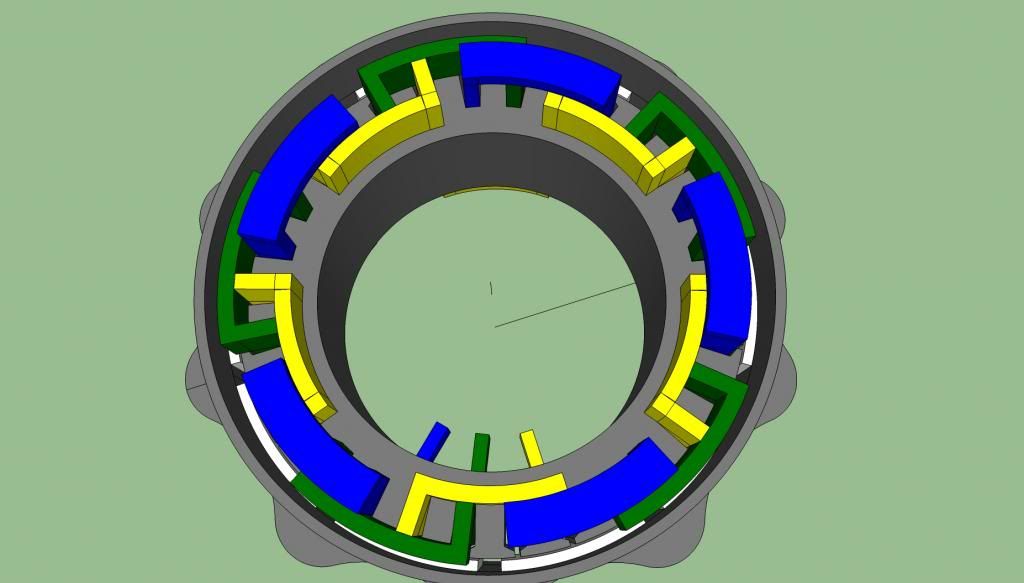

ok, here is a rough drawing of the motor. The windings look complex, but will actually be very easy to construct.

Overall dims are 12 inch dia x 7" thick can end to can end.

The copper wire is actually 25mm by 6mm solid bar.







Test Review Revise Repeat

User avatar
liveforphysics   100 GW

100 GW
Posts: 13992
Joined: Oct 29 2008 1:48am
Location: Santa Cruz, CA, USA

Re: Farfle's Mk.5 Super badass outrunner

Post by liveforphysics » Nov 02 2013 11:36pm

Beautiful. Going to be low inductance.
Each carcinogen vapor exposure includes a dice roll for cancer.

Each mutagen vapor exposure includes a dice roll for reproductive genetic defects in your children.

Each engine start sprays them into a shared atmosphere which includes beings not offered an opportunity to consent accepting these cancer experiences and defective genetics life experiences.

Every post is a free gift to the collective of minds composing the living bleeding edge of LEV development on our spaceship.

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 12:39am

liveforphysics wrote:Beautiful. Going to be low inductance.

I am hoping its not too low. Ill run it thru emetor in sine wave test to see if I am even in the ballpark of driveable.
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 12:46am

hmm, emetor is spitting out 0.005797 mH or 5.7uh. thats really really really low. bugger.

Back to the drawing board!
Test Review Revise Repeat

User avatar
jonescg   1 GW

1 GW
Posts: 3333
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: Farfle's Mk.5 Super badass outrunner

Post by jonescg » Nov 03 2013 3:01am

Just do what Ultramotive did with their Carbon motor. Claim amazing power to weight, and only casually mention in passing the requisite 15 kg worth of induction coils... :lol:

Love the idea though. Perhaps running lower voltages at higher currents will help? Aim for at least two turns :)

Edit - I'm from the department of redundancy department...
Last edited by jonescg on Nov 03 2013 3:06am, edited 1 time in total.

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 3:04am

The problem is that that particular design benefits greatly from being solid-slot. great enough to make it worth it, but it qouckly fades if you go back to normal winding wire and multiple turns :?
Test Review Revise Repeat

User avatar
jonescg   1 GW

1 GW
Posts: 3333
Joined: Aug 07 2009 9:22pm
Location: Perth, Western Australia

Re: Farfle's Mk.5 Super badass outrunner

Post by jonescg » Nov 03 2013 3:08am

I'm sure there's still a way of getting two turns worth of copper bar in there and welding it up all the same. Load it like a twin-row revolver and weld up the ends?

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 3:11am

Bugger. Emetor flat refuses to simulate any of my lower-pole count ideas. After doing some research, I have come up fruitless on any equations relating magnet coverage to optimal BEMF shape. :cry: .
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 3:40am

looking at most high performance permanant magnet motors, I am seeing some common trends. TONS of stator teeth, and lowish pole counts. Sometimes solid slot windings, and sometimes standard round windings. :pancake: .


UQM motor, wtf, look at all those little teeth:

http://chipyates.com/yahoo_site_admin/a ... 54_std.JPG

remy motor:

http://www.blogcdn.com/green.autoblog.c ... -motor.jpg

Chevy spark EV motor, lots of teeth, only 10 magnets (kinda):

http://static.progressivemediagroup.com ... otor03.jpg

http://www.hybridcars.com/wp-content/up ... _2-668.jpg
Last edited by Farfle on Nov 03 2013 3:43am, edited 1 time in total.
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11020
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle's Mk.5 Super badass outrunner

Post by Miles » Nov 03 2013 3:41am

Farfle wrote:After doing some research, I have come up fruitless on any equations relating magnet coverage to optimal BEMF shape. :cry: .
Nothing I found was of any use, either. You just have to keep iterating... Did you try values between 125 and 130 degrees?

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 3:46am

Miles wrote:
Farfle wrote:After doing some research, I have come up fruitless on any equations relating magnet coverage to optimal BEMF shape. :cry: .
Nothing I found was of any use, either. You just have to keep iterating... Did you try values between 125 and 130 degrees?

problem is, it wont simulate it. sits there, and gives me the "this configuration has too few symmetries, run it in pro" speech. And when I run it with the non-linear test (have 17 credits left) it just sits there for 10+ mins beforegiving a vague "simulation has failed" error. Thankfully it is not charging me.
Test Review Revise Repeat

User avatar
Farfle   1 MW

1 MW
Posts: 1752
Joined: Jun 27 2010 10:42am
Location: Redmond OR

Re: Farfle's Mk.5 Super badass outrunner

Post by Farfle » Nov 03 2013 3:49am

I wonder if scaling it down would at least get me in the ballpark with magnet coverage for a given stator configuration, and then I can refine the flux densities in FEMM.

Anywho, its 2:00am here. Time to sleep on it a little bit. :roll:
Test Review Revise Repeat

User avatar
Miles   100 GW

100 GW
Posts: 11020
Joined: Mar 16 2007 4:15pm
Location: London UK

Re: Farfle's Mk.5 Super badass outrunner

Post by Miles » Nov 03 2013 3:58am

The other thing I found was that the width of the tooth stem is quite a critical factor.
