Hi everyone. Getting ready to switch to LIPO. I have seen hundreds of pics, read thousands of posts and trying to put it all together. If any of you LIPO users could post diagrams of your charge/discharge setups I would greatly appreciate it. Looking at pictures with a bunch of wires together can be a bit confusing. I find that diagrams can make it easier to visualize and understand. I know the basics, I just want to make it right. Thanks for your help!!!



[EBJ]

This would be interesting to have all of the wiring diagrams in one sticky post.
I'd like to know if there's any free wiring-diagram software people on ES like using, (or does everyone just use Paint? haha)
EDIT: I like using a variety of sharpie marker colors, but it would be nice to easily edit my mistakes... as my wiring diagrams end up looking like scribbles when I'm done. haha.



[www.recumbents.com]

Discharge

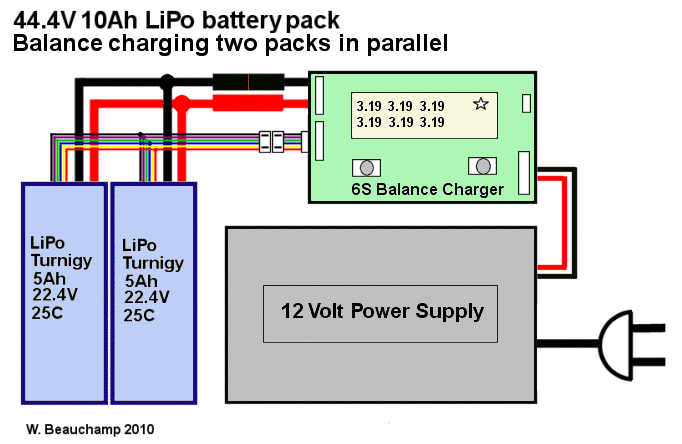

Balance charge

Bulk Charge

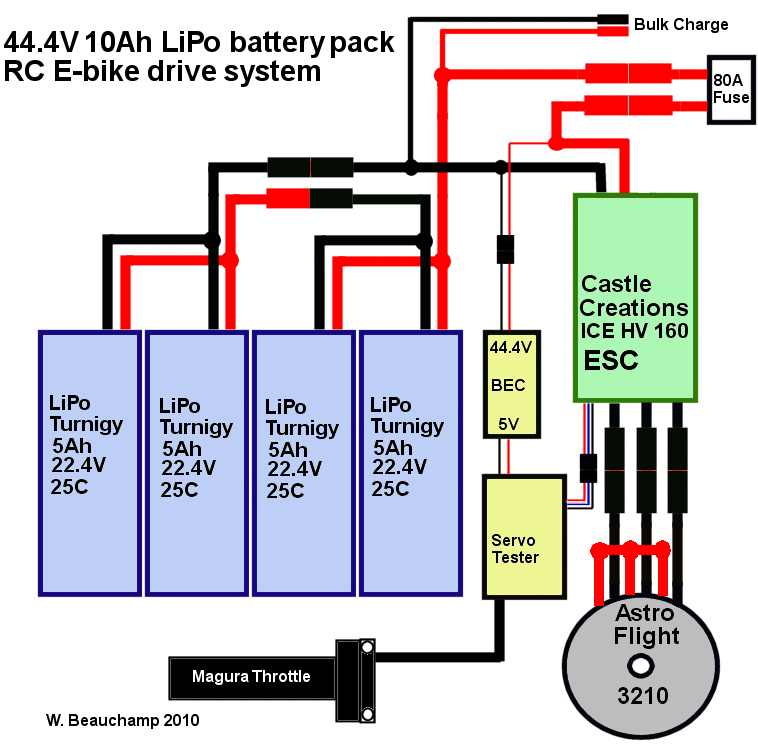

RC Drive Tutorial - http://recumbents.com/wisil/e-bent/rc_drive/tutorial.htm

I use PaintShopPro 7

-Warren.
