Need dimensions for typical display switch assembly.

[TommyCat]

If anyone has one to measure and post, or know where I can get accurate dimensions of this typical replacement display switch like the one shown here...

https://www.amazon.com/dp/B0DMDV65B...HRMTQ&psc=1&ref_=list_c_wl_lv_ov_lig_dp_it_im

I would be grateful.

In millimeters would be preferred, but beggars can't be choosers...

Regards,
T.C.



[amberwolf]

Mmm..there are multiple possible sizes of those button modules depending on the exact model, brand, etc. Somewhere around here I've got at least three or four different ones. Most are built into displays; I think one is separate with a julet/higo connector. If I run across them I can post their dimensions.

If you need the dimensions of that specific one, someone else will have to chime in.



[aroundqube]

This universal one has L-3.54, W-2.36 , H-1.18 inches . https://www.amazon.com/SUNFECILI-Ve...hvlocphy=&hvtargid=pla-4583657857013079&psc=1



[amberwolf]

BTW, if you want a very good estimate of the dimensions of that actual unit, this image shows a clear crosssection of the handlebar clamp. Since this is almost certainly intended for bicycle handlebars, that will almost certainly be 22.2 mm (7/8″), you could call it 23mm unclamped. Using that dimension you can use pixel counts to determine other dimensions, then those dimensions to determine the last one that's not in that image but is in the one you posted.



[aroundqube]

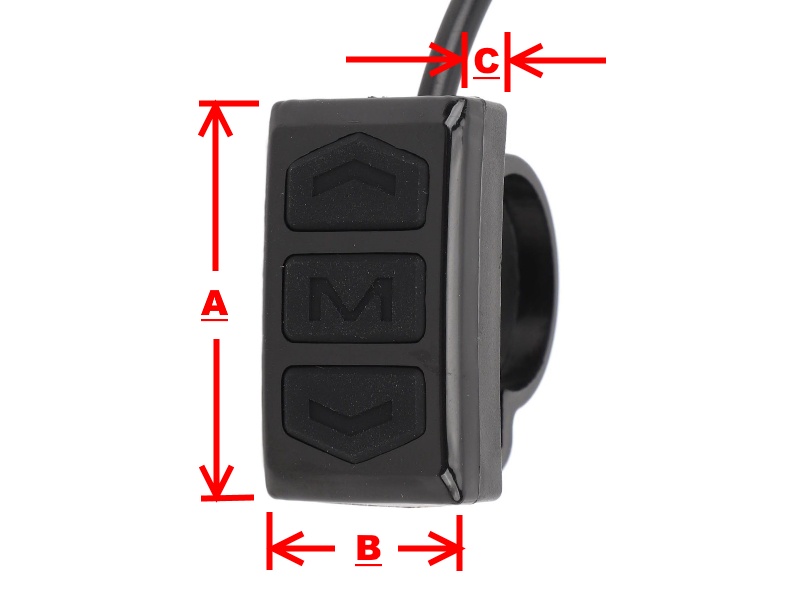

For comparison my LCD-3 handlebar switch measures A- 45.03 mm , B-22.87 mm , C- 10.04 mm at the widest part of the slight curves.



[TommyCat]

Thank you both for the replies.

This universal one has L-3.54, W-2.36 , H-1.18 inches . https://www.amazon.com/SUNFECILI-Ve...hvlocphy=&hvtargid=pla-4583657857013079&psc=1

Yep, I tried the same research and saw the same thing... but it appears to me to be the shipping box overall size. As verified somewhere else... But I salute your effort.

Using that dimension you can use pixel counts to determine other dimensions,

May try this for fun, but not something I would want to stake my life, errrr, money on.

For comparison my LCD-3 handlebar switch measures A- 45.03 mm , B-22.87 mm , C- 10.04 mm at the widest part of the slight curves.

If this is one like the switch I pictured, I will be depending on your dimensions unless someone states otherwise.
