HA thats looking good mate! and pretty light too! I forget, but was this one going to be pedal-able?
Belt driven off road bike (Giant Reign)
- Thread starter 1000w
- Start date
HA thats looking good mate! and pretty light too! I forget, but was this one going to be pedal-able?
1000w
1 kW
sn0wchyld said:
No pedals are planned at this point, it will be my off road bike.
voicecoils
1 MW
Damn. Somehow you've managed to make 20" wheels on a full susser look good! Congrats 8)
Looks like it will be a fun ride & a wheelie machine!
Looks like it will be a fun ride & a wheelie machine!
sico
100 W
Its looking great mate and should be a plush ride.
That pully looks a bit vulnerable in case of a right side down dumping, but I guess that will never happen :wink:
Simon
1000w said:
That pully looks a bit vulnerable in case of a right side down dumping, but I guess that will never happen :wink:
Simon
1000w
1 kW
Cheers guys.

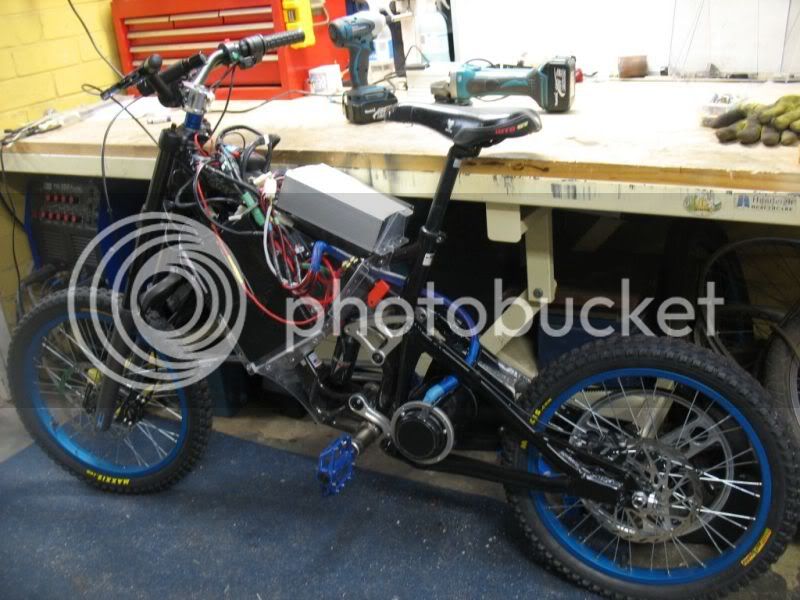

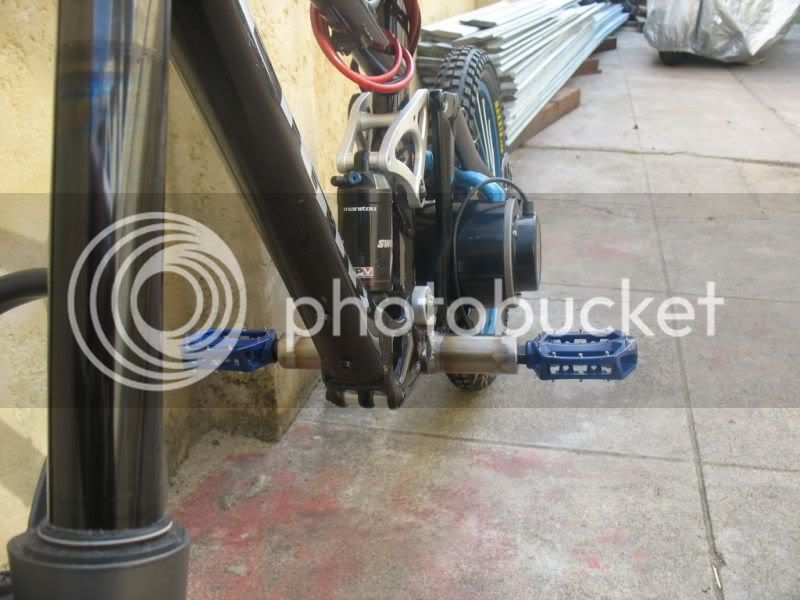

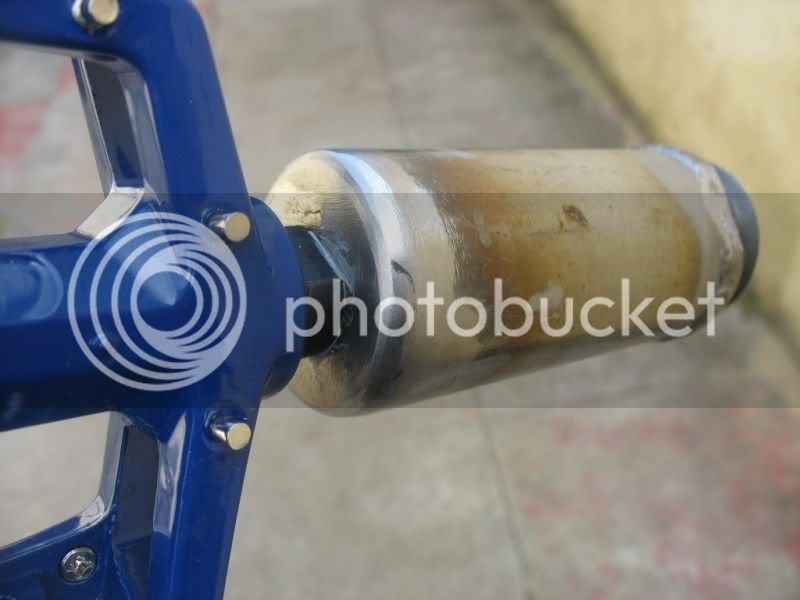

Here are those pedals, well, lets call them foot pegs.

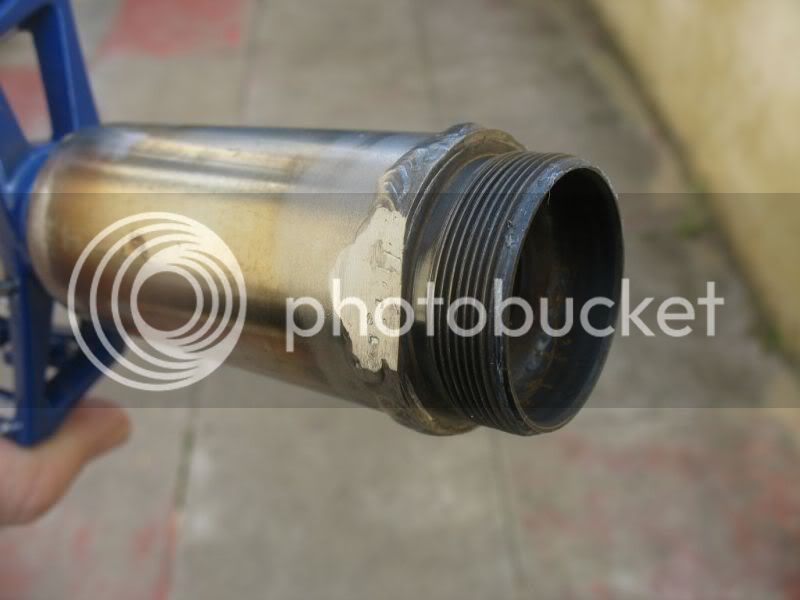

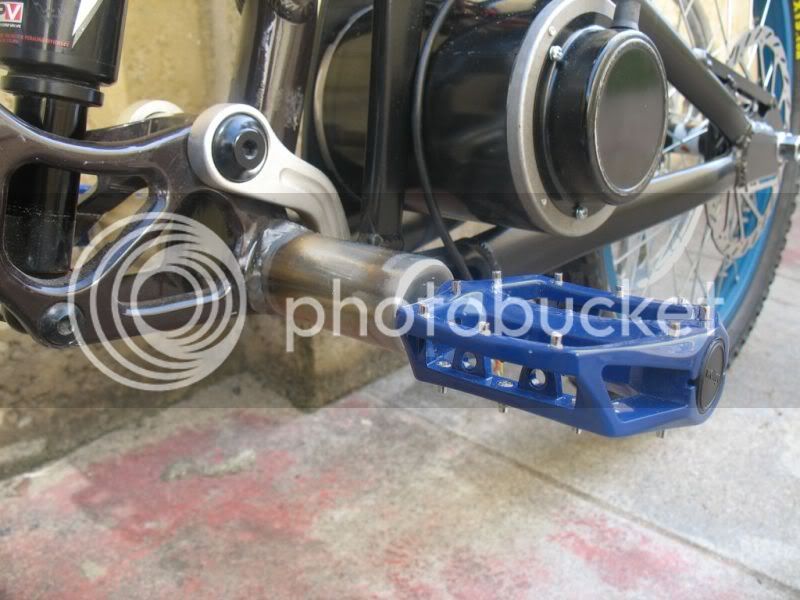

I welded a bottom bracket cup and the threaded end of a steel crank to a 80mm length of 38mm stainless tube.
Here are those pedals, well, lets call them foot pegs.
I welded a bottom bracket cup and the threaded end of a steel crank to a 80mm length of 38mm stainless tube.
AussieJester
1 TW
Nice work Matt, i been holidaying in Bali just got back beginning of week... Shall
give you a buzz over the weekend..
Keep up the good work...
KiM
give you a buzz over the weekend..
Keep up the good work...
KiM
Danny Mayes
1 kW
That looks very cool Mat, i like it.
Can't wait to see it going.
D
Can't wait to see it going.
D
1000w
1 kW

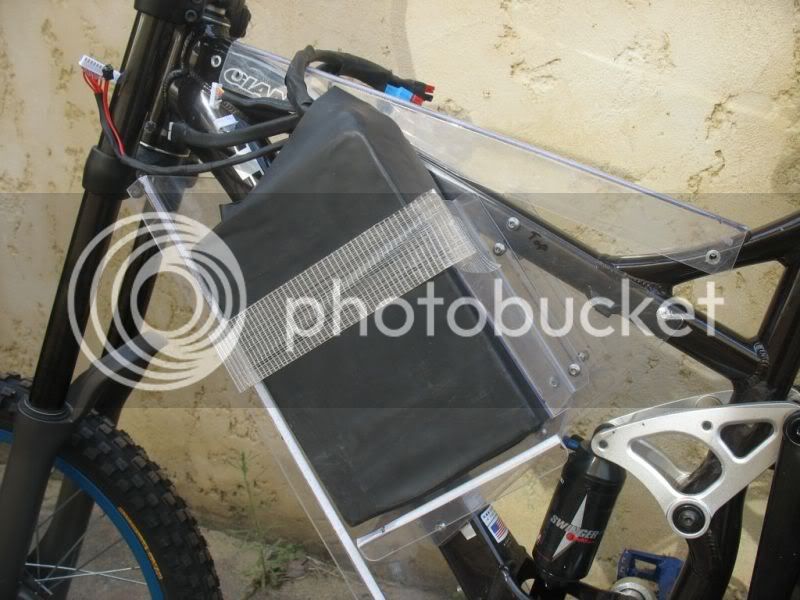

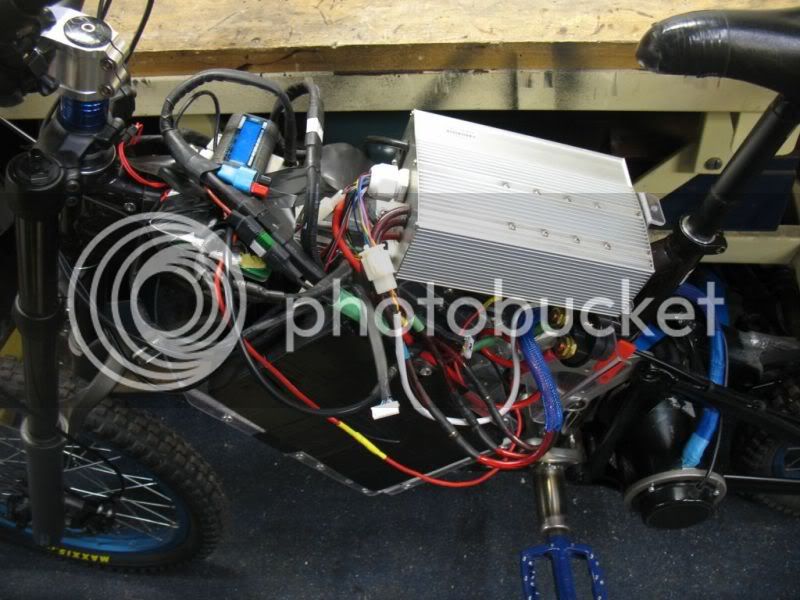

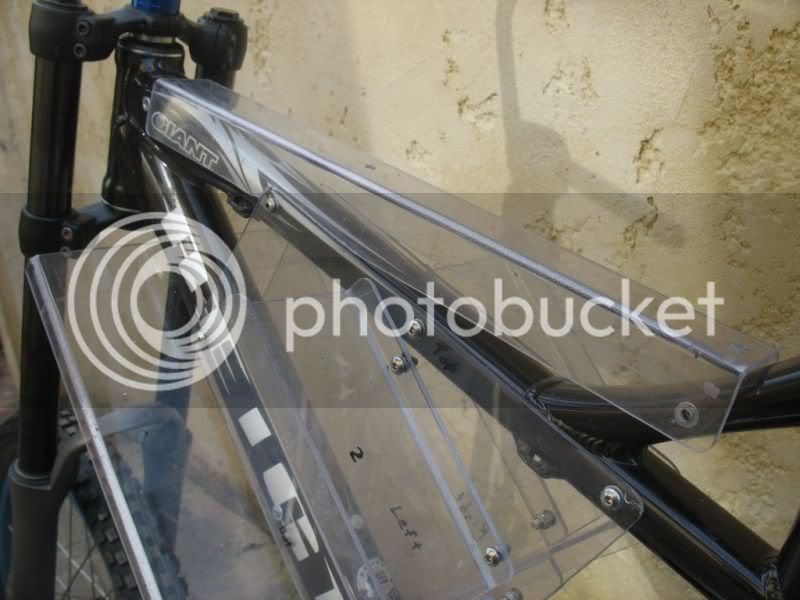

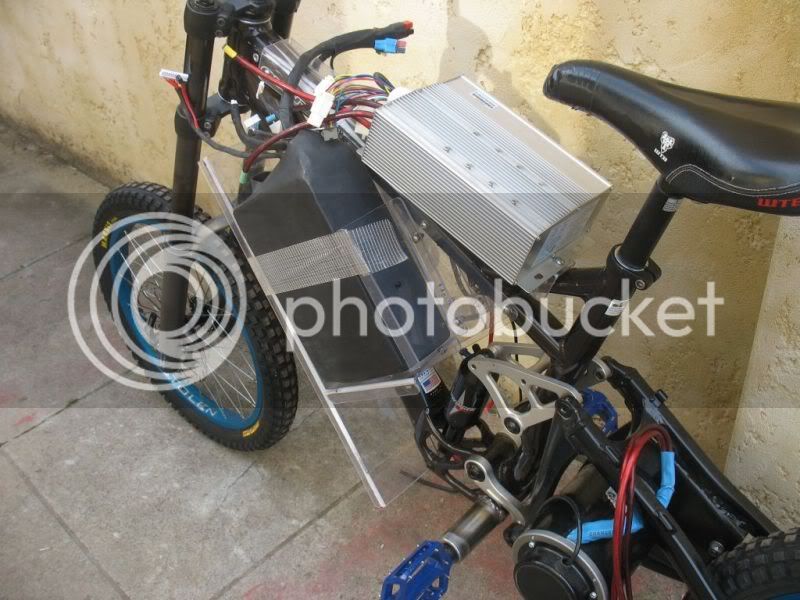

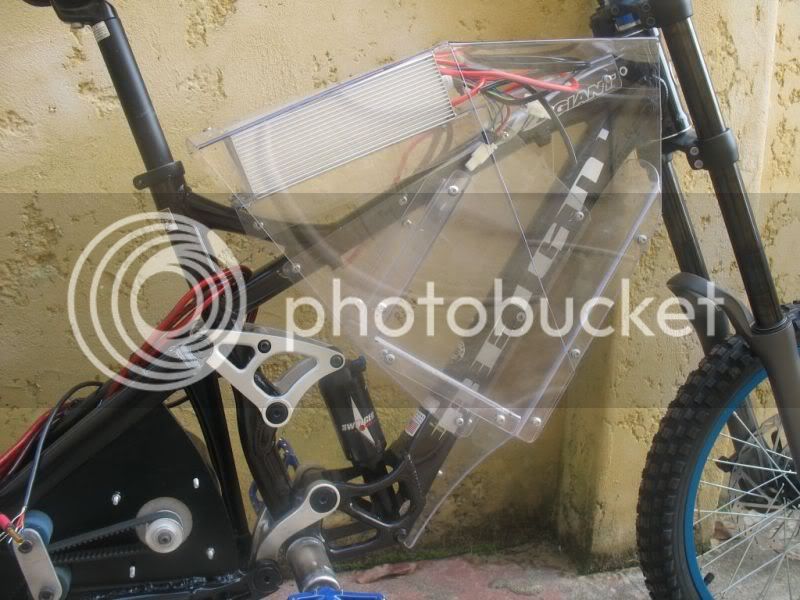

I've made some progress with the battery and controller mounting. I'm using the same lexan material and set up that I used on my Giant NRS build.
dnmun
1 PW
wow. too original. so sweet, luxomatic ride.
AussieJester
1 TW
pimpin' Matt ... Bring her around for a closer inspection please tehehe
Spoke to Tony yesterday, called me about frame, told him 2 weeks and its his
so i have to get my ass into gear and strip the 2 speed cruiser and get the new frame made :: gulp ::
Lookin forward to seeing this rip buddy
KiM
Spoke to Tony yesterday, called me about frame, told him 2 weeks and its his
so i have to get my ass into gear and strip the 2 speed cruiser and get the new frame made :: gulp ::
Lookin forward to seeing this rip buddy
KiM
1000w
1 kW

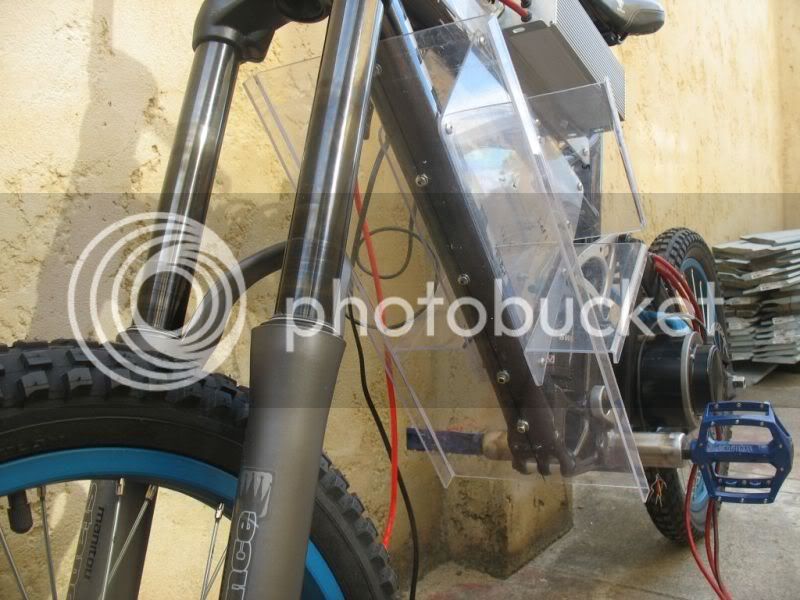

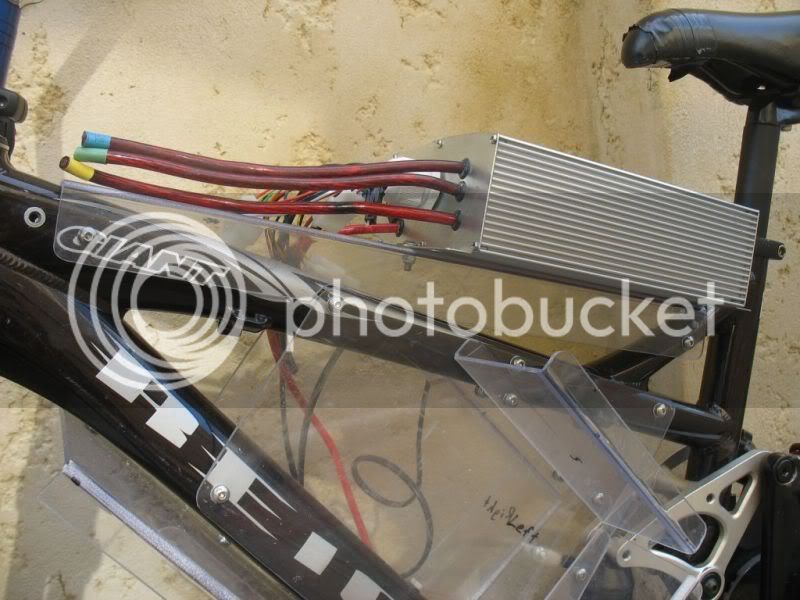

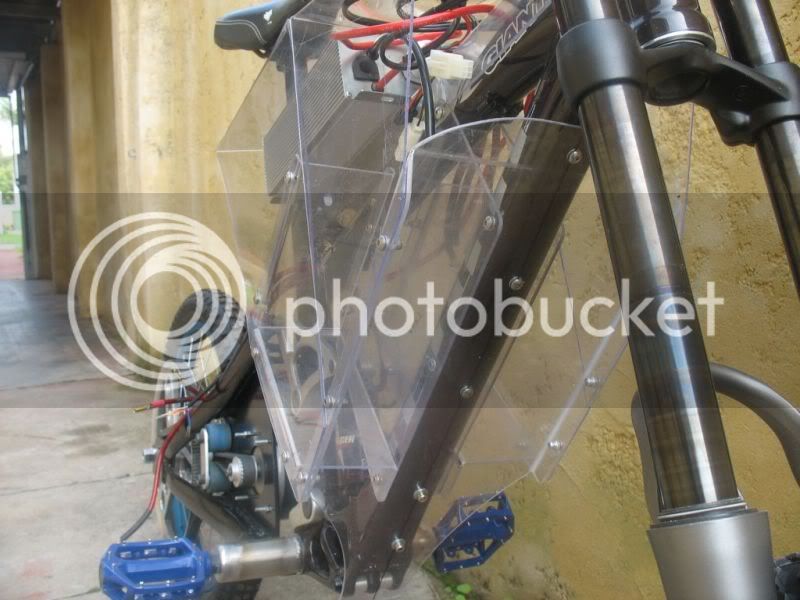

I have basically finished the battery box now, other than covering it with the carbon fibre vinyl which should be in the post.
The box appears fairly large however it all feels fine between my legs, not too wide.
The box appears fairly large however it all feels fine between my legs, not too wide.
AussieJester
1 TW
When the CF is on she will look the business...really looking forward to seeing her rip, turn the juice up on that 24Fet and the EV grin well be HUUUUUGE.... LOL
KiM
KiM
1000w
1 kW
I have now got this bike running, well thrown together, so I can test the belt drive and idler pulleys.
The original set up with an idler on both sides of the belt proved to be no good. I couldn't get the belt to track correctly and stay on the drive pulley so the tension side(top) pulley had to go.
So I had this.

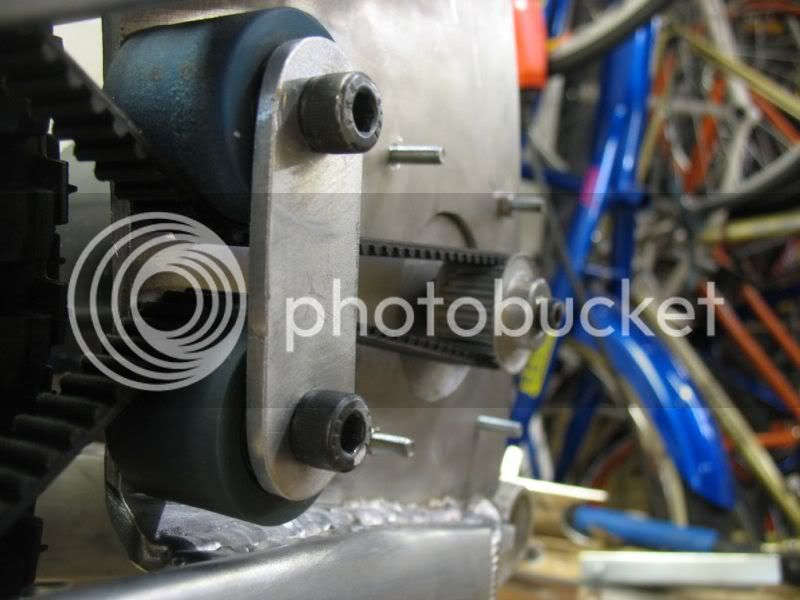

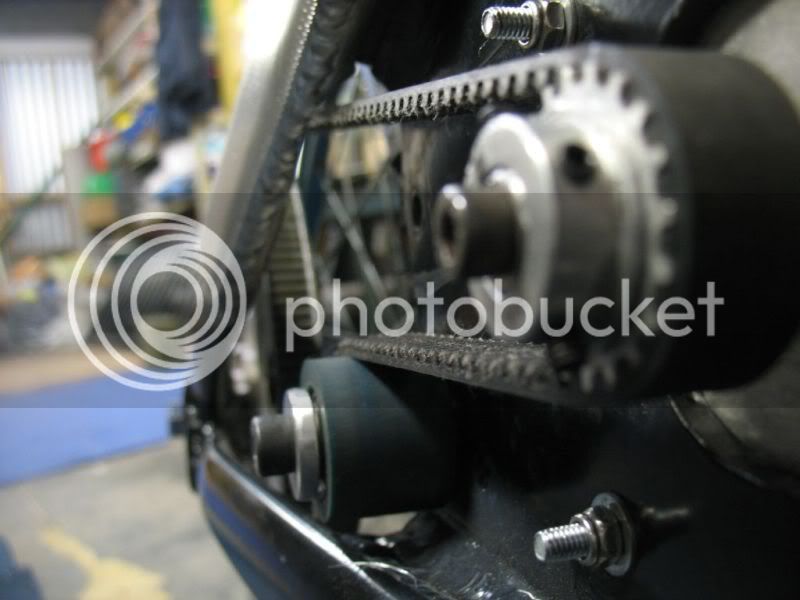

And now I have this.

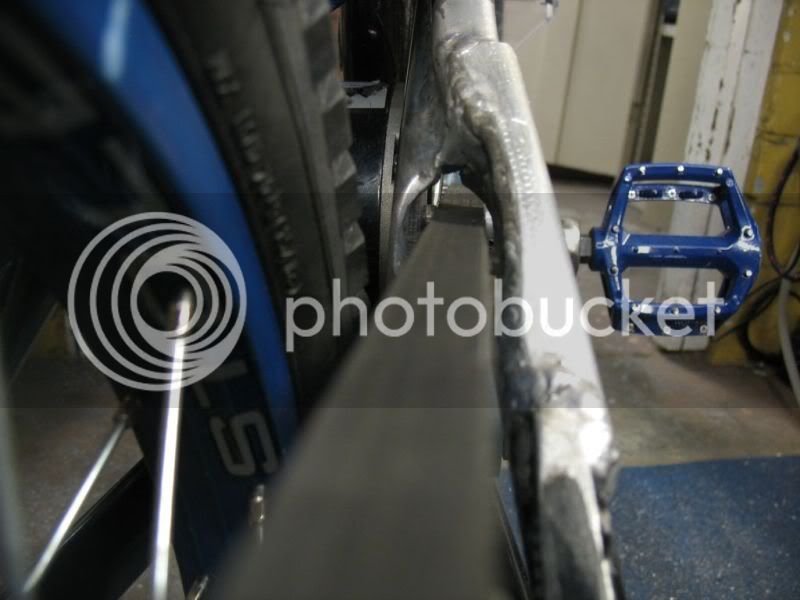

This involved some more modification to the top chain stay so I could get a straight belt line.

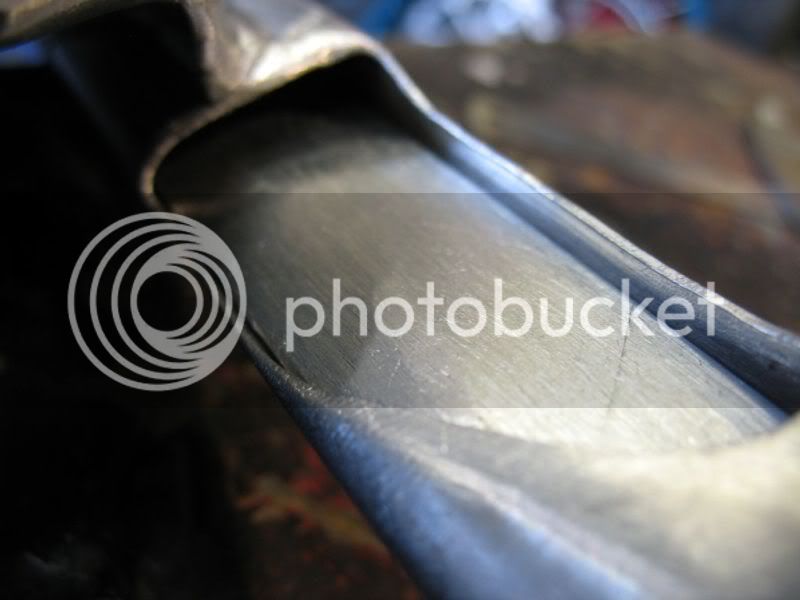

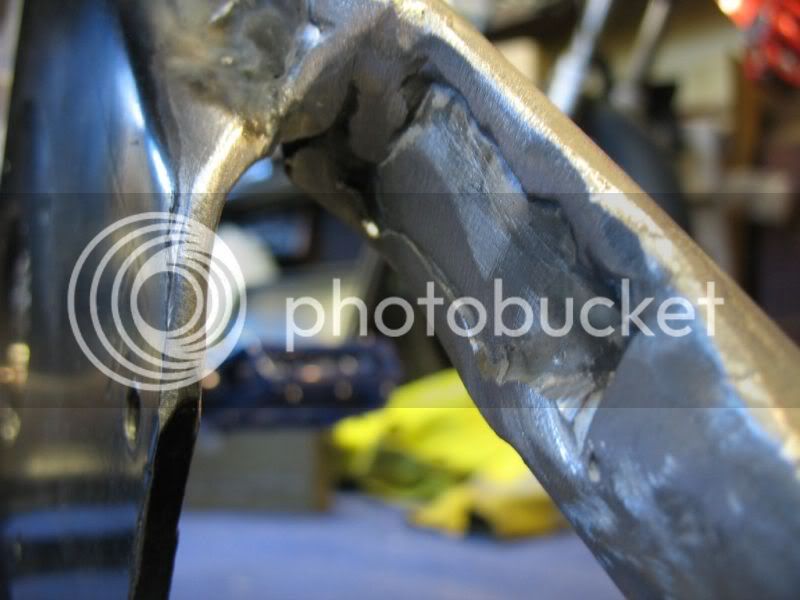

Some material removal.

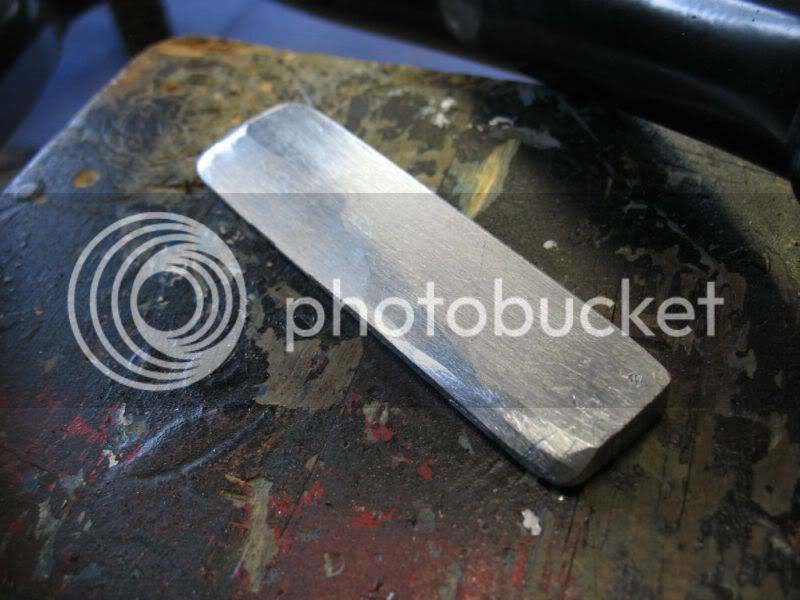

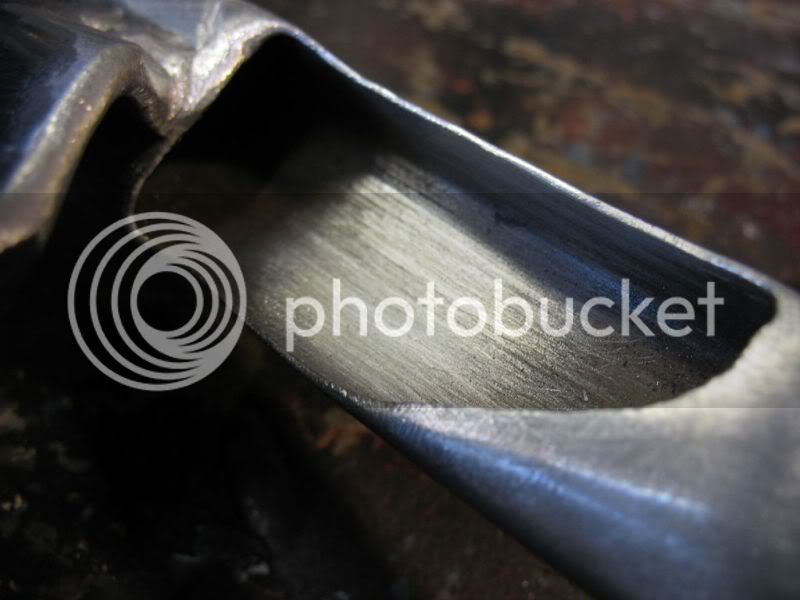

And some material addition, this is some 6mm plate shaped to fit inside the chain stay.
Plate inside the chain stay.

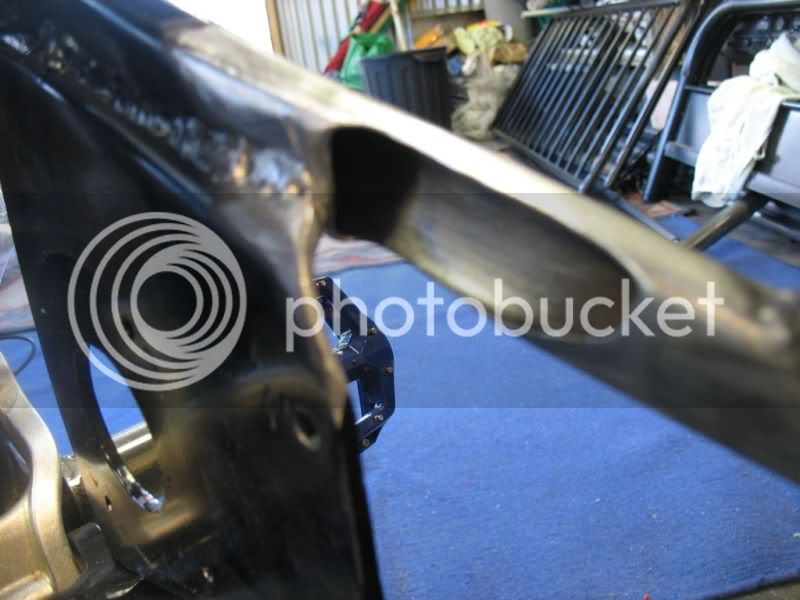

This is welded in and partly ground smooth, still a little rough here.

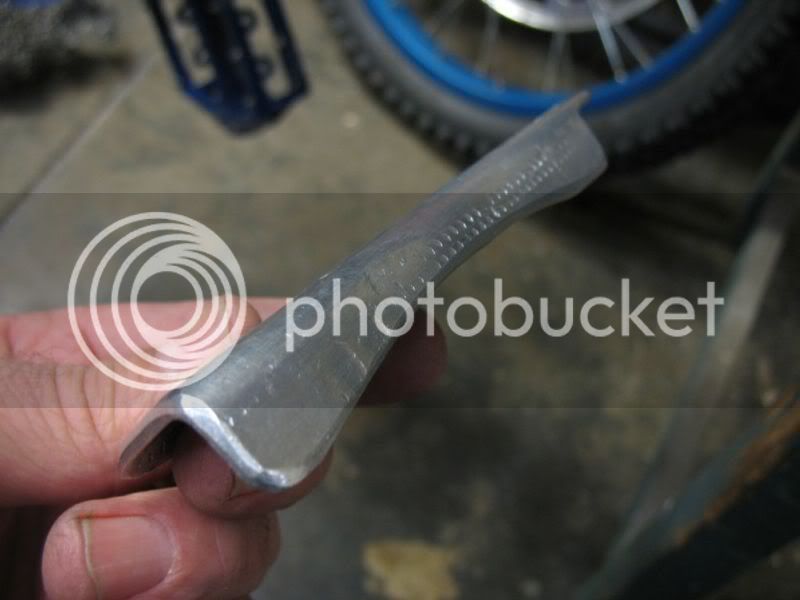

I decide to add some material to the outside as well, this is 4mm plate bent 90 deg and shaped.
Then welded up.

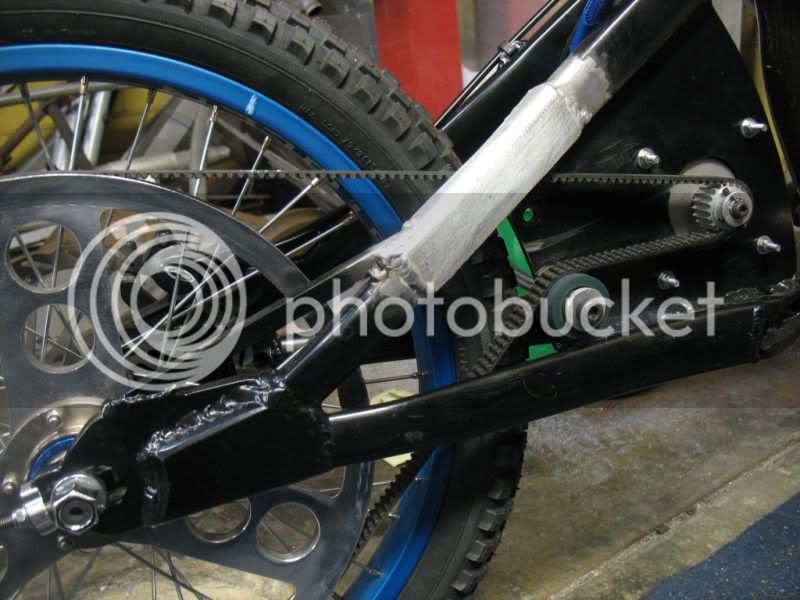

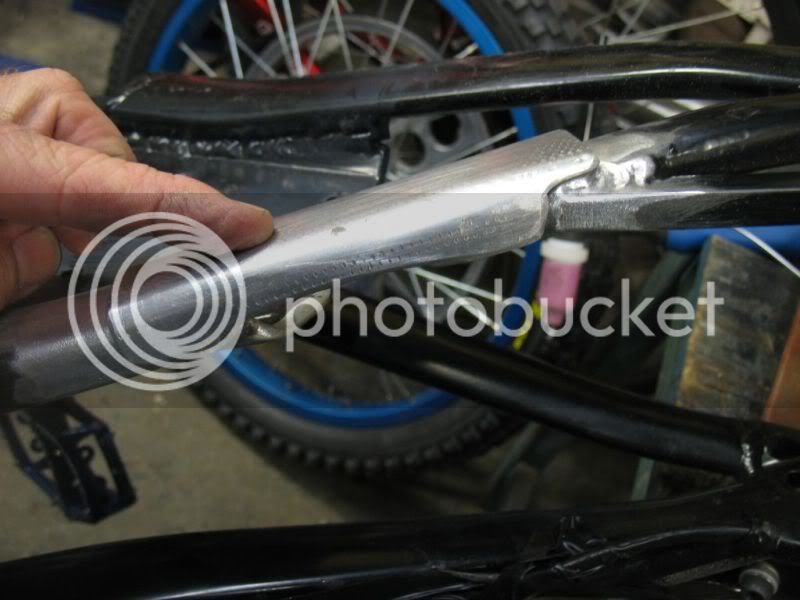

Now I have a straight belt line.
This is how it all looks in testing mode.
Now how does a Cyclone 3000watt motor go on 66volts and 100amps?
Unbelievable! This thing is a monster at 6500watts. The front wheel was lifting just with throttle ie with no help from me pulling back.
Loads of torque, it doesn't seem to slow down on hills and the speed is right where I calculated, 50kmh or just over, I'll put a speedo on soon.
I have only ridden it for about 10min tonight so I still have some small things to sort out, but it gave me a sizeable EV grin.
Cheers,
The original set up with an idler on both sides of the belt proved to be no good. I couldn't get the belt to track correctly and stay on the drive pulley so the tension side(top) pulley had to go.
So I had this.
And now I have this.
This involved some more modification to the top chain stay so I could get a straight belt line.
Some material removal.
And some material addition, this is some 6mm plate shaped to fit inside the chain stay.
Plate inside the chain stay.
This is welded in and partly ground smooth, still a little rough here.
I decide to add some material to the outside as well, this is 4mm plate bent 90 deg and shaped.
Then welded up.
Now I have a straight belt line.
This is how it all looks in testing mode.
Now how does a Cyclone 3000watt motor go on 66volts and 100amps?
Unbelievable! This thing is a monster at 6500watts. The front wheel was lifting just with throttle ie with no help from me pulling back.
Loads of torque, it doesn't seem to slow down on hills and the speed is right where I calculated, 50kmh or just over, I'll put a speedo on soon.
I have only ridden it for about 10min tonight so I still have some small things to sort out, but it gave me a sizeable EV grin.
Cheers,
grindz145
1 MW
Sick! Nice job!
Where do you source your belt-drive components? (minus the custom giant sprocket
Where do you source your belt-drive components? (minus the custom giant sprocket
1000w
1 kW
grindz145 said:Sick! Nice job!
Where do you source your belt-drive components? (minus the custom giant sprocket
From here: https://sdp-si.com/eStore/
Cheers,
grindz145
1 MW
Sweet thanks!
boostjuice
10 kW
1000w said:
This is all very exciting! Im curious to know the saturation point for these motors (and whether or not you've surpassed it), as well as what sort of power bursts you find the motor can handle repetitively though a full battery's worth of technical trail riding (safe thermal equilibrium point)
BTW, Nicely resolved dropout clearance issue... alu welding certainly opens up possibilities. should be more efficient too. Beaut job!
bzhwindtalker
100 kW
I like this bike!
This motor sure looks interesting, plenty of power to boot and rugged build. Testing it to destruction for us?
I see you did a motorcycle type brake levers setup, should be standard on all wheelie prone bikes
This motor sure looks interesting, plenty of power to boot and rugged build. Testing it to destruction for us?
I see you did a motorcycle type brake levers setup, should be standard on all wheelie prone bikes
Tommy L
100 kW
Sweeeeeeeeet!
Tommy L sends......
Tommy L sends......
waynebergman
100 kW
Can you tell me please where you got the wheels and tires? ......they look real nice!
Are they intended for trials?
How much for the rims and tires do you remember?
Thanks Wayne
Are they intended for trials?
How much for the rims and tires do you remember?
Thanks Wayne
1000w
1 kW
Hey Wayne,
Here you go.
This is the rims.
http://www.chainreactioncycles.com/Models.aspx?ModelID=46923
These are the tyres, I have the 2.25 width.
http://www.chainreactioncycles.com/Models.aspx?ModelID=9411
Cheers,
Matt.
Here you go.
This is the rims.
http://www.chainreactioncycles.com/Models.aspx?ModelID=46923
These are the tyres, I have the 2.25 width.
http://www.chainreactioncycles.com/Models.aspx?ModelID=9411
Cheers,
Matt.
jonescg
100 MW
Any updates Matt? I see there was a good 9 months or so between posts
1000w
1 kW
This one is on the back burner as I used the battery from this one for the cargo bike.
1000w
1 kW
Ok a year has passed since I last worked on this bike, I lost interest after burning a 24 Fet controller.
So I dragged the bike off the back burner last week and fitted a new 24 Fet and did some bench testing and discovered that I must have had a false positive with the phase and hall wire combinations.
With the rear wheel off the ground,ie no load, it was pulling 8 amps which I thought was slightly too high. The motor got quite hot with in 2 minutes like this.
Through trial and error I found a combo that pulls only 1.5 amps no load, stoked! But now I know why I burned the other controller.
I finished the battery cover and went for a test ride last night, I haven't done any programming on the infineon yet but it's pulling 95 amps at 70 volts out of the box, simply awesome! It power wheelies no trouble and spins the rear in sand. I've only run it for about 5 minutes and the cyclone motor is not too hot so far.

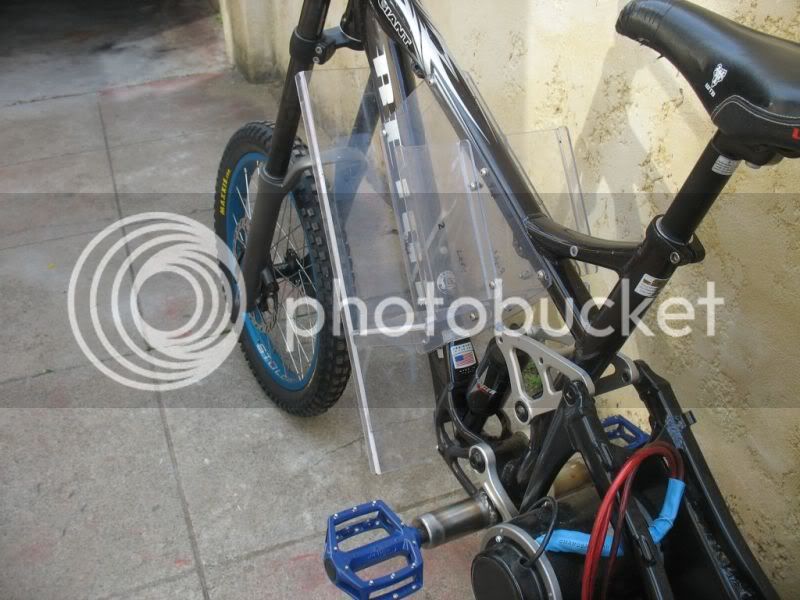

Here's the latest photos.
So I dragged the bike off the back burner last week and fitted a new 24 Fet and did some bench testing and discovered that I must have had a false positive with the phase and hall wire combinations.
With the rear wheel off the ground,ie no load, it was pulling 8 amps which I thought was slightly too high. The motor got quite hot with in 2 minutes like this.
Through trial and error I found a combo that pulls only 1.5 amps no load, stoked! But now I know why I burned the other controller.
I finished the battery cover and went for a test ride last night, I haven't done any programming on the infineon yet but it's pulling 95 amps at 70 volts out of the box, simply awesome! It power wheelies no trouble and spins the rear in sand. I've only run it for about 5 minutes and the cyclone motor is not too hot so far.
Here's the latest photos.
sn0wchyld
100 kW
200w? BAHHAHAHAHAHAAHAHAAAAA
Love it mate. gonna do some vids?
